Cooler Master V1300 Platinum 1300W power supply MPZ-D001-AFBAPV-WU
A 1300W fully modular ATX power supply with 80 PLUS Platinum efficiency, a quiet 135mm FDB fan, single or multi-rail switching, and 16 SATA connectors
- TypeATX12V
- Maximum Power1300 W
- Fans1 x 135 mm FDB fan
- PFCActive
- Main Connector24Pin
- PCI-Express Connector6 x 6+2-Pin

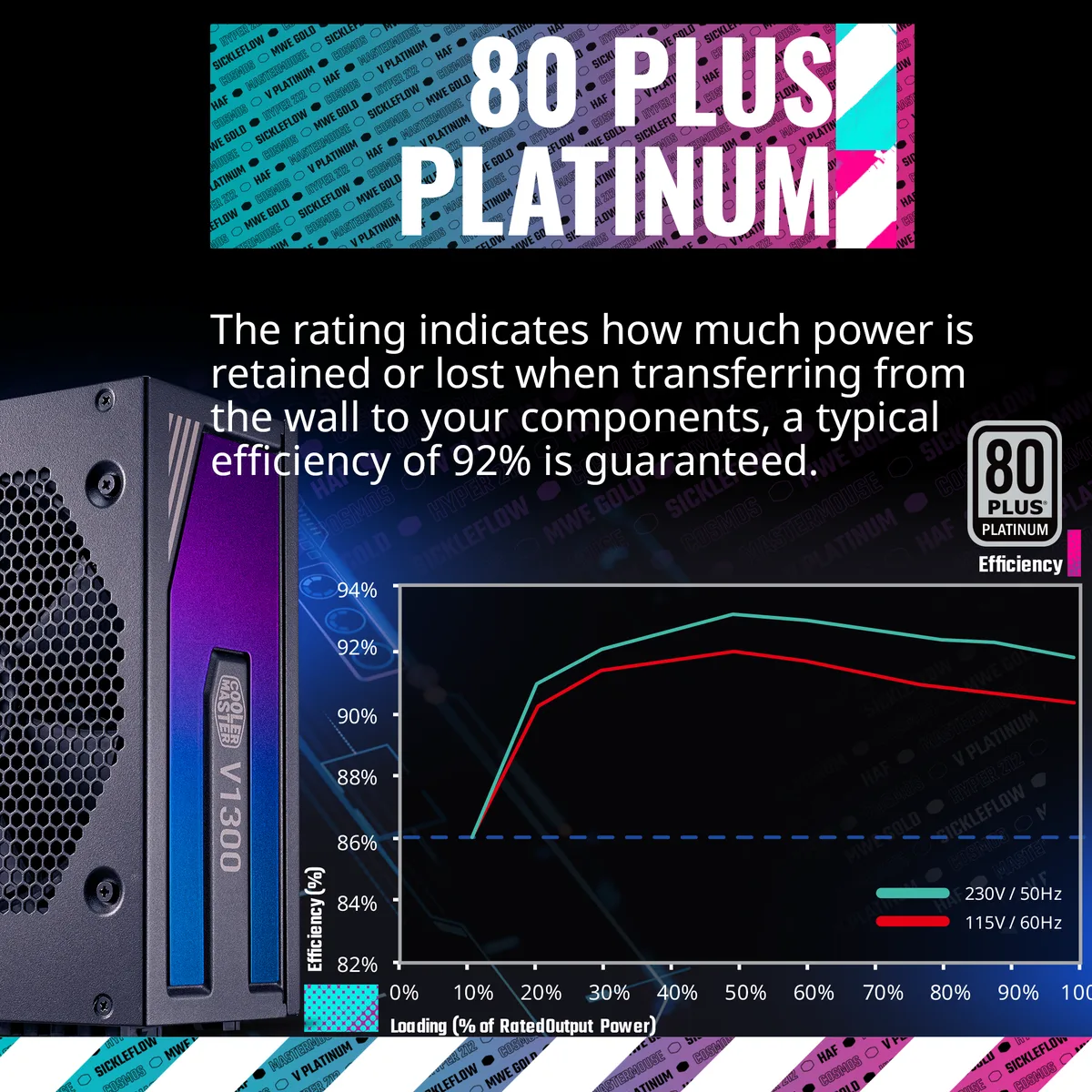

- 80 PLUS Platinum certified for 92% typical efficiency

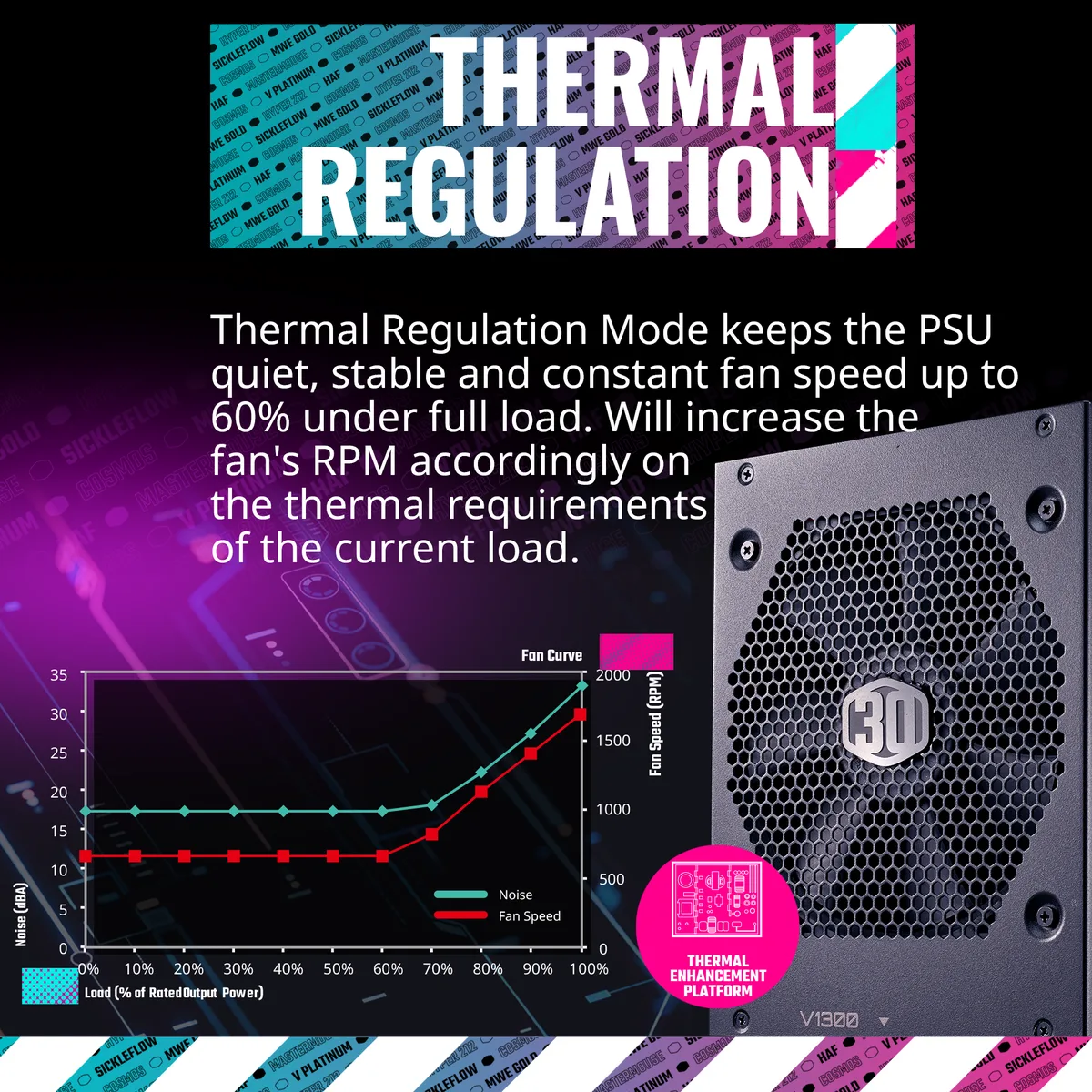

- 135 mm FDB fan runs at 17.1 dB up to 50% load
- Single/multi rail switch adapts power delivery to build needs
- 16 AWG PCI-e cables support higher current with 12 connectors
- Fully modular design with 16 SATA and 8 peripheral connectors
1300 W ATX Power Supply for High-Power Builds
This fully modular unit delivers 1300 W of continuous power and holds 80 PLUS Platinum certification for 92 percent typical efficiency. It is designed for enthusiasts and workstations that demand stable output across multiple high-end components.

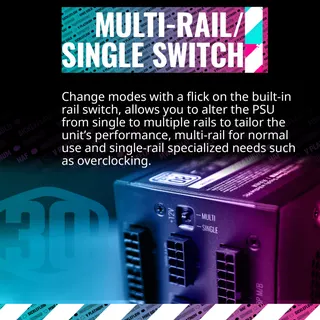

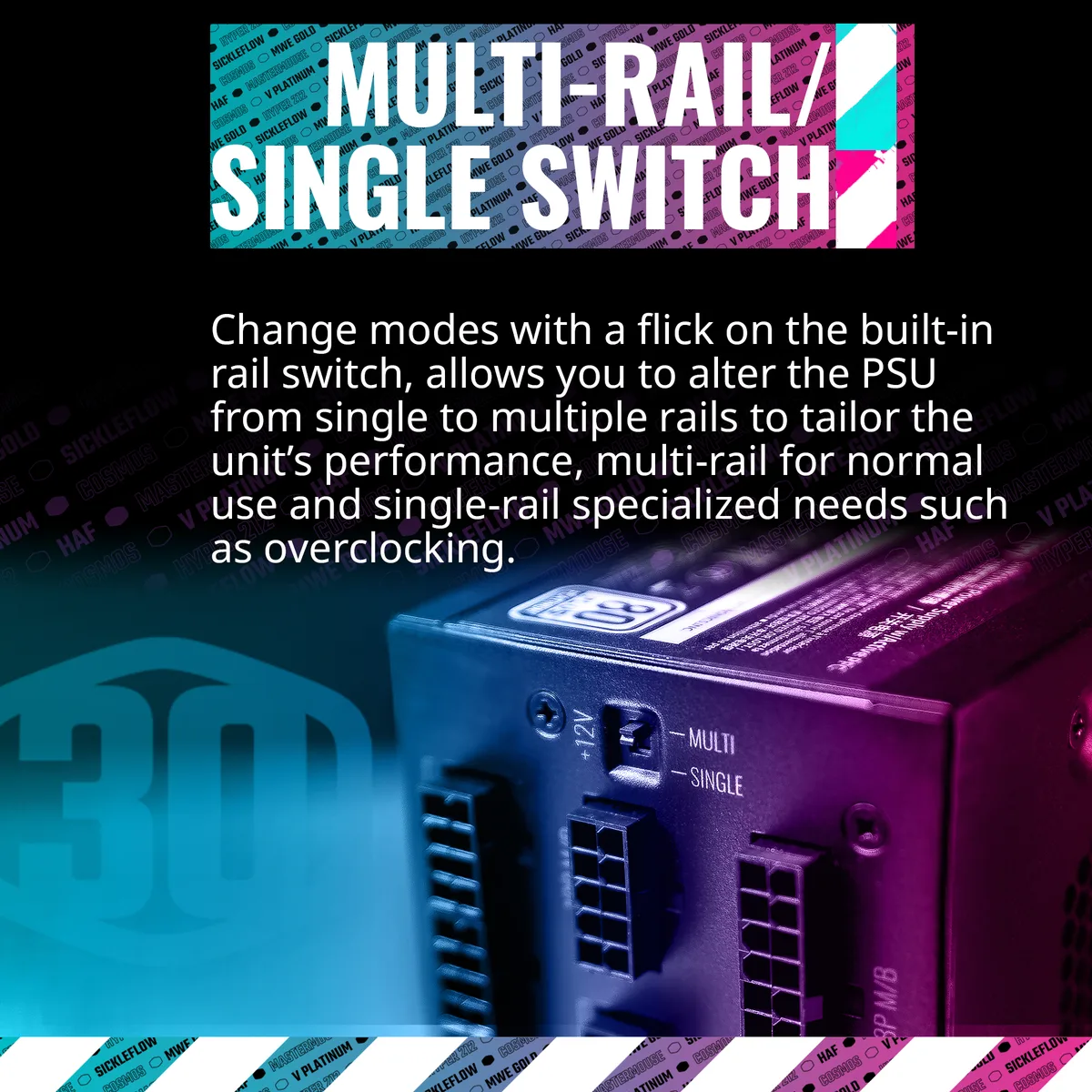

Single Multi Rail Switch and 16 AWG PCIe Cables
A physical switch lets you choose between single-rail and multi-rail 12 V operation to match your protection preference. The six included PCIe cables use thicker 16 AWG conductors to handle higher current with less voltage drop.
202 mm Depth and Connector Count Compatibility
Verify that your case can accommodate a power supply up to 202 mm long before ordering. Ensure your motherboard and graphics cards can use the provided 24-pin ATX, EPS 4+4-pin, EPS 8-pin, 12 PCIe 6+2-pin, 16 SATA and 8 peripheral connectors.
Highlights
- 80 PLUS Platinum certified for 92% typical efficiency
- 135 mm FDB fan runs at 17.1 dB up to 50% load
- Single/multi rail switch adapts power delivery to build needs
- 16 AWG PCI-e cables support higher current with 12 connectors
- Fully modular design with 16 SATA and 8 peripheral connectors
Specifications
| Brand | Cooler Master |
|---|---|
| Series | V Platinum series |
| Model | MPZ-D001-AFBAPV-WU |
| Type | ATX12V |
| Maximum Power | 1300 W |
| Fans | 1 x 135 mm FDB fan |
| PFC | Active |
| Main Connector | 24Pin |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 16 |
| Max PSU Length | 202 mm |
| Modular | Full Modular |
| Power Good Signal | 100-150 ms |
| Hold-up Time | >=20ms |
| Efficiency | >=92% @ Typical Load |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| PSU Noise Level | Noise @ 20% 17.1 Noise @ 50% 17.1 Noise @ 100% 33 |
| Protection | OVP / OPP / SCP / OCP / UVP / OTP / Surge & Inrush Protection |
| Input Voltage | 110 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15-8A |
| Output | +3.3V@25A, +5V@25A, +12V1@54A, +12V2@54A, [email protected] , +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | cTUVus, TUV, CE, CCC, FCC, EAC, RCM, BSMI, KC, UKCA |
| Connectors | ATX 24 Pin: 1x = 1x (650mm) EPS 4+4 Pin: 1x = 1x (650mm) EPS 8 Pin: 1x = 1x (750mm) SATA: 16x = 3x (500+120+120+120mm) & 1x (550+120+120+120mm) Peripheral 4 Pin: 8x = 2x (500+120+120+120mm) PCI-e 6+2 Pin: 12x = 6x(650+120mm) |
| Dimensions | 7.48 x 5.91 x 3.39" |
| Weight | 7.998 lbs |

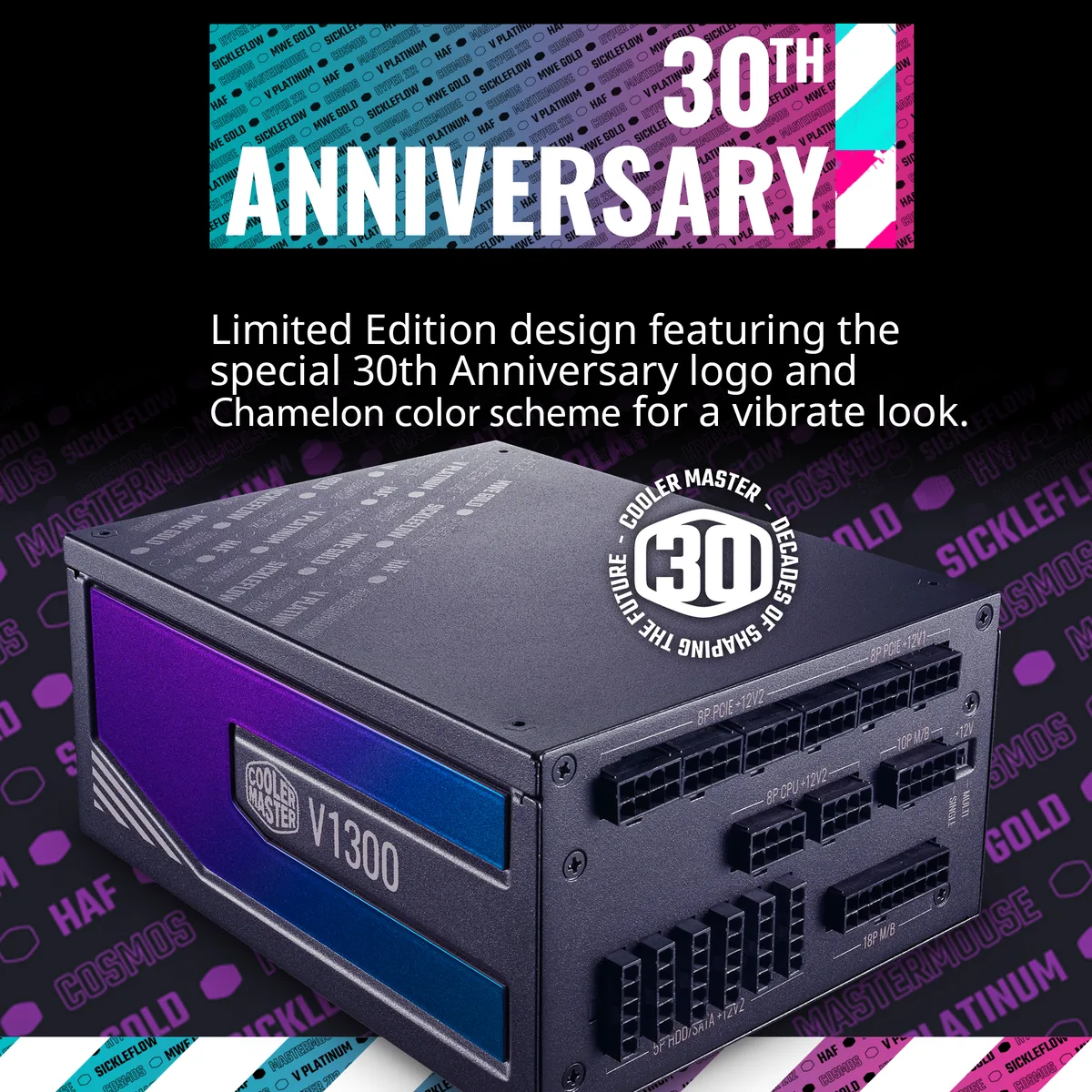

| Package Content | V1300 Platinum 30th Anniversary Platinum Connectors Power Cord 4x screws Manuel |
| Shipping weight | 4.25 kg |
| Package size | 355 × 208 × 130 mm |
Questions about this item
Will the 202 mm length fit in a mid-tower case with limited clearance?
The power supply is 202 mm long; measure the available depth from the motherboard tray to the drive cage or side panel to confirm fit.
How many graphics cards can be powered simultaneously with the PCIe connectors?
Six 6+2-pin PCIe cables are included, supporting up to six 8-pin or twelve 6-pin connections for multi-GPU builds.
What does the single/multi-rail switch change for a typical gaming system?
Single-rail mode delivers the full 12 V capacity on one rail; multi-rail splits it into two 54 A rails for added per-rail over-current protection.
