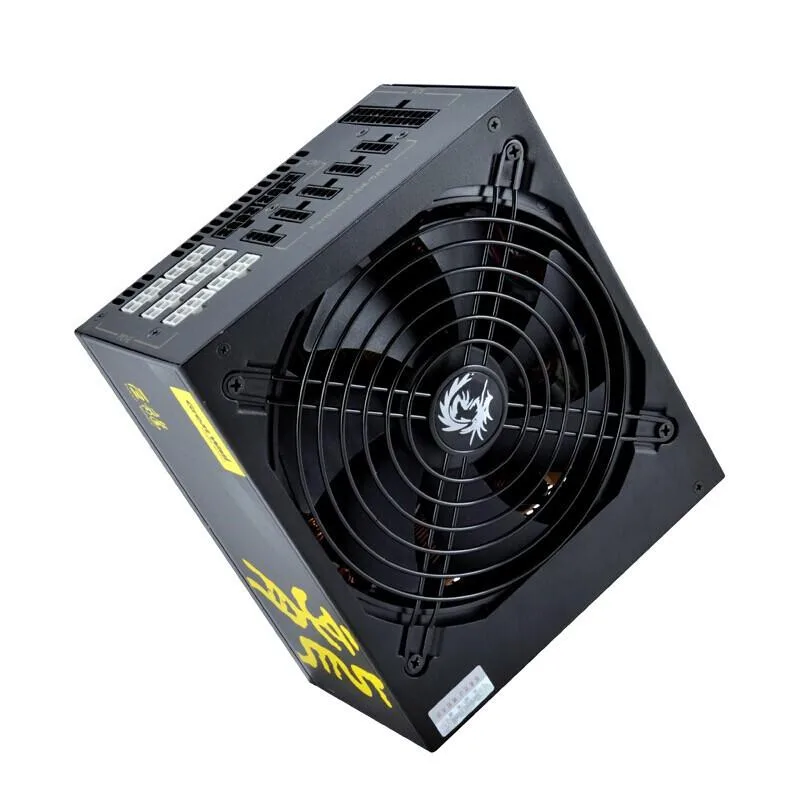

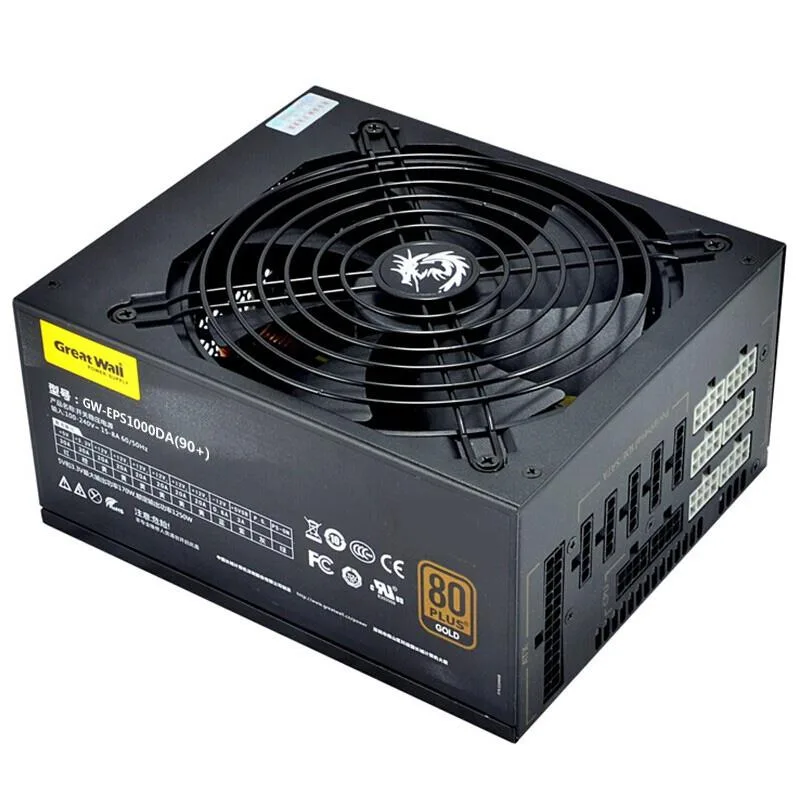

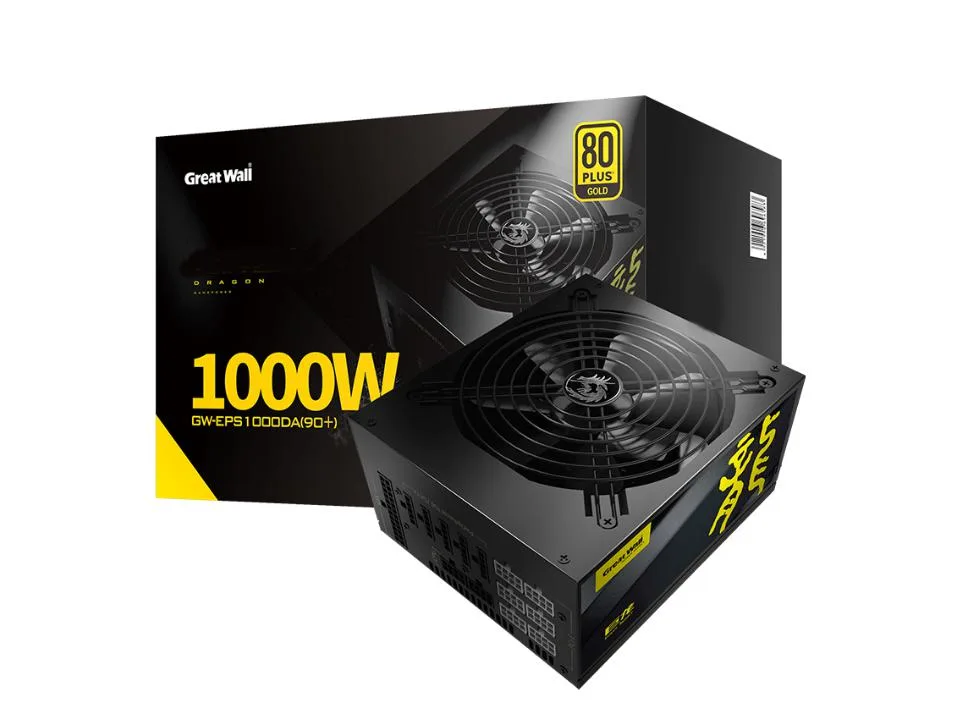

Black fully modular ATX power supply with 140mm fan and sleeved cables

Corn Electronics

Corn Electronics GW800 1000W ATX Power Supply

SKU CH-8TKQ-RC8VQ MPN GW800

Fully modular ATX power supply delivers 1000 W with 80 Plus Gold efficiency, a 140 mm fan, Japanese capacitors and full protection suite

  • ColorBlack
  • TypeATX12V / EPS12V
  • Maximum Power1000 W
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector20+4Pin
  • 80 PLUS Gold efficiency keeps running costs low
  • Fully modular cables simplify builds and improve airflow
  • 140 mm fan moves more air at lower noise
  • Japanese electrolytic capacitors raise long-term reliability
  • Comprehensive protection suite guards components against faults

1000 W Fully Modular ATX Supply

The Corn Electronics GW800 delivers 1000 W through an ATX12V and EPS12V design. Full modular cabling lets builders connect only the leads they need. Eighty Plus Gold certification confirms better than ninety percent efficiency at typical loads. It suits high-end desktop systems that demand clean, reliable power.

140 mm Ball-Bearing Fan and Active PFC

A single 140 mm ball-bearing fan moves large air volume while staying quiet in normal operation. Active power factor correction and an LLC resonant plus DC-to-DC topology keep input current stable across 100 to 240 V mains. Japanese electrolytic capacitors support the rated output at up to forty degrees Celsius ambient. Protections include OVP, UVP, OCP, OPP, OTP and SCP.

Compact 175 mm Depth with Rich Connector Set

The unit measures 175 mm deep, fitting standard ATX bays without clearance issues. Six 6+2-pin PCIe leads feed multiple graphics cards, while seven SATA and three peripheral connectors handle drives and accessories. A 20+4-pin main and a 4+4-pin EPS connector cover modern motherboards. Full Japanese capacitors and a hundred thousand hour MTBF underline long-term durability.

Highlights

  • 80 PLUS Gold efficiency keeps running costs low
  • Fully modular cables simplify builds and improve airflow
  • 140 mm fan moves more air at lower noise
  • Japanese electrolytic capacitors raise long-term reliability
  • Comprehensive protection suite guards components against faults

Specifications

ModelGW800
ColorBlack
TypeATX12V / EPS12V
Maximum Power1000 W
Fans1 x 140 mm
PFCActive
Main Connector20+4Pin
+12V RailsYes
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector7
Max PSU Length175 mm
ModularFull Modular
Efficiency> 90%
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10A @ 115V, 5A @ 230V
MTBF>100,000 Hours
Dimensions175 × 150 × 86mm

Questions about this item

How do I install the fully modular GW800 and which cable routing mistake should I avoid?

Mount the 175 mm long unit in the case, connect only the cables your build needs, and route the 24-pin ATX and 8-pin EPS cables behind the motherboard tray so they do not block the 140 mm fan intake.

What maintenance or replacement will the GW800 need after extended use?

The 140 mm ball-bearing fan is the only moving part; clean dust from its blades and the ventilation grilles periodically, and expect the unit to reach its rated 100,000 hour MTBF before any internal component requires replacement.

What limit appears first when the GW800 runs at full load for long periods?

The internal temperature will hit the 40 °C maximum operating limit before the 1000 W output or any protection circuit becomes the restricting factor.
