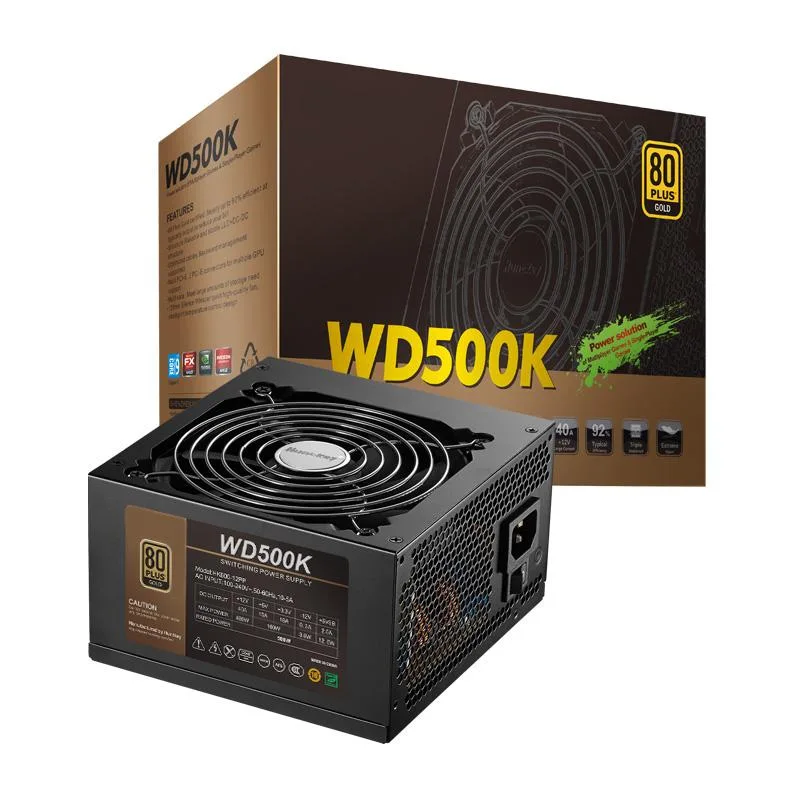

Black ATX power supply unit with 120 mm hydraulic fan and modular cables

Corn Electronics

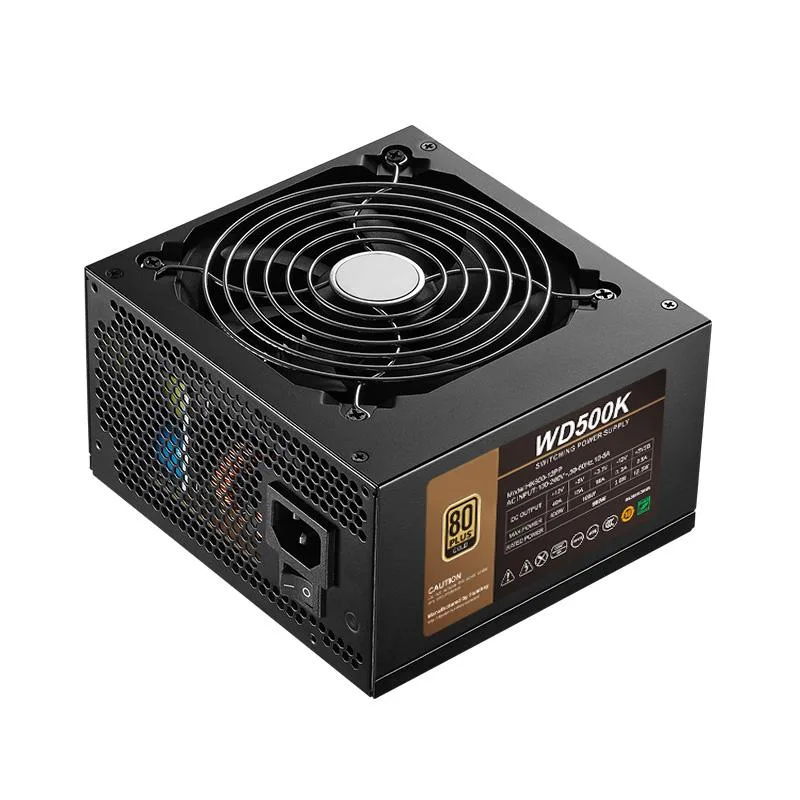

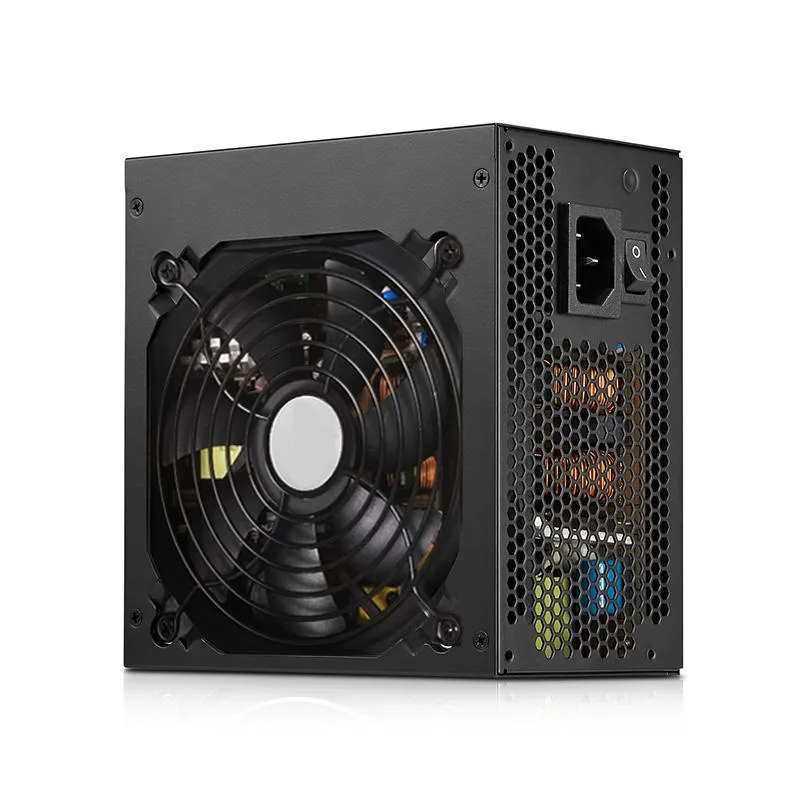

Corn Electronics WD500K 500 W power supply 80 Plus Gold 120 mm hydraulic fan Black

SKU CH-0CR3-XNAYC

ATX 500 W unit with 80 Plus Gold efficiency, a 120 mm hydraulic fan and active PFC

  • ColorBlack
  • TypeATX
  • Maximum Power500 W
  • Fans1 x 120 mm
  • PFCActive
  • Main Connector20+4Pin

Options 500W

  • 80 Plus Gold certification delivers over 85 percent efficiency
  • 120 mm hydraulic fan provides quiet cooling with automatic speed control
  • 500 W continuous output supports mid-range builds with Active PFC
  • LLC plus DC-DC topology ensures stable voltage across all rails
  • Compact 150 mm depth fits most ATX cases

Power supply for compact builds

The Corn Electronics WD500K is a 500 W ATX unit rated for 80 Plus Gold efficiency. It suits builders assembling office or entry-level gaming systems that draw moderate power from the wall.

150 mm depth with hydraulic cooling

A single 120 mm hydraulic fan provides automatic speed control for quiet operation. The compact 150 mm length fits many smaller cases while the 20+4 pin and CPU cables reach 50 cm and 65 cm respectively for tidy routing.

Connector limits define upgrade scope

Two 6+2 pin PCIe plugs restrict graphics choices to cards needing no more than two such connectors. Four SATA power leads and two four-pin peripheral plugs cap the number of drives and accessories you can attach.

Highlights

  • 80 Plus Gold certification delivers over 85 percent efficiency
  • 120 mm hydraulic fan provides quiet cooling with automatic speed control
  • 500 W continuous output supports mid-range builds with Active PFC
  • LLC plus DC-DC topology ensures stable voltage across all rails
  • Compact 150 mm depth fits most ATX cases

Specifications

ColorBlack
TypeATX
Maximum Power500 W
Fans1 x 120 mm
PFCActive
Main Connector20+4Pin
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector4
Max PSU Length150 mm
Efficiency> 85%
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Overload ProtectionYes
MTBF>50,000 Hours
Size/Dimensions150(L)x140(W)x86(H) mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 80 Plus Gold rating mean for a 500 W unit in real use?

The 80 Plus Gold rating means the unit delivers over 85 percent efficiency at typical loads, reducing heat and electricity waste compared with lower-rated supplies.

Will the 150 mm long chassis and 120 mm hydraulic fan fit a standard ATX case?

The 150 mm length and 86 mm height match standard ATX dimensions, and the single 120 mm hydraulic fan mounts in the usual rear or bottom position without clearance issues.

How do I connect the 20+4 pin main cable and the two 6+2 pin PCIe cables without mixing them up?

The 20+4 pin cable is 50 cm long and keyed for the motherboard socket, while the 6+2 pin PCIe pair shares a 65 cm cable — plug the split end into the graphics card and the single end into the PSU.
