Black dual-tower CPU cooler with two 120mm ML fans and nickel-plated fins

Corsair

Corsair A500 CT-9010003-WW CPU cooler

SKU CH-1W66-F8A90 MPN CT-9010003-WW

Dual-fan air cooler with four direct-contact copper heat pipes handles up to 250W TDP, includes two ML120 magnetic levitation fans adjustable from 400 to 2400 RPM, and fits Intel LGA 1150, 1151.

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan SizeTwo CORSAIR ML120 120mm Fans
  • CPU Socket CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1156 / 1155 / 1151 / 1150 /
  • Bearing TypeMagnetic Levitation Bearing
  • RPM2400 RPM (Max)

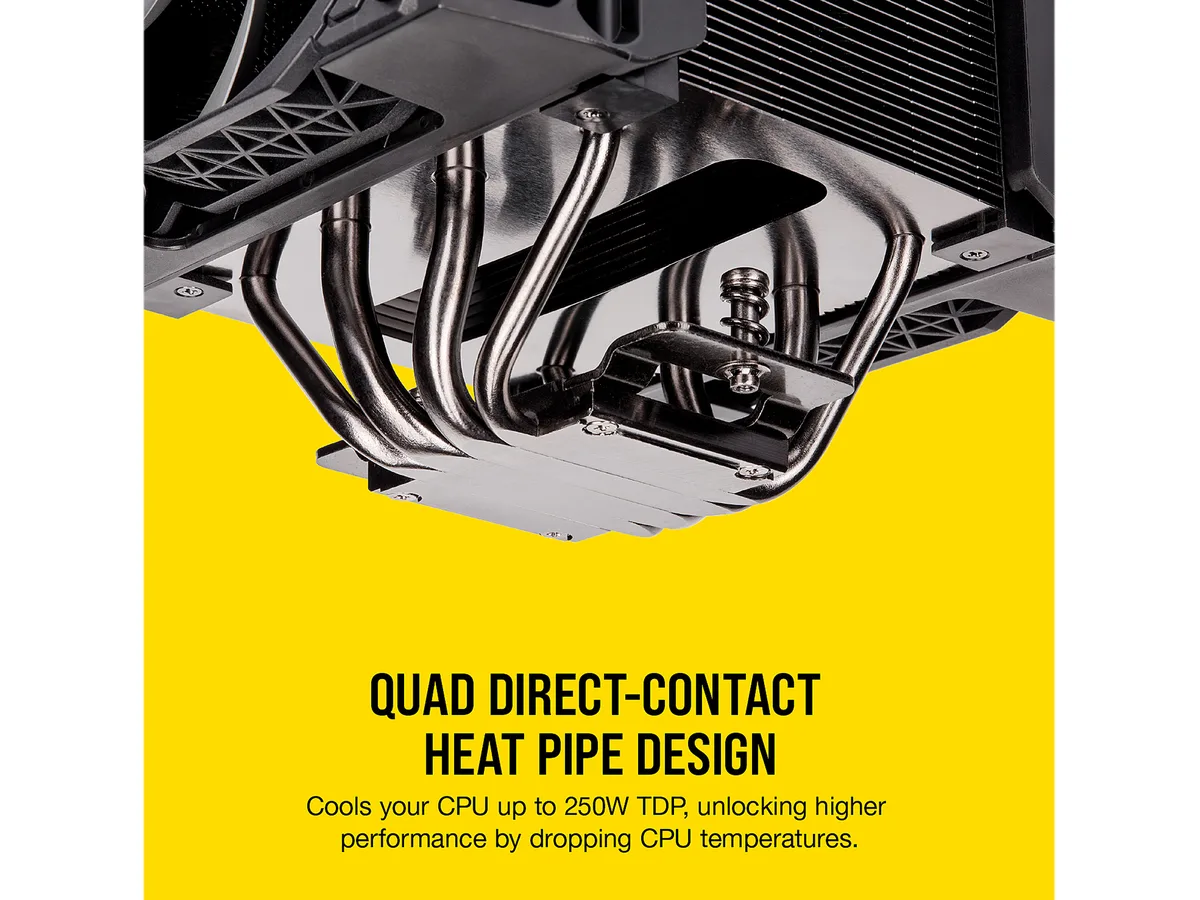

  • Cools CPUs up to 250W TDP with four direct-contact copper heat pipes
  • Two ML120 magnetic levitation fans adjust from 400 to 2400 RPM for quiet or extreme cooling

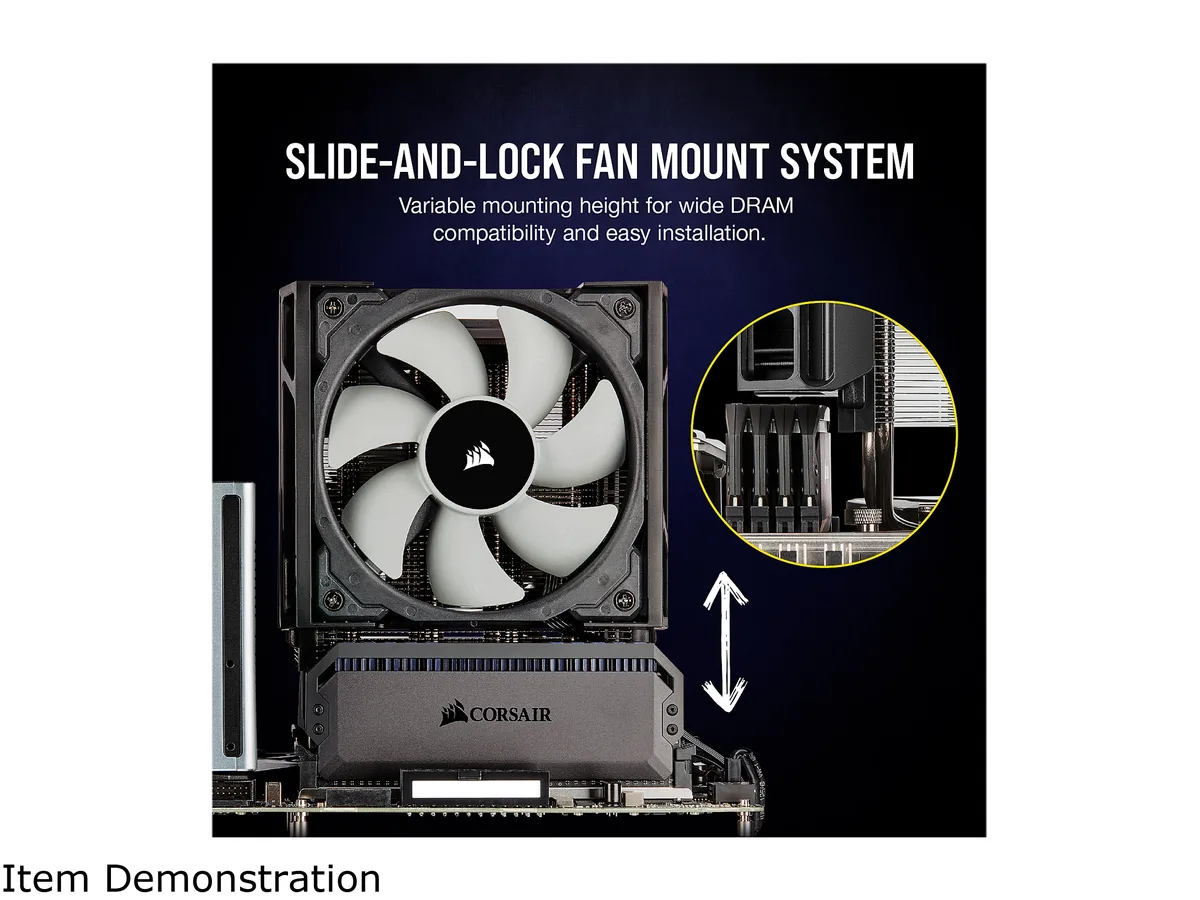

  • Slide-and-lock fan mounts vary height for wide DRAM clearance and easy installation

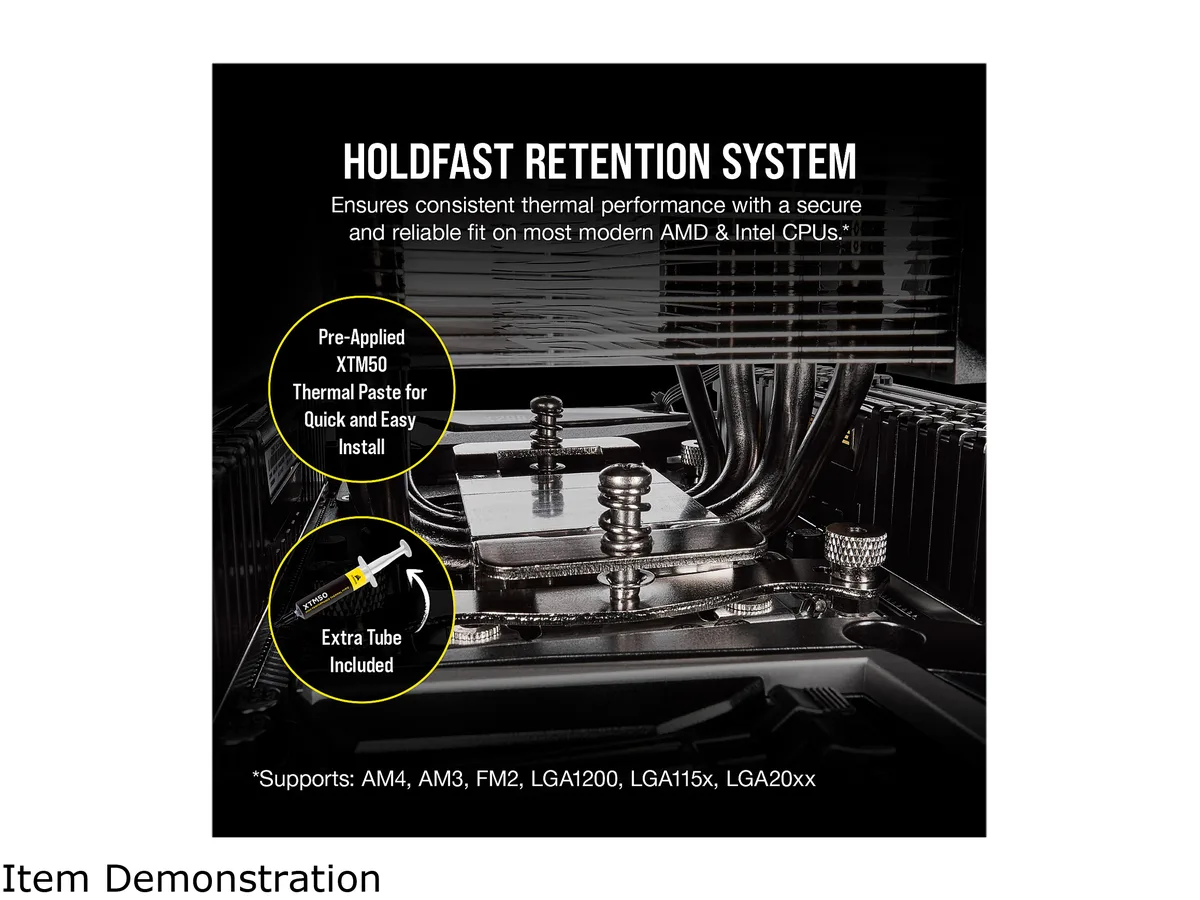

  • HoldFast retention system secures the cooler on modern AMD and Intel sockets
  • Pre-applied XTM50 thermal paste in an optimized pattern ensures even spreading out of the box

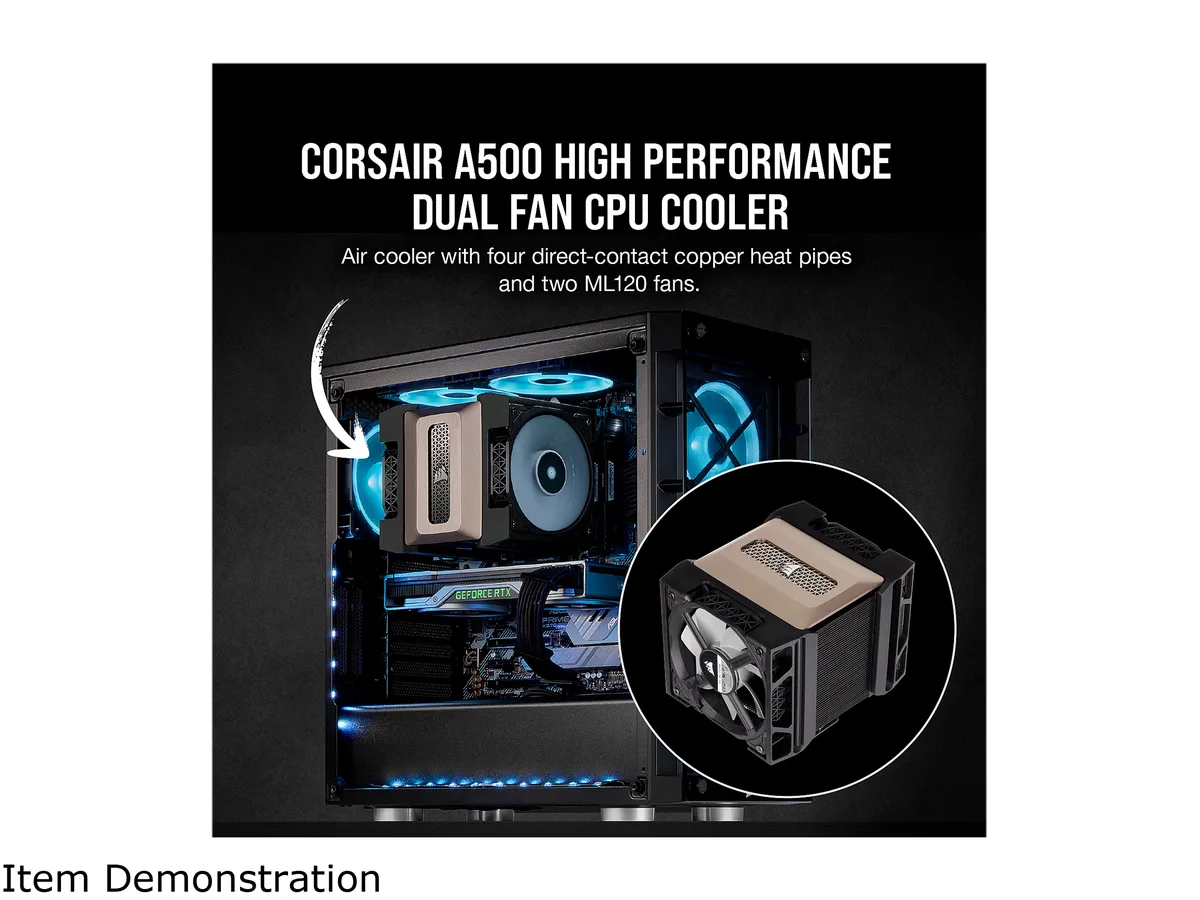

Corsair A500 dual-fan air cooler

The Corsair A500 is a dual-tower air cooler built around four direct-contact copper heat pipes rated for 250W TDP. It targets enthusiasts who want strong thermal headroom for overclocked Intel LGA 2066, 1200, 115x or AMD AM4 platforms without moving to liquid cooling. The black nickel-plated copper cold plate and aluminium fins keep the aesthetic consistent with dark-themed builds.

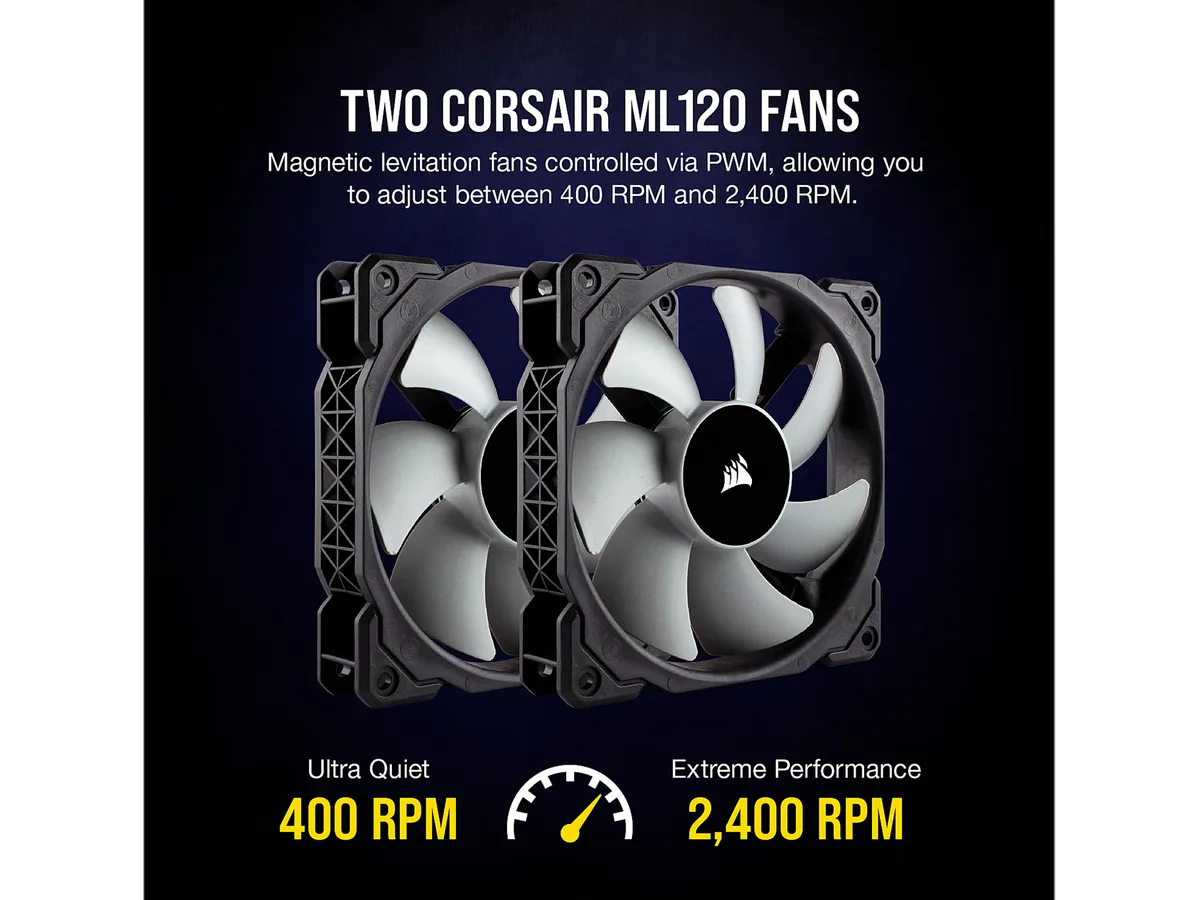

ML120 magnetic-levitation fans

Two 120mm ML120 fans use magnetic levitation bearings and PWM control to spin between 400 and 2400 RPM, delivering 75 CFM at a noise range of 10 to 36 dBA. The slide-and-lock fan brackets let you raise or lower each fan independently, clearing tall DRAM modules up to the cooler’s 169mm height limit. Pre-applied XTM50 paste and a spare 1g tube speed up installation on supported sockets.

Upgrading from stock or single-tower coolers

Builders replacing boxed coolers or compact single-tower designs gain the 250W capacity needed for sustained all-core loads on high-end desktop CPUs. The jump is worth it when your current solution hits thermal limits during rendering or gaming sessions and your case can accommodate the 137mm width and 103mm depth. Systems restricted to low-profile clearances or ITX layouts should look elsewhere.

Highlights

  • Cools CPUs up to 250W TDP with four direct-contact copper heat pipes
  • Two ML120 magnetic levitation fans adjust from 400 to 2400 RPM for quiet or extreme cooling
  • Slide-and-lock fan mounts vary height for wide DRAM clearance and easy installation
  • HoldFast retention system secures the cooler on modern AMD and Intel sockets
  • Pre-applied XTM50 thermal paste in an optimized pattern ensures even spreading out of the box

Specifications

BrandCORSAIR
SeriesA500
ModelCT-9010003-WW
ColorBlack
TypeFan & Heatsinks
Fan SizeTwo CORSAIR ML120 120mm Fans
CPU Socket CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1156 / 1155 / 1151 / 1150 / 1200
AMD AM4 / AM3 / FM2 / FM1
Bearing TypeMagnetic Levitation Bearing
RPM2400 RPM (Max)
Air Flow75 CFM
Noise Level10 - 36 dBA
Heatsink MaterialColdplate: Black Nickel-Plated Copper
Heatsink: Black Nickel-Plated Aluminum
Max CPU Cooler Height169mm
Fan Dimensions120mm x 120mm x 25mm / 4.72" x 4.72" x 0.98"
Heatsink Dimensions137mm x 169mm x 103mm / 5.39" x 6.65" x 4.06"
Weight1.460 kg / 3.22 lbs.
FeaturesQuad Direct-Contact Copper Heat Pipe Design: Cools your CPU up to 250W TDP, unlocking higher performance by dropping CPU temperatures.
Intuitive Slide-and-Lock Fan Mount System: Variable mounting height for wide DRAM compatibility and easy installation.
Two CORSAIR ML120 Fans: Magnetic levitation bearing fans with PWM control allow you to adjust between 400 RPM for ultra-quiet operation or 2,400 RPM for extreme cooling performance.
CORSAIR HoldFast Retention System: Easy to install and ensures consistent thermal performance with a secure and reliable fit on almost all modern AMD & In
Package ContentsCORSAIR A500 Dual Fan Air CPU Cooler
Mounting kit for modern CPU sockets
Two ML RGB Series PWM 120mm fans
Fan mounting screws
XTM50 Thermal Paste (pre-applied)
XTM50 Thermal Paste (1g tube)
Quick Start Guide
Shipping weight2.31 kg
Package size235 × 235 × 203 mm

Questions about this item

What PWM speed range do the ML120 fans cover and what noise level does that produce?

The two ML120 fans run from 400 RPM for quiet operation up to 2400 RPM maximum, generating between 10 and 36 dBA across the range.

How much clearance does the 169 mm cooler height and slide-and-lock fan mount leave for tall DRAM modules?

The heatsink stands 169 mm tall and the slide-and-lock system lets you raise or lower the 120 mm fans, creating variable mounting height for wide DRAM compatibility.

Which steps does the HoldFast retention system require and where do builders commonly go wrong?

The HoldFast kit uses a backplate and thumbscrews for Intel LGA 2066, 2011-3, 2011, 1156, 1155, 1151, 1150, 1200 and AMD AM4, AM3, FM2, FM1; the frequent mistake is not tightening the thumbscrews in a cross pattern, which leaves uneven contact.
