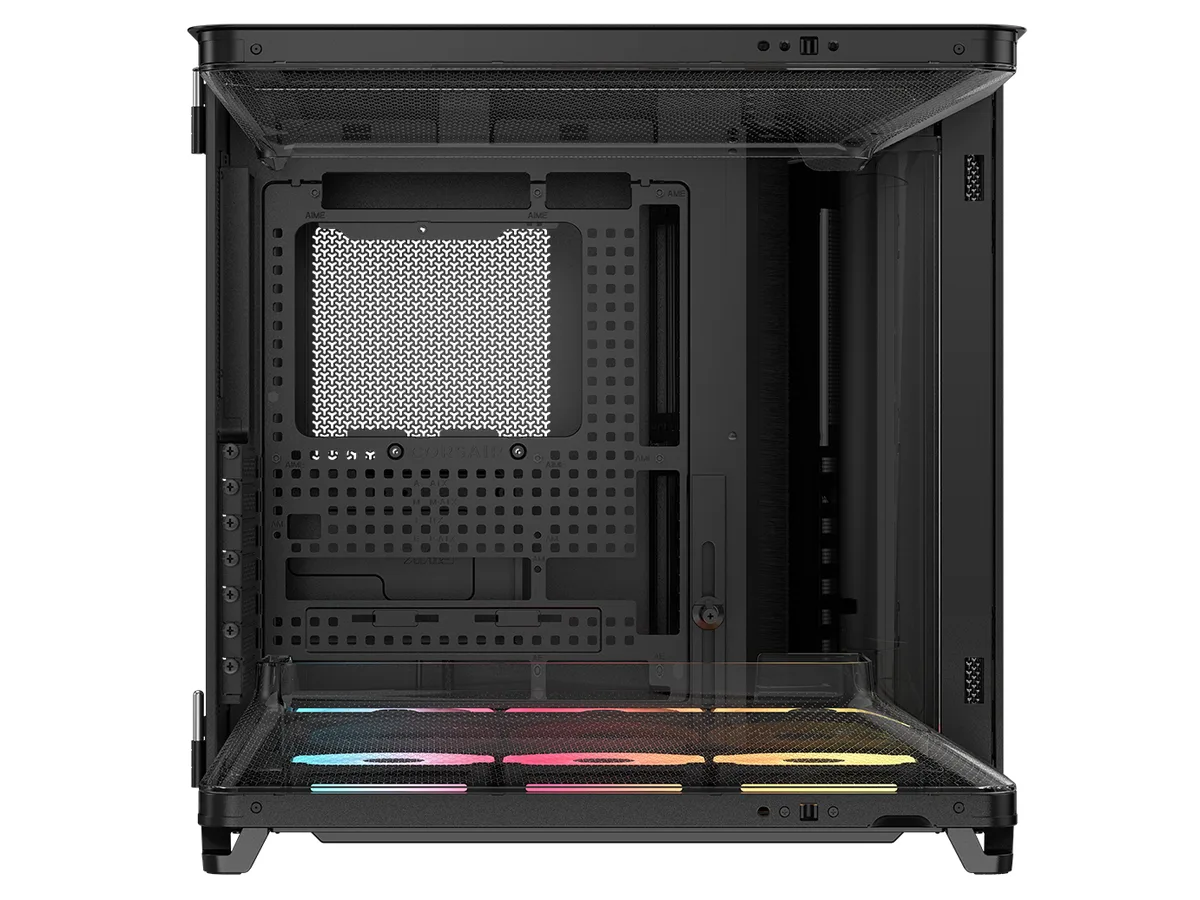

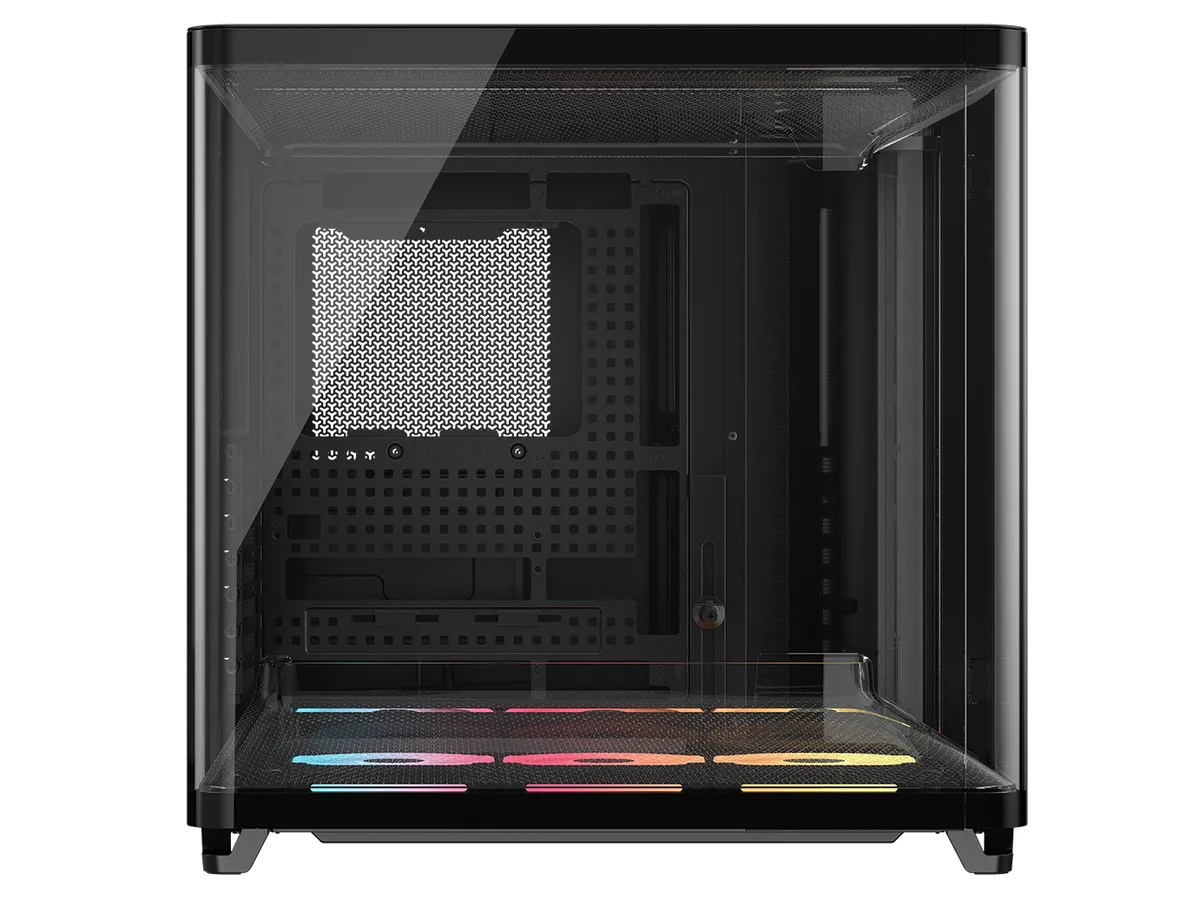

Black mid-tower case with wraparound tempered glass panels and three pre-installed RGB fans

Corsair

Corsair AIR 5400 LX-R RGB iCUE LINK CC-9011320-WW PC case

SKU CH-KQHA-SABGV MPN CC-9011320-WW

A triple-chamber E-ATX mid-tower with an isolated 360 mm radiator chamber, Venturi Effect ducts and three pre-installed reverse-rotor RGB fans

  • TypeE-ATX Mid Tower Chassis
  • ColorBlack
  • Case MaterialSteel, Tempered Glass, Plastic, Acrylic
  • Power Supply MountedTop
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • Side PanelTempered Glass Panel

Color black

Model Air 5400 LX-R ARGB iCUE Link

  • Triple-chamber layout isolates a 360 mm radiator for stronger thermal headroom
  • Venturi Effect ducts raise airflow velocity to lower component temperatures
  • Wraparound two-piece glass with hidden hinge shows the build from every angle
  • RapidRoute 2.0 cable system keeps routing tidy behind the motherboard tray
  • Three front USB Type-C ports include one 3.2 Gen 2x2 connection for fast peripherals

Triple-chamber mid-tower for E-ATX builds

This Corsair 5400-series case uses a triple-chamber layout to separate the power supply, motherboard and graphics card into distinct zones. Three pre-installed iCUE LINK LX-R RGB 120mm reverse-rotor fans and a System Hub ship inside. The wraparound two-piece tempered glass exterior uses a hidden hinge for a clean look. It accepts ATX, E-ATX, Micro-ATX and Mini-ITX boards and tops out at 360 mm GPU length.

Best for showcase water-cooled systems.

The isolated third chamber fits a 360 mm radiator and the Venturi Effect ducts raise airflow velocity through the chassis. Builders who want a visible, high-airflow loop with plenty of Type-C front I/O will like this layout. The 16.7 kg weight and 467 x 340 x 470 mm footprint make it a poor fit for small desks or frequent LAN moves.

360 mm maximum GPU length decides fit

Your graphics card must measure 360 mm or less to install. This single limit determines whether the case works for your build; check the card specification before buying.

Highlights

  • Triple-chamber layout isolates a 360 mm radiator for stronger thermal headroom
  • Venturi Effect ducts raise airflow velocity to lower component temperatures
  • Wraparound two-piece glass with hidden hinge shows the build from every angle
  • RapidRoute 2.0 cable system keeps routing tidy behind the motherboard tray
  • Three front USB Type-C ports include one 3.2 Gen 2x2 connection for fast peripherals

Specifications

BrandCorsair
ModelCC-9011320-WW
TypeE-ATX Mid Tower Chassis
ColorBlack
Case MaterialSteel, Tempered Glass, Plastic, Acrylic
Power Supply MountedTop
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Side PanelTempered Glass Panel
Dust FiltersBottom
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots7
Front Ports(1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out
Fan OptionsBottom - 3 x 120mm / Front - 3 x 120mm / Rear - 1 x 120mm / Top - 3 x 120mm
Radiator OptionsBottom - Up to 360mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 360mm
Max GPU Length360 mm
Max CPU Cooler Height180 mm
Max PSU Length200 mm
Dimensions467 x 340 x 470mm
Weight16.7kg
Shipping weight17.24 kg
Package size616 × 574 × 470 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the speed of the USB 3.2 Gen 2x2 Type-C port on the front I/O?

The front panel includes one USB 3.2 Gen 2x2 Type-C port running at 20 Gbps, plus two USB 3.2 Gen 1 Type-C ports at 5 Gbps each.

What motherboard form factors and maximum component lengths does the case support?

It fits ATX, E-ATX, Micro-ATX and Mini-ITX boards, with a 360 mm GPU limit, 180 mm CPU cooler height limit and 200 mm PSU length limit.

How are the three pre-installed iCUE LINK LX-R RGB fans connected, and what step is often missed?

The fans link in series to the included System Hub, which requires a single USB 2.0 header on the motherboard for iCUE control — a step builders sometimes overlook.
