Black rectangular ATX power supply unit with modular cable sockets and 140mm fan grille

Corsair

Corsair AX1600i CP-9020087-NA 1600W power supply

SKU CH-MEQ6-RGADE MPN CP-9020087-NA

Delivers 1600 W of continuous 80 PLUS Titanium power through a fully modular ATX design with 10 PCIe and 16 SATA connectors

  • TypeATX
  • Maximum Power1600 W
  • Fans1 x 140mm Patented FDB cooling fan
  • Main Connector20+4Pin
  • +12V RailsSingle
  • PCI-Express Connector10 x 6+2-Pin

Options ATX 80+ Titanium (1600W)

  • 1600 W continuous output handles extreme multi-GPU builds
  • 80 PLUS Titanium certification delivers over 94 % efficiency at typical loads
  • Full modular design with 10 PCIe and 16 SATA connectors keeps cables tidy
  • 140 mm FDB fan runs quietly while cooling 100 % Japanese 105 °C capacitors
  • Digital monitoring via USB link enables real-time voltage and fan control

Digital ATX Power Supply

The Corsair AX1600i CP-9020087-NA is a 1600 W ATX power supply built with gallium nitride transistors and 100% 105°C Japanese capacitors. It targets builders of high-end workstations or multi-GPU systems who need continuous, ultra-stable delivery at 80 PLUS Titanium efficiency.

Fully Modular Cable Set

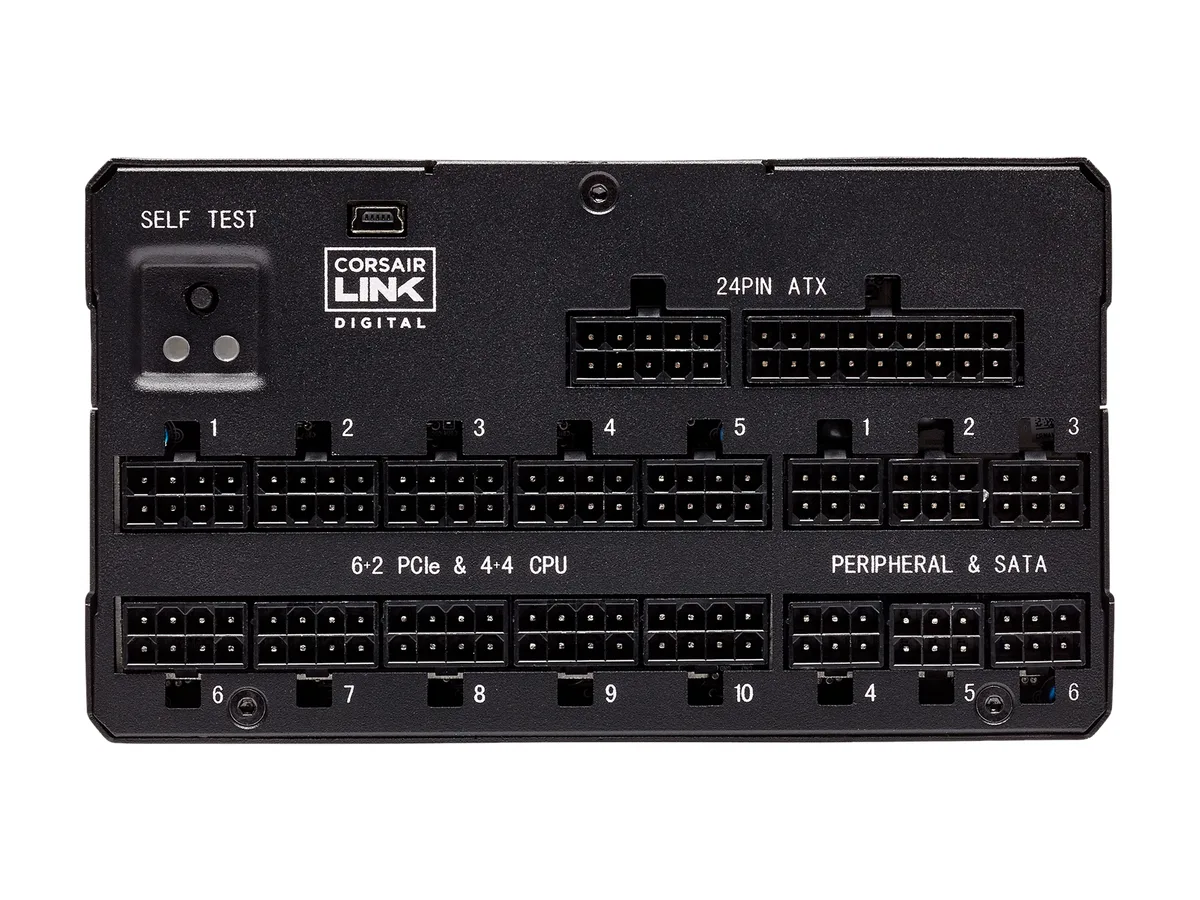

Full modularity lets you attach only the cables your build requires, reducing clutter and improving airflow. The bundle includes 10 PCIe 6+2-pin connectors, 16 SATA power connectors, two EPS 4+4-pin cables, and a USB link for software monitoring.

Single +12V Rail Design

All 1600 W are provided on a single +12V rail, simplifying load balancing across multiple graphics cards and storage arrays. The 140 mm FDB fan operates at low noise while maintaining thermal headroom for sustained output.

Highlights

  • 1600 W continuous output handles extreme multi-GPU builds
  • 80 PLUS Titanium certification delivers over 94 % efficiency at typical loads
  • Full modular design with 10 PCIe and 16 SATA connectors keeps cables tidy
  • 140 mm FDB fan runs quietly while cooling 100 % Japanese 105 °C capacitors
  • Digital monitoring via USB link enables real-time voltage and fan control

Specifications

BrandCORSAIR
SeriesAXi Series AX1600i
ModelCP-9020087-NA
TypeATX
Maximum Power1600 W
Fans1 x 140mm Patented FDB cooling fan
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector10 x 6+2-Pin
SATA Power Connector16
Max PSU Length200 mm
ModularFull Modular
Energy-Efficient80 PLUS TITANIUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15 - 9 A
Output+5V@30A, +3.3V@30A, [email protected] , [email protected] , [email protected]
Connectors1 x ATX (24PIN) (20+4)
2 x EPS/ATX12V (8-PIN) (4+4)
10 x PCI-E (8PIN) (6+2)
4 x SATA (2 SATA)
12 x SATA (4 SATA)
9 x Peripheral (4-PIN)
2 x Floppy Adapter (4PIN)
1 x USB (9PIN)
Features1600W of Ultimate Power: Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power.
Top Tier Components: 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.
The Only Consumer PSU with Gallium Nitride Transistors: Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller formfactor.
World Class Electrical Performance: Incredibly stable voltages and ultra-low ripple noise.
Software Monitoring: CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed
Dimensions3.39" x 5.91" x 7.87"
Weight12.80 lbs.
Shipping weight5.51 kg
Package size399 × 226 × 160 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 140 mm FDB fan need replacement after years of continuous use?

The 140 mm fluid-dynamic-bearing fan is rated for long life; under normal loads it should run for years without service, and the unit carries a multi-year manufacturer warranty.

What thermal limit appears first when the AX1600i runs at full 1600 W for hours?

Internal 105 °C Japanese capacitors set the thermal ceiling; the digital controller will throttle or shut down before those caps exceed their rated temperature.

How loud and how hot does the 140 mm fan get during all-day 1600 W operation?

At high load the fan spins faster but stays within spec; the 80 PLUS Titanium efficiency above 94 % keeps waste heat low, so case airflow typically handles the exhaust.
