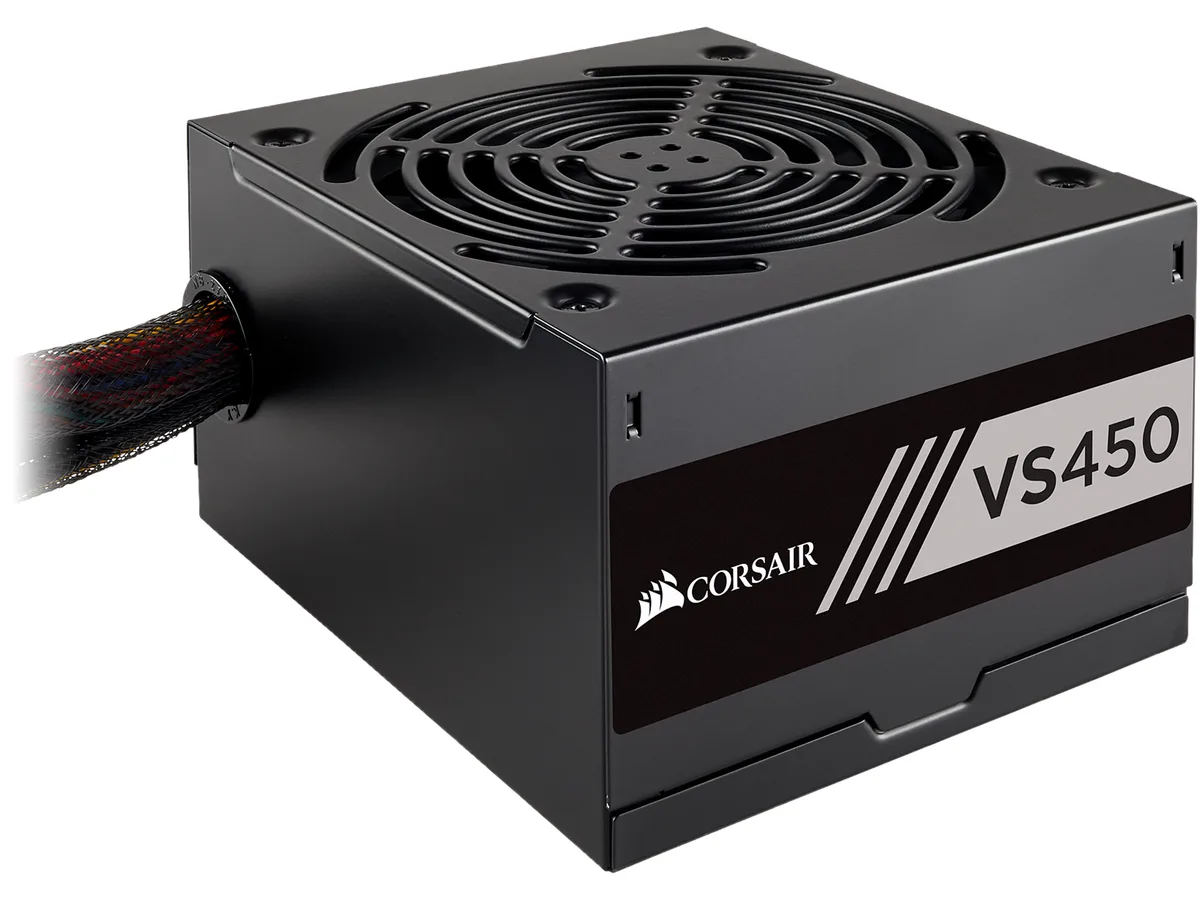

Black rectangular ATX power supply with 120 mm fan and sleeved cables

Corsair

Corsair CP-9020170-NA VS450 450 W power supply

SKU CH-WCGS-ZDHFR MPN CP-9020170-NA

450 W ATX power supply with 80 PLUS White efficiency, active PFC, single +12 V rail and a thermally controlled 120 mm fan

  • TypeATX12V v2.31 / EPS 2.92
  • Maximum Power450 W
  • Fans1 x 120mm thermally controlled sleeve bearing fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle
  • 80 PLUS White certified efficiency reduces wasted energy and heat
  • Single +12 V rail delivering 36 A supports modern graphics cards
  • Thermally controlled 120 mm sleeve-bearing fan adjusts speed to load for quiet operation
  • Active PFC with 100–240 V input works worldwide without a voltage switch
  • Compact 125 mm depth fits most ATX cases while providing six SATA connectors

VS450 450 W ATX power supply

The Corsair VS450 is a 450 W ATX12V v2.31 unit built for mainstream desktop builds. It delivers a single +12 V rail rated at 36 A and includes two 6+2-pin PCIe connectors, six SATA power plugs and a 24-pin main connector. The 120 mm thermally controlled sleeve-bearing fan adjusts speed with load. Active PFC and 80 PLUS White certification complete the package.

Sustained-load behaviour

Under continuous demand the single +12 V rail holds its 36 A rating without switching between multiple rails. The thermally controlled 120 mm fan ramps up gradually, keeping internal temperatures stable during long sessions. Active PFC maintains a clean draw across the 100-240 V input range, while 80 PLUS White efficiency reduces waste heat at typical loads. Over-voltage protection guards components if regulation drifts.

Deciding specification

The 450 W maximum output with a 36 A +12 V rail determines whether this unit can power your graphics card and CPU together. Add the TDP of your chosen GPU and CPU, then allow headroom for drives and fans; if the total stays below the 450 W ceiling the VS450 fits, otherwise a higher-wattage model is required.

Highlights

  • 80 PLUS White certified efficiency reduces wasted energy and heat
  • Single +12 V rail delivering 36 A supports modern graphics cards
  • Thermally controlled 120 mm sleeve-bearing fan adjusts speed to load for quiet operation
  • Active PFC with 100–240 V input works worldwide without a voltage switch
  • Compact 125 mm depth fits most ATX cases while providing six SATA connectors

Specifications

BrandCORSAIR
SeriesVS Series VS450
ModelCP-9020170-NA
TypeATX12V v2.31 / EPS 2.92
Maximum Power450 W
Fans1 x 120mm thermally controlled sleeve bearing fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
Max PSU Length125 mm
Energy-Efficient80 PLUS White Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current6 - 3 A
Output+3.3V@20A, +5V@20A, +12V@36A, [email protected] , +5VSB@3A
ApprovalsFCC, cTUVus, TUV, CCC, BSMI, CE, CB, TUV-S, EAC, RCM, KC, Reach, WEEE and RoHS
Connectors1 x 24-pin ATX
1 x EPS12V/ATX12V
2 x PCIe
6 x SATA
4 x SATA-PATA-PATA-FDD
Features80 PLUS efficiency: Runs cooler and uses less power than non-certified power supplies
3-year warranty: Backed by CORSAIR’s legendary technical support and customer service
Black housing, cable sleeves and connectors: Give your build the high-end look without breaking the bank
Thermally controlled 120mm fan: Quiet operation across a wide range of loads
Dimensions5.91" x 4.92" x 3.39"
Weight3.95 lbs.
Package ContentVS Series ATX Power Supply
Power cord
Mounting screws
Warranty Document
Shipping weight2.13 kg
Package size254 × 185 × 102 mm

Questions about this item

Will the 450 W output support a graphics card that needs two 6+2-pin PCIe connectors?

Yes, the unit provides two 6+2-pin PCIe connectors and a single +12 V rail rated at 36 A, which is sufficient for most mid-range cards.

Does the 125 mm length fit in a standard ATX case?

At 125 mm long it fits the vast majority of ATX chassis; measure your case clearance if the internal space is unusually tight.

What cables are permanently attached to this non-modular unit?

Fixed cables include a 24-pin ATX, one EPS12V/ATX12V, two PCIe 6+2-pin, six SATA and four peripheral connectors combining SATA, PATA and floppy.
