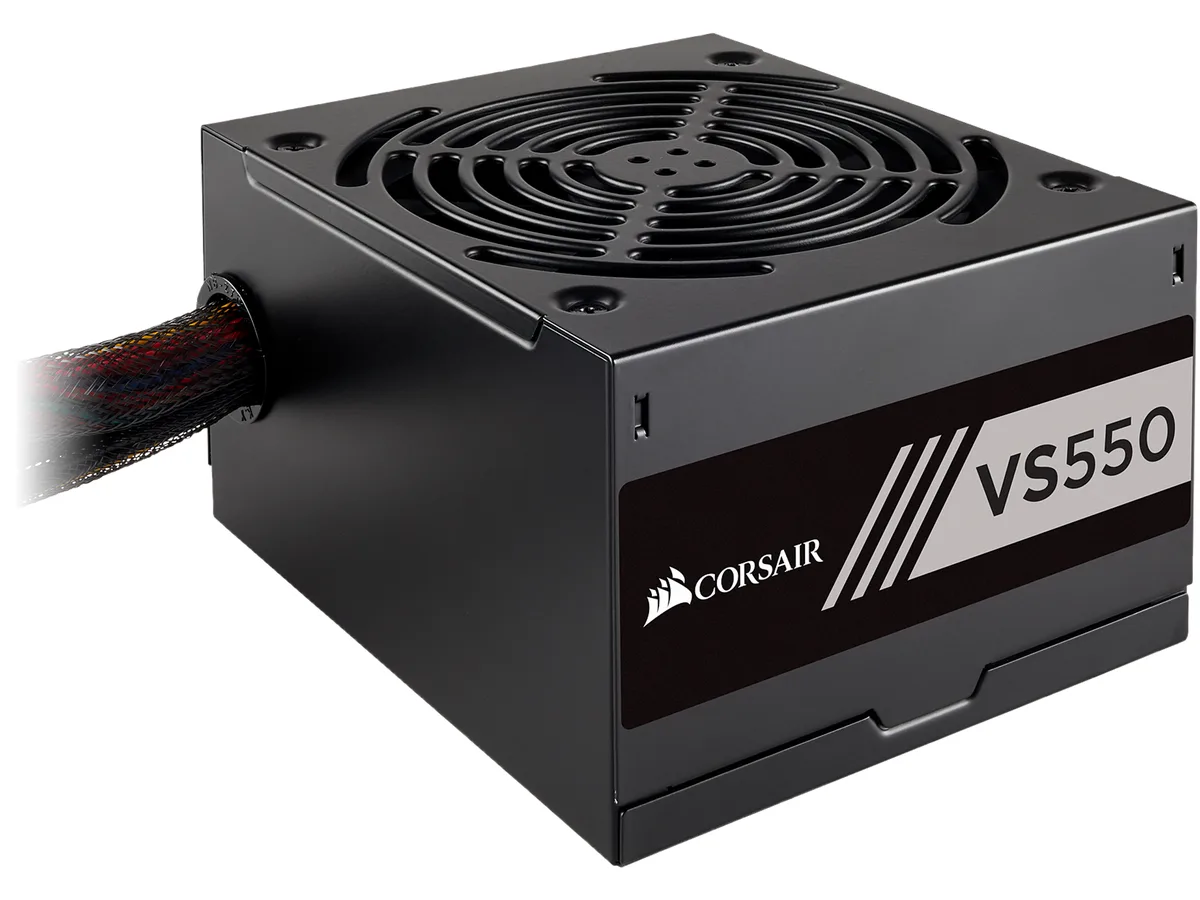

Black rectangular ATX power supply with 120mm fan and sleeved cables

Corsair

Corsair CP-9020171-NA VS550 550W power supply

SKU CH-ESE9-DEZ49 MPN CP-9020171-NA

Delivers 550 W through a single +12 V rail with Active PFC and 80 PLUS White efficiency, using a thermally controlled 120 mm fan in a 125 mm deep ATX housing

  • TypeATX12V v2.31 / EPS 2.92
  • Maximum Power550 W
  • Fans1 x 120mm Thermally Controlled Sleeve Bearing Fan
  • Fan LEDProduct power interface plug is Asian Version, need to purch
  • PFCActive
  • Main Connector24Pin
  • 550 W output powers mid-range builds reliably
  • 80 PLUS White certification reduces waste heat and running costs
  • Thermally controlled 120 mm fan keeps noise low under typical loads
  • Single +12 V rail at 44 A simplifies GPU power delivery
  • Compact 125 mm depth fits most standard cases

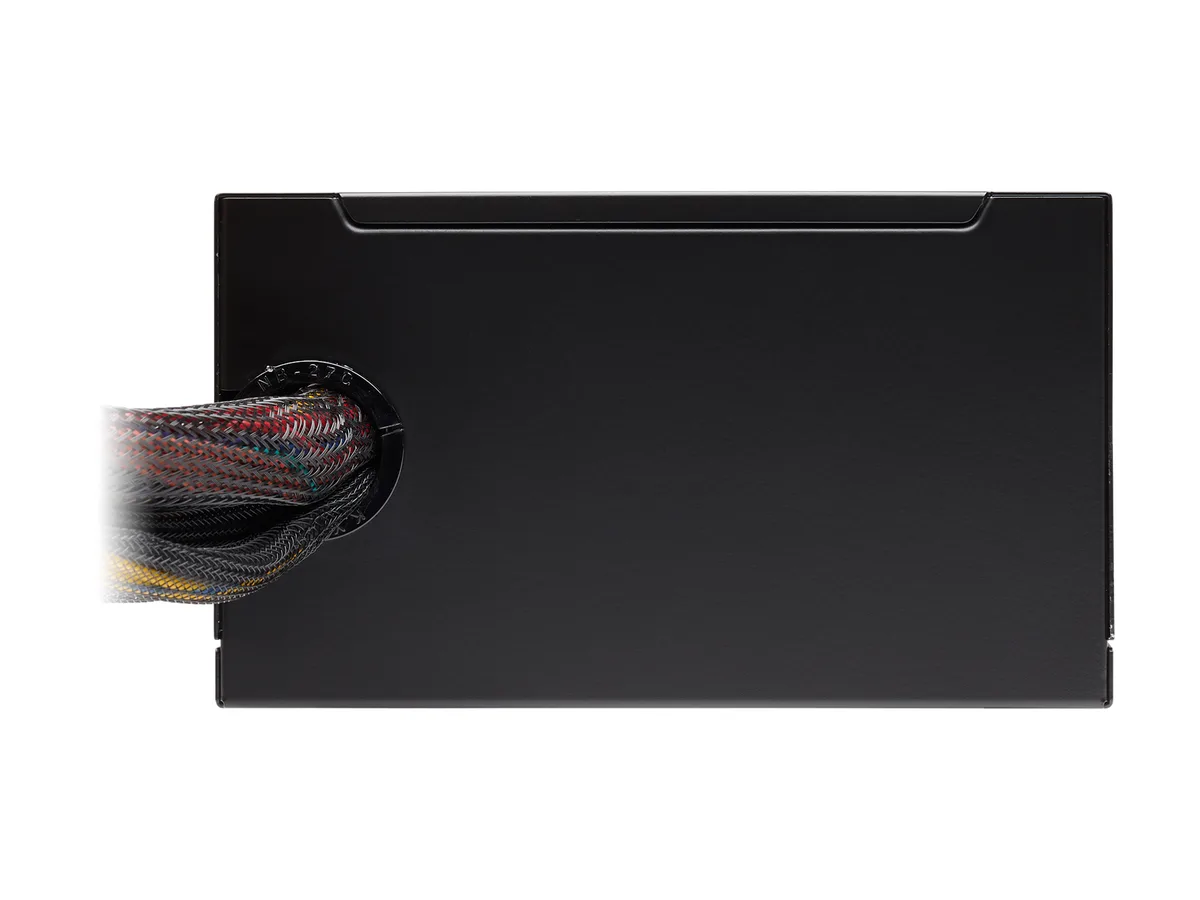

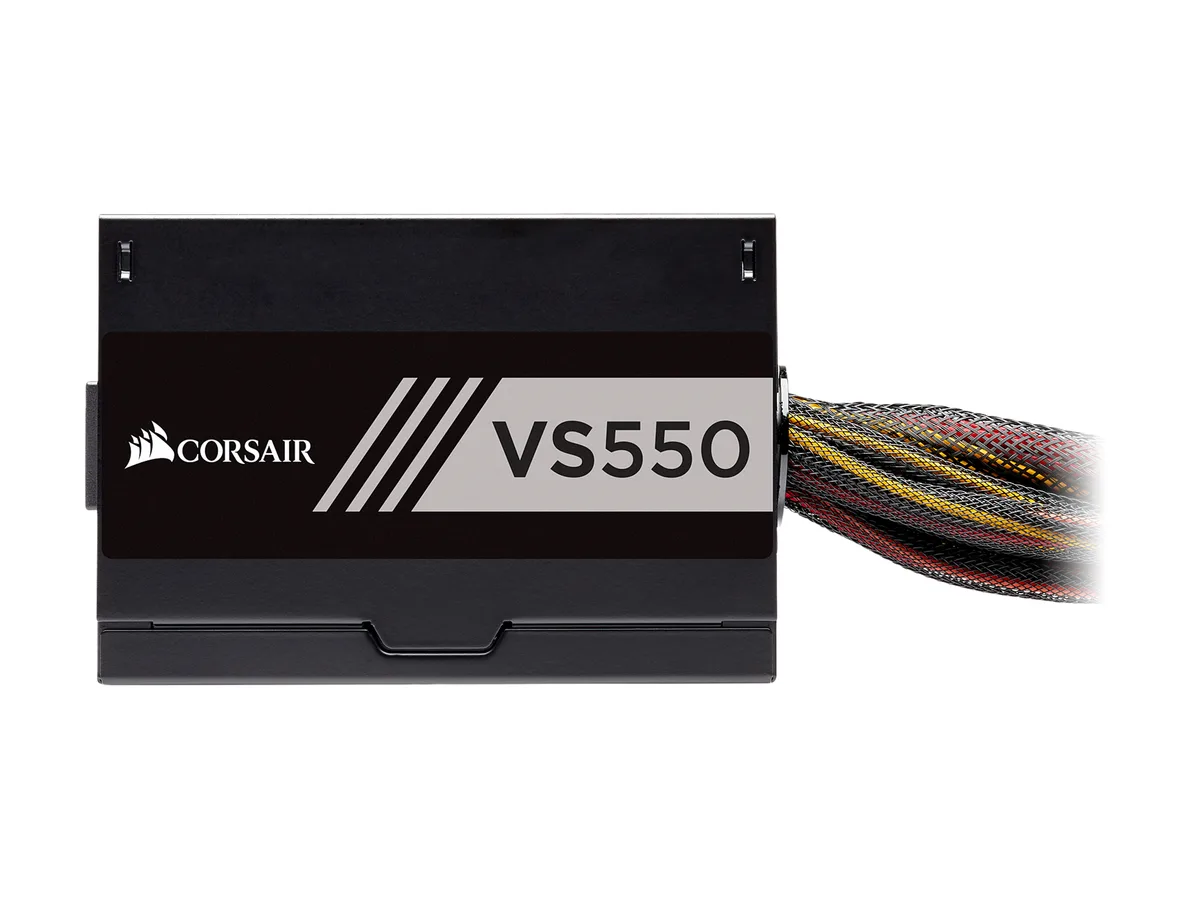

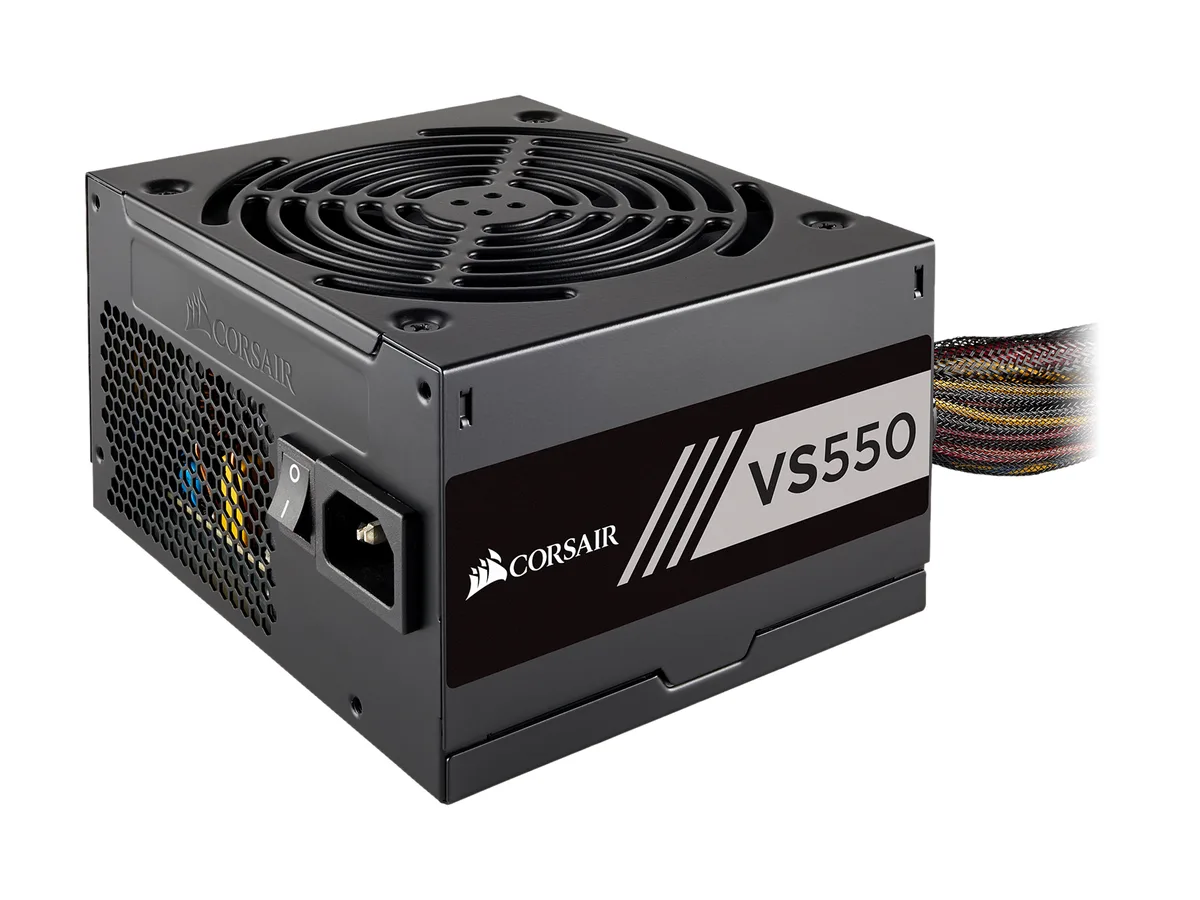

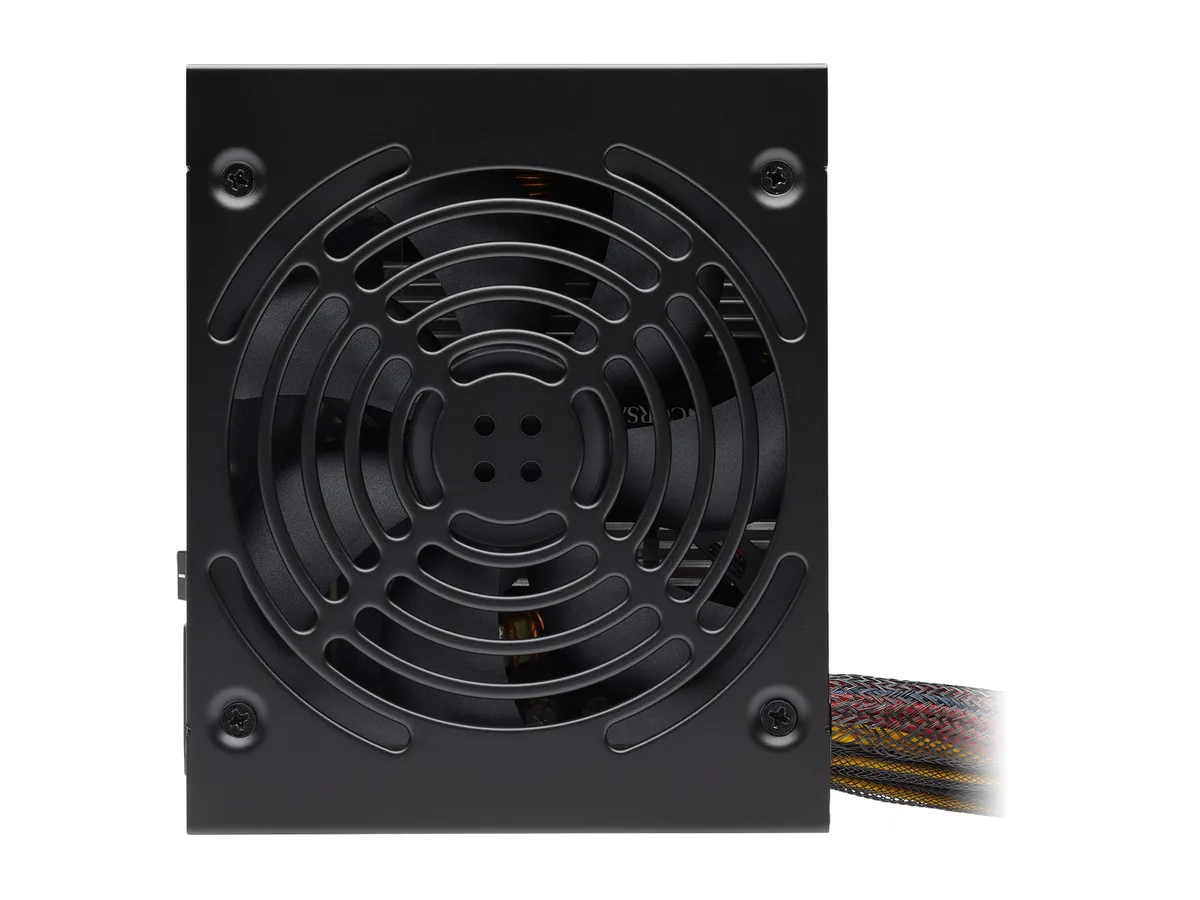

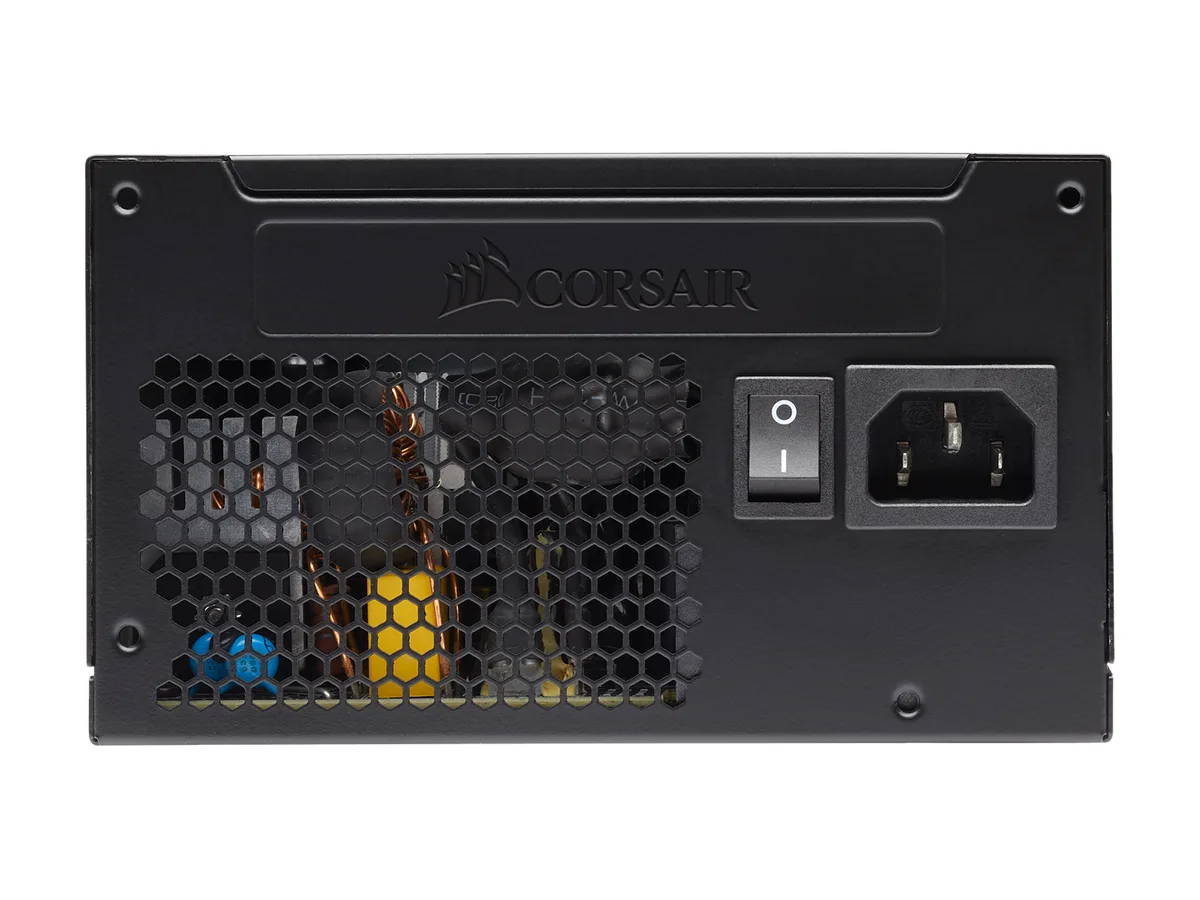

Corsair VS550 550W power supply

The Corsair VS550 is a 550W ATX power supply built to the ATX12V v2.31 and EPS 2.92 standards. It carries 80 PLUS White certification and uses a single +12V rail rated at 44A. A thermally controlled 120mm sleeve-bearing fan manages airflow. The unit measures 125mm in length and includes over-voltage protection.

Entry-level desktop builds and office upgrades

This unit suits standard desktop PCs and basic workstations that need reliable 550W delivery with 80 PLUS White efficiency. It provides two 6+2-pin PCIe connectors for mid-range graphics cards and six SATA connectors for drives. Systems requiring higher efficiency ratings, fully modular cabling or greater +12V current should consider other models.

ATX case integration with fixed cabling

The 125mm depth fits most ATX cases and leaves room for cable routing behind the motherboard tray. Fixed cables include a 24-pin ATX connector, an EPS12V/ATX12V connector, two PCIe connectors, six SATA connectors and a combined SATA-PATA-FDD lead. Active PFC accepts 100-240V input at 47-63Hz without manual switching.

Highlights

  • 550 W output powers mid-range builds reliably
  • 80 PLUS White certification reduces waste heat and running costs
  • Thermally controlled 120 mm fan keeps noise low under typical loads
  • Single +12 V rail at 44 A simplifies GPU power delivery
  • Compact 125 mm depth fits most standard cases

Specifications

BrandCORSAIR
SeriesVS Series VS550
ModelCP-9020171-NA
TypeATX12V v2.31 / EPS 2.92
Maximum Power550 W
Fans1 x 120mm Thermally Controlled Sleeve Bearing Fan
Fan LEDProduct power interface plug is Asian Version, need to purchase additional local adapter plug
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
Max PSU Length125 mm
Energy-Efficient80 PLUS White Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10 - 5 A
Output+3.3V@24A, +5V@20A, +12V@44A, [email protected] , +5VSB@3A
MTBF100,000 hours
ApprovalsFCC, cTUVus, TUV, CCC, BSMI, CE, CB, TUV-S, EAC, RCM, KC, Reach, WEEE and RoHS
Connectors1 x 24-pin ATX
1 x EPS12V/ATX12V
2 x PCIe
6 x SATA
2 x SATA-PATA-PATA-FDD
Features80 PLUS efficiency: Runs cooler and uses less power than non-certified power supplies
3-year warranty: Backed by CORSAIR’s legendary technical support and customer service
Black housing, cable sleeves and connectors: Give your build the high-end look without breaking the bank
Thermally controlled 120mm fan: Quiet operation across a wide range of loads
Dimensions5.91" x 4.92" x 3.39"
Weight4.12 lbs.
Package ContentVS Series ATX Power Supply
Power cord
Mounting screws
Warranty Document
Shipping weight2.22 kg
Package size251 × 180 × 107 mm
