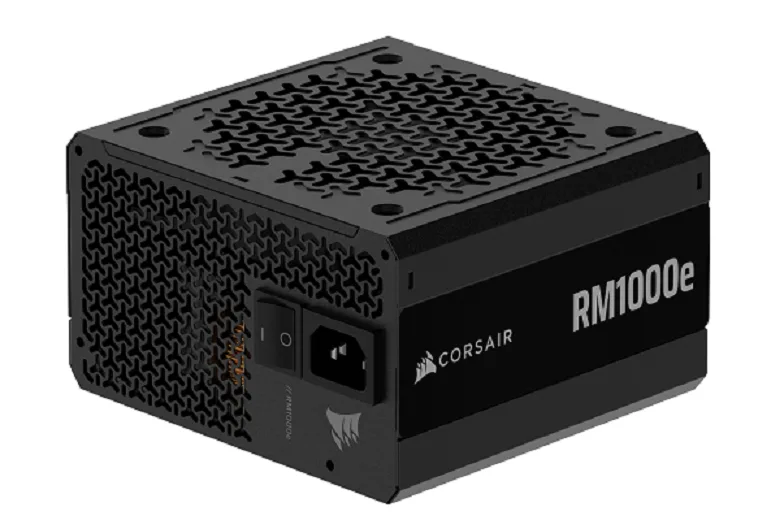

Black fully modular ATX power supply with 120 mm fan and 12VHPWR connector

Corsair

Corsair CP-9020297-NA RM1000e 1000 W power supply

SKU CH-VSW5-P3D7M MPN CP-9020297-NA

A fully modular ATX 3.1 compatible power supply delivering 1000 W with Cybenetics Gold efficiency and a 120 mm rifle bearing fan

  • ColorBlack
  • TypeATX 3.1 Compatible
  • Maximum Power1000 W
  • Fans1 x 120 mm
  • Main Connector24Pin
  • Max PSU Length160 mm

Options 2025 RMe Series (1000W)- Black

  • Fully modular cabling means you connect only the cables your build needs
  • ATX 3.1 compliance supports PCIe 5.1 platforms and handles 2x GPU transient power excursions
  • 120 mm rifle-bearing fan with a tuned curve keeps noise low even at full load
  • 105 °C-rated capacitors deliver steady, reliable power under heavy demand
  • Modern Standby compatibility enables fast wake-from-sleep and better low-load efficiency

ATX 3.1 power supply for modern builds

The Corsair RM1000e delivers 1000 W through an ATX 3.1 compliant design that supports the PCIe 5.1 power standard. It targets system builders who need reliable energy delivery for high-end graphics cards and multi-core processors. The fully modular cable set lets you connect only the leads your configuration requires.

Full modular cabling and compact 160 mm length

A 24-pin main connector and a single 12VHPWR (12+4) PCIe lead handle primary power distribution. Fully modular sockets keep the interior tidy and simplify routing in cases with limited space behind the motherboard tray. Black 105°C-rated capacitors provide electrical stability across the operating range.

120 mm rifle bearing fan with optimised curve

The fan spins only when load demands it, keeping acoustic output low during typical desktop workloads. Cybenetics Gold certification confirms high efficiency across the 100-240 V input range at 47-63 Hz. Modern Standby compatibility enables rapid wake-from-sleep transitions without excessive idle draw.

Highlights

  • Fully modular cabling means you connect only the cables your build needs
  • ATX 3.1 compliance supports PCIe 5.1 platforms and handles 2x GPU transient power excursions
  • 120 mm rifle-bearing fan with a tuned curve keeps noise low even at full load
  • 105 °C-rated capacitors deliver steady, reliable power under heavy demand
  • Modern Standby compatibility enables fast wake-from-sleep and better low-load efficiency

Specifications

BrandCORSAIR
SeriesRMx Series
ModelRM1000e
Part NumberCP-9020297-NA
ColorBlack
TypeATX 3.1 Compatible
Maximum Power1000 W
Fans1 x 120 mm
Main Connector24Pin
Max PSU Length160 mm
ModularFull Modular
Energy-EfficientCybenetics Gold
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current+3.3V@20A, +5V@20A, [email protected] , +5Vsb@3A
Connectors1 x 12VHPWR (12+4) PCIe
Shipping weight3.18 kg
Package size286 × 188 × 132 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the ATX 3.1 rating mean for transient power handling with a modern GPU?

The ATX 3.1 certification means the unit can withstand 2x transient power excursions from a graphics card, meeting the PCIe 5.1 platform requirement.

How much clearance is needed inside the case for this 160 mm long unit?

The power supply measures 160 mm in length, so the case must provide at least that much clear depth behind the mounting bracket.

Which cables must be attached during installation to power a PCIe 5.1 graphics card?

Connect the included 12VHPWR (12+4) cable directly from the modular panel to the GPU; do not use adapters or older PCIe cables for this connection.
