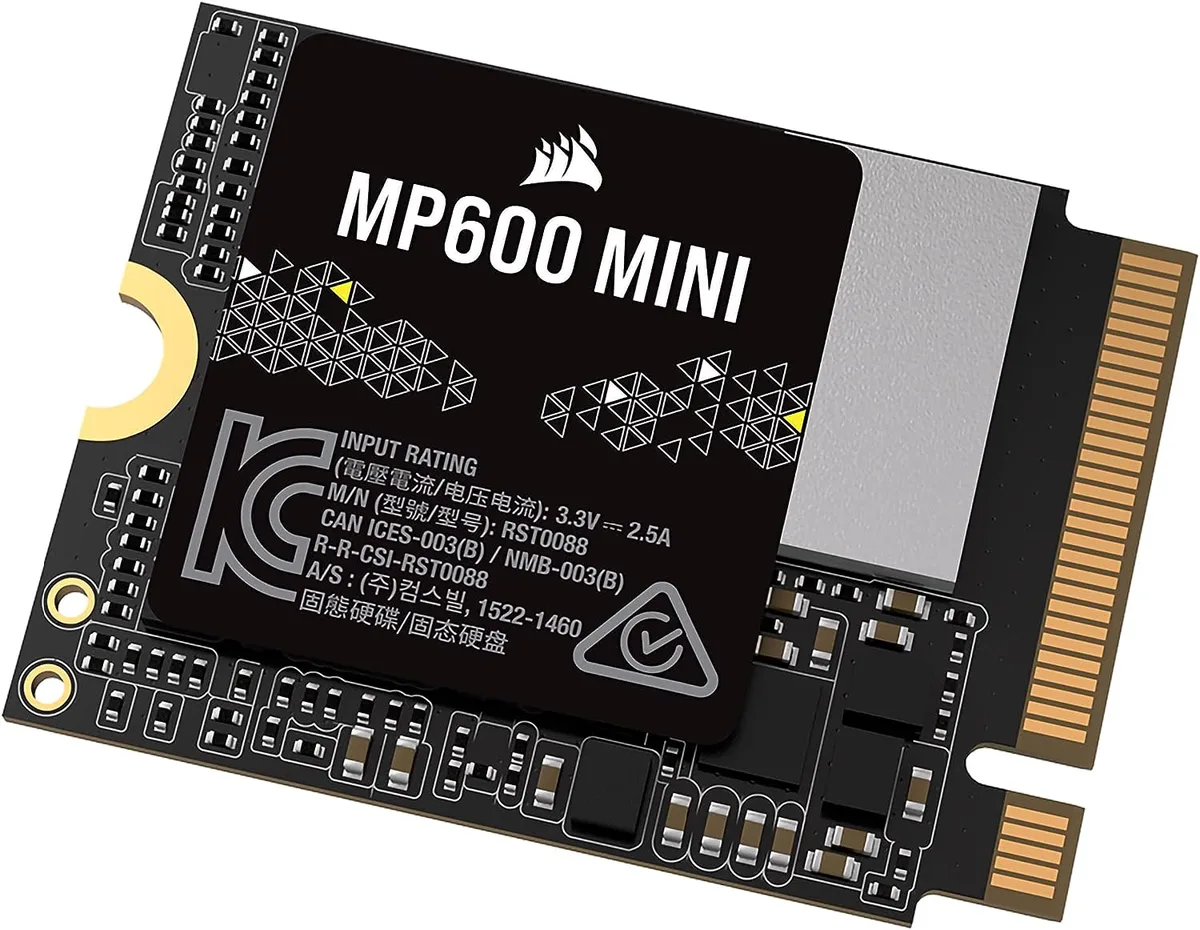

Small green circuit board with black chips and gold edge connector

Corsair

Corsair CSSD-F1000GBMP600MN MP600 MINI internal SSD

SKU CH-57ZK-ASTQP MPN CSSD-F1000GBMP600MN

Compact M.2 2230 NVMe drive with 1TB of 3D TLC storage, up to 4800 MBps read and write, AES 256-bit encryption, and PCIe 4.0 x4 interface for Steam Deck and Surface upgrades

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2230
  • Capacity1TB
  • Memory Components3D TLC
  • InterfacePCI-Express 4.0 x4
  • Fits Steam Deck and Surface with compact M.2 2230 form factor
  • Reads and writes up to 4800 MBps via PCIe 4.0 x4 NVMe 1.4
  • 1000 GB capacity built on high-density 3D TLC NAND for endurance
  • Hardware AES 256-bit encryption protects data at rest
  • Phison controller manages Gen4 performance for faster boots and loads

Compact M.2 2230 SSD for Handhelds

The Corsair MP600 MINI is a 1TB internal solid-state drive built in the M.2 2230 form factor. It uses a PCIe 4.0 x4 interface with NVMe 1.4 protocol and a Phison controller. High-density 3D TLC NAND delivers sequential reads and writes up to 4800 MBps.

Suits Steam Deck and Surface Owners.

This drive targets users upgrading a Valve Steam Deck, Microsoft Surface, or similar device that accepts only the shorter 2230 module. Builders working with full-length M.2 slots should choose a different drive, because the 2230 form factor will not fill a standard socket.

M.2 2230 Form Factor Decides Compatibility

The single specification that determines whether this SSD fits is the 2230 form factor. If the target device explicitly supports M.2 2230 modules, the drive will install; otherwise it cannot be used.

Highlights

  • Fits Steam Deck and Surface with compact M.2 2230 form factor
  • Reads and writes up to 4800 MBps via PCIe 4.0 x4 NVMe 1.4
  • 1000 GB capacity built on high-density 3D TLC NAND for endurance
  • Hardware AES 256-bit encryption protects data at rest
  • Phison controller manages Gen4 performance for faster boots and loads

Specifications

BrandCorsair
SeriesMP600 MN
ModelCSSD-F1000GBMP600MN
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2230
Capacity1TB
Memory Components3D TLC
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
ControllerPhison
EncryptionAES 256-bit encryption
Max Sequential ReadUp to 4800 MBps
Max Sequential WriteUp to 4800 MBps
Shipping weight0.35 kg
Package size161 × 141 × 83 mm

Questions about this item

Does my device need an M.2 2230 slot to install this drive?

Yes, the drive uses the M.2 2230 form factor so the host device must provide a matching slot.

Will this PCIe 4.0 x4 SSD work in a laptop that only has a PCIe 3.0 M.2 socket?

It will operate at PCIe 3.0 speeds because the interface is backwards compatible with older generations.

How can I confirm the SSD is delivering up to 4800 MBps sequential read and 4800 MBps sequential write after installation?

Run a benchmark tool such as CrystalDiskMark and compare the reported sequential speeds with the rated 4800 MBps figures.
