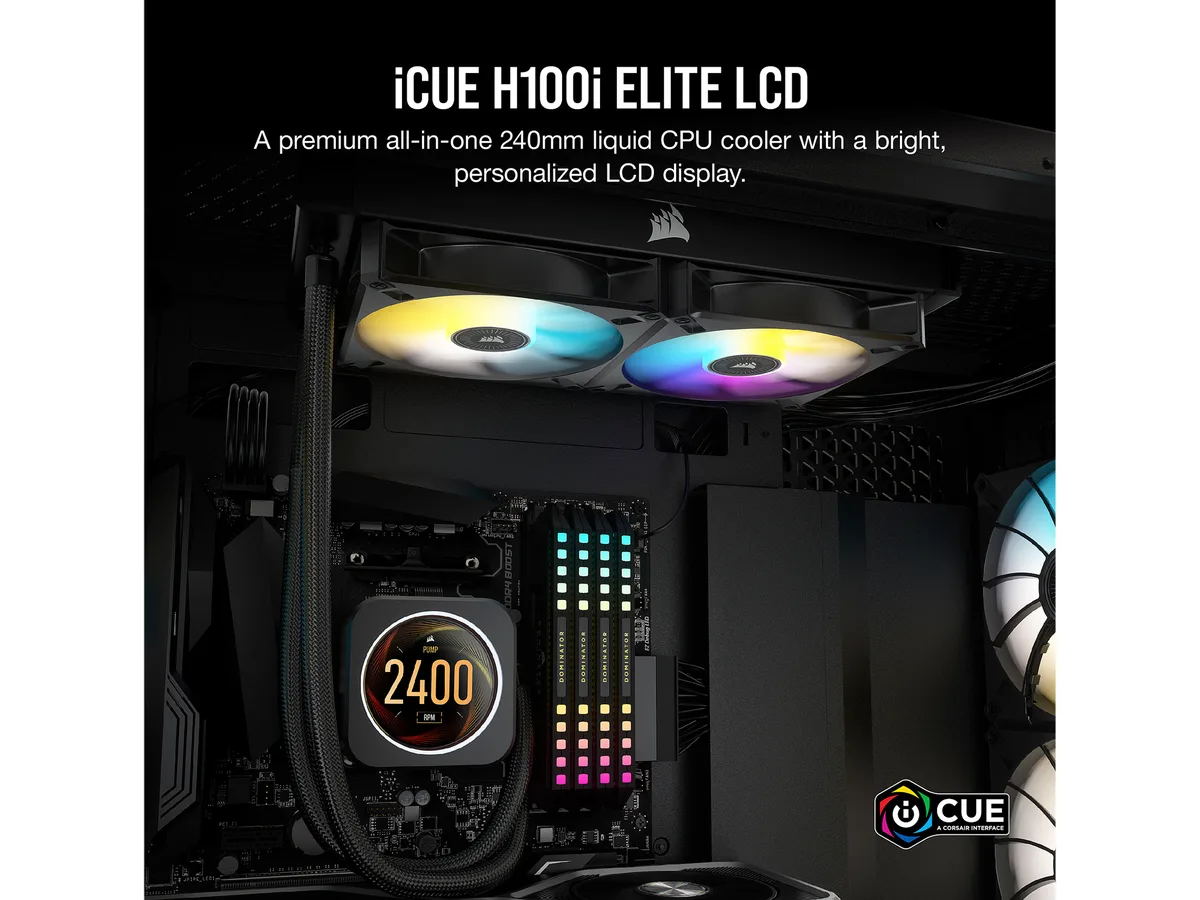

Corsair H100i ELITE LCD all-in-one liquid cooler with 2.1 inch IPS screen, two 120 mm RGB fans and black radiator

Corsair

Corsair CW-9060061-WW H100i ELITE LCD liquid cooler

SKU CH-S577-7MFW6 MPN CW-9060061-WW

All-in-one liquid CPU cooler with a 2.1" 480x480 IPS LCD for custom graphics and live stats, 277 mm aluminum radiator, two 120 mm ML RGB ELITE fans at 400-2000 RPM.

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1200 / 1156 / 1155 /
  • Radiator Size277.00 x 120.00 x 27.00 mm
  • Radiator MaterialAluminum
  • Fan Size2 Fan Slots (120 mm)
  • Fan Dim.120.00 x 120.00 x 25.00 mm

Fan Size 2 Fan Slots (120mm)

  • Personalised system monitoring via 2.1 inch 480x480 IPS LCD

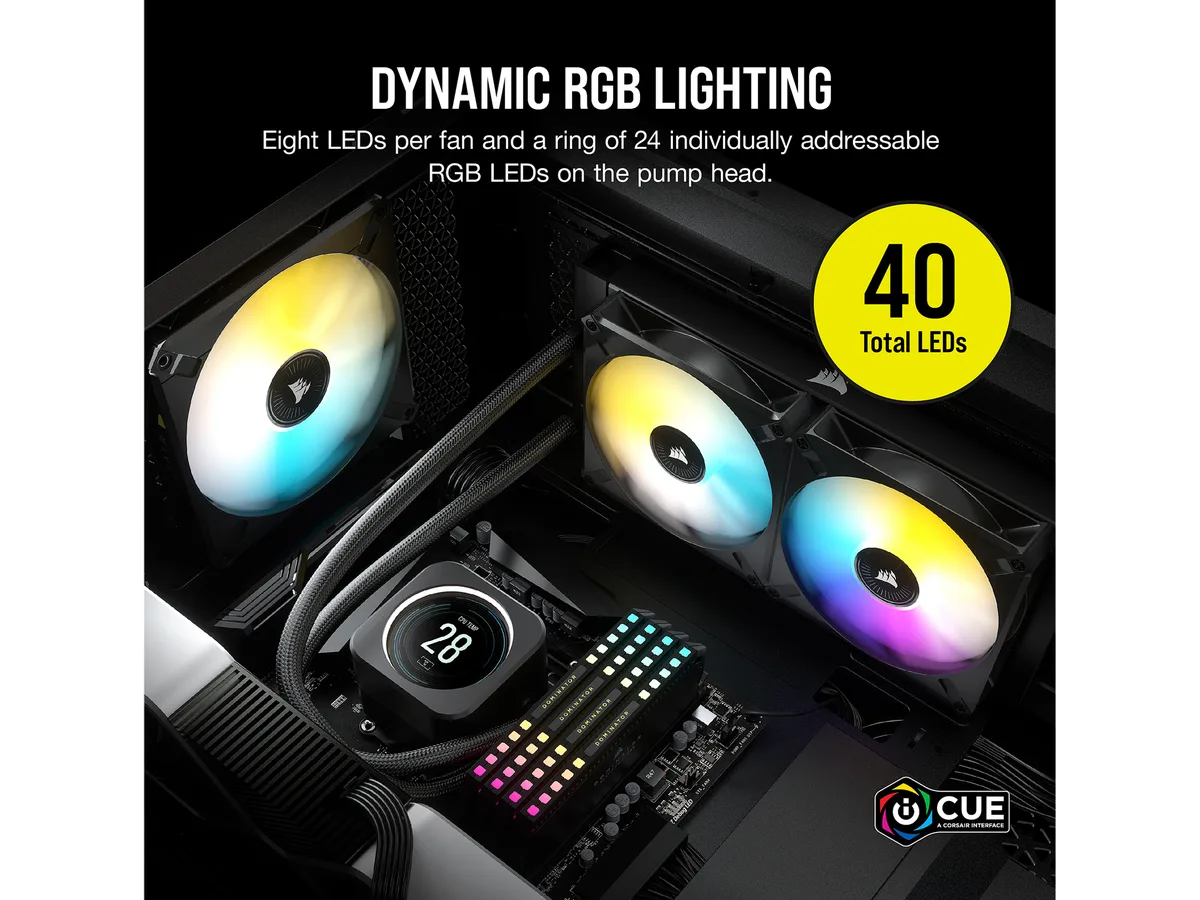

  • Vibrant RGB lighting across pump ring and two ML ELITE fans
  • Broad socket support for Intel LGA 1700 and AMD AM4 platforms
  • Quiet operation from 10 dB(A) minimum fan noise

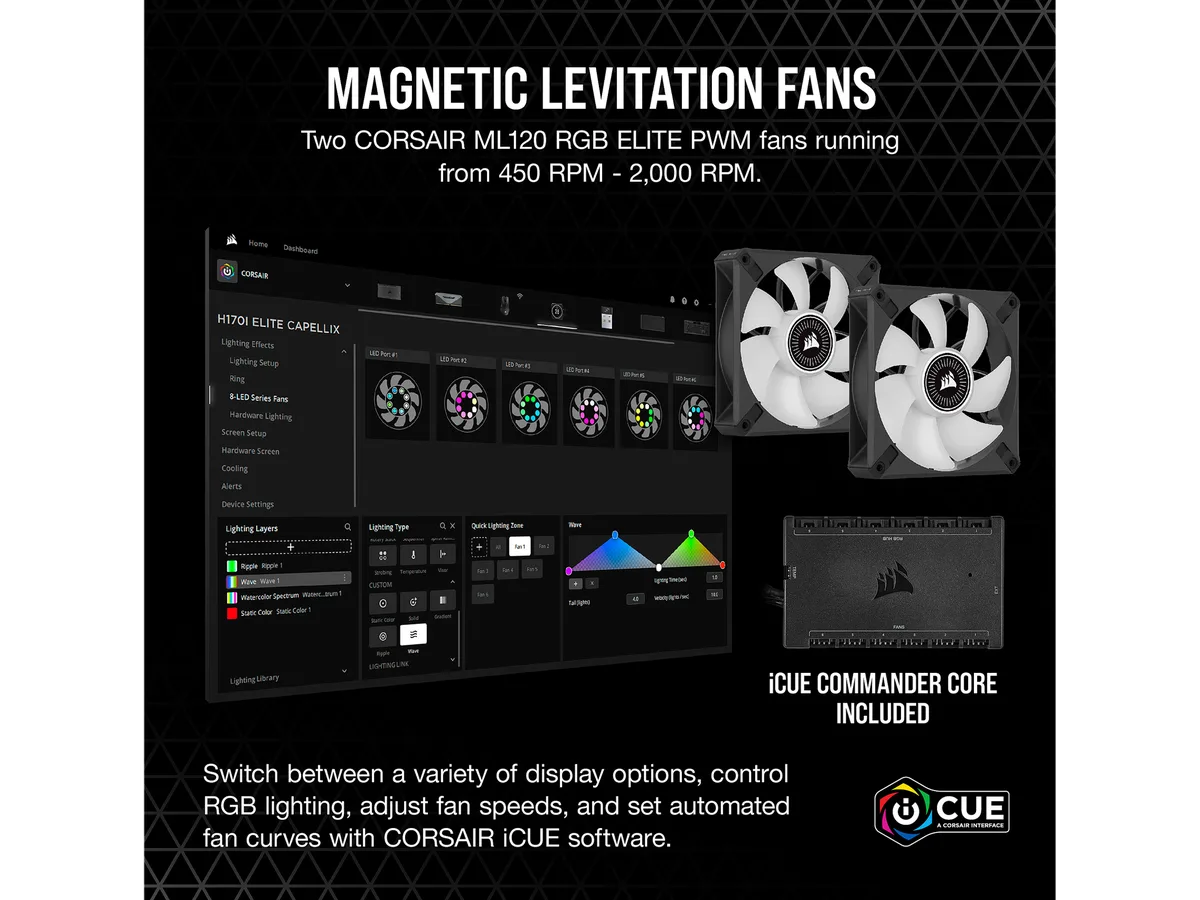

  • Included Commander CORE simplifies fan and lighting control

LCD liquid CPU cooler

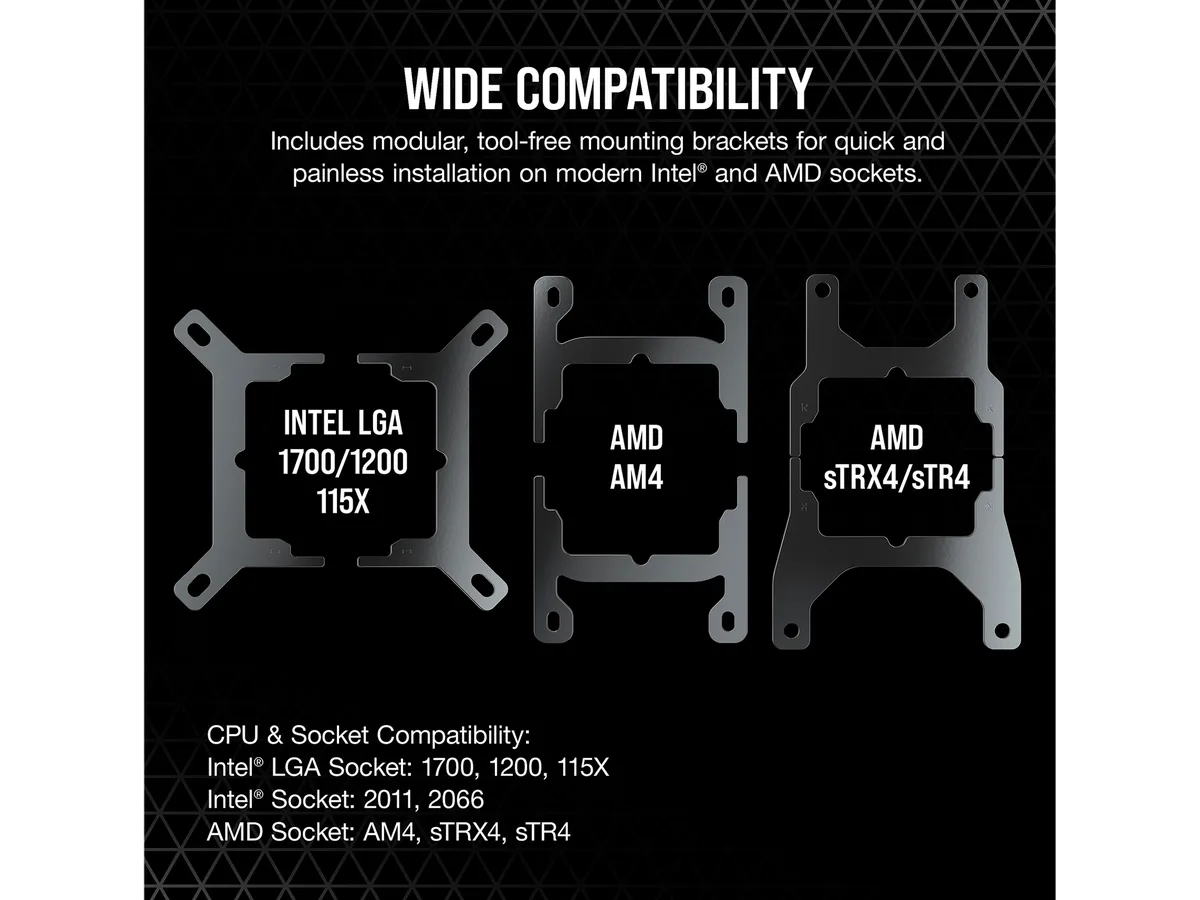

The Corsair CW-9060061-WW H100i ELITE LCD is an all-in-one liquid cooler with a 2.1" 480x480 IPS display, two 120 mm ML RGB ELITE fans, a 277 mm aluminum radiator and a low-permeation rubber tube set. It mounts on Intel LGA 1150, 1151, 1154, 1155, 1156, 1200, 1700, 2011, 2011-3 and 2066 plus AMD AM4 and sTRX4 sockets.

Builders who want live system readouts on the pump

The integrated LCD shows CPU temperature, custom graphics or animated GIFs in 16.7 million colours at 600 cd/m², while iCUE Commander CORE provides unified fan and RGB control. Buyers whose CPU uses a socket not listed above cannot install this cooler.

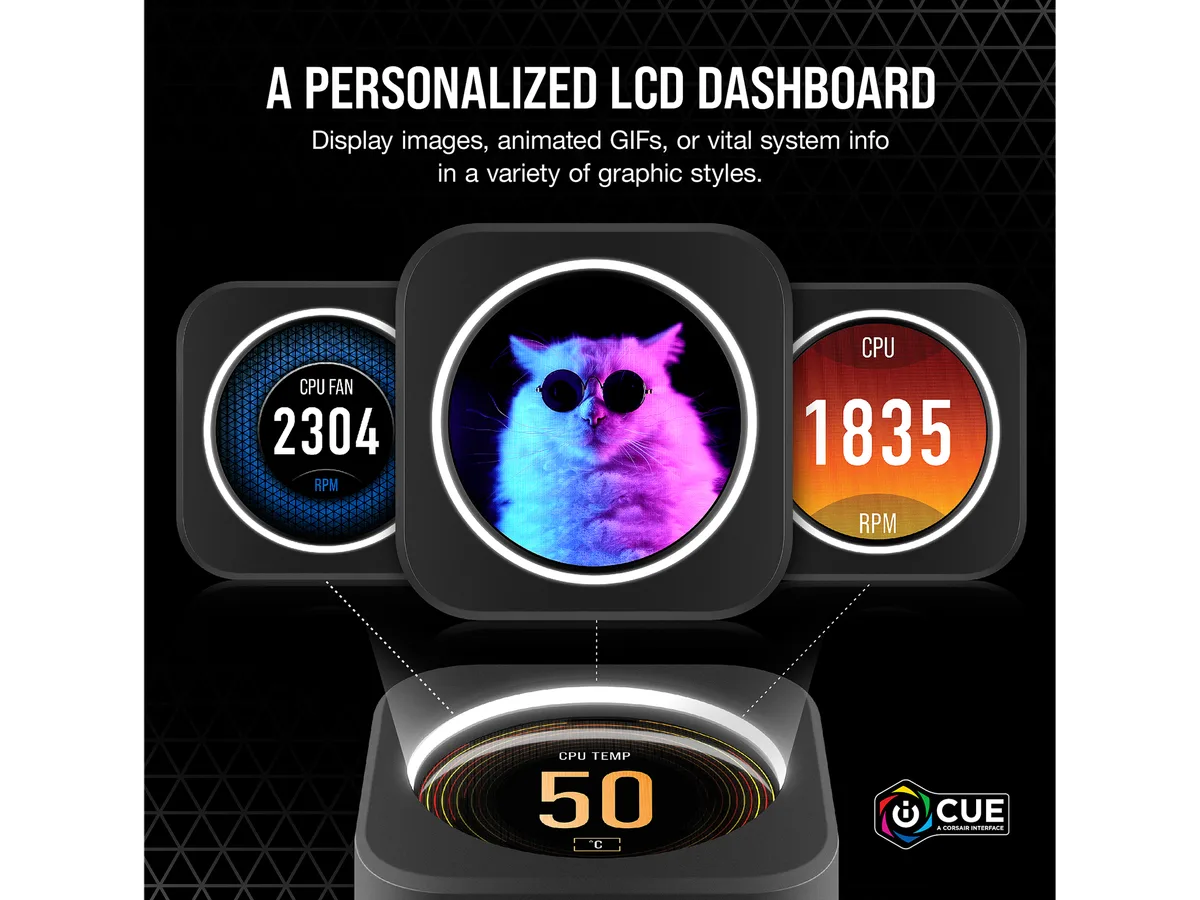

2.1" 480x480 IPS LCD on the pump head

This screen is the distinctive feature that separates the ELITE LCD from non-display variants; it lets you monitor real-time performance or personalise the look without extra software overlays. If a visible pump-head display is not required, a standard all-in-one without the screen covers the same thermal needs.

Highlights

  • Personalised system monitoring via 2.1 inch 480x480 IPS LCD
  • Vibrant RGB lighting across pump ring and two ML ELITE fans
  • Broad socket support for Intel LGA 1700 and AMD AM4 platforms
  • Quiet operation from 10 dB(A) minimum fan noise
  • Included Commander CORE simplifies fan and lighting control

Specifications

BrandCORSAIR
SeriesH100i ELITE LCD
ModelCW-9060061-WW
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1200 / 1156 / 1155 / 1154 / 1151 / 1150
AMD AM4 / sTRX4
Radiator Size277.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Fan RPM400 - 2000 RPM
Fan Air Flow14.8 - 58.1 CFM
Fan Noise10 - 30.4 dB(A)
LED ColorRGB
Tube Dim.380 mm
Tube MaterialLow-Permeation Rubber
FeaturesA premium all-in-one CPU cooler that combines powerful, low-noise cooling and vibrant RGB lighting with a personalized LCD display, offering custom graphics to accent your system's aesthetics and track its real-time performance at a glance.
Showcase your live CPU temperature, favorite animated GIF, funniest meme, your team's logo, or anything you like on a custom 2.1" IPS LCD screen with 480x480 resolution, ultra-bright 600cd/m2 backlight, 24-bit true color depth, and over 16.7 million colors.
A diverse library of colorful themes let you view vital system information in bold graphic
Package ContentsCORSAIR iCUE H100i ELITE LCD Display Liquid CPU Cooler
CORSAIR Commander CORE
Mounting kit for all modern CPU sockets
Two ML RGB ELITE Series PWM 120mm fans
Fan and radiator mounting screws
Thermal compound (pre-applied)
Warranty & Safety Leaflet
Shipping weight2.15 kg
Package size313 × 215 × 155 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance is required for the 277 mm radiator and 380 mm tubes?

The radiator measures 277 x 120 x 27 mm and needs two 120 mm fan slots; verify your case supports this length and has space for the 380 mm low-permeation rubber tubes to route without sharp bends.

Which mounting hardware do I use for an LGA 1700 socket and what is the common mistake?

Use the Intel LGA 1700 brackets from the included mounting kit; the frequent error is leaving the protective film on the pre-applied thermal compound or forgetting to install the back-plate before seating the pump head.

When should I plan to replace the two 120 mm ML RGB ELITE fans?

The PWM fans are rated for 400 to 2000 RPM at 10 to 30.4 dB(A); replace them if bearing noise rises above spec, airflow drops below 14.8 CFM at low speed, or RGB LEDs fail.
