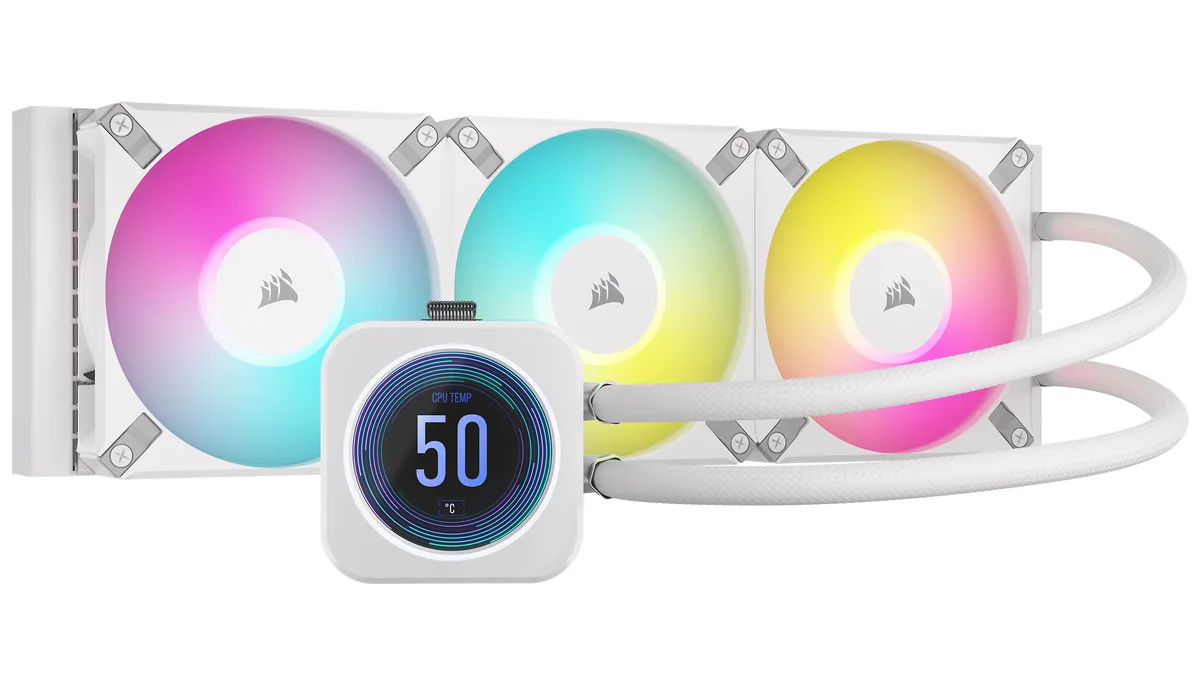

White 360 mm radiator with three 120 mm RGB fans and a square pump block featuring a 2.1 inch IPS LCD screen

Corsair

Corsair CW-9060077-WW H150i ELITE LCD XT liquid cooler

SKU CH-VN8S-5PQ9A MPN CW-9060077-WW

360 mm liquid CPU cooler with a 2.1" IPS LCD screen, three 120 mm AF RGB ELITE fans up to 2,100 RPM and broad Intel and AMD socket support

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / AMD Socket sTRX4 / Intel L
  • Block MaterialCopper
  • Radiator Size397mm x 120mm x 27mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (120 mm)
  • 1" IPS LCD screen shows real-time CPU stats
  • 360 mm radiator with three 120 mm fans moves up to 65.57 CFM
  • Fluid-dynamic bearings keep noise as low as 5 dBA at 550 RPM
  • Copper cold plate with pre-applied XTM70 paste covers Intel LGA 1851 and AMD AM5
  • Included Commander Core controller manages RGB lighting and PWM fan curves

White 360mm AIO with IPS display

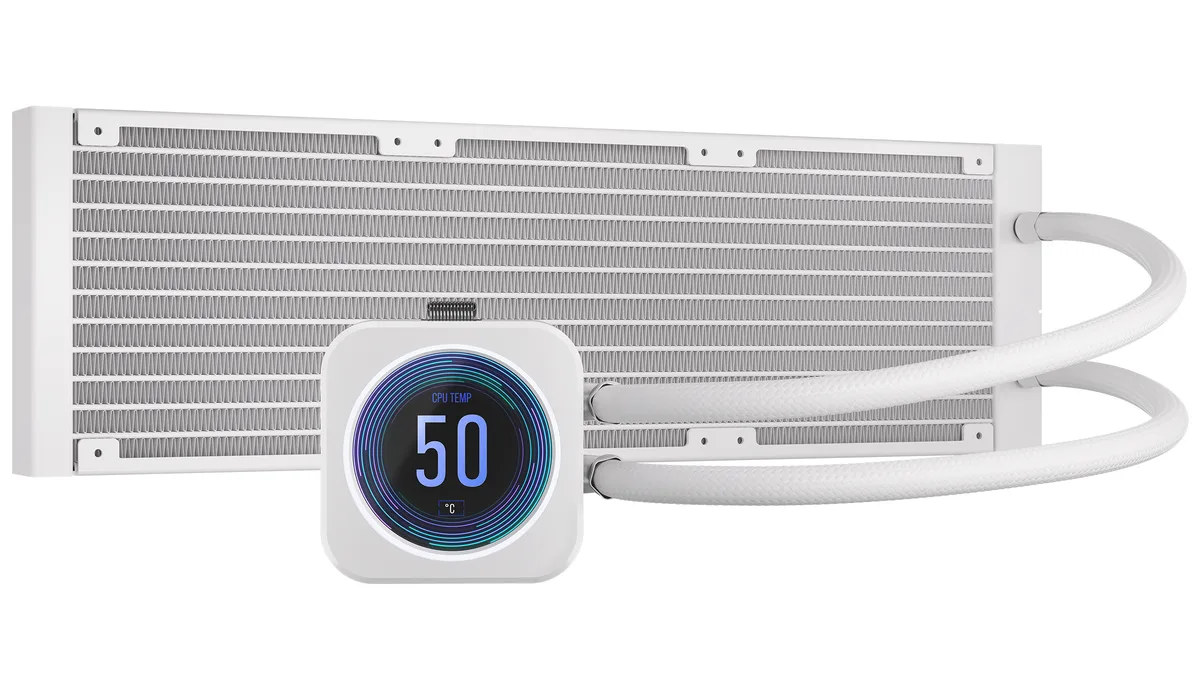

The Corsair H150i ELITE LCD XT is a 360mm all-in-one liquid cooler finished in white. It fits Intel LGA 1150, 1151, 1156, 1200, 1700, 1851, 2011, 2011-v3, 2066 and AMD AM4, AM5, sTRX4 sockets. The pump head integrates a 2.1" IPS LCD screen for real-time system data or custom graphics. Three AF120 RGB ELITE fans with AirGuide technology mount on the aluminium radiator.

Radiator footprint and fan curve limits

The radiator measures 397mm x 120mm x 27mm, so the case must clear a 360mm three-fan layout at that thickness. Fans use fluid dynamic bearings and run from 550 to 2,100 RPM, delivering 13.8 to 65.57 CFM at 5 to 34.1 dBA. PWM control and Zero RPM mode allow the fans to stop completely at low load, but maximum airflow is bounded by the 120mm fan geometry and the stated RPM ceiling.

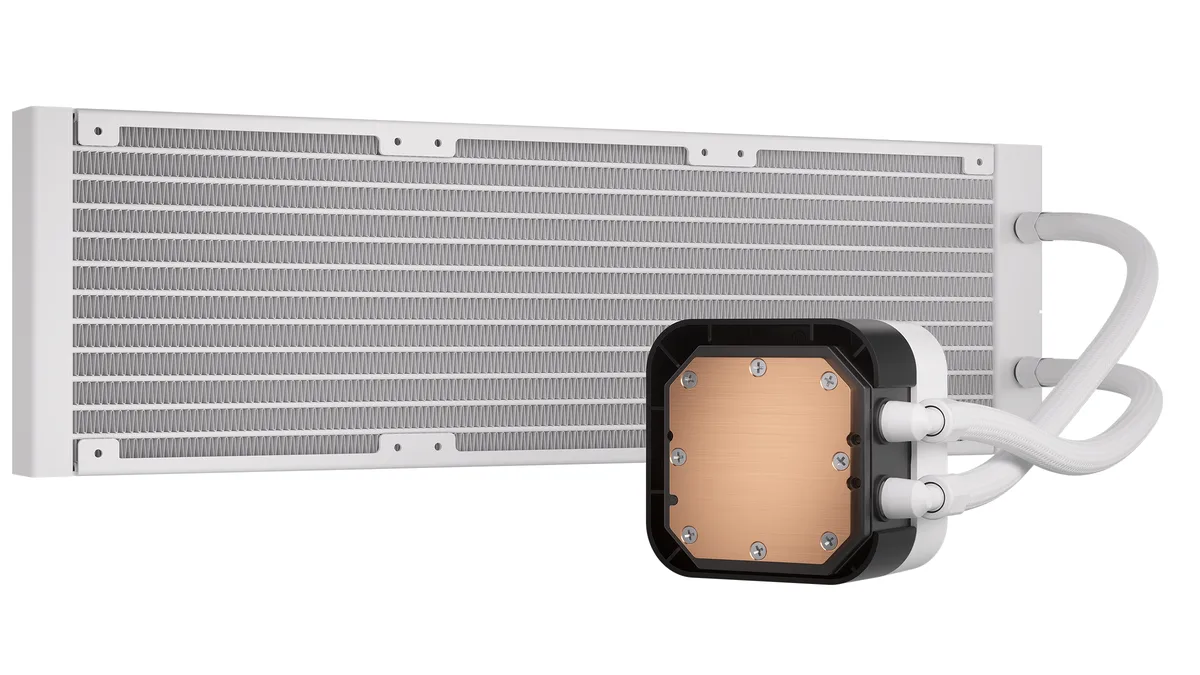

Copper cold plate and included controller

The copper block transfers heat from the CPU to the coolant and comes with pre-applied XTM70 thermal paste. An iCUE COMMANDER CORE RGB controller is bundled for lighting and fan-speed management via a single USB connection. Builders needing a smaller radiator, a different block colour, or a pump without an integrated display should look elsewhere.

Highlights

  • 1" IPS LCD screen shows real-time CPU stats
  • 360 mm radiator with three 120 mm fans moves up to 65.57 CFM
  • Fluid-dynamic bearings keep noise as low as 5 dBA at 550 RPM
  • Copper cold plate with pre-applied XTM70 paste covers Intel LGA 1851 and AMD AM5
  • Included Commander Core controller manages RGB lighting and PWM fan curves

Specifications

BrandCORSAIR
ModelCORSAIR H150i ELITE LCD XT White
Part NumberCW-9060077-WW
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / AMD Socket sTRX4 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851 / Intel LGA 2011 / Intel LGA 2011-v3 / Intel LGA 2066
Block MaterialCopper
Radiator Size397mm x 120mm x 27mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120x120x25mm
Bearing TypeFluid Dynamic Bearing (FDB)
Fan RPM550 - 2,100 RPM
Fan Air Flow13.8 - 65.57 CFM
Fan Noise5 - 34.1 dBA
Fan Connector4 Pin
ColorWhite
LED ColorRGB
Shipping weight2.63 kg
Package size445 × 193 × 133 mm

Questions about this item

Should I pick the white or black version of the H150i ELITE LCD XT?

Only the white variant with part number CW-9060077-WW is listed; no black option appears in the data.

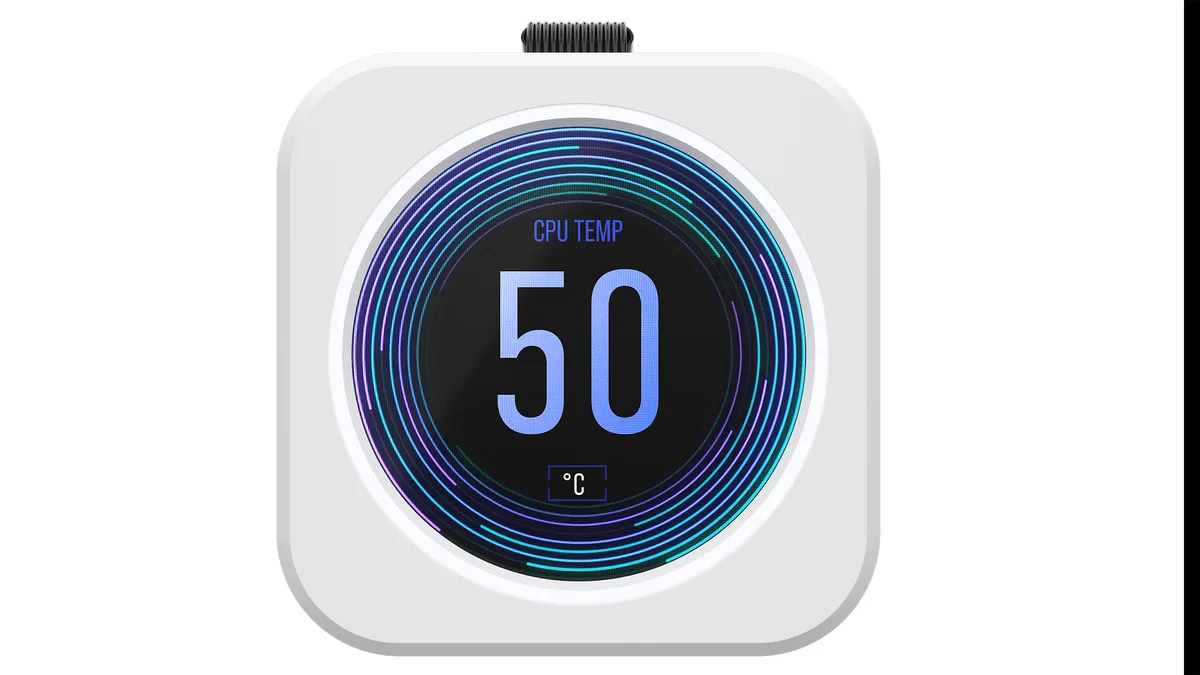

What does the 2.1" IPS LCD screen actually show inside my case?

The 2.1 inch IPS display mounts on the pump head and can show CPU temperature, coolant temperature, custom images or animated GIFs through iCUE software.

How does the 4-pin PWM fan connector limit control on a typical motherboard?

Each 120 mm AF RGB ELITE fan uses a standard 4-pin PWM connector, allowing the board or the included COMMANDER CORE to vary speed between 550 and 2,100 RPM with Zero RPM mode at low load.
