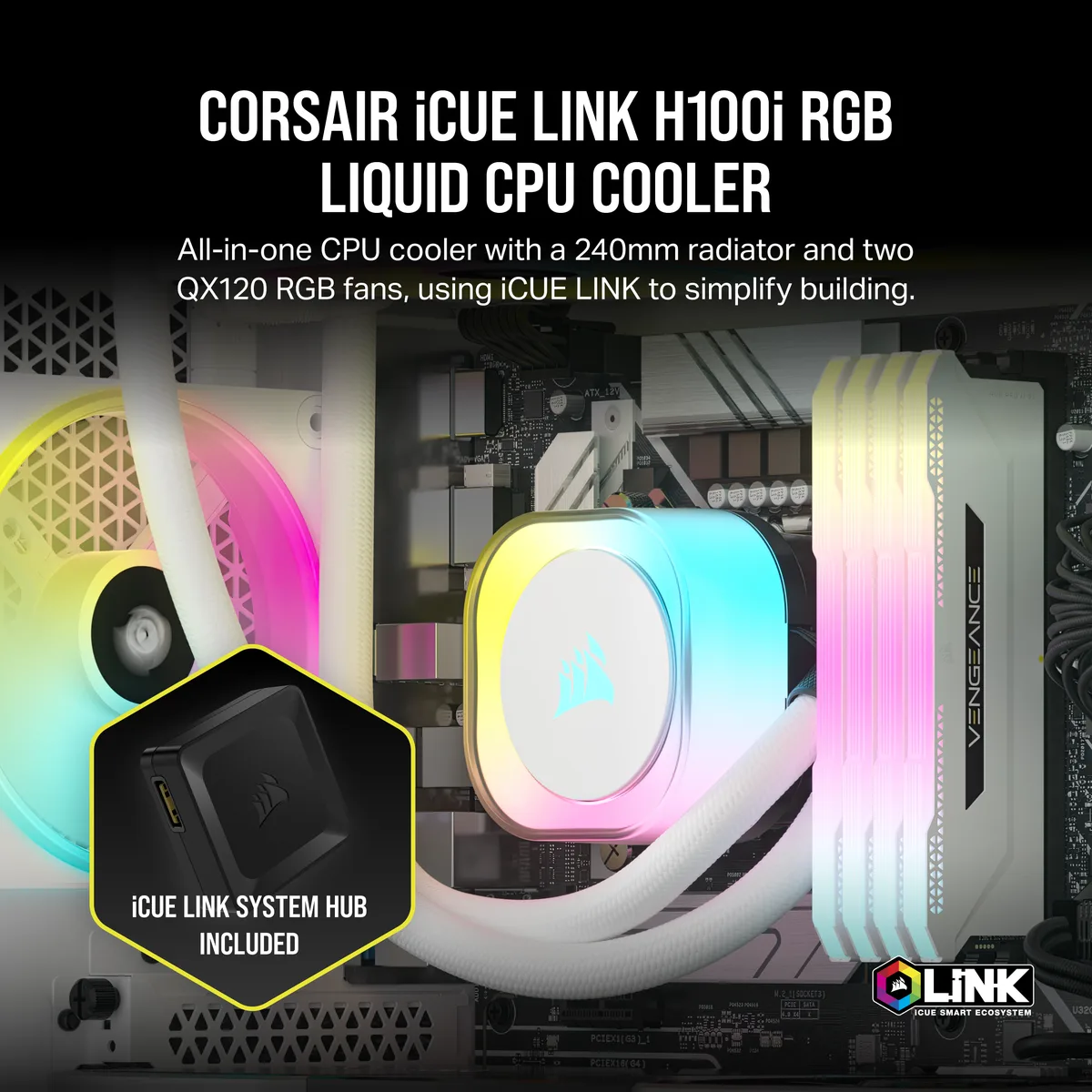

White 240mm radiator with two 120mm RGB fans and white pump block

Corsair

Corsair CW-9061005-WW iCUE LINK H100i RGB liquid cooler

SKU CH-9VCD-68VQS MPN CW-9061005-WW

A 240 mm liquid CPU cooler with two 120 mm magnetic-dome fans running up to 2,400 RPM, a split-flow copper cold plate with 128 fins per inch.

  • TypeLiquid Cooling System

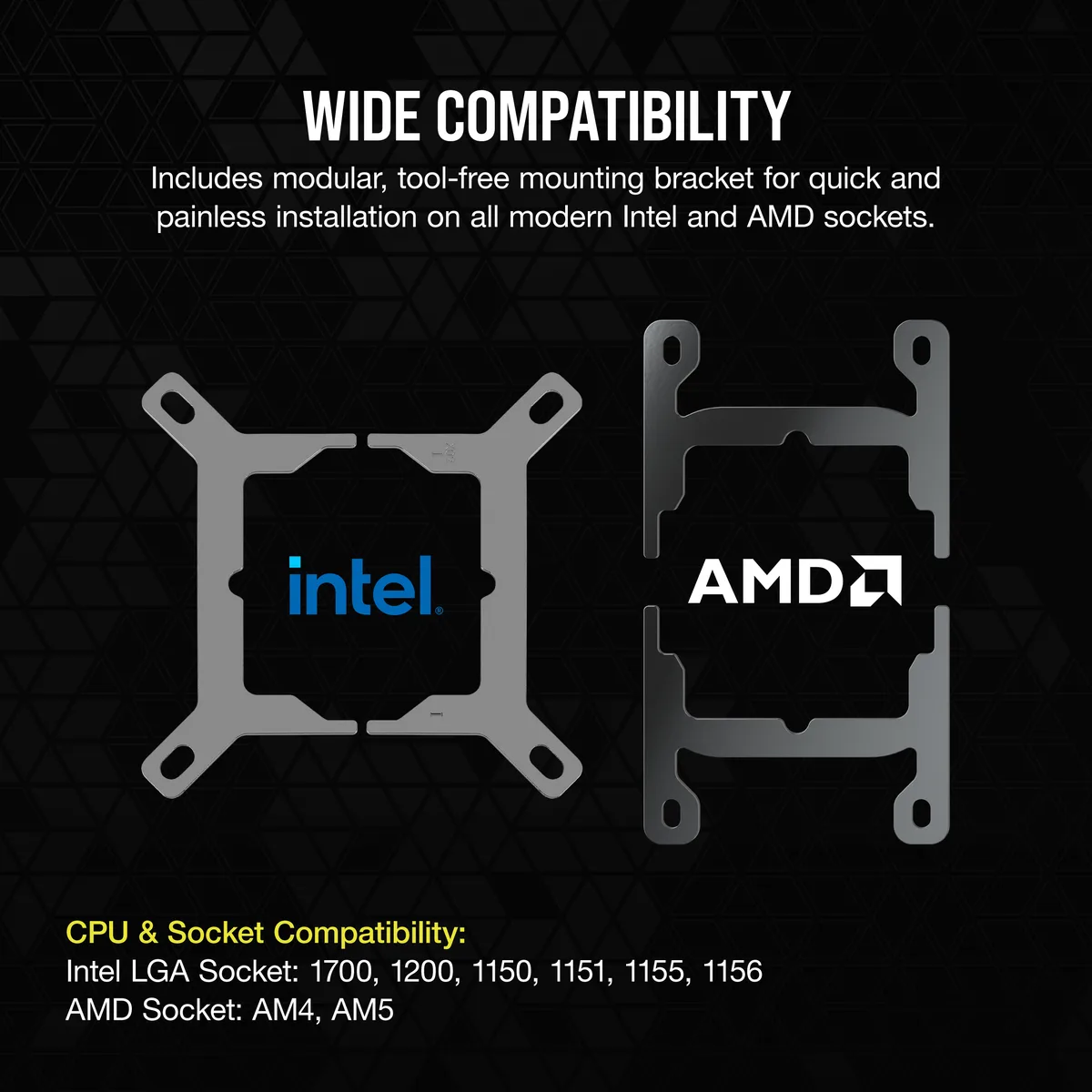

  • Block CompatibilityAMD: AM5, AM4, sTRX4 Intel: LGA 1851, 1700, 1200, 1150, 1151
  • Radiator Size277 mm
  • Radiator MaterialAluminum
  • Fan Size2 Fan Slots (120 mm)
  • Fan Dim.120 x 120 x 25mm
  • Simplified setup with iCUE LINK chainable components reducing cable clutter
  • Quiet operation from magnetic dome bearing fans at 10 dBA minimum
  • High airflow up to 63.1 CFM at 2400 RPM with zero RPM mode
  • Dense cooling via split-flow copper cold plate with 128 fins per inch
  • Ready to install with pre-applied XTM70 thermal paste included

White 240 mm liquid cooler for modern sockets

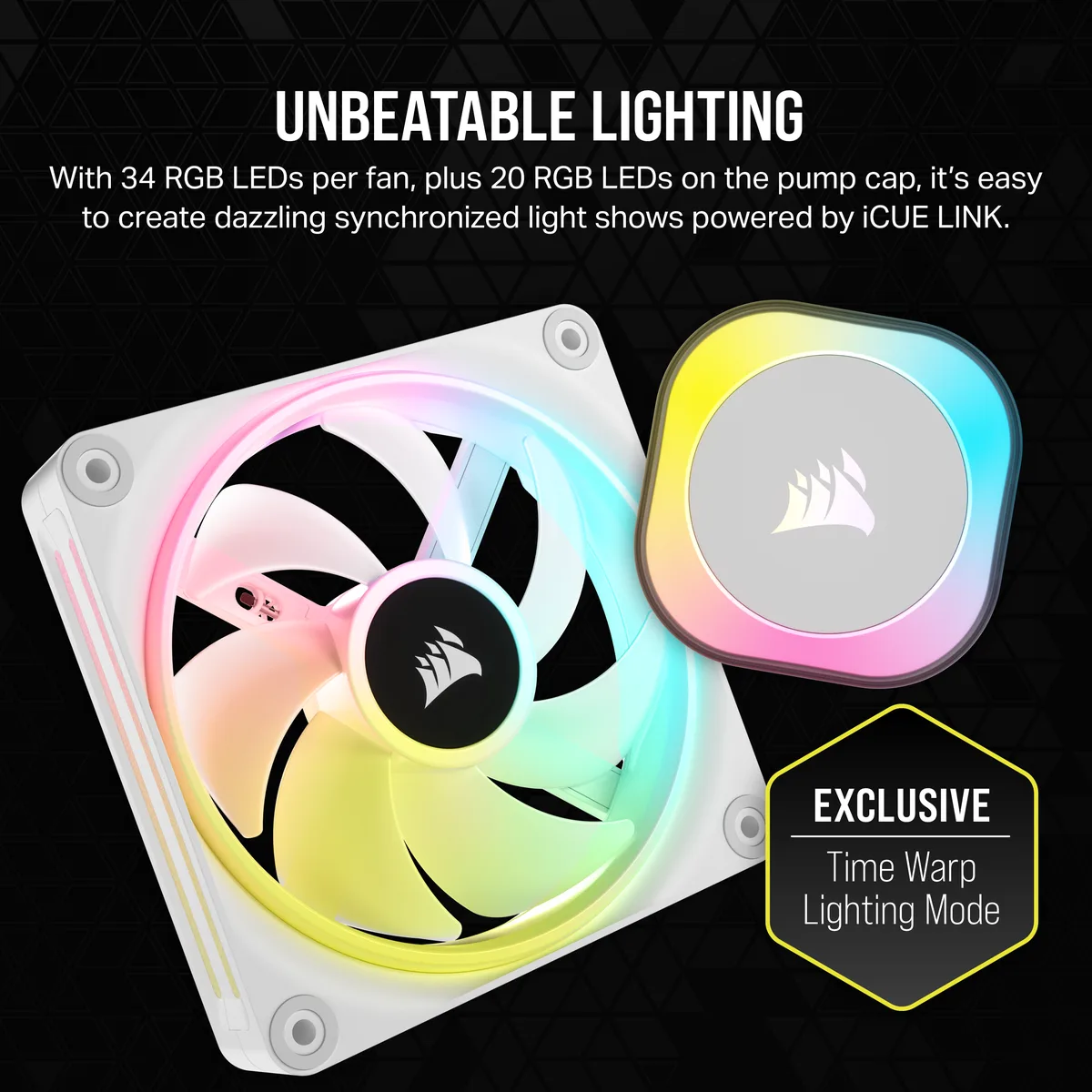

This Corsair iCUE LINK H100i RGB cooler uses a 240 mm aluminium radiator and two 120 mm QX RGB fans to dissipate CPU heat. It fits AMD AM5, AM4 and sTRX4 platforms as well as Intel LGA 1851, 1700, 1200, 1150, 1151, 1154, 1155, 1156, 2066, 2011-3 and 2011 sockets. The white finish and 34 LEDs per fan suit builders who want coordinated lighting.

Check case clearance and hub connectivity

Verify that your chassis can accommodate a 277 mm radiator length and two 120 mm fan slots with 25 mm thickness. Ensure a free internal USB header for the included iCUE LINK System Hub, which carries power and control for the fans and pump. Confirm the motherboard CPU socket matches the supported list before ordering.

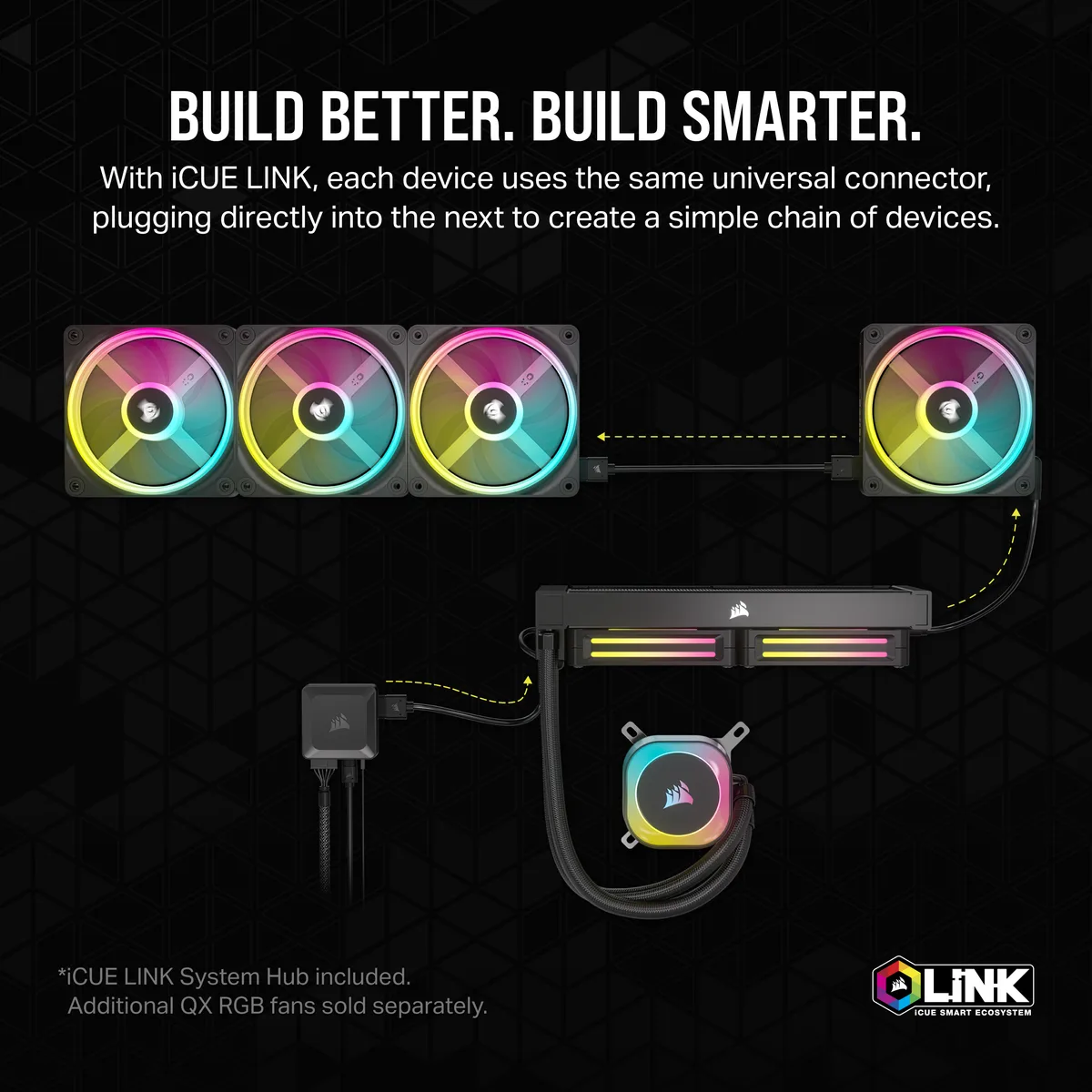

Integrates with iCUE LINK ecosystem

The cooler connects to the supplied System Hub, reducing cable count by chaining iCUE LINK devices together. PWM fans run from zero to 2,400 RPM, delivering 16.44 to 63.1 CFM at 10 to 37 dB(A). Pre-applied XTM70 paste and a split-flow copper cold plate with 128 fins per inch simplify installation and free you from sourcing thermal compound separately.

Highlights

  • Simplified setup with iCUE LINK chainable components reducing cable clutter
  • Quiet operation from magnetic dome bearing fans at 10 dBA minimum
  • High airflow up to 63.1 CFM at 2400 RPM with zero RPM mode
  • Dense cooling via split-flow copper cold plate with 128 fins per inch
  • Ready to install with pre-applied XTM70 thermal paste included

Specifications

BrandCORSAIR
SeriesiCUE LINK
ModelCORSAIR iCUE LINK H100i RGB
Part NumberCW-9061005-WW
TypeLiquid Cooling System
Block CompatibilityAMD: AM5, AM4, sTRX4
Intel: LGA 1851, 1700, 1200, 1150, 1151, 1154, 1155, 1156, 2066, 2011-3, 2011
Radiator Size277 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25mm
Bearing TypeMagnetic Dome
Fan RPM0 RPM, 480 – 2,400 RPM ±10%
Fan Air Flow16.44 – 63.1 CFM
Fan Noise10 - 37 dB(A)
Fan ConnectoriCUE LINK System Hub
ColorWhite
LED ColorRGB
Shipping weight2.18 kg
Package size305 × 229 × 127 mm

Questions about this item

What does the CW-9061005-WW box contain and what extra parts are needed for installation?

The package includes the 240 mm radiator, two QX120 RGB fans with magnetic dome bearings, the pump block with pre-applied XTM70 paste, an iCUE LINK System Hub, and mounting hardware for AM5, AM4, sTRX4, LGA 1851, 1700, 1200, 1150, 1151, 1154, 1155, 1156, 2066, 2011-3 and 2011 sockets. No separate brackets or thermal compound are required.

Which radiator size matches the CW-9061005-WW and will it fit a standard 120 mm dual-fan mount?

This model uses a 277 mm long aluminum radiator designed for a 240 mm, two-slot 120 mm fan layout. The fans measure 120 x 120 x 25 mm, so it fits any case with a standard 240 mm top or front mounting area.

How do the 2,400 RPM fan speed and 37 dB(A) noise rating translate to actual CPU temperatures under load?

The QX120 fans deliver 16.44 – 63.1 CFM across a 480 – 2,400 RPM range with a Zero RPM mode. The split-flow copper cold plate uses 128 micro-skived fins per inch to move heat into the 240 mm radiator, keeping modern CPUs within thermal limits at moderate fan speeds.
