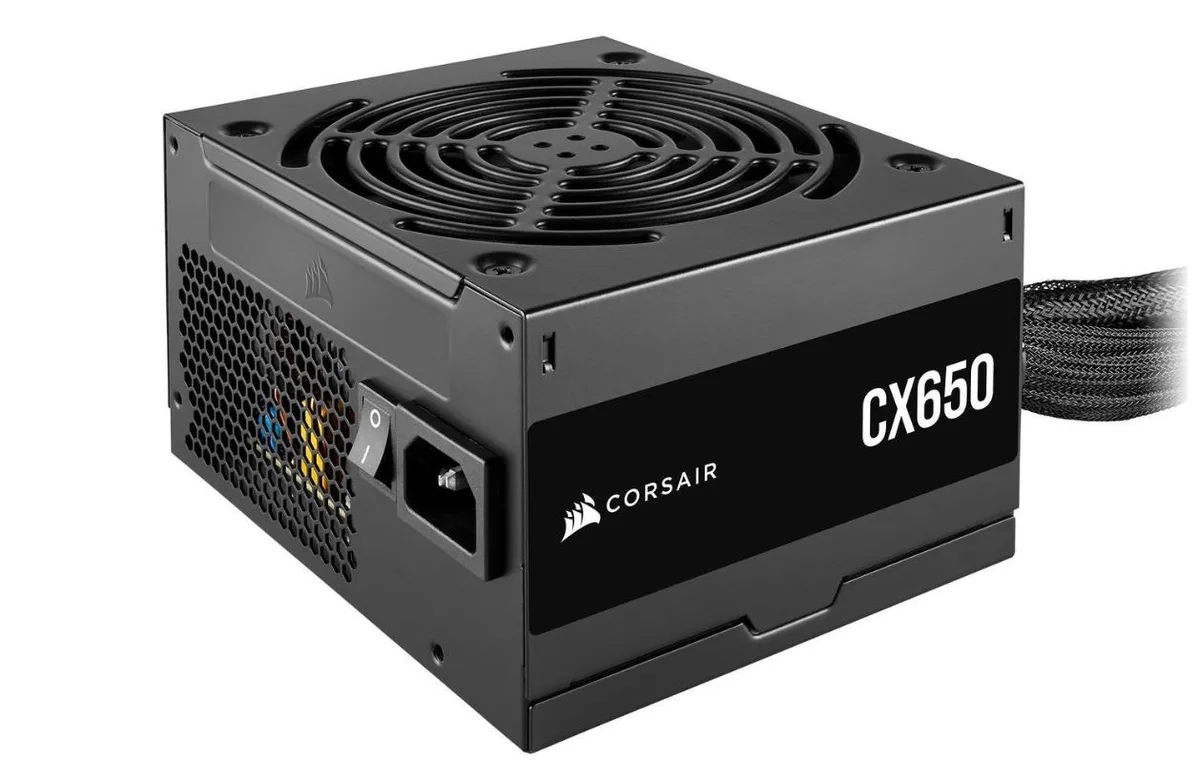

Black rectangular ATX power supply unit with 120mm fan and sleeved cables

Corsair

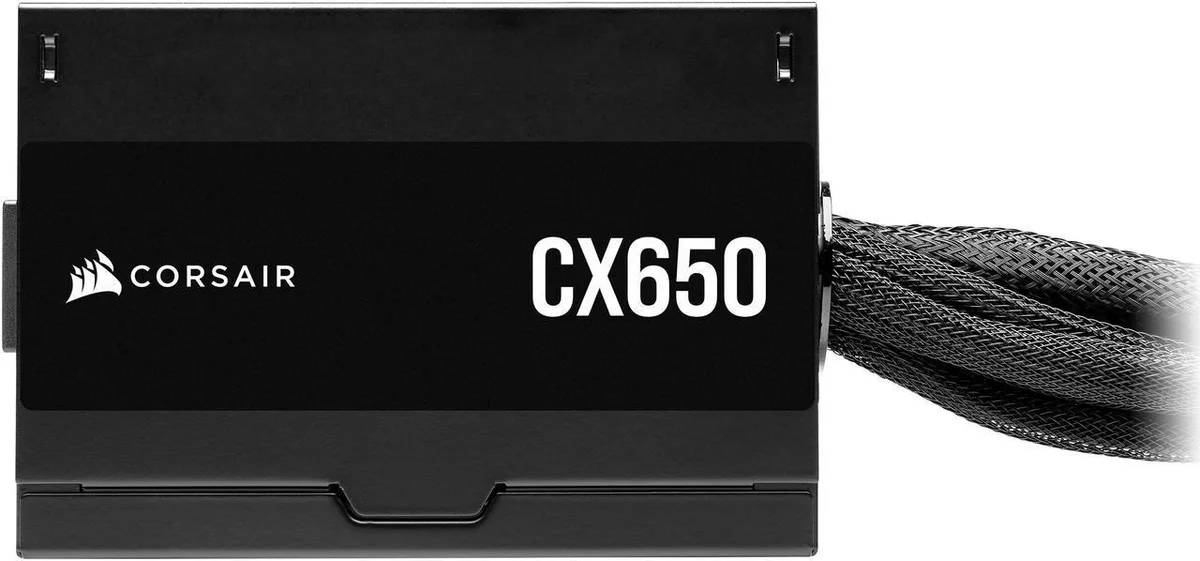

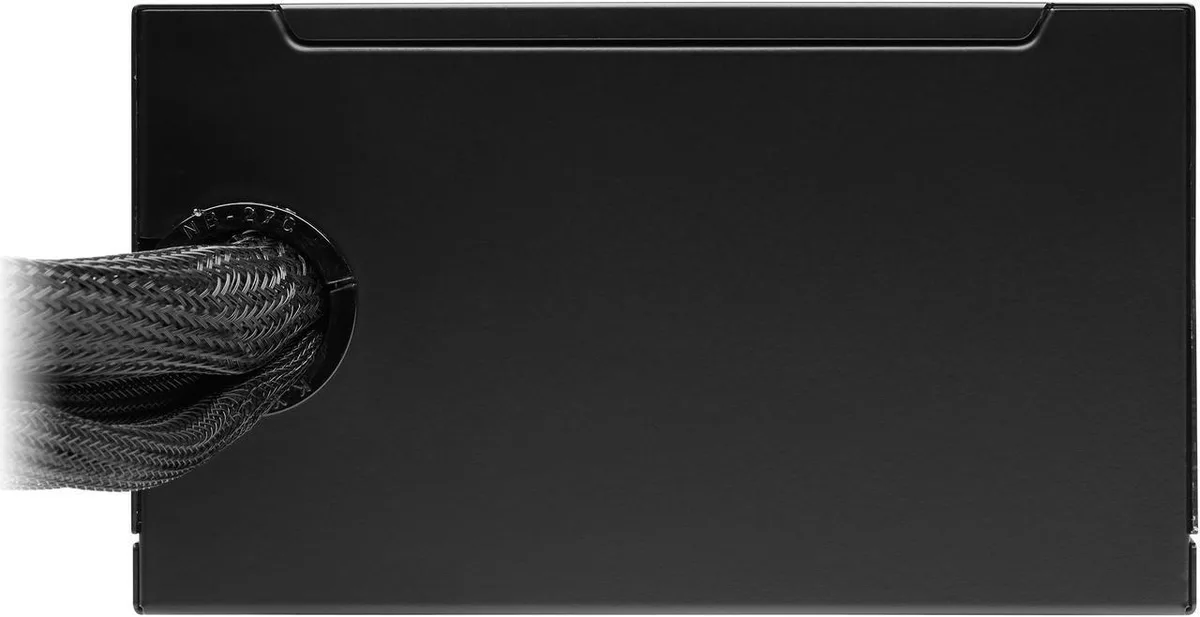

Corsair CX650 650 W ATX power supply

SKU CH-9H1A-25TBH MPN CX650

ATX power supply delivering 650 W with 80 PLUS Bronze efficiency up to 88 percent and a 120 mm low-noise fan in a compact 125 mm case

  • TypeATX
  • Maximum Power650 W
  • Fans1 x 120 mm
  • Max PSU Length125 mm
  • Energy-Efficient80 PLUS BRONZE Certified
  • Input Voltage100 - 240 V
  • 80 PLUS Bronze certified efficiency reaches up to 88%
  • 120 mm thermally controlled fan runs quietly at low loads
  • Compact 125 mm casing fits almost all modern cases
  • 650 W continuous power guaranteed across the full output range
  • Black sleeved cables and powder-coated body match any build style

Power for mid-range builds

The Corsair CX650 is a 650 W ATX power supply built for mainstream desktop systems. It delivers continuous rated output across the +12 V rail at 52 A and holds 80 PLUS Bronze certification with up to 88% efficiency. The unit accepts 100–240 V input at 47–63 Hz.

Compact 125 mm casing fits modern cases

At 125 mm long the supply sits comfortably in most current chassis without blocking drive bays or long graphics cards. A single 120 mm thermally controlled fan runs quietly at light loads and ramps only under heavy stress. Fixed black-sleeved cables include one 24-pin ATX, one 4+4-pin EPS, two 6+2-pin PCIe, three SATA and two PATA connectors.

Included accessories simplify assembly

The retail box supplies a mains power cord, four mounting screws and reusable cable ties. These items let you secure the unit and route cables neatly without extra purchases. The fixed cable set covers typical single-GPU configurations with multiple drives; builders needing additional PCIe or SATA leads will need separate adapter cables.

Highlights

  • 80 PLUS Bronze certified efficiency reaches up to 88%
  • 120 mm thermally controlled fan runs quietly at low loads
  • Compact 125 mm casing fits almost all modern cases
  • 650 W continuous power guaranteed across the full output range
  • Black sleeved cables and powder-coated body match any build style

Specifications

BrandCORSAIR
SeriesCX series
ModelCX650
Part NumberCP-9020278-NA
TypeATX
Maximum Power650 W
Fans1 x 120 mm
Max PSU Length125 mm
Energy-Efficient80 PLUS BRONZE Certified
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10A-5A
Output+3.3V@24A, +5V@20A, +12V@52A, [email protected] , +5VSB@3A
Connectors1x ATX Cable (24-PIN) (24)
1x EPS/ATX12V Cable (8-PIN) (4+4)
2x PCI-E Cable (8-PIN) (6+2)/(6+2)P
3x SATA CABLE (3 SATA)
2x PATA CABLE (2PATA)
Cable Spec1x ATX Cable (24-PIN) (24)
1x EPS/ATX12V Cable (8-PIN) (4+4)
1x PCI-E Cable (8-PIN) (6+2)/(6+2)P: 500mm, 100mm
1x SATA CABLE (3 SATA): 400mm, 100mm, 100mm
1x PATA CABLE (2PATA):400mm, 100mm
Dimensions4.92*5.91*3.39"
Weight4.18 lbs
Package ContentCX650 Power Supply | Power Cord | Mounting Screws | Cable Ties

Questions about this item

At what load does the 120 mm fan spin up to high speed?

The 120 mm thermally controlled fan only spins at high speed when the power supply is under heavy stress, slowing down for quieter operation at lower loads.

How much heat does the unit produce when running continuously at full output?

80 PLUS Bronze certification means up to 88% efficiency, so roughly 12% of the 650 W draw becomes waste heat during sustained full-load operation.

Which motherboard power connector is included for the CPU?

One EPS/ATX12V cable with an 8-pin (4+4) connector is supplied for the CPU power socket.
