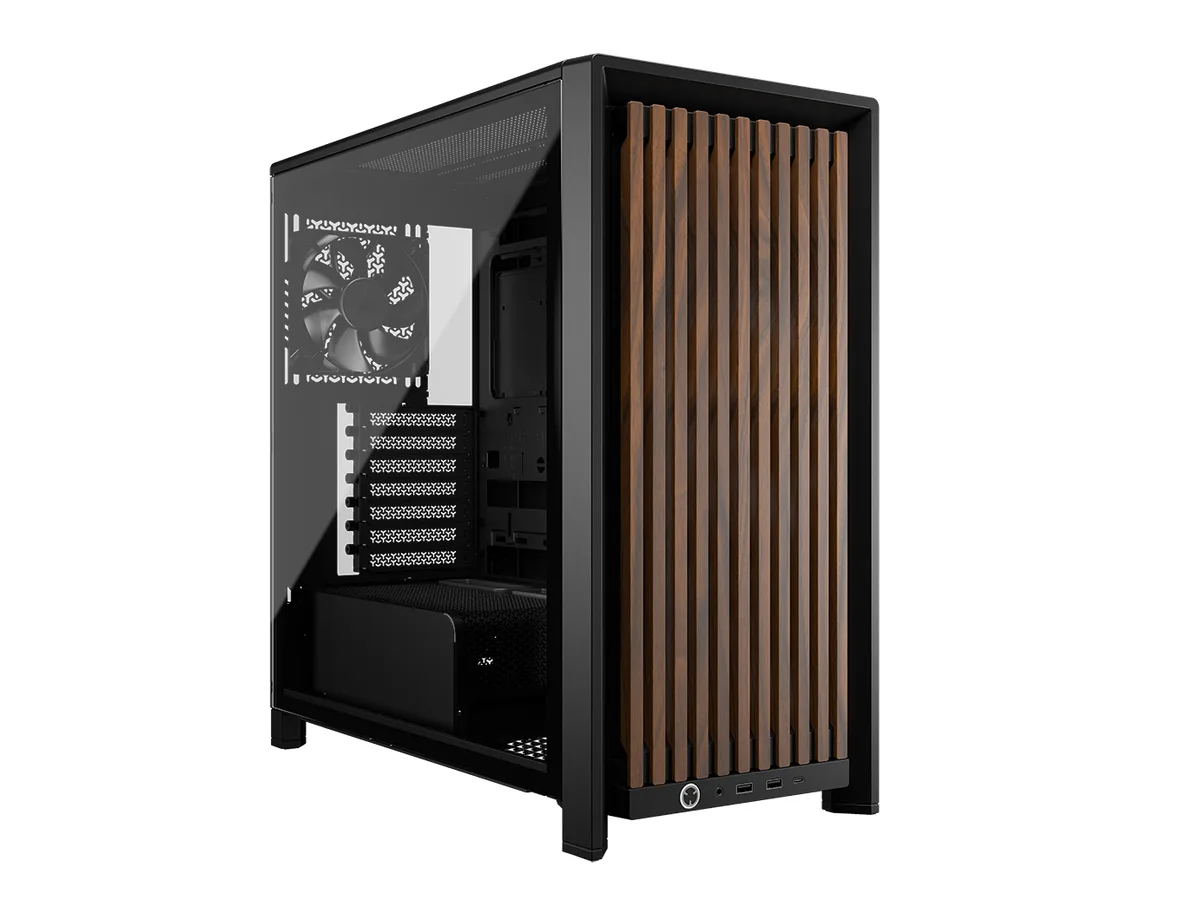

Mid-tower PC case with solid walnut front panel and black steel frame, tempered glass side panel visible

Corsair

Corsair FRAME 4000D WOOD RS CC-9011340-WW PC case

SKU CH-5Z1Z-EH1YV MPN CC-9011340-WW

Modular mid-tower case with solid walnut front panel, four pre-installed RS120 PWM fans, and space for thirteen 120 mm or seven 140 mm fans

  • TypeATX Mid Tower
  • ColorBlack & Walnut
  • Case MaterialSteel, Tempered Glass, Solid Wood
  • Motherboard CompatibilityMini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
  • Dust FiltersBottom / Front / Side
  • Internal 3.5" Drive Bays1

Options 4000D RS Wood Black Walnut

Struck-through versions exist but are not stocked here.

  • Solid walnut front panel adds distinctive style to the build
  • Four pre-installed RS120 PWM fans deliver strong airflow from the start
  • InfiniRail system allows flexible fan placement up to 200 mm front and 140 mm roof
  • Three 360 mm radiator mounts support high-capacity liquid cooling
  • Modular FRAME design lets you swap panels and trays as needs change

FRAME 4000D Wood RS mid-tower case

The Corsair FRAME 4000D WOOD RS is an ATX mid-tower case built from steel, tempered glass and a solid walnut front panel. It fits Mini-ITX, Micro-ATX, ATX and E-ATX boards up to 305 by 277 millimetres. Four RS120 PWM fans are pre-installed and the chassis accepts up to 13 120-millimetre or 7 140-millimetre fans in total. Dust filters cover the bottom, front and side intakes.

Modular FRAME system and InfiniRail mounting

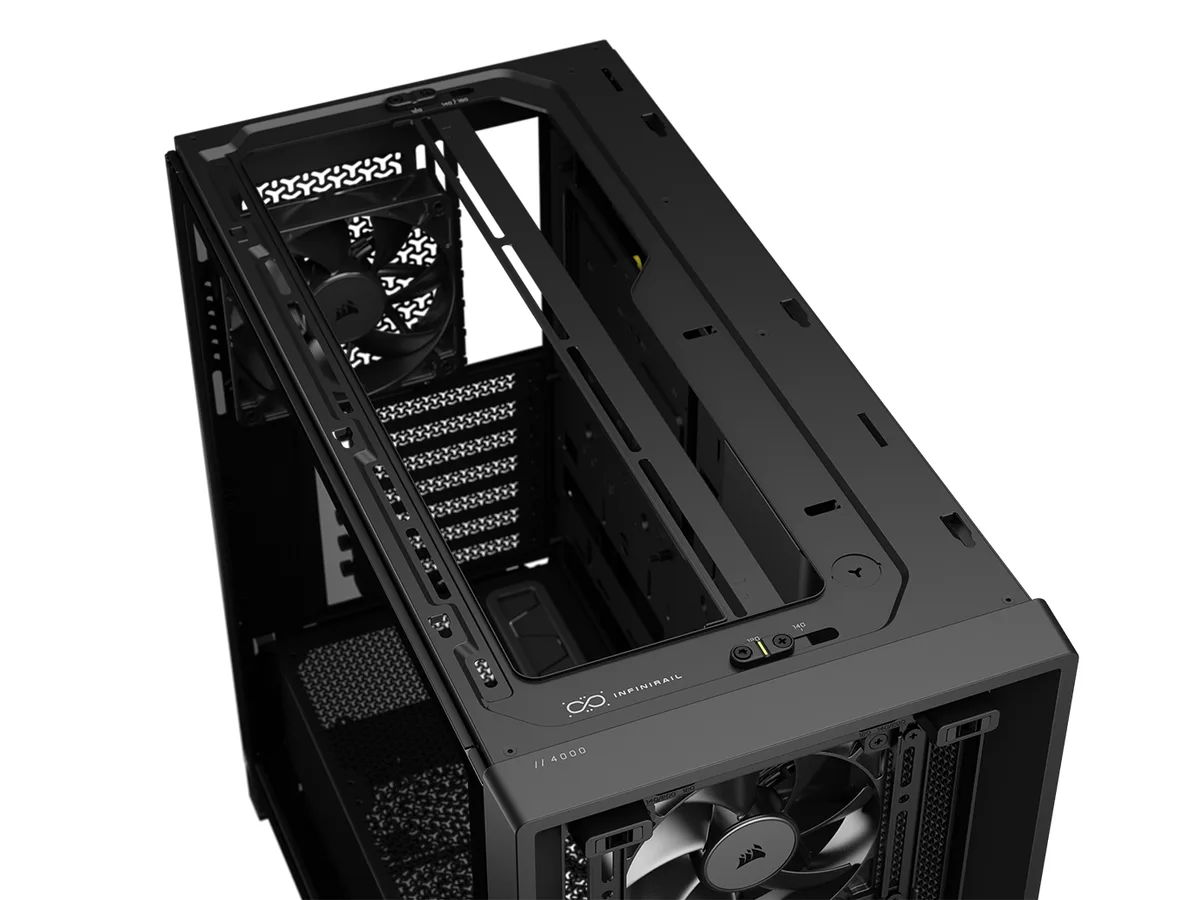

The FRAME Modular Case System lets you swap the front panel, PSU shroud or motherboard tray without tools, so the case can adapt to new hardware or aesthetic preferences. InfiniRail steel rails on the front and roof allow fans up to 200 millimetres at the front and 140 millimetres at the roof to slide to any position for targeted airflow. Three 360-millimetre radiator locations support high-capacity liquid cooling.

Clearances for long GPUs and tall coolers

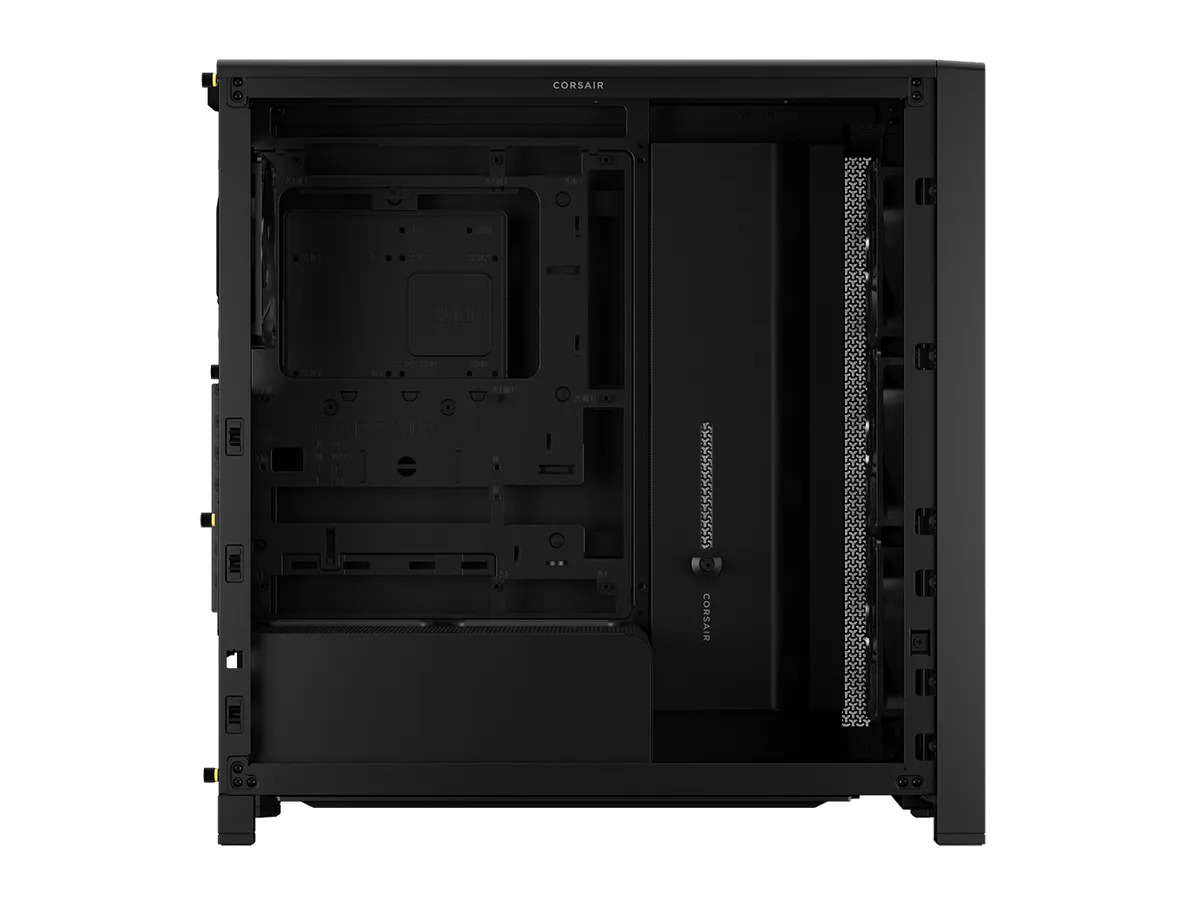

Maximum graphics-card length is 405 millimetres and CPU cooler height is limited to 170 millimetres, which accommodates most current air towers and all-in-one radiators. Power supplies up to 200 millimetres long fit in the dedicated chamber. Internal storage includes one 3.5-inch bay and two 2.5-inch bays. Seven expansion slots can be used in horizontal or vertical orientation with an optional bracket.

Highlights

  • Solid walnut front panel adds distinctive style to the build
  • Four pre-installed RS120 PWM fans deliver strong airflow from the start
  • InfiniRail system allows flexible fan placement up to 200 mm front and 140 mm roof
  • Three 360 mm radiator mounts support high-capacity liquid cooling
  • Modular FRAME design lets you swap panels and trays as needs change

Specifications

BrandCorsair
ModelFRAME 4000D WOOD RS, BLACK
Part NumberCC-9011340-WW
TypeATX Mid Tower
ColorBlack & Walnut
Case MaterialSteel, Tempered Glass, Solid Wood
Motherboard CompatibilityMini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Dust FiltersBottom / Front / Side
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots7 Horizontal/Vertical
Fan OptionsBottom - 1 x 120mm / Front - 2 x 140mm / Front - 2 x 200mm / Front - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Side - 2 x 140mm / Side - 3 x 120mm / Top - 2 x 140mm / Top - 3 x 120mm
Radiator OptionsFront - Up to 240mm / Front - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Rear - Up to 140mm / Side - Up to 240mm / Side - Up to 280mm / Side - Up to 360mm / Top - Up to 240mm / Top - Up to 280mm / Top - Up to 360mm
Max GPU Length405 mm
Max CPU Cooler Height170 mm
Max PSU Length200 mm
Dimensions488 x 239 x 486 mm
Weight9.7kg
Shipping weight11.34 kg
Package size564 × 559 × 320 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard sizes fit the 305 mm by 277 mm tray in the FRAME 4000D WOOD RS?

The case accepts Mini-ITX, Micro-ATX, ATX and E-ATX boards up to 305 mm by 277 mm.

How do the InfiniRail mounts install, and what step is often missed?

Slide each rail to the desired height, secure the fan with screws, then re-tighten the rail locking screws so the fan cannot shift under vibration.

Which dust filters need periodic cleaning on this case?

Clean the bottom, front and side magnetic filters every few months to maintain airflow through the 13 fan mounts.
