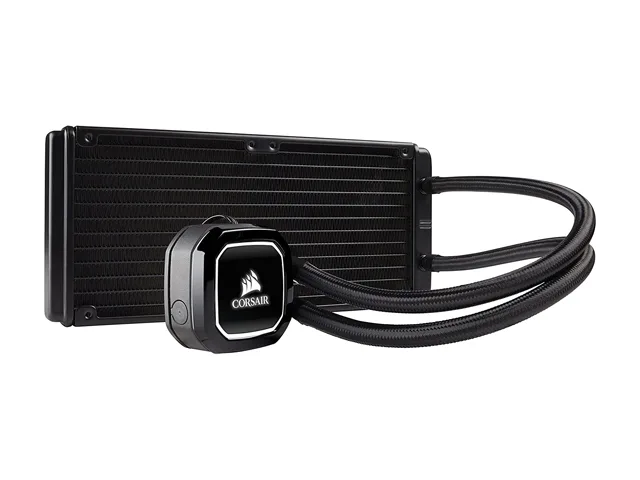

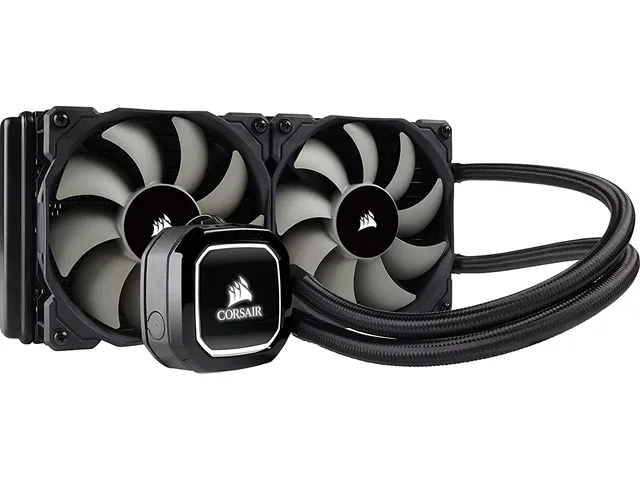

Black 240mm radiator with two 120mm fans, white LED pump head and 380mm tubing

Corsair

Corsair Hydro Series H100x 240mm liquid cooler CW-9060040-WW

SKU CH-AZDD-BJ40P MPN CW-9060040-WW

A 240mm liquid CPU cooler with dual 120mm PWM fans reaching 1700 RPM and a white LED pump head

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011 / 1700 / 1366 / 1156 / 1155 / 1151 / 1
  • Block Dim.56 x 56mm
  • Block MaterialCopper
  • Radiator Size275.00 x 120.00 x 27.00 mm
  • Radiator MaterialAluminum
  • 240 mm high-density radiator delivers lower CPU temperatures
  • Two 120 mm PWM fans adjustable from 600 to 1700 RPM balance airflow and noise
  • White LED pump head adds subtle illumination to the build
  • Thermally optimised cold plate and low-noise pump improve cooling efficiency
  • Tool-free modular bracket fits current Intel and AMD sockets including LGA 1700 and AM4

Product identity

The Corsair Hydro Series H100x is a 240mm all-in-one liquid CPU cooler built for desktop builders who want lower temperatures without custom-loop complexity. It fits Intel LGA 1700, 1200, 115x, 2066 and 2011 sockets plus AMD AM4, AM3 and AM2 platforms.

Build and daily use

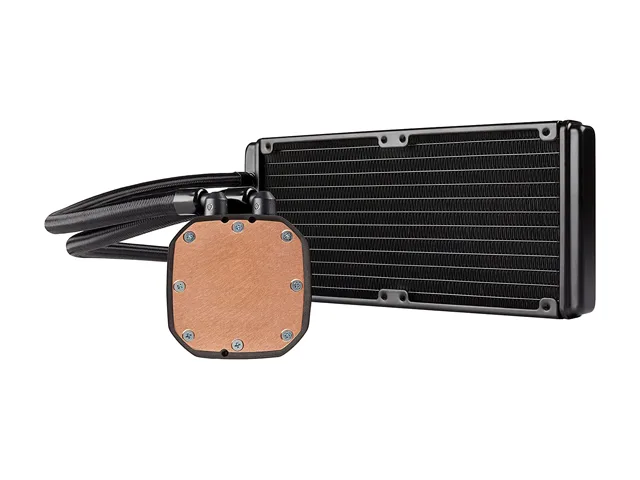

A copper cold plate and aluminium radiator measuring 275 x 120 x 27 mm handle heat transfer while two 120mm PWM fans spin between 600 and 1700 RPM, moving 57.2 CFM at 37 dBA. The 380mm tubes and tool-free modular bracket simplify case mounting, and a white LED pump head adds subtle illumination.

Deciding specification

The 240mm high-density radiator paired with dual SP Series fans delivers the extreme-performance thermal headroom that defines this cooler for overclocked or sustained high-load CPUs.

Highlights

  • 240 mm high-density radiator delivers lower CPU temperatures
  • Two 120 mm PWM fans adjustable from 600 to 1700 RPM balance airflow and noise
  • White LED pump head adds subtle illumination to the build
  • Thermally optimised cold plate and low-noise pump improve cooling efficiency
  • Tool-free modular bracket fits current Intel and AMD sockets including LGA 1700 and AM4

Specifications

BrandCORSAIR
SeriesHydro Series H100x
ModelCW-9060040-WW
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011 / 1700 / 1366 / 1156 / 1155 / 1151 / 1150 / 1200
AMD AM4 / AM3 / AM2
Block Dim.56 x 56mm
Block MaterialCopper
Radiator Size275.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Fan RPM1700 RPM
Fan Air Flow57.2 CFM
Fan Noise37 dBA
ColorBlack
LED ColorWhite LED-lit pump head
Tube Dim.380mm Length
FeaturesSIMPLY GREAT LIQUID COOLING PERFORMANCE
The CORSAIR Hydro Series H100x is an extreme performance liquid CPU cooler that packs dual 120mm fans and a 240mm radiator into a simple, no-fuss package.
240MM HIGH-DENSITY RADIATOR

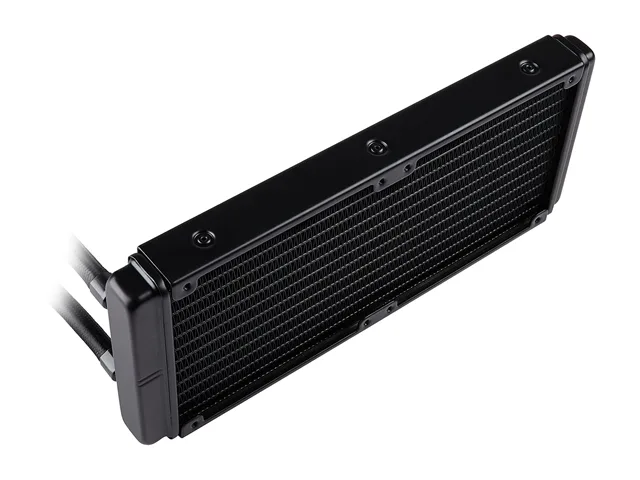

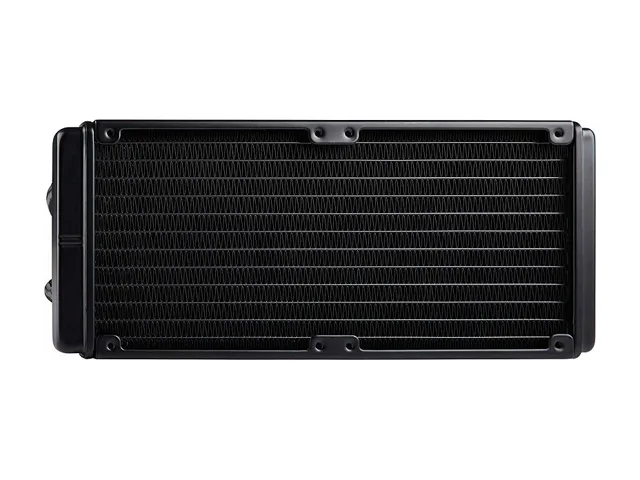

Experience lower CPU temperatures with a 240mm high-density radiator for maximum cooling surface area and performance.
POWERFUL PWM COOLING
Two CORSAIR SP Series 120mm PWM fans provide powerful cooling with fans that run from 600 RPM to 1,700 RPM, making it easy to minimize noise or maximize airflow.

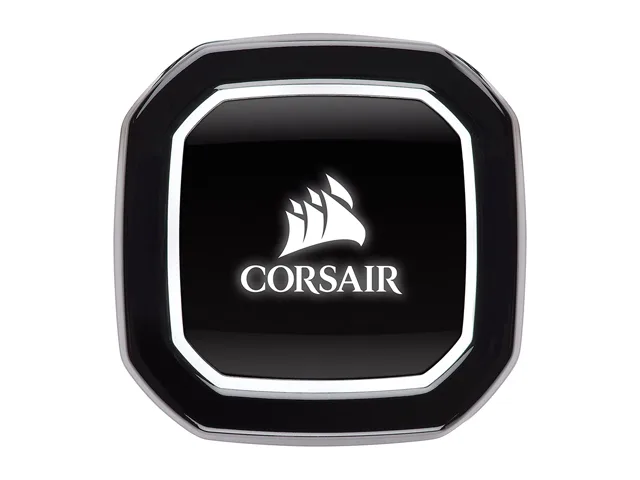

LED ILLUMINATED PUMP HEAD
White LED-lit pump head adds a touch of
Package ContentsCORSAIR Hydro Series H100x High Performance Liquid CPU Cooler
Mounting kit for all modern CPU sockets
Two SP Series PWM 120mm fans
Fan and radiator mounting screws
Thermal compound (pre-applied)
Quick Start Guide
Shipping weight1.63 kg
Package size307 × 224 × 147 mm

Questions about this item

What socket clearance does the 240 mm radiator and 120 mm fans need inside the case?

The radiator measures 275 x 120 x 27 mm and each fan is 120 x 120 x 25 mm, so allow at least 275 mm length plus fan thickness for the mounting area.

Which CPU sockets does the included mounting kit support without extra parts?

The kit covers Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2066 and AMD AM4, AM3, AM2; LGA 1700 requires a separate bracket from the manufacturer.

How do you attach the pump head to the CPU and what step is often missed?

Remove the protective film from the pre-applied thermal compound, align the cold plate with the socket back-plate, then secure the tool-free thumbscrews in a cross pattern — forgetting the film removal is the common error.
