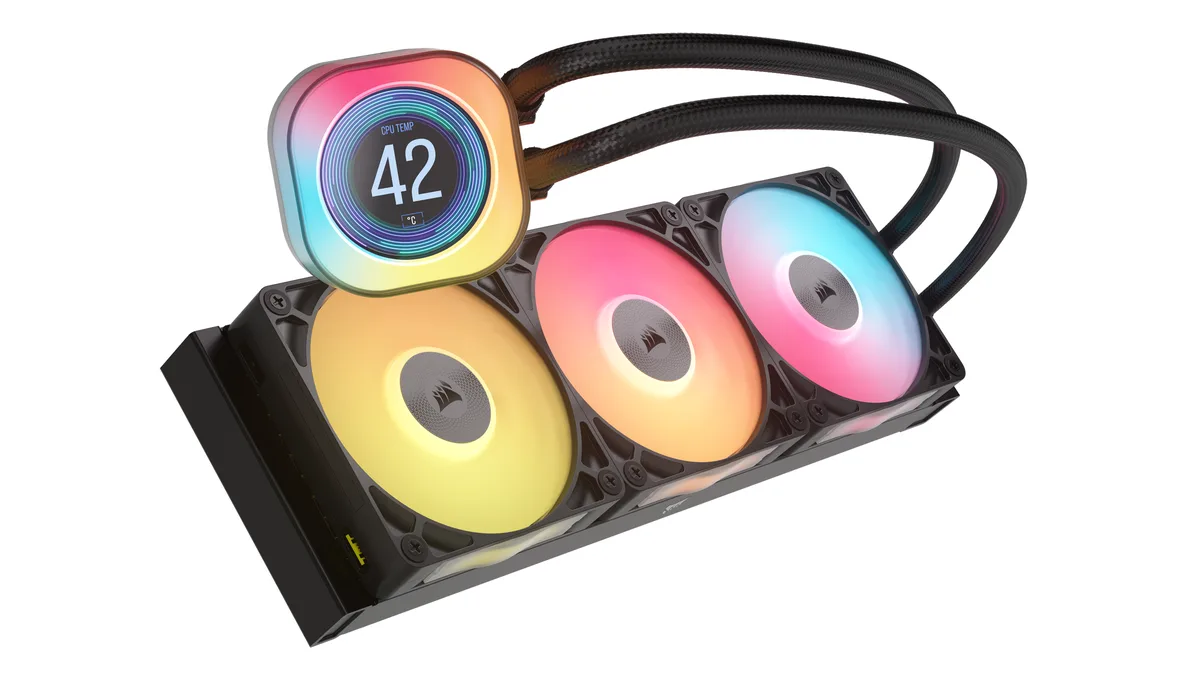

Black 360 mm radiator with three 120 mm RGB fans and a 2.1 inch LCD pump block

Corsair

Corsair iCUE LINK TITAN 360 RX LCD CW-9061023-WW liquid cooler

SKU CH-GZF0-MXR3R MPN CW-9061023-WW

A 360 mm all-in-one liquid cooler with three 120 mm magnetic-dome fans, a 2.1" IPS LCD screen and pre-applied XTM70 paste for Intel 1700/1851 and AMD AM4/AM5 sockets

  • TypeAIO
  • Block CompatibilityAMD: AM5, AM4 | Intel: 1851, 1700
  • Block Compatibility - AMDAMD: AM5, AM4
  • Block Compatibility - IntelIntel: 1851, 1700
  • Radiator Size396 x 120 x 27 mm
  • Radiator MaterialAluminum
  • 1 inch IPS LCD shows CPU temps and custom images at 480x480 resolution
  • iCUE LINK system hub simplifies cable routing for a cleaner build
  • Magnetic dome bearing fans run from 300 to 2100 RPM for quiet or high airflow cooling
  • Pre-applied XTM70 thermal paste ensures optimal heat transfer right out of the box
  • Supports Intel 1851 1700 and AMD AM5 AM4 sockets for broad compatibility

Ready-to-use liquid CPU cooler

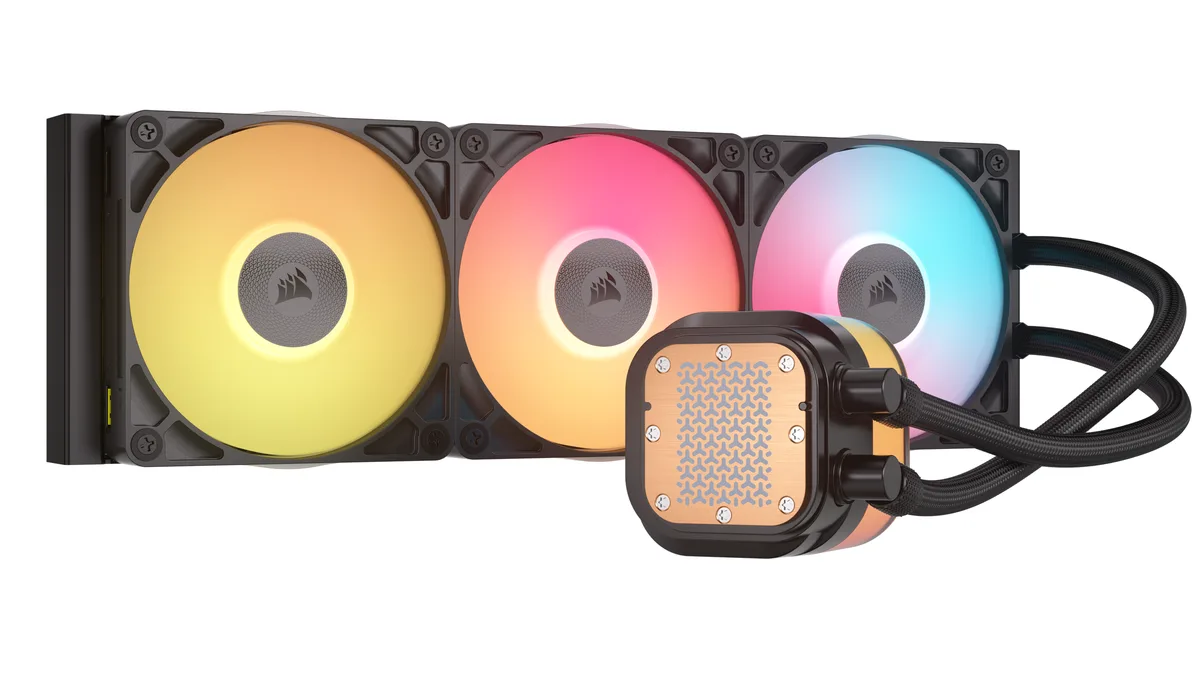

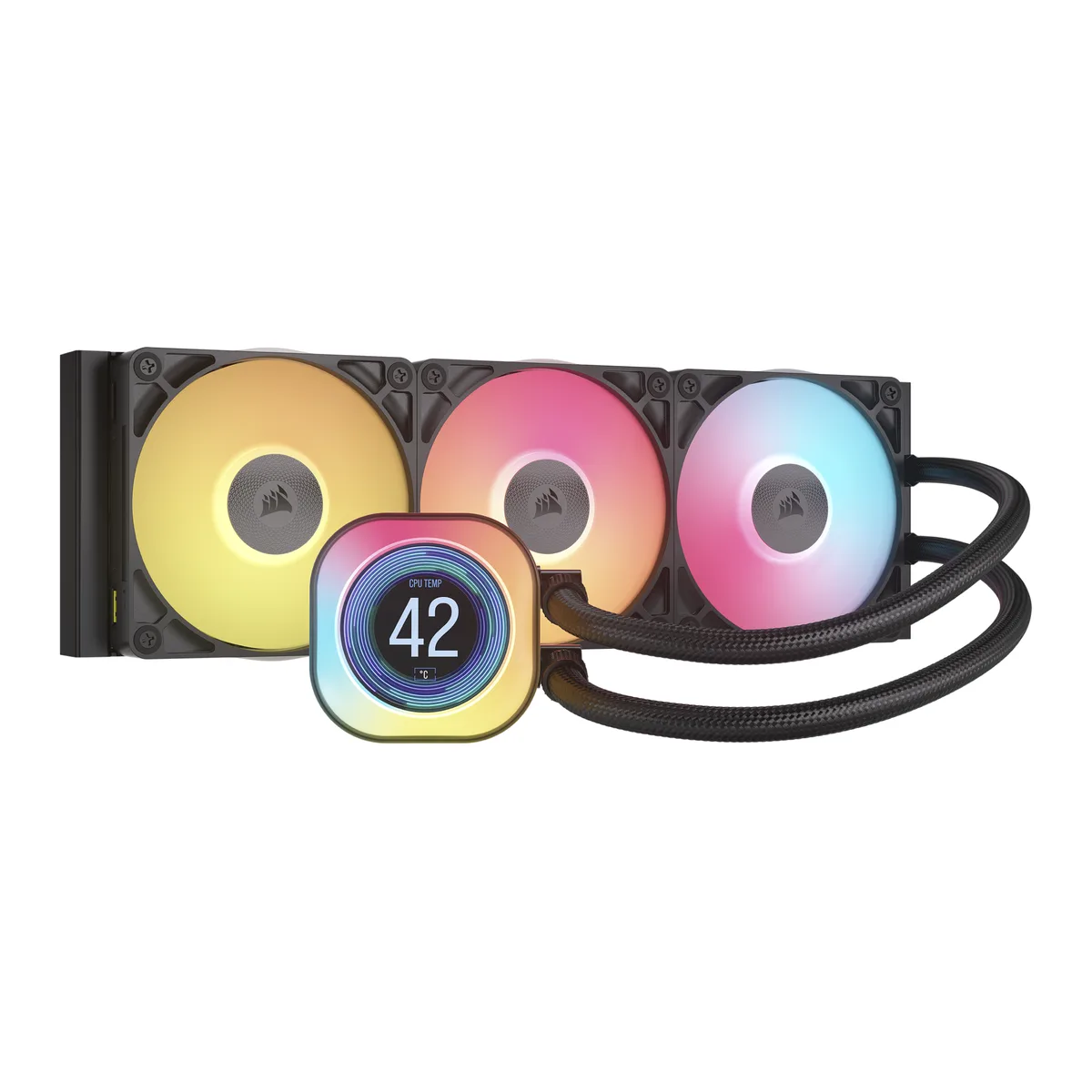

The Corsair iCUE LINK TITAN 360 RX LCD is an all-in-one water cooler with a 396 mm radiator and three 120 mm RX120 RGB fans. It fits Intel LGA 1851 and 1700 sockets plus AMD AM5 and AM4 platforms. The box includes an iCUE LINK System Hub and a mounting kit for modern sockets. Pre-applied XTM70 thermal paste is on the cold plate.

Thermals noise and power draw

Three Magnetic Dome bearing fans spin from 300 to 2,100 RPM and deliver 10.4 to 73.5 CFM at 0.12 to 4.33 mm-H2O static pressure. Noise ranges from 10 to 36 dB(A). PWM control supports Zero RPM mode so fans can stop completely at low temperatures. The 450 mm sleeved rubber tubes connect the block to the aluminum radiator.

Build quality and daily connections

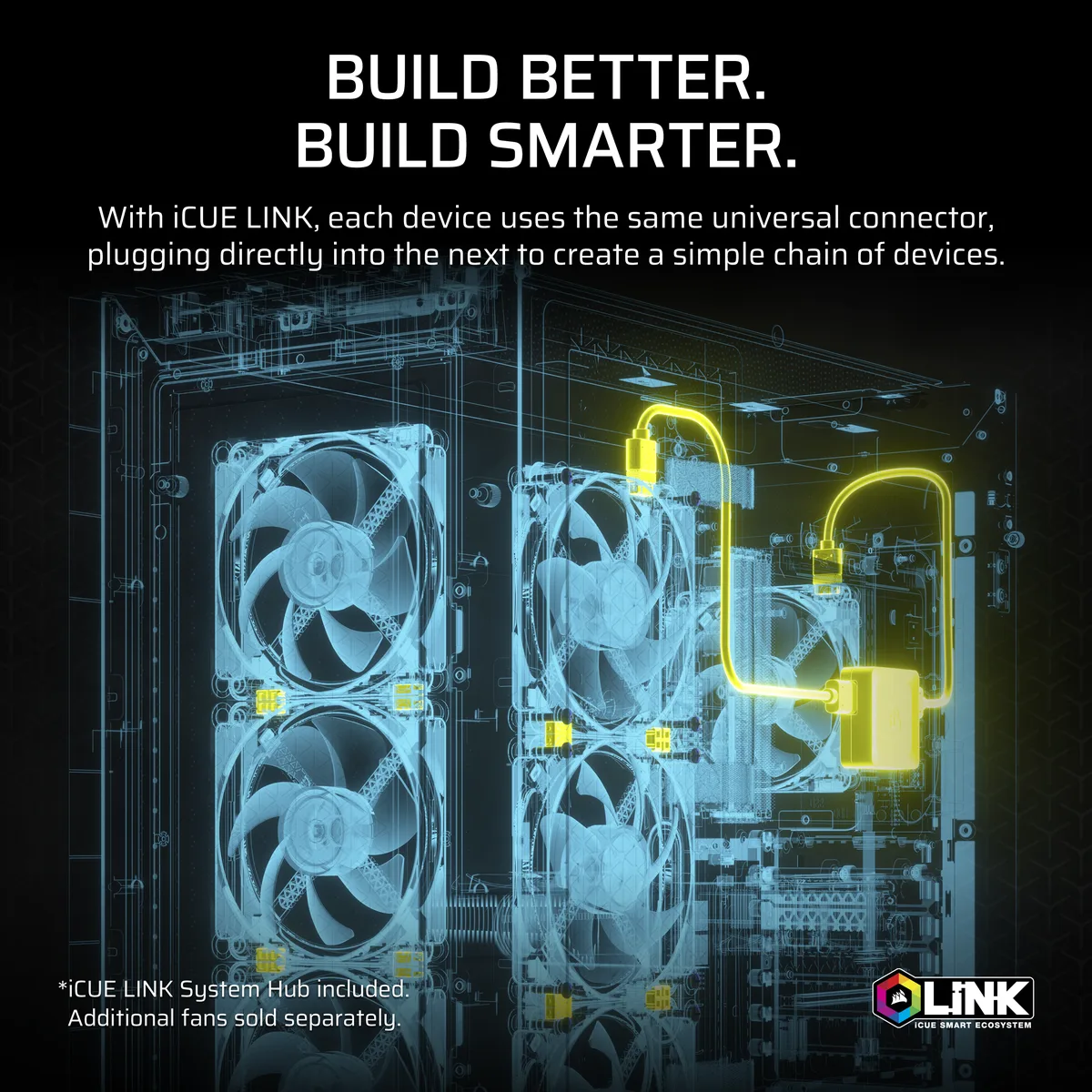

A 2.1 inch IPS LCD with 480x480 resolution sits on the pump block and shows CPU temperature, GIFs or custom images. The iCUE LINK System Hub reduces cable count by linking fans and the block through a single chain. Black sleeved low-permeation rubber tubes resist evaporation over time. The 27 mm thick radiator fits standard 360 mm mounting points.

Highlights

  • 1 inch IPS LCD shows CPU temps and custom images at 480x480 resolution
  • iCUE LINK system hub simplifies cable routing for a cleaner build
  • Magnetic dome bearing fans run from 300 to 2100 RPM for quiet or high airflow cooling
  • Pre-applied XTM70 thermal paste ensures optimal heat transfer right out of the box
  • Supports Intel 1851 1700 and AMD AM5 AM4 sockets for broad compatibility

Specifications

BrandCORSAIR
ModelCORSAIR iCUE LINK TITAN 360 RX LCD
Part NumberCW-9061023-WW
TypeAIO
Block CompatibilityAMD: AM5, AM4 | Intel: 1851, 1700
Block Compatibility - AMDAMD: AM5, AM4
Block Compatibility - IntelIntel: 1851, 1700
Radiator Size396 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeMagnetic Dome
Fan RPM300 - 2,100 RPM ±10%
Fan Air Flow10.4 – 73.5 CFM
Fan Noise10 - 36 dB(A)
Fan Connector4 Pin
ColorBlack
LED ColorARGB
Pressure0.12 – 4.33 mm-H2O
Tube Dim.450mm
Tube MaterialBlack Sleeved Low-Permeation Rubber
Package ContentsCORSAIR iCUE LINK TITAN 360 RX LCD
3x iCUE LINK RX120 RGB fans
1x iCUE LINK System Hub
Mounting Kit for All Modern CPU Sockets
Fan and Radiator Mounting Screws
Warranty & Safety Leaflet
Shipping weight2.72 kg
Package size445 × 191 × 140 mm

Questions about this item

How do I install the iCUE LINK TITAN 360 RX LCD on an Intel LGA 1700 socket, and which step is often missed?

Mount the Intel backplate, apply the standoffs, then secure the cold plate over the pre-applied XTM70 paste; the step often missed is connecting each RX120 fan and the pump to the included iCUE LINK System Hub before powering on.

What maintenance or replacement will the cooler need after a few years of use?

The pre-applied XTM70 thermal paste should be cleaned off and reapplied if the block is removed or after several years; the 450 mm low-permeation rubber tubes are sealed for the unit's life and do not require refilling.

At what fan speed does the 360 mm radiator hit its noise ceiling under sustained load?

The three RX120 fans reach 36 dB(A) at their maximum 2,100 RPM, which is the acoustic limit you will encounter before the pump or fluid temperature becomes the bottleneck.
