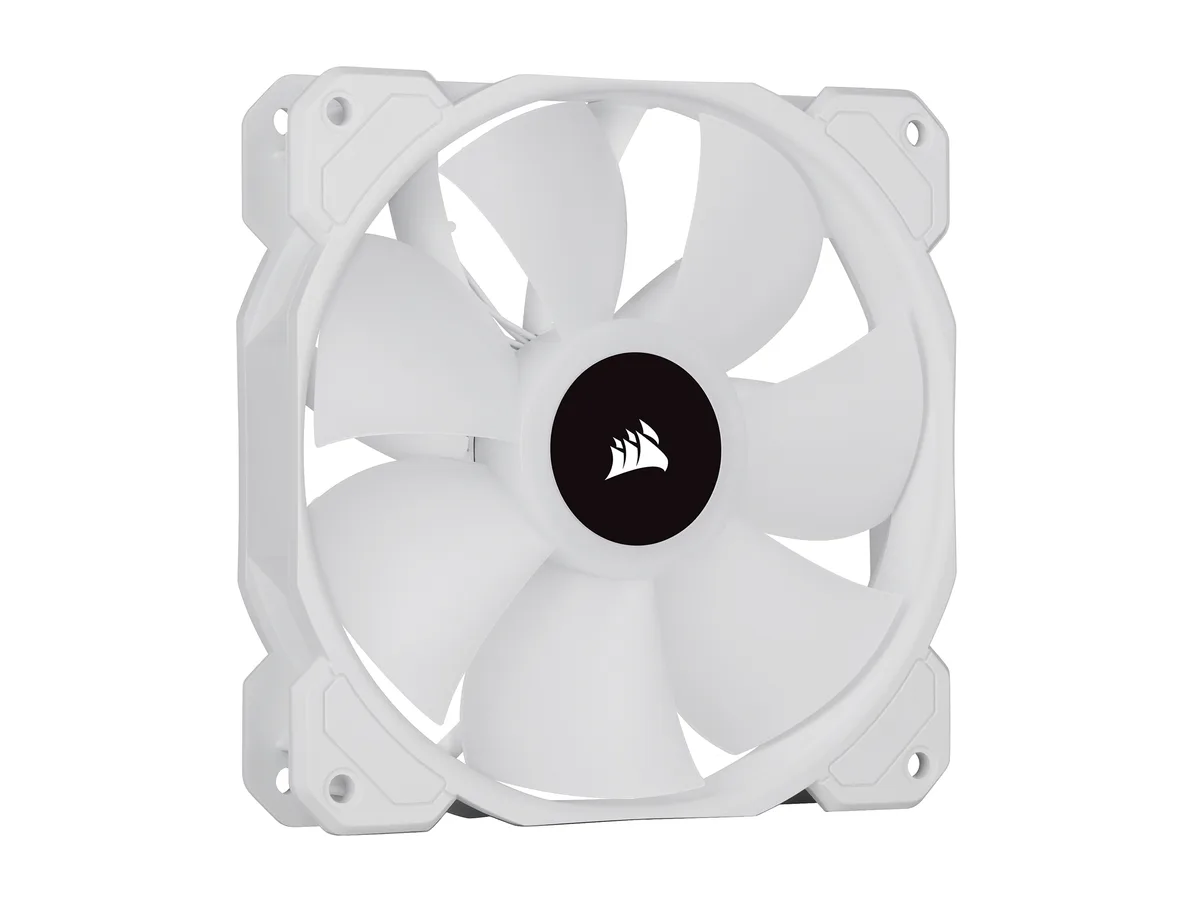

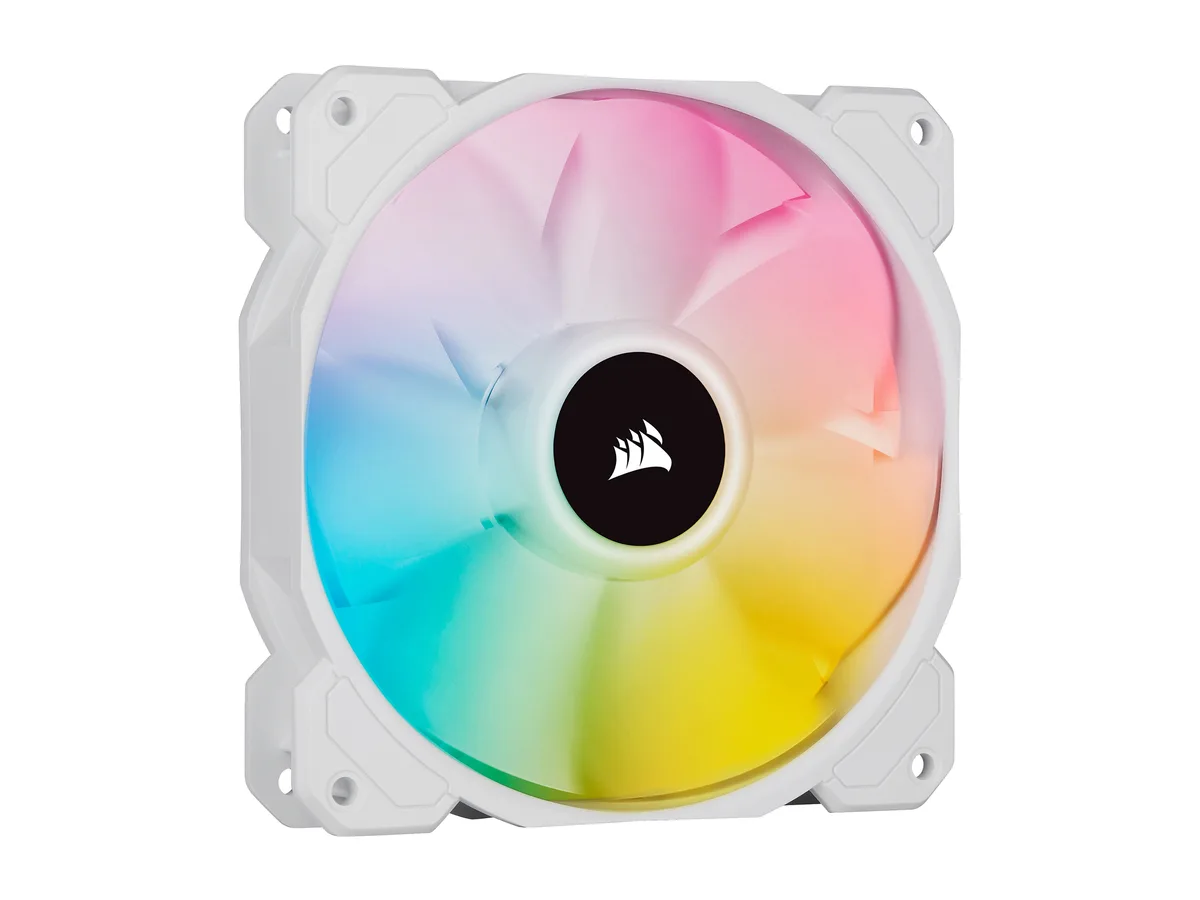

White 120mm square case fan with translucent blades and RGB lighting ring around the hub

Corsair

Corsair iCUE SP120 RGB ELITE 120mm White PWM case fan CO-9050136-WW

SKU CH-3N5D-HXRA0 MPN CO-9050136-WW

A 120mm white PWM case fan with hydraulic bearing, 550-1500 RPM speed range, 16.91-47.73 CFM airflow, and eight individually addressable RGB LEDs

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 120mm

Option 1 Pack

  • AirGuide anti-vortex vanes concentrate airflow for better radiator and heatsink cooling
  • Eight individually addressable RGB LEDs per hub create vivid lighting effects
  • PWM control spans 550 to 1500 RPM for flexible speed management
  • Hydraulic bearing runs as quietly as 18 dBA at low speed
  • Translucent white blades let RGB shine through while moving up to 47.73 CFM

Single 120mm PWM fan

The Corsair iCUE SP120 RGB ELITE is a white 120mm case fan with eight individually addressable RGB LEDs and a hydraulic bearing. It connects via a standard 4-pin PWM header and spins between 550 and 1500 RPM with a tolerance of +/- 10%. AirGuide anti-vortex vanes concentrate airflow for intake, exhaust or radiator mounting. The translucent blades allow lighting to show through while moving up to 47.73 CFM at 1.46mm-H2O static pressure.

Upgrade from basic fans

This fan replaces single-colour or non-PWM 120mm fans that lack RGB control or focused airflow. The jump is worth it when you need software-synchronised lighting through iCUE and tighter airflow control for radiators or restricted case layouts. It is not suited for builders who need a bundled controller or multiple fans in one package, nor for systems limited to 3-pin voltage control only.

Straightforward 4-pin install

Mounting uses four included screws in standard 120mm holes; the 4-pin PWM connector plugs directly into a motherboard or fan hub. Cable routing is the common snag — ensure the lead reaches the header without tension. The fan requires iCUE software and a compatible RGB header or Lighting Node for full lighting control; without them the LEDs default to a preset pattern. Hydraulic bearing longevity depends on keeping intake paths clear of dust buildup.

Highlights

  • AirGuide anti-vortex vanes concentrate airflow for better radiator and heatsink cooling
  • Eight individually addressable RGB LEDs per hub create vivid lighting effects
  • PWM control spans 550 to 1500 RPM for flexible speed management
  • Hydraulic bearing runs as quietly as 18 dBA at low speed
  • Translucent white blades let RGB shine through while moving up to 47.73 CFM

Specifications

BrandCorsair
SeriesiCUE SP120 RGB ELITE
ModelCO-9050136-WW
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM550 - 1500 +/- 10% RPM
Air Flow16.91-47.73 CFM
Noise Level18 - 26.5 dBA
Power Connector4 Pin
ColorWhite
LEDRGB
FeaturesCORSAIR AirGuide technology utilizes anti-vortex vanes to direct airflow and concentrate cooling, improving cooling whether used as intake, exhaust, or mounted to a liquid cooling radiator or heatsink.
Eight individually addressable RGB LEDs line each fan hub, creating mesmerizing RGB lighting.
A translucent, low-noise 120mm fan blade spins as quietly as 18 dBA, providing high airflow while letting your RGB lighting shine through.
Keep your system cool with powerful PWM-controlled fan speeds from 550 RPM to 1,500 RPM, pushing up to 47.7 CFM of air with 1.46mm-H2O of static pressure.
Dimensions120mm x 120mm x 25mm / 4.72" x 4.72" x 0.98"
Package Contents1 x CORSAIR SP120 RGB ELITE Fan
4 x mounting screws
Shipping weight0.20 kg
Package size153 × 133 × 35 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 120mm x 25mm frame fit my standard case fan mounts?

Yes, the fan measures 120mm x 120mm x 25mm, matching the standard 120mm mounting hole spacing used on most cases and radiators.

How do I connect the PWM and RGB cables to my motherboard?

Plug the 4-pin PWM connector into a motherboard fan header and the RGB lead into a 5V addressable RGB header, then control both through iCUE software.

When should I expect to replace the hydraulic bearing?

The hydraulic bearing is rated for long-term continuous operation; replacement is only needed if noise increases noticeably or RPM drops below the 550–1500 range.
