Corsair

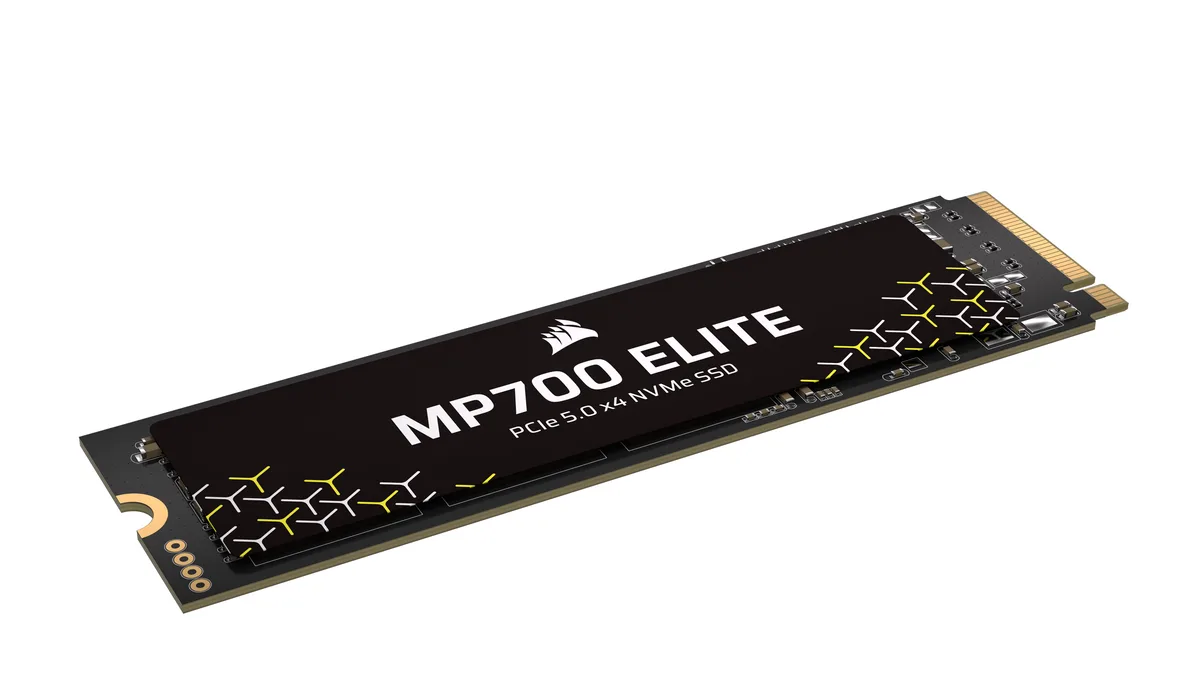

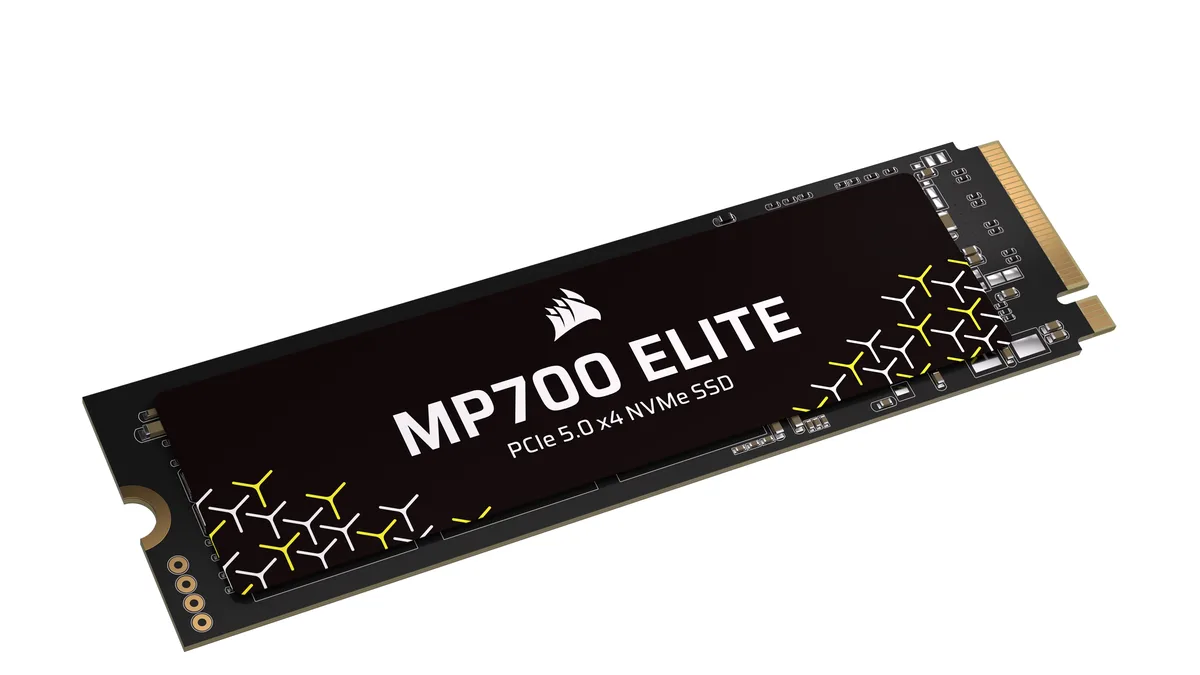

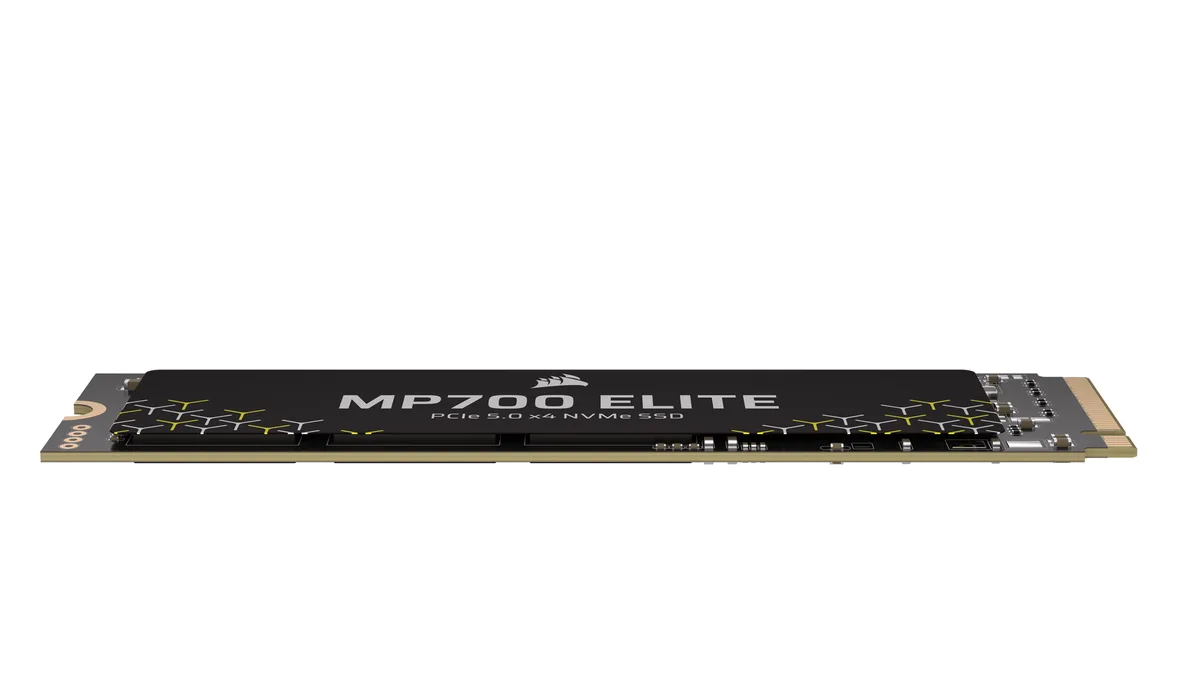

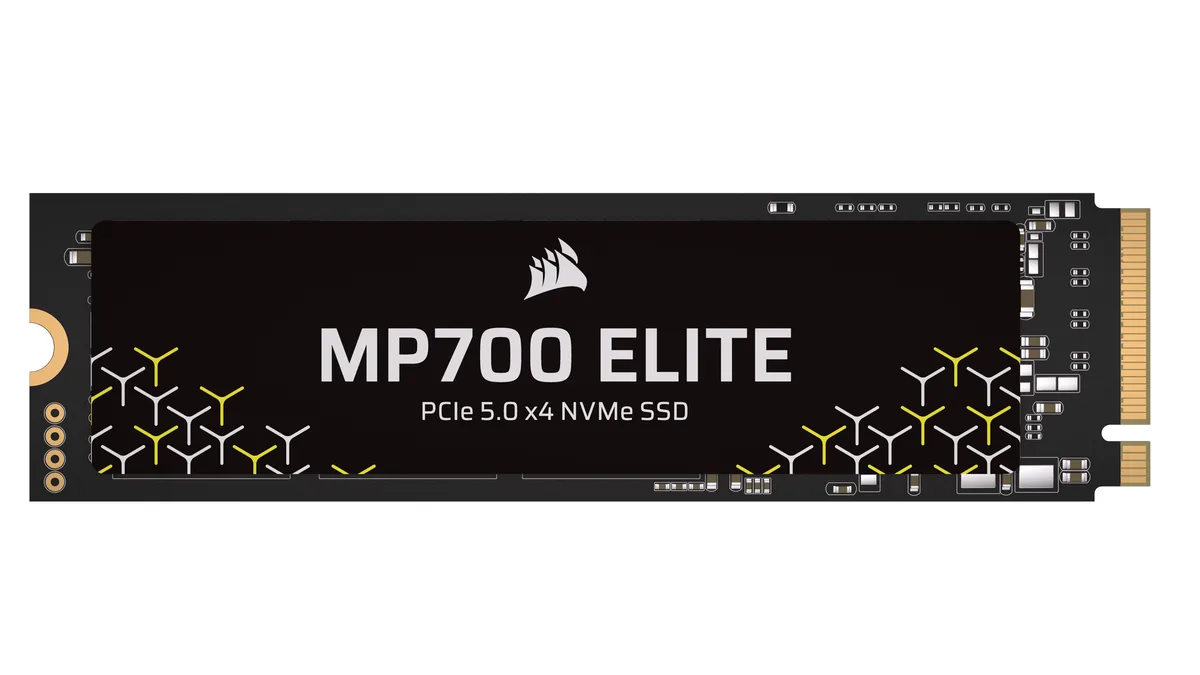

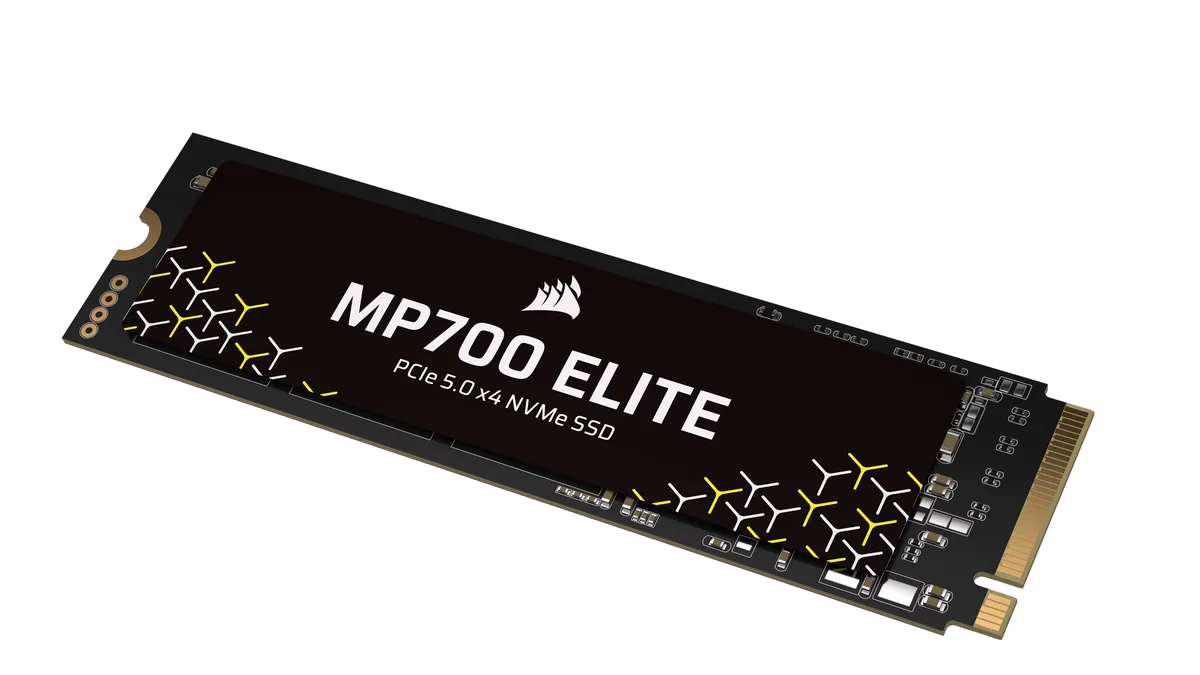

Corsair MP700 ELITE CSSD-F4000GBMP700ENH 4TB M.2 2280 internal SSD
A 4TB M.2 2280 internal SSD with PCIe 5.0 x4 interface delivering up to 10000 MBps sequential read and 8500 MBps sequential write speeds
- Device TypeInternal Solid State Drive (SSD)
- Used ForConsumer
- Form FactorM.2 2280
- Capacity4TB
- Memory Components3D TLC
- InterfacePCI-Express 5.0 x4
- Up to 10,000 MBps sequential read for faster loading
- Up to 8,500 MBps sequential write speeds up file transfers
- 2,400 TBW endurance rating supports heavy write workloads
- AES 256-bit encryption protects stored data
- PCI-Express 5.0 x4 interface enables high bandwidth throughput
4TB PCIe 5.0 NVMe SSD
The Corsair MP700 ELITE CSSD-F4000GBMP700ENH is a 4TB internal solid-state drive built on the PCI-Express 5.0 x4 interface with NVMe 2.0 protocol. It uses a Phison PS5031-E31T controller and 3D TLC NAND to deliver up to 10000 MBps sequential read and 8500 MBps sequential write speeds. The drive includes AES 256-bit encryption and is rated for 2400 TBW. It ships without a pre-installed heatsink.
Suits high-throughput builds.
This drive targets enthusiasts and professionals moving large datasets, compiling code or loading massive game libraries who can provide active motherboard or add-in cooling. The lack of an included heatsink means the builder must ensure adequate airflow or a compatible M.2 shield. Systems restricted to PCIe 4.0 slots will operate at Gen4 speeds, and compact laptops with no thermal headroom should consider lower-power alternatives.
Sustained writes hold near peak with proper cooling
Under continuous heavy write workloads the Phison controller maintains performance close to the 8500 MBps sequential figure provided the NAND temperature stays within spec. Random write IOPS of up to 1400K remain consistent during extended mixed I/O once the SLC cache is saturated. Without sufficient cooling the controller will throttle to protect the 3D TLC memory, reducing both sequential and random throughput until temperatures drop.
Highlights
- Up to 10,000 MBps sequential read for faster loading
- Up to 8,500 MBps sequential write speeds up file transfers
- 2,400 TBW endurance rating supports heavy write workloads
- AES 256-bit encryption protects stored data
- PCI-Express 5.0 x4 interface enables high bandwidth throughput
Specifications
| Brand | Corsair |
|---|---|
| Series | MP700 ELITE |
| Model | CSSD-F4000GBMP700ENH |
| Part Number | CSSD-F4000GBMP700ENH |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 4TB |
| Memory Components | 3D TLC |
| Interface | PCI-Express 5.0 x4 |
| Protocol | NVMe 2.0 |
| Controller | Phison PS5031-E31T |
| Encryption | AES 256-bit encryption |
| Max Sequential Read | Up to 10000 MBps |
| Max Sequential Write | Up to 8500 MBps |
| 4KB Random Read | up to 1200K IOPS |
| 4KB Random Write | up to 1400K IOPS |
| Terabytes Written (TBW) | 2400TB |
| HeatSink | without HeatSink |
| Features | High-speed Gen5 PCIe x4 NVMe 2.0 M.2 interface Up to 10,000MB/sec sequential read and 8,500MB/sec sequential write speeds Load games, boot windows, open and transfer files, all faster than ever High-density 3D TLC NAND Microsoft DirectStorage compatible Outstanding endurance up to 2,400TB Written Compact M.2 2280 form-factor No pre-installed heatsink Backward compatible with PCIe Gen4 CORSAIR SSD Toolbox software Comprehensive five-year warranty |
| Power Consumption (Idle) | < 50mW |
| Power Consumption (Active) | 5.9W |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity | 40°C 90% RH |
| Max Shock Resistance | 1500G |
| Max Vibration Resistance | 20Hz~80Hz/1.52mm |
| Shipping weight | 0.23 kg |
| Package size | 127 × 76 × 13 mm |
Questions about this item
Does my motherboard need a PCIe 5.0 x4 M.2 slot to use the 10000 MBps read speed?
Yes, a PCIe 5.0 x4 M.2 2280 slot is required to reach the quoted 10000 MBps sequential read and 8500 MBps sequential write figures.
Will this drive work in my older PCIe 4.0 M.2 slot without losing data?
The MP700 ELITE is backward compatible with PCIe 4.0 slots; it will operate at Gen 4 speeds while retaining full 4TB capacity and AES 256-bit encryption.
How can I confirm the Phison PS5031-E31T controller is delivering the rated 1200K random read IOPS after installation?
Run a 4 KB random read benchmark in CrystalDiskMark or AS SSD and compare the result to the 1200K IOPS specification; CORSAIR SSD Toolbox also reports drive health and firmware status.
