Corsair

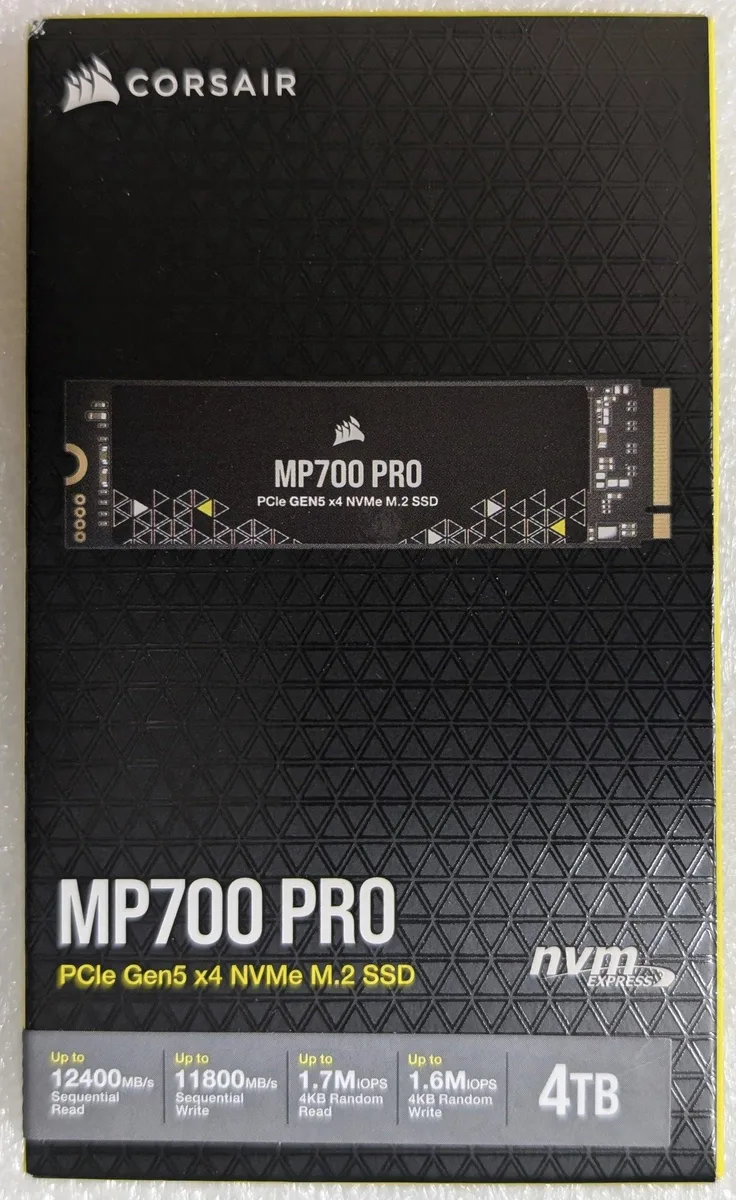

Corsair MP700 PRO 4TB M.2 2280 PCIe 5.0 x4 internal SSD
A 4 TB M.2 2280 PCIe 5.0 x4 internal SSD with 3D TLC NAND, AES 256-bit encryption and up to 12,400 MB/s sequential read and 11,800 MB/s sequential write
- Device TypeInternal Solid State Drive (SSD)
- Used ForConsumer
- Form FactorM.2 2280
- Capacity4TB
- Memory Components3D TLC
- InterfacePCI-Express 5.0 x4
- Sequential reads up to 12,400 MB/s accelerate large file transfers
- Sequential writes up to 11,800 MB/s speed up content creation workflows
- Random reads up to 1.7M IOPS deliver responsive application loading
- Random writes up to 1.6M IOPS sustain heavy multitasking performance
- 3,000 TBW endurance rating supports intensive long-term workloads
Capacity and interface
This Corsair MP700 PRO is a 4TB internal SSD built in the M.2 2280 form factor. It connects through a PCI-Express 5.0 x4 link and uses 3D TLC NAND with a Phison PS5026-E26 controller. The drive targets enthusiasts and workstation users who need maximum throughput for large datasets and demanding applications.
Sequential speed ceiling
The single figure that determines fit is the rated sequential read of up to 12400 MBps and sequential write of up to 11800 MBps. Those peaks require a motherboard with a native PCIe 5.0 M.2 slot and adequate cooling; on older platforms the drive will negotiate a lower link speed and deliver reduced performance.
Thermals and power
Without a bundled heatsink the drive relies on the motherboard or a third‑party cooler to stay within its 0°C to 70°C operating range. Active read and write power averages 11W each, so sustained workloads can raise temperatures quickly. A capable M.2 heatsink or direct‑contact cooler is essential to avoid throttling and maintain consistent speeds.
Highlights
- Sequential reads up to 12,400 MB/s accelerate large file transfers
- Sequential writes up to 11,800 MB/s speed up content creation workflows
- Random reads up to 1.7M IOPS deliver responsive application loading
- Random writes up to 1.6M IOPS sustain heavy multitasking performance
- 3,000 TBW endurance rating supports intensive long-term workloads
Specifications
| Brand | Corsair |
|---|---|
| Series | MP700 PRO |
| Model | CSSD-F4000GBMP700PNH/RF2 |
| Part Number | CSSD-F4000GBMP700PNH |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 4TB |
| Memory Components | 3D TLC |
| Interface | PCI-Express 5.0 x4 |
| Controller | Phison PS5026-E26 |
| Encryption | AES 256-bit encryption |
| Max Sequential Read | Up to 12400 MBps |
| Max Sequential Write | Up to 11800 MBps |
| 4KB Random Read | 1.7M |
| 4KB Random Write | 1.6M |
| Terabytes Written (TBW) | 3000TB |
| HeatSink | without HeatSink |
| Features | High-speed Gen5 PCIe x4 NVMe 2.0 M.2 interface Up to 12,400MB/sec sequential read and 11,800MB/sec sequential write speeds High-density 3D TLC NAND Microsoft DirectStorage compatible Outstanding endurance up to 3,000TB Written Compact M.2 2280 form-factor Backward compatible with PCIe Gen4 CORSAIR SSD Toolbox software Comprehensive five-year warranty |
| Power Consumption (Active) | Power Average Active Read: 11W Power Average Active Write: 11W |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity | 40°C 90% RH |
| Max Shock Resistance | 40°C 93% RH |
Questions about this item
Does this drive include a heatsink or do I need to buy one separately?
The package contains the MP700 PRO M.2 SSD only; no heatsink is included so a separate cooler is required.
Will it fit in a standard M.2 2280 slot on my motherboard?
Yes, the drive uses the M.2 2280 form factor and a PCI-Express 5.0 x4 interface, matching standard M.2 2280 slots.
What sustained power draw should I plan for in my thermal design?
Average active read and write power are each 11W, so the cooling solution must handle that load.
