Rectangular black ATX power supply with fully modular cable sockets and a 135mm fan grille

Corsair

Corsair RM750 CP-9020195-NA 750 W power supply

SKU CH-GRB7-W5JND MPN CP-9020195-NA

A 750 W fully modular ATX power supply with 80 PLUS Gold efficiency, a 135 mm rifle bearing fan, zero RPM mode, 105 °C-rated capacitors and six PCIe connectors in a 160 mm chassis

  • TypeATX12V v2.52 / EPS12V v2.92
  • Maximum Power750 W
  • Fans1 x 135mm Rifle Bearing Fan
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector6 x 6+2-Pin

Options ATX 80+ Gold (750W)

  • 80 PLUS Gold certification cuts power draw and heat
  • 135 mm rifle-bearing fan runs quietly under load
  • 105 °C capacitors ensure long-term electrical stability
  • Fully modular cables keep the build tidy
  • 160 mm length fits most modern cases

Power for mid-range builds

The Corsair RM750 CP-9020195-NA is a fully modular ATX power supply rated at 750 W. It carries 80 PLUS Gold certification and a single +12 V rail design. The unit suits system builders who want efficient, quiet delivery for modern CPUs and graphics cards without excess cable clutter.

Upgrade from lower efficiency units

Replacing a Bronze-rated or group-regulated supply with this model reduces waste heat and lowers operating noise. The jump is worthwhile when a build moves to a higher-wattage GPU or adds multiple drives, because the 105 °C-rated capacitors and tighter voltage regulation handle sustained loads more reliably.

Build integration details

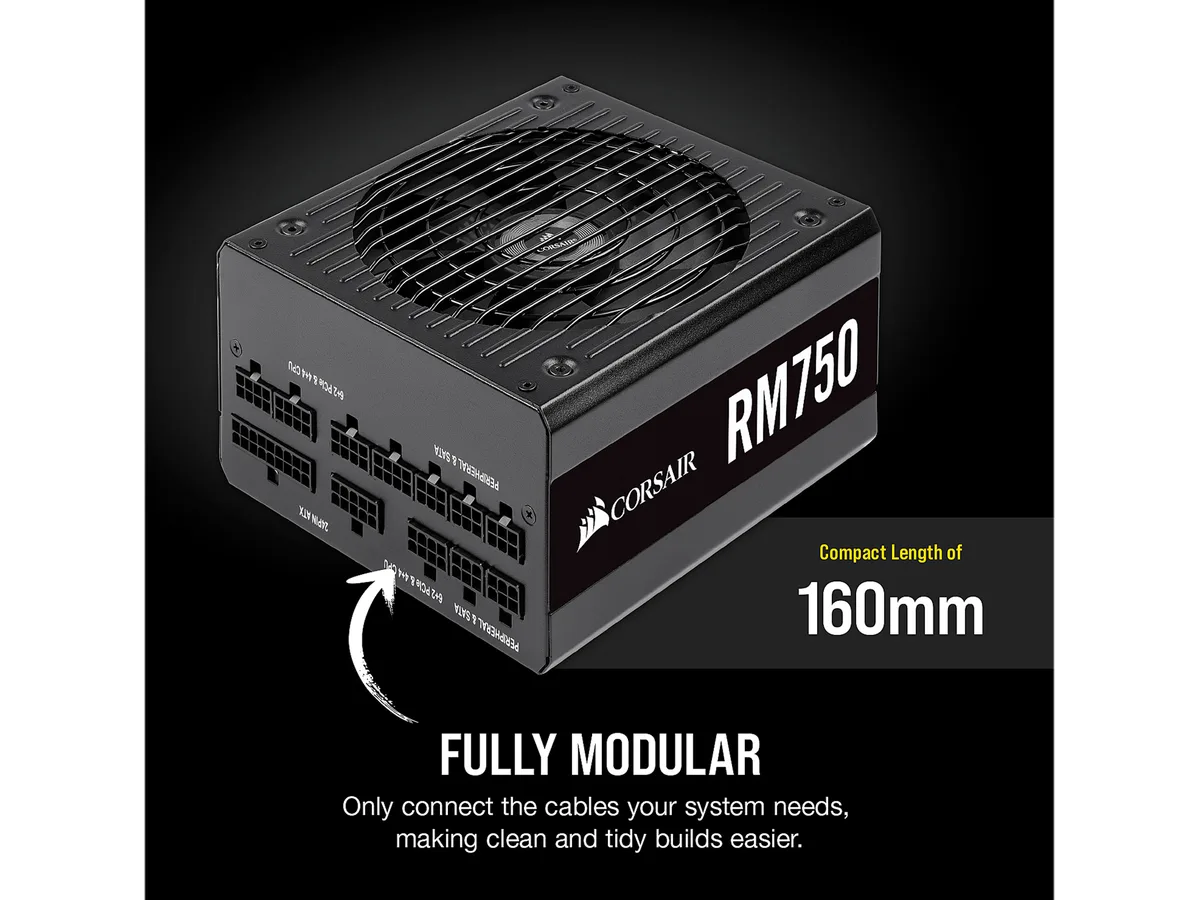

At 160 mm long the chassis fits most enthusiast cases, while full modularity lets you connect only the 24-pin, two EPS, six PCIe, ten SATA and four peripheral cables required. Zero RPM mode stops the 135 mm fan entirely at low and medium loads, and Modern Standby compatibility enables rapid wake-from-sleep behaviour.

Highlights

  • 80 PLUS Gold certification cuts power draw and heat
  • 135 mm rifle-bearing fan runs quietly under load
  • 105 °C capacitors ensure long-term electrical stability
  • Fully modular cables keep the build tidy
  • 160 mm length fits most modern cases

Specifications

BrandCORSAIR
SeriesRM Series RM750
ModelCP-9020195-NA
TypeATX12V v2.52 / EPS12V v2.92
Maximum Power750 W
Fans1 x 135mm Rifle Bearing Fan
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector10
SLISLI Ready
CrossFireCrossFire Ready
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10 - 5 A
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , +5VSB@3A
MTBF100,000 hours

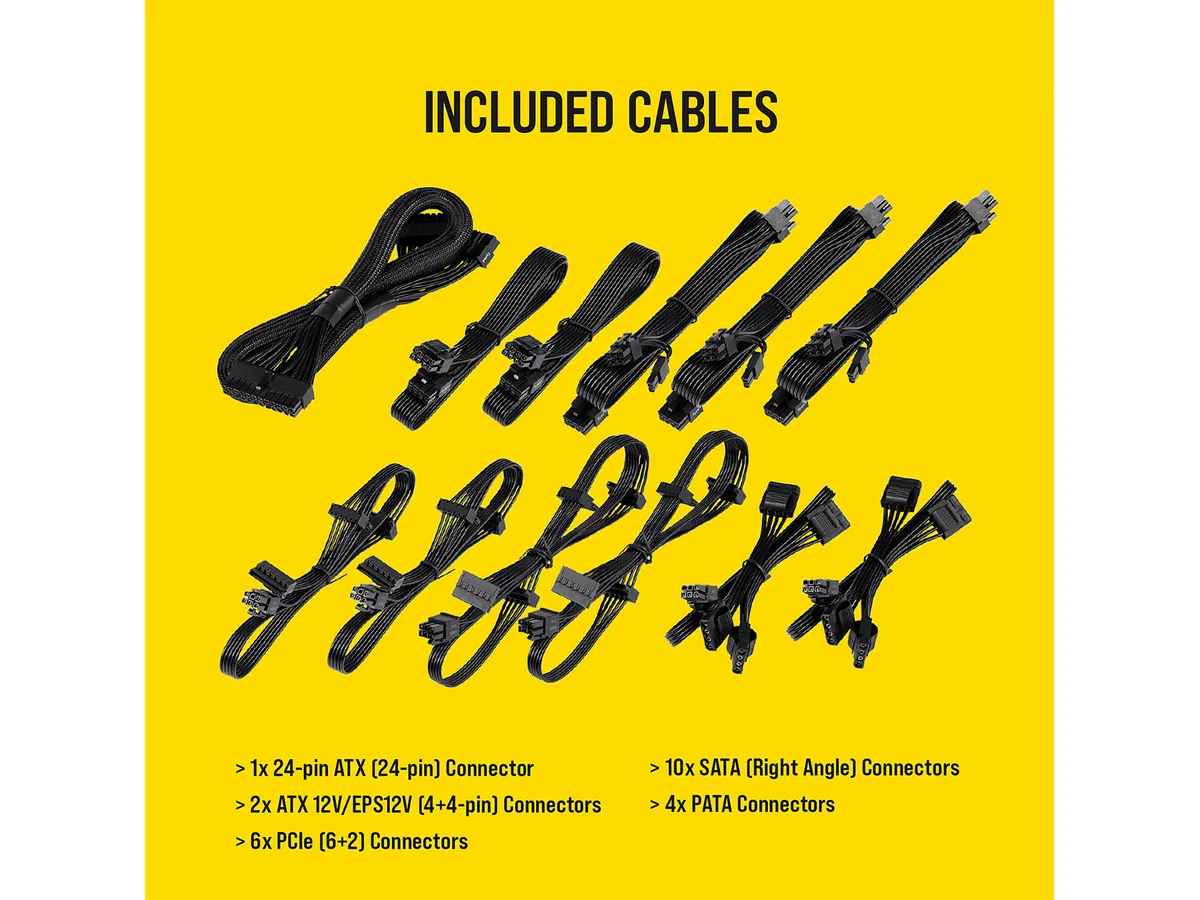

Connectors1 x ATX 24-PIN (24)
2 x EPS/ATX12V 8-PIN (4+4)
6 x PCIe 8-PIN (6+2)
10 x SATA
4 x PERIPHERAL (4-PIN)

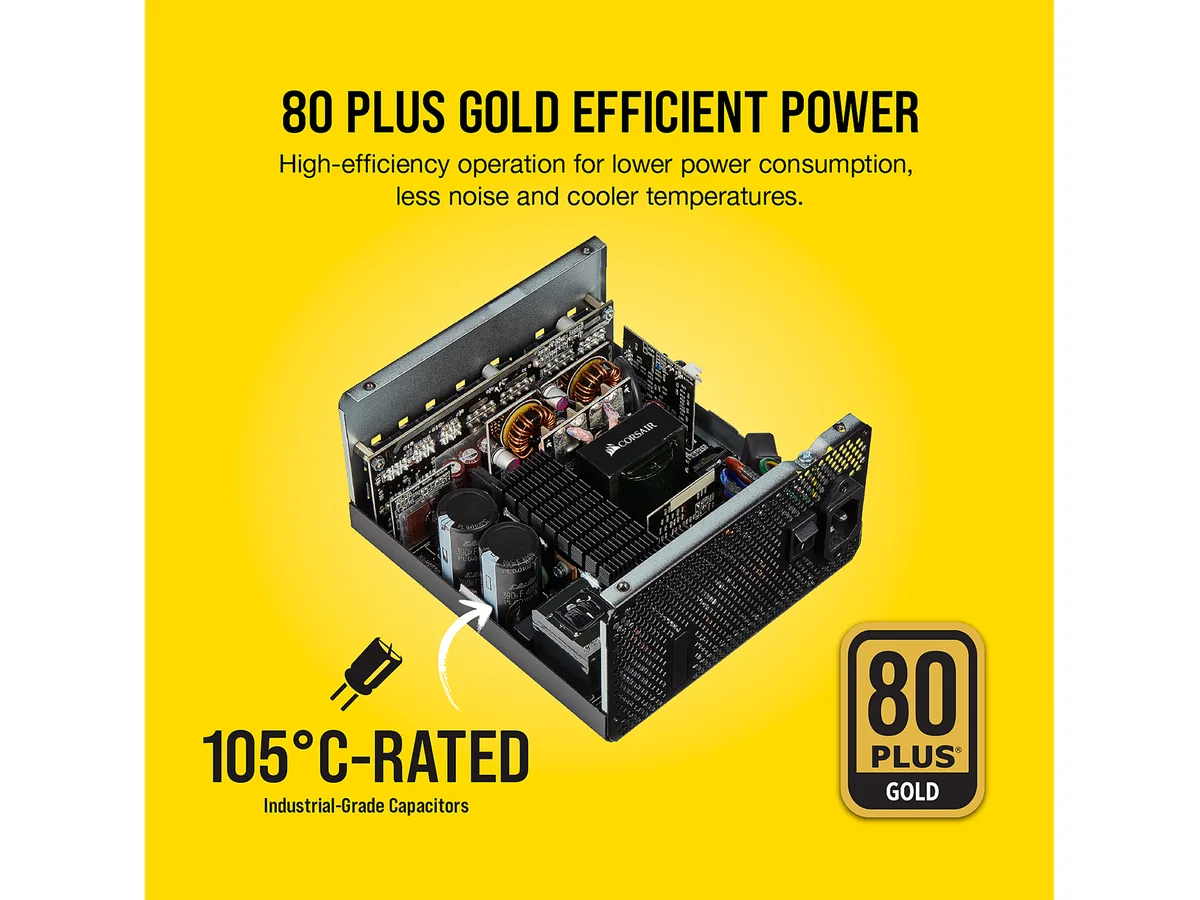

Features80 PLUS Gold Certified: High efficiency operation for lower power consumption, less noise and cooler temperatures.
Tuned for Low Noise Operation: A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
105°C-Rated Capacitors: Industrial-grade capacitors deliver solid electrical performance and reliability.

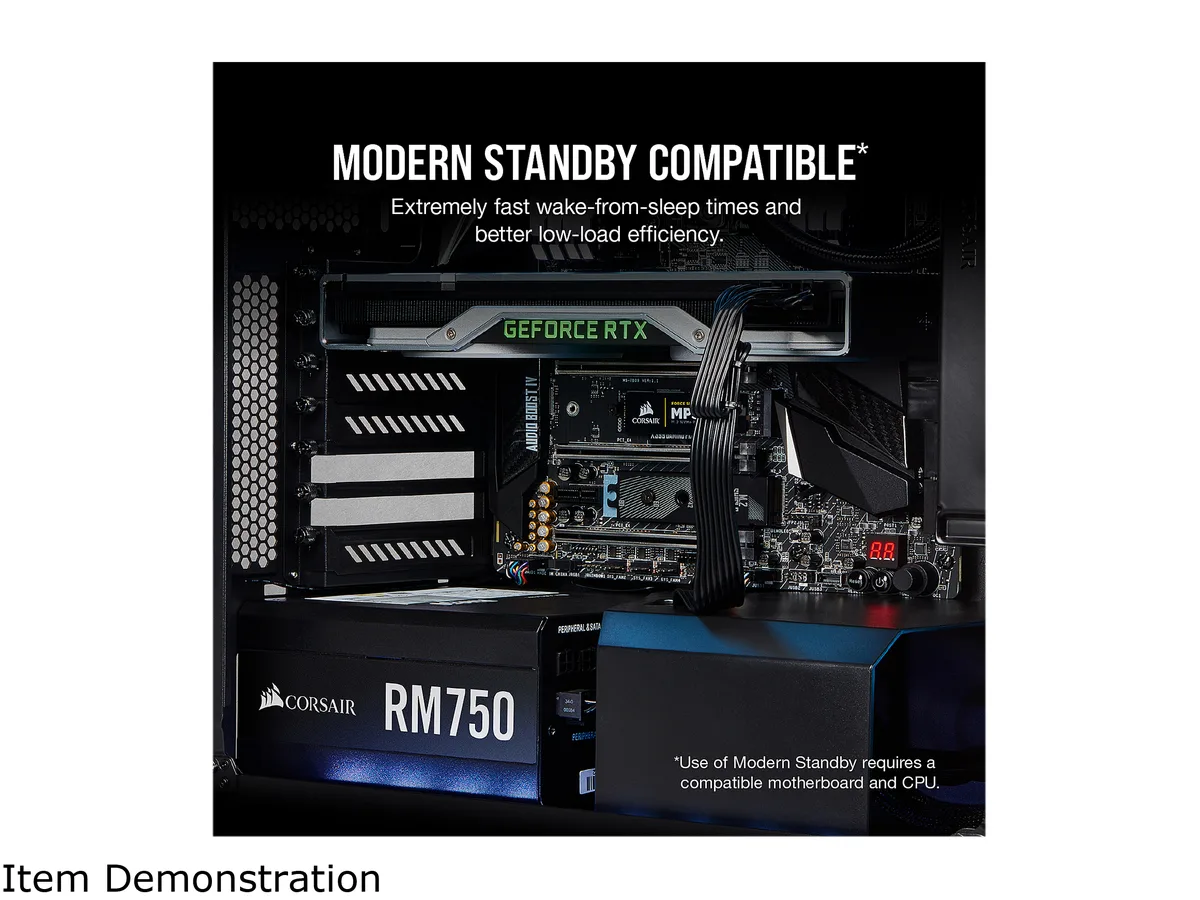

Microsoft Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operati
Dimensions3.39" x 5.91" x 6.30"
Weight3.75 lbs.

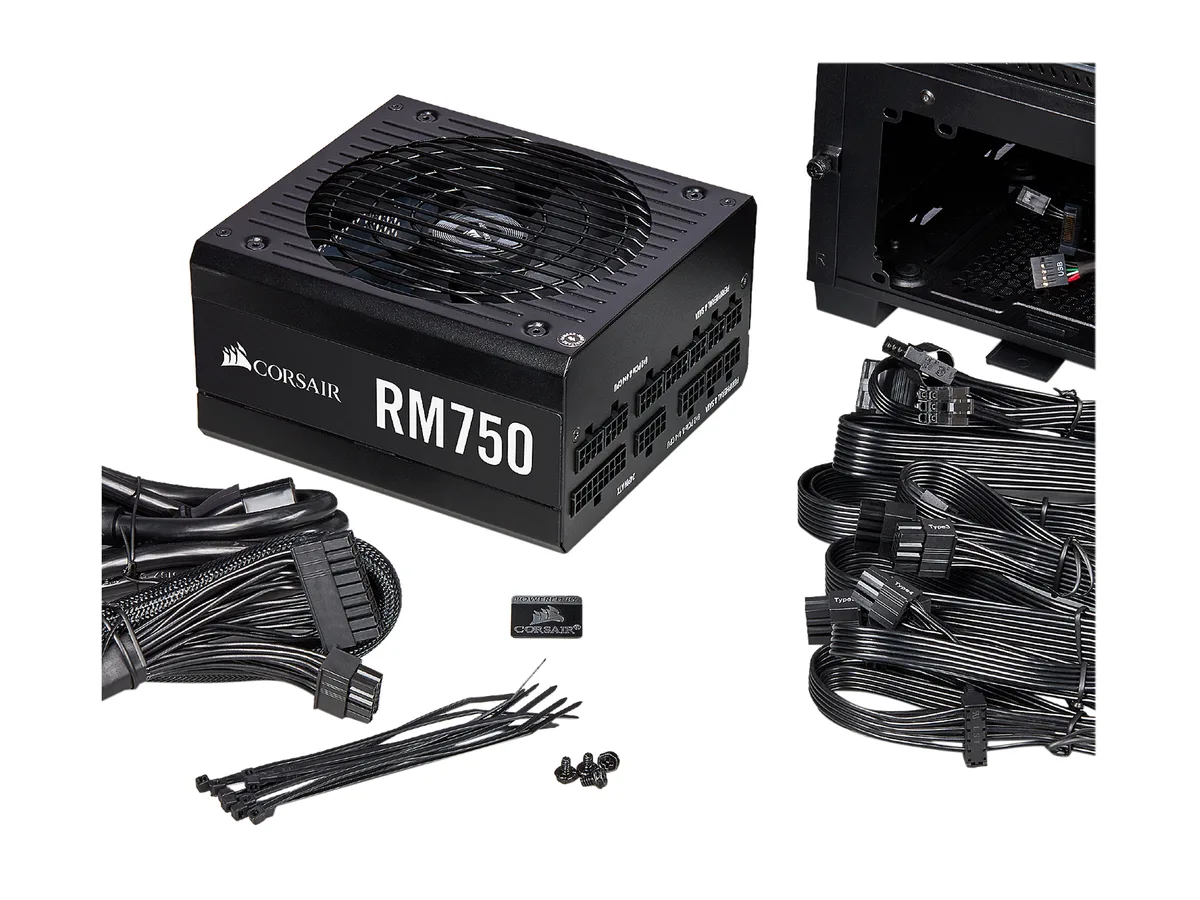

Package ContentRM Series Performance ATX Power Supply
AC Power cord
DC Modular Cable Set
Cable Ties
Shipping weight3.13 kg
Package size311 × 226 × 135 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 160 mm length fit my case?

The PSU is 160 mm long, so it fits most modern enthusiast cases; measure your case clearance to confirm.

How do I connect the 24-pin and 8-pin EPS cables, and what step do builders often miss?

Plug the 24-pin into the motherboard and both 4+4 EPS connectors into the CPU power headers; the common mistake is leaving the second EPS unplugged on boards that need it.

When should I expect to replace the 135 mm rifle bearing fan?

The fan is rated for 100,000 hours MTBF; under typical use it should last many years before needing service.
