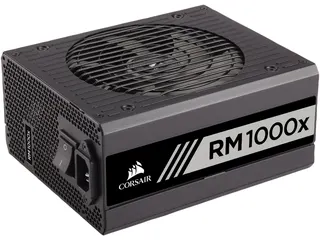

Rectangular black ATX power supply unit with modular cable sockets and a 135mm fan grille

Corsair

Corsair RMx Series RM1000x 1000W 80 PLUS GOLD Full Modular Power Supply CP-9020094-NA

SKU CH-MYR0-TKRGS MPN CP-9020094-NA

Delivers 1000 W through a fully modular ATX12V/EPS12V design with 80 PLUS Gold efficiency and a 135 mm rifle-bearing fan

  • TypeATX12V / EPS12V
  • Maximum Power1000 W
  • Fans1 x 135mm Rifle Bearing Fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle

Options ATX 80+ Gold (1000W)

  • 1000 W output powers demanding multi-GPU builds
  • 80 PLUS Gold 90 % efficiency lowers running costs
  • Full modular cabling keeps the case interior tidy
  • 135 mm rifle-bearing fan runs quietly under load
  • 180 mm depth fits most mid-tower and full-tower cases

Power for Demanding Builds

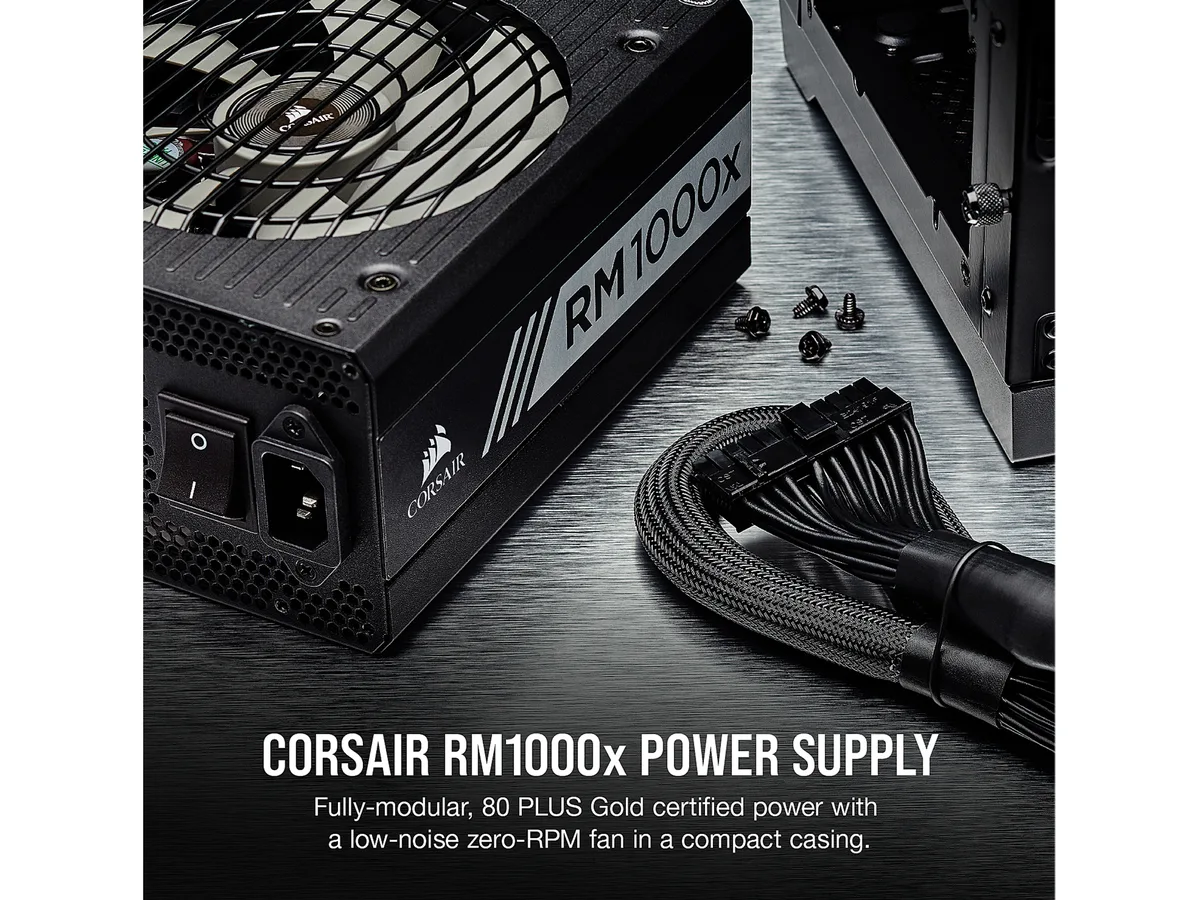

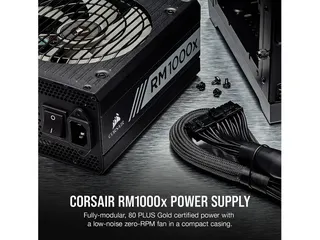

The Corsair RM1000x is a 1000 W ATX12V and EPS12V power supply with 80 PLUS Gold certification. It delivers up to 83.30 A on a single +12 V rail and 90 % typical efficiency. A 135 mm rifle bearing fan provides cooling while the fully modular cable set keeps the interior tidy. The unit measures 180 mm deep and fits standard ATX cases.

Suitability Guide

This unit suits systems that need abundant 12 V current for multiple graphics cards or high-end workstations. The eight 6+2 pin PCIe connectors and eleven SATA power connectors support SLI and CrossFire configurations. Builds with modest power requirements or tight case clearances should consider a lower-wattage or shorter model instead.

Deciding Specification

The single +12 V rail rated at 83.30 A is the specification that determines whether this supply matches the load. If the combined 12 V draw of all components stays within this limit the RM1000x will deliver stable power; if the demand exceeds it a higher-capacity unit is required.

Highlights

  • 1000 W output powers demanding multi-GPU builds
  • 80 PLUS Gold 90 % efficiency lowers running costs
  • Full modular cabling keeps the case interior tidy
  • 135 mm rifle-bearing fan runs quietly under load
  • 180 mm depth fits most mid-tower and full-tower cases

Specifications

BrandCORSAIR
SeriesRMx Series RM1000x
ModelCP-9020094-NA
TypeATX12V / EPS12V
Maximum Power1000 W
Fans1 x 135mm Rifle Bearing Fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector8 x 6+2-Pin
SATA Power Connector11
SLISLI Ready
Haswell SupportYes
CrossFireCrossFire Ready
Max PSU Length180 mm
ModularFull Modular
Efficiency90%
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current13 - 6.5 A
Output+3.3V @ 25A, +5V @ 25A, +12V @ 83.3A, -12V @ 0.8A, +5VSB @ 3A
MTBF100,000 hours
ApprovalsFCC, ICES, CE, UL / CUL, CSA, C-Tick / RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH.

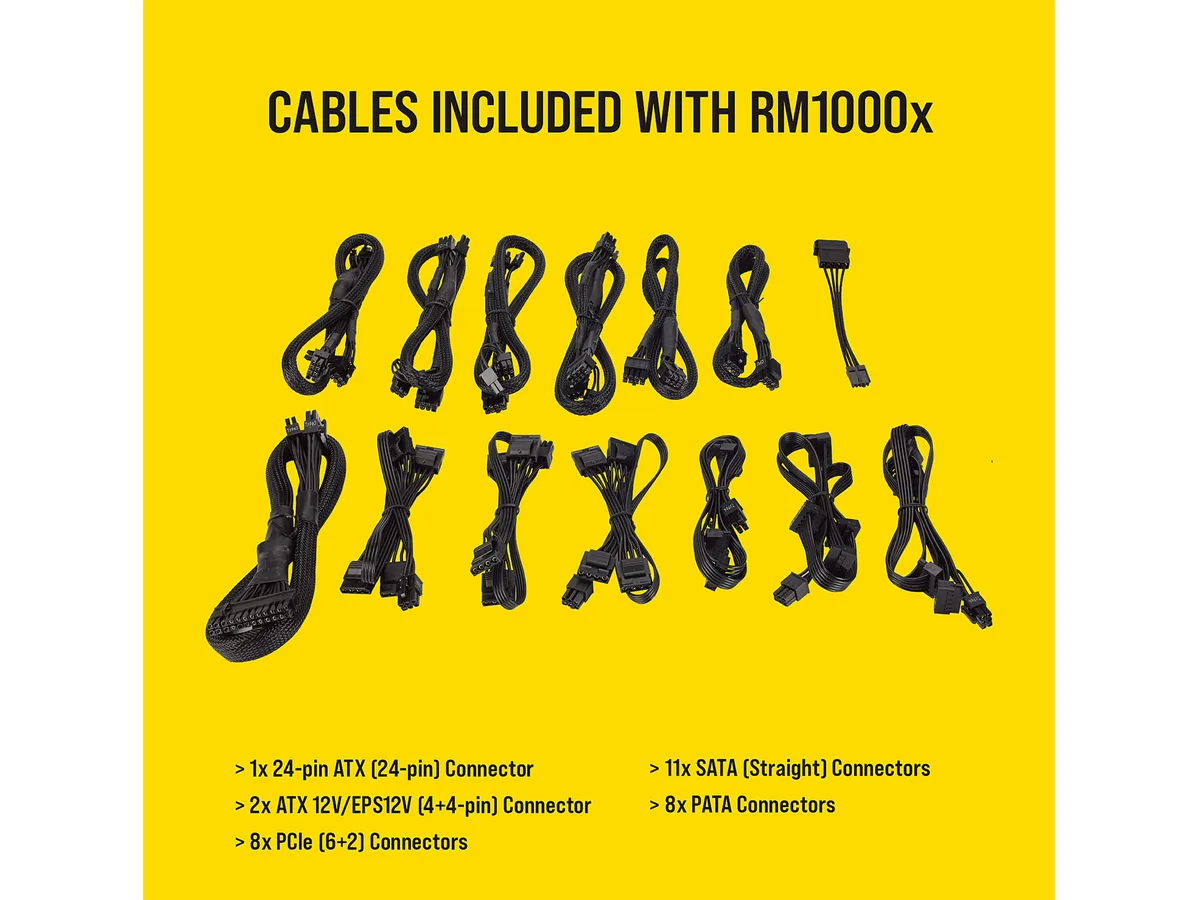

Connectors1 x Motherboard (20+4-Pin)
2 x CPU power ( 4+4-Pin, works as either 4 or 8-Pin)
8 x PCIe 6+2-Pin (GPU)
12 x 4-Pin peripheral
11 x SATA
1 x Floppy power adapter
Features80 PLUS Gold efficiency, delivering 90% energy efficiency at real world load conditions.
ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.

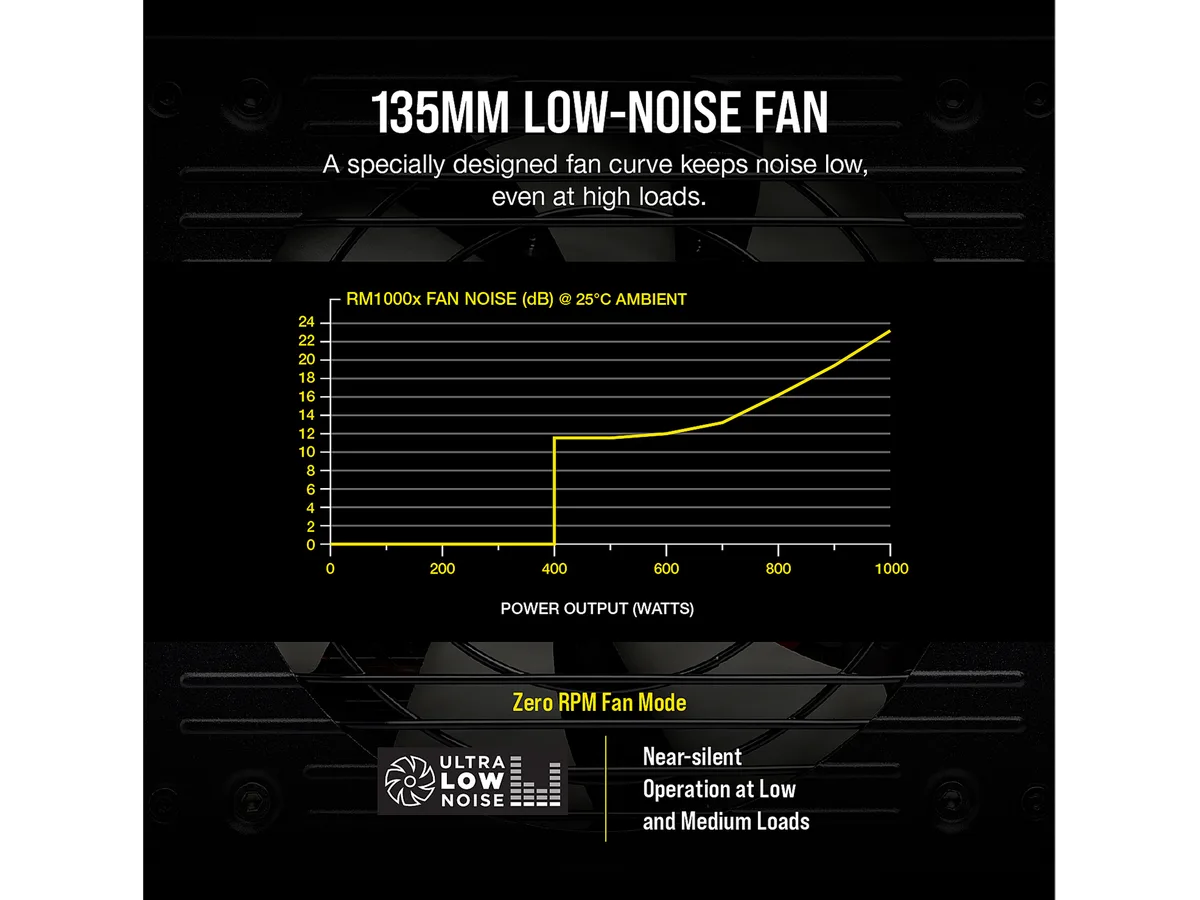

135mm thermally controlled fan spins up as needed.

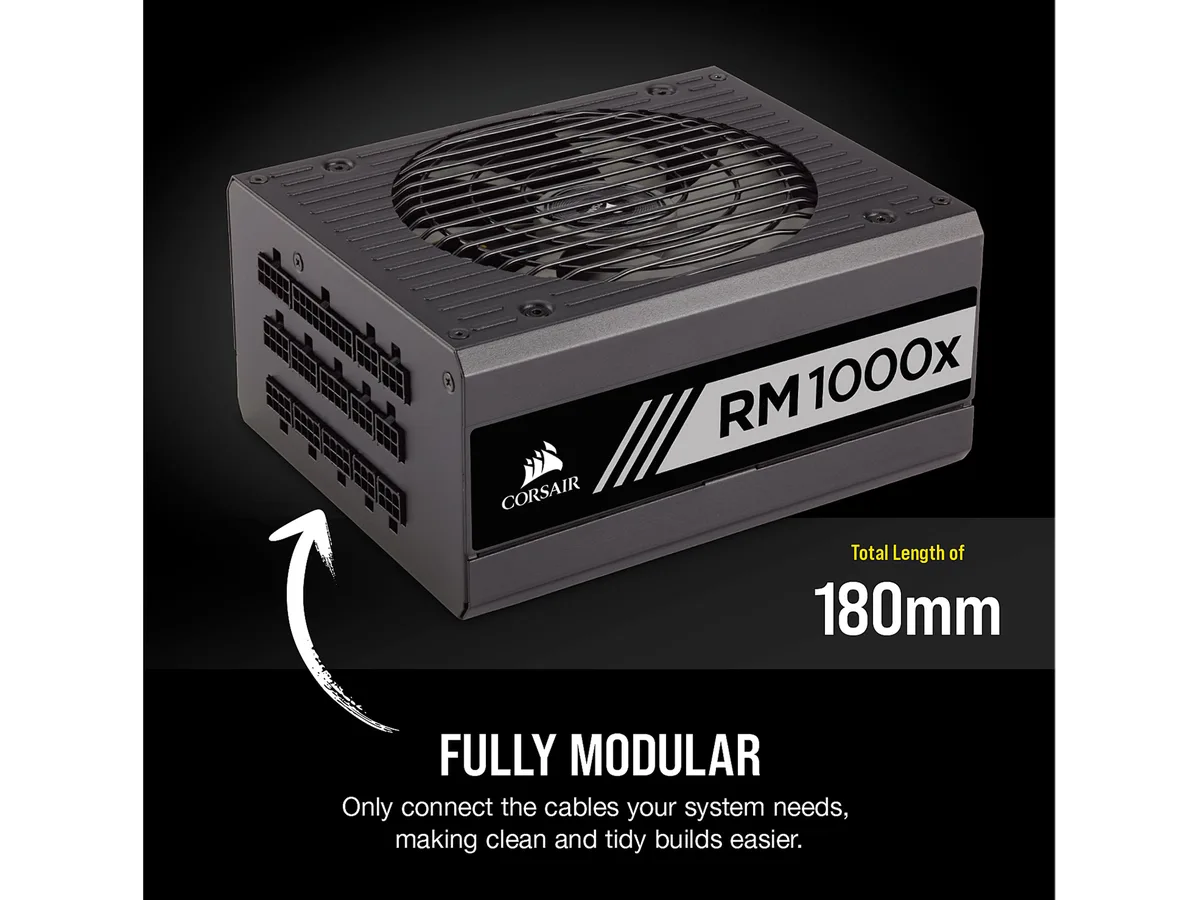

Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer's chassis.
Engineered to meet maximum power output at a server-grade 50 degrees Celsius temperature rating.
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety
Dimensions3.39" x 5.91" x 7.09"
Weight4.41 lbs.
Package ContentRMx Series High-Performance ATX Power Supply
AC power cord
DC Modular cable set
DC Modular cable storage bag
Cable ties
Corsair case badge
User Manual
Shipping weight4.20 kg
Package size394 × 226 × 152 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud does the 135mm Rifle Bearing fan get when the 1000W unit runs continuously under heavy load?

The 135mm Rifle Bearing fan is designed for quiet operation; it spins only when needed and ramps up gradually to keep noise low during extended high-load sessions.

Which cables must I already have to connect the 20+4Pin main connector and the eight 6+2-pin PCIe plugs?

All required cables ship in the box — the fully modular set includes the 20+4Pin ATX cable, eight 6+2-pin PCIe cables, eleven SATA power cables and EPS/CPU cables.

Will the single +12V rail delivering 83.30A work safely with an older motherboard that expects multi-rail OCP limits?

Yes, the single +12V rail design provides up to 83.30A with full protection circuitry, so it is compatible with both modern and legacy motherboards that follow ATX12V/EPS12V specs.
