Compact SFX power supply with 92mm fan and modular cables

Corsair

Corsair SF600 CP-9020182-NA 600 W SFX power supply

SKU CH-JKGT-D7R8A MPN CP-9020182-NA

A compact SFX 600 W unit with full modular cabling, 80 PLUS Platinum efficiency, a 92 mm fan offering zero-RPM mode, and Japanese 105 °C capacitors for small-form-factor builds

  • TypeSFX
  • Maximum Power600 W
  • Fans1 x 92mm Cooling Fan
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector2 x 6+2-Pin

Options SFX Platinum (600W)

  • Compact SFX design fits small-form-factor builds
  • 80 PLUS Platinum certification delivers over 92% efficiency
  • Zero RPM fan mode enables near-silent operation at low loads
  • Fully modular individually sleeved cables simplify routing and management
  • 92 mm cooling fan provides low-noise performance under heavy demand

Compact SFX 600 W Platinum unit

This Corsair SF Series SF600 power supply delivers 600 W in a compact SFX form factor. It targets builders of small form factor PCs who need full modular cabling and 80 PLUS Platinum efficiency. The 92 mm fan supports a Zero RPM mode for near-silent operation at low to medium loads. All capacitors are 105 °C rated Japanese units for long-term reliability.

Single 12 V rail with 50 A output

The unit uses a single +12 V rail rated at 50 A, providing the full 600 W to graphics cards and CPUs without multi-rail balancing. Two 6+2-pin PCIe connectors are included for modern GPU power requirements. The 24-pin ATX and 8-pin EPS cables complete the core power delivery. Platinum certification guarantees over 92 % efficiency across typical loads.

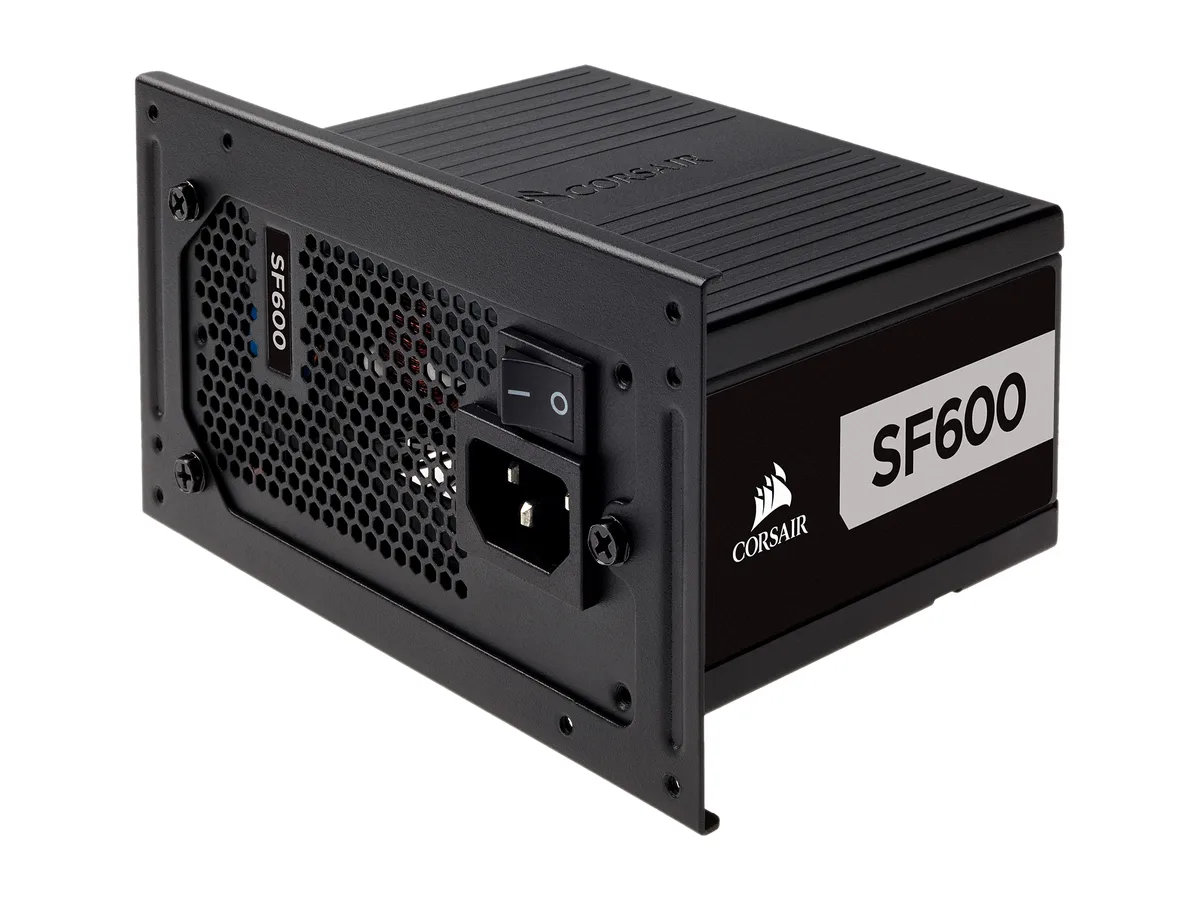

SFX-to-ATX bracket enables case flexibility

An included SFX-to-ATX bracket allows installation in both SFX and standard ATX cases. Fully modular, individually sleeved cables reduce clutter and simplify routing in tight chassis. The 100 mm depth fits most small form factor layouts while the 92 mm fan improves airflow over smaller SFX fans. Input voltage covers 100-240 V at 47-63 Hz for worldwide use.

Highlights

  • Compact SFX design fits small-form-factor builds
  • 80 PLUS Platinum certification delivers over 92% efficiency
  • Zero RPM fan mode enables near-silent operation at low loads
  • Fully modular individually sleeved cables simplify routing and management
  • 92 mm cooling fan provides low-noise performance under heavy demand

Specifications

BrandCORSAIR
SeriesSF Series SF600
ModelCP-9020182-NA
TypeSFX
Maximum Power600 W
Fans1 x 92mm Cooling Fan
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector4
Max PSU Length100 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10A - 5A
Output+3.3V@20A, +5V@20A, +12V@50A, [email protected] , [email protected]

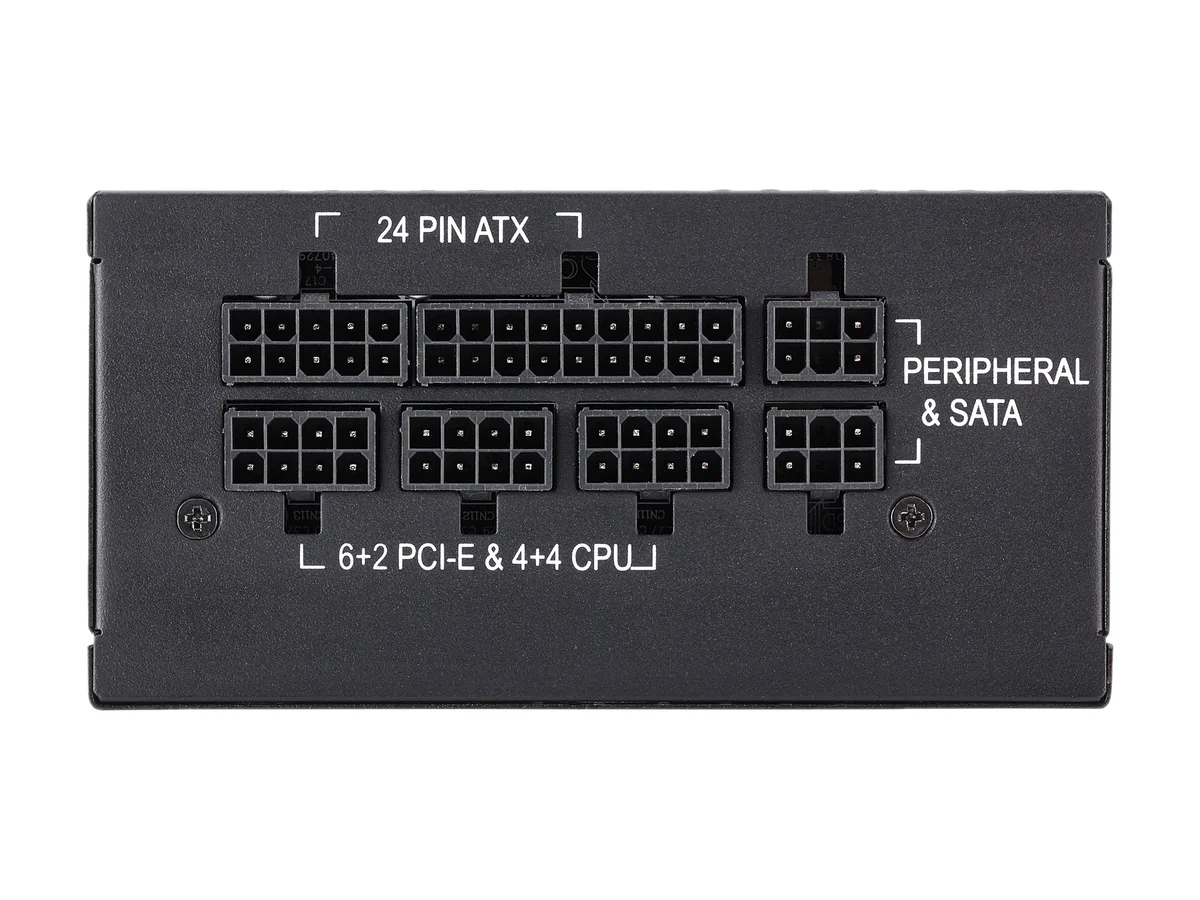

Connectors1 x ATX Cable (24-PIN)
1 x EPS/ATX12V Cable (8-PIN) (4+4)
2 x PCI-E Cable (8-PIN) (6+2)
4 x SATA CABLE (4 SATA)
3 x Peripheral
FeaturesCompact SFX Form-Factor: Ready to power the world’s best small form factor PCs.
80 PLUS Platinum Certified: For ultra-high efficiency operation.
Zero RPM Fan Mode: For near-silent operation at low to medium loads.
Individually Sleeved, Fully Modular Cables: Make building a great looking PC easy.
92mm Cooling Fan: Delivers low-noise operation even at demanding loads.
105°C Rated Japanese capacitors: Ensure unwavering power and reliability.
Superb Electrical Performance: For incredibly stable voltages and ultra-low ripple noise.
SFX-to-ATX Bracket Included: Allows installation into bot
Dimensions3.94" x 4.92" x 2.50"
Weight1.90 lbs.
Shipping weight1.95 kg
Package size246 × 183 × 107 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 600 W rating mean for a small-form-factor build?

It delivers 600 W of continuous power from a 100 mm SFX chassis, with a single +12 V rail rated at 50 A to handle high-end GPUs and CPUs in compact cases.

How does the 80 PLUS Platinum certification affect efficiency at the wall?

The unit exceeds 92 % efficiency at typical loads, so less waste heat reaches the 92 mm fan and the Zero RPM mode stays active longer.

Will the 100 mm length and SFX-to-ATX bracket fit my case?

The 100 mm depth matches the SFX standard and the included bracket lets you mount the supply in both SFX and standard ATX chassis.
