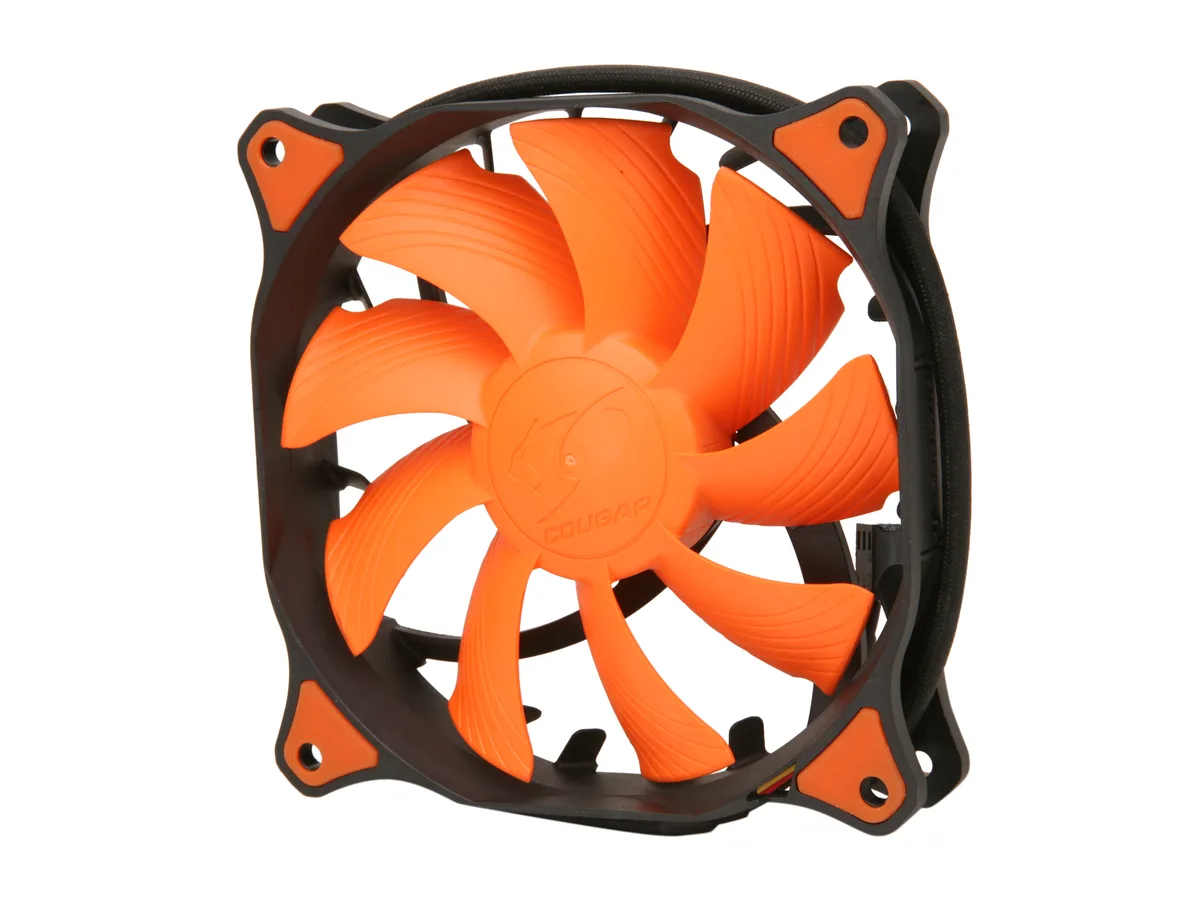

Orange 120mm case fan with turbine blade design and anti-vibration pads

COUGAR

COUGAR CF-V12H 120mm case fan 1200 RPM 60.4 CFM 17.7 dB Hydro-Dynamic 25mm Orange

SKU CH-V7J1-S985S MPN CF-V12H

A 120 mm case fan delivers 60.4 CFM at 1200 RPM while running at 17.7 dB using a hydro-dynamic bearing and tool-less rubber pins

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Thickness25mm
  • Bearing TypeHydro-Dynamic
  • Delivers 60.4 CFM airflow for effective case cooling
  • Operates at 17.7 dB for extremely quiet performance
  • Hydro-Dynamic bearing runs without friction for 300000 hrs MTBF
  • Tool-less rubber pins install in seconds and dampen vibration
  • Patented turbine blade and frame focus airflow for optimum cooling efficiency

120mm Hydro-Dynamic Case Fan

The COUGAR CF-V12H is a 120mm case fan that uses a Hydro-Dynamic bearing. It spins at 1200 RPM and delivers 60.4 CFM of airflow at a rated 17.7 dB noise level. The 25mm thick frame fits standard mounting points and includes tool-less fixed pins, screws and a 3-to-4-pin adapter.

Quiet Cooling for Standard Builds

This fan suits builders who want low-noise airflow for a typical chassis without a dedicated fan controller. The 3-pin connector provides simple voltage control on most motherboards. Buyers who need PWM speed regulation, higher static pressure for dense radiators, or multiple fans in a single pack should look at other models.

60.4 CFM Airflow with 300000-Hour MTBF

At 1200 RPM the fan moves 60.4 CFM (102.6 m3/h), which is sufficient for general case ventilation and moderate component cooling. The Hydro-Dynamic bearing is rated for 300000 hours MTBF, offering long-term reliability. The single 3-pin header limits automated speed curves, so airflow remains constant unless the motherboard adjusts voltage.

Highlights

  • Delivers 60.4 CFM airflow for effective case cooling
  • Operates at 17.7 dB for extremely quiet performance
  • Hydro-Dynamic bearing runs without friction for 300000 hrs MTBF
  • Tool-less rubber pins install in seconds and dampen vibration
  • Patented turbine blade and frame focus airflow for optimum cooling efficiency

Specifications

BrandCougar
ModelCF-V12H
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Thickness25mm
Bearing TypeHydro-Dynamic
RPM1200 RPM
Air Flow60.4 CFM, 102.6 m3/h
Noise Level17.7 dB
Power Connector3 Pin
ColorOrange
FeaturesHIGH-VORTEX-AIRFLOW WITH TURBINE BLADE & FRAME UNIQUE DESIGN
Optimum airflow, air pressure & extremely silent performance
DIVERSION GROOVE BLADE DESIGN
Innovative blade design focus air flow & optimum cooling efficiency
ANTI-VIBRATION PAD DESIGN
Reduce the vibrations efficiently & silent operation
AERO-DYNAMICAL DESIGN
Air-inlet with optimal aero-dynamical design reducing noisy air turbulences
HYDRO-DYNAMIC-BEARING TECHNOLOGY
HDB runs more smoothly with no friction, make it quietly & durability (MTBF 300,000 hrs)
TOOL-LESS FIXED PINS
Rubber fixed pins also reduces vibrations (fan run
Dimensions120.00 x 120.00 x 25.00mm

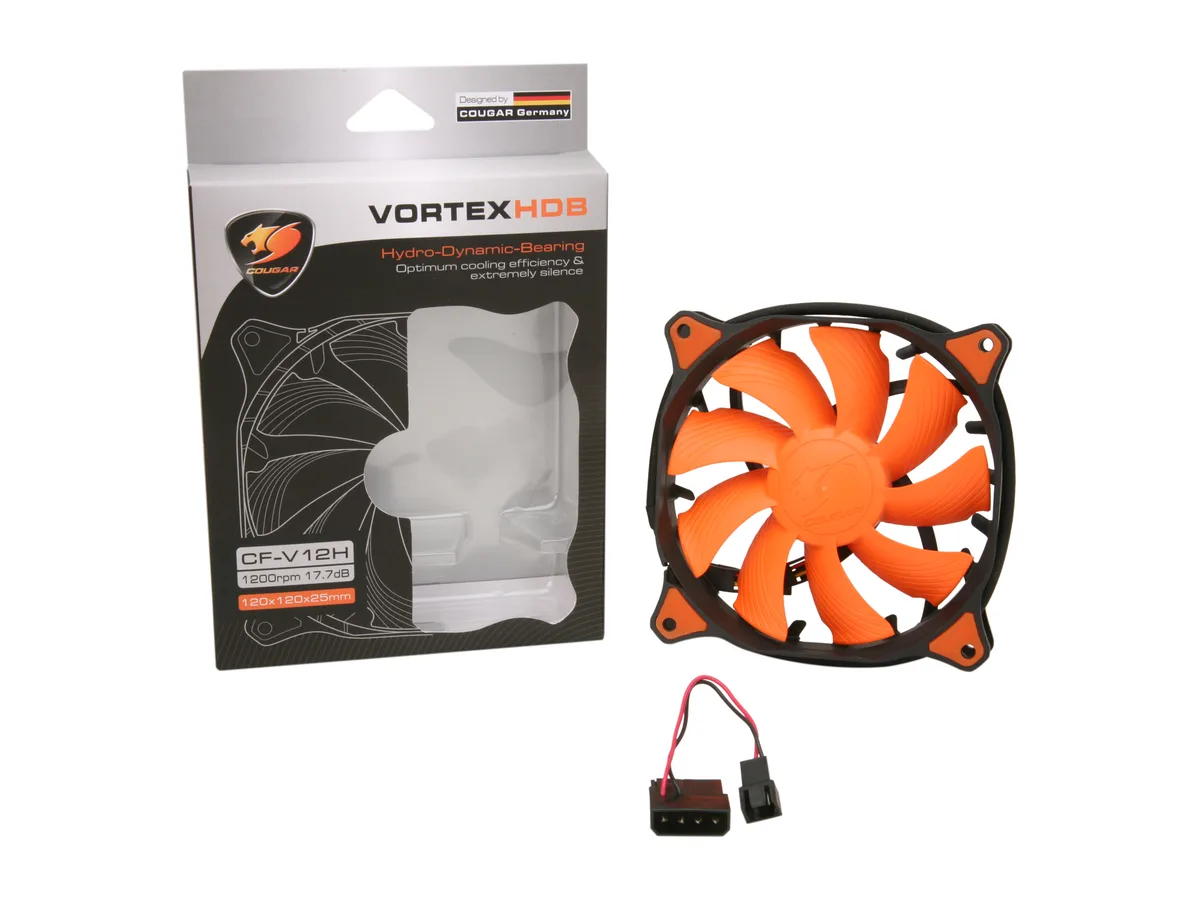

Package ContentsCase Fan
3 to 4pin adapter
Tool-less fixed pins
Screws
Shipping weight0.21 kg
Package size203 × 137 × 30 mm

Questions about this item

Does my motherboard need a 3-pin header to run this 1200 RPM fan?

Yes, the CF-V12H uses a 3-pin power connector and a 3-to-4-pin adapter is included if your board only has 4-pin headers.

Will the 25 mm thickness and 120 mm square frame fit the same mounting holes as my existing 120 mm fans?

The fan measures 120 mm by 120 mm by 25 mm, matching the standard 120 mm mounting pattern used by most cases and radiators.

How can I confirm the Hydro-Dynamic bearing is running at the rated 17.7 dB after installation?

At full 1200 RPM the fan should be barely audible; use a phone decibel meter at 30 cm distance — a reading near 17.7 dB indicates normal operation.
