COUGAR
COUGAR MX600 Max RGB PC case mid-tower black ATX 400mm GPU
Mid-tower ATX case with pre-installed dual 200mm ARGB PWM fans, dual-curve airflow ramp, modular I/O and tempered-glass side panel
- TypeATX Mid Tower
- ColorBlack
- Motherboard CompatibilityMini ITX / Micro ATX / ATX / Reverse Connector
- Internal 3.5" Drive Bays1
- Internal 2.5" Drive Bays2
- Expansion Slots7
- Pre-installed dual 200 mm ARGB PWM fans deliver 140.4 CFM airflow out of the box
- Dual-curve ramp focuses intake pressure directly onto components for targeted cooling
- Modular front I/O panel mounts on top or bottom for flexible desk placement
- Top panel supports radiators up to 360 mm for high-capacity liquid cooling
- Five dust filters cover every intake to keep internals clean longer
Cooling-Focused Mid-Tower for ATX Builds

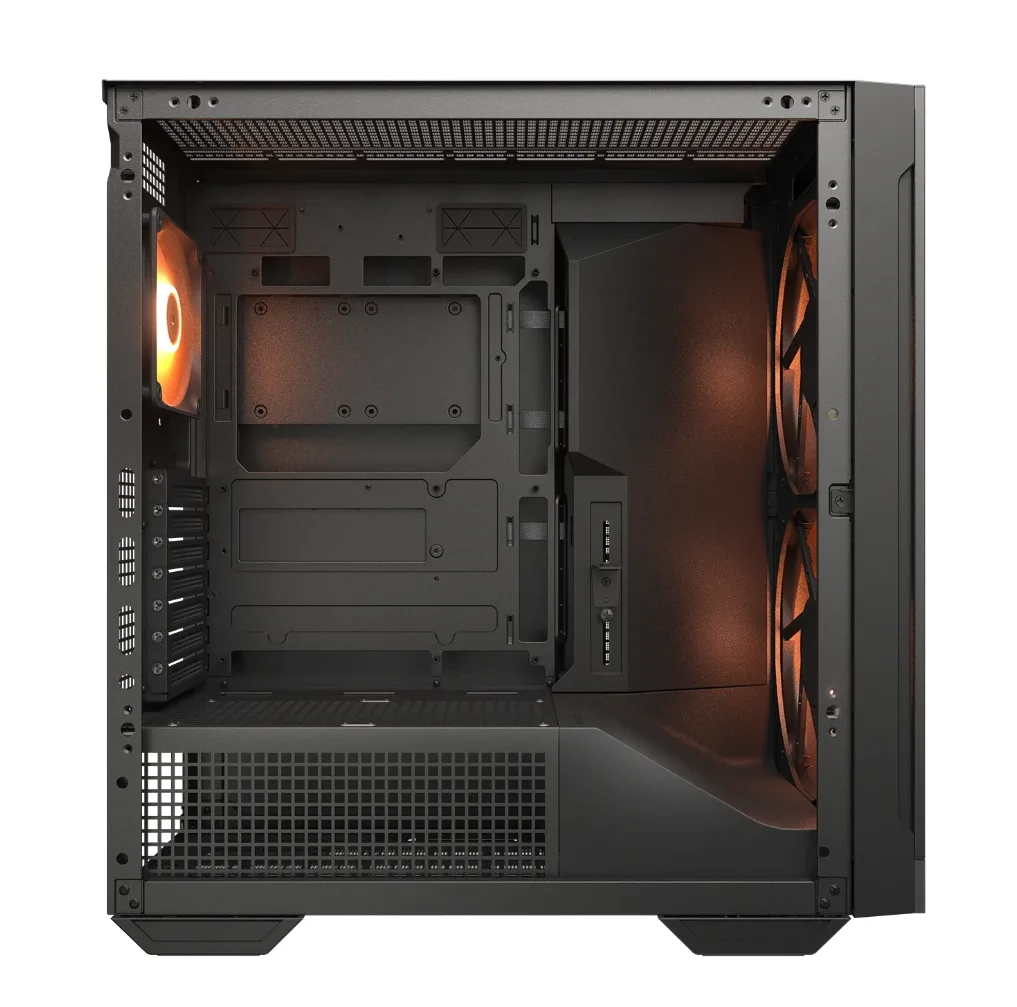

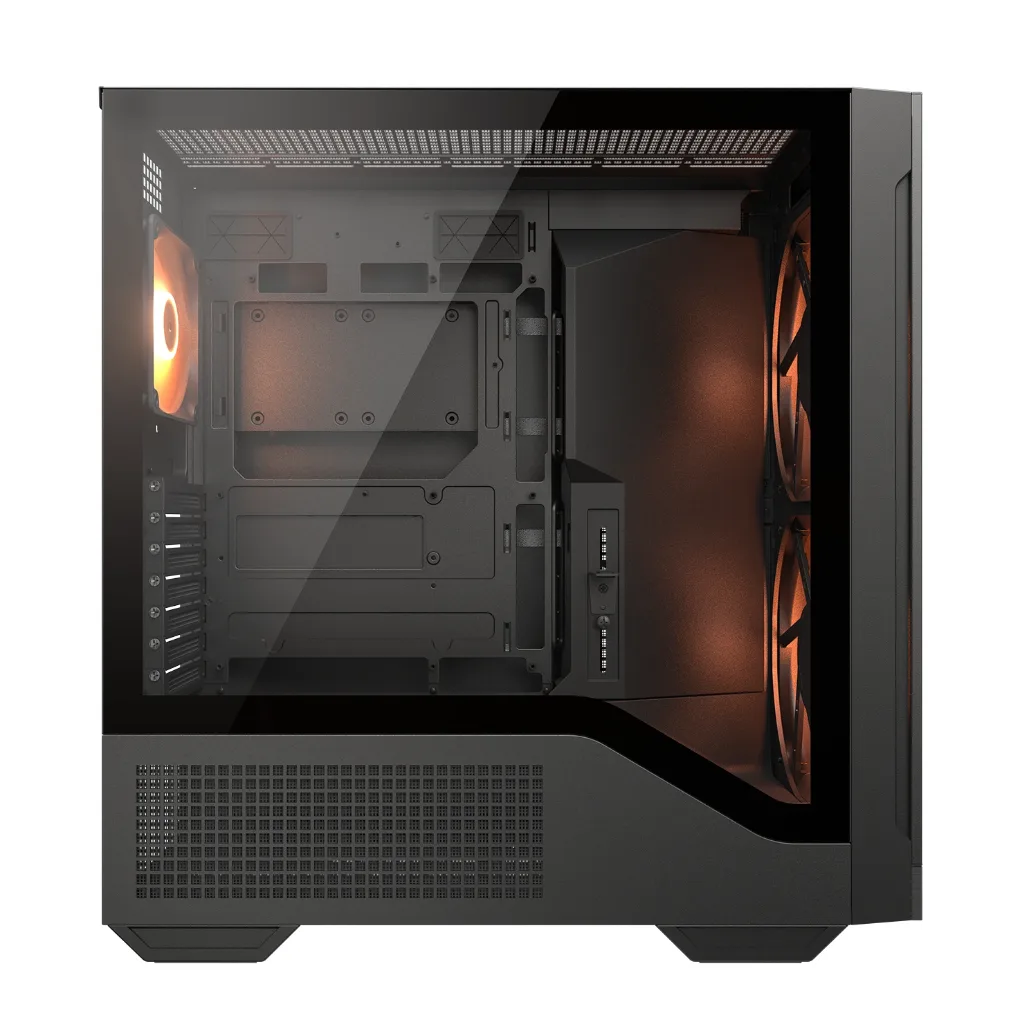

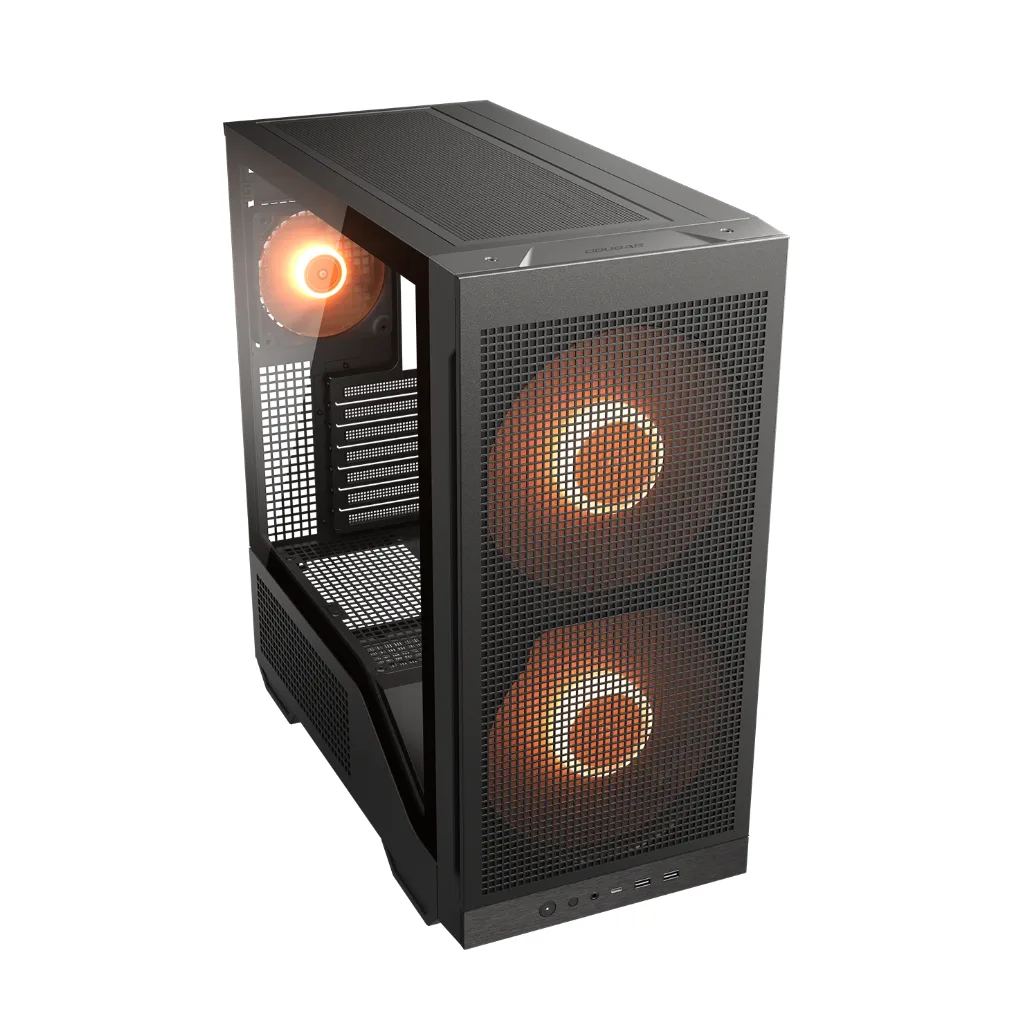

The COUGAR MX600 Max RGB is a black mid-tower case designed for ATX, Micro ATX, Mini ITX and reverse-connector motherboards. It ships with two 200mm ARGB PWM front fans and one 120mm ARGB PWM rear fan installed. The layout targets builders who want high airflow and a visible internal layout through an extended glass side panel.
Front I/O With 20Gbps Type-C and Modular Mounting

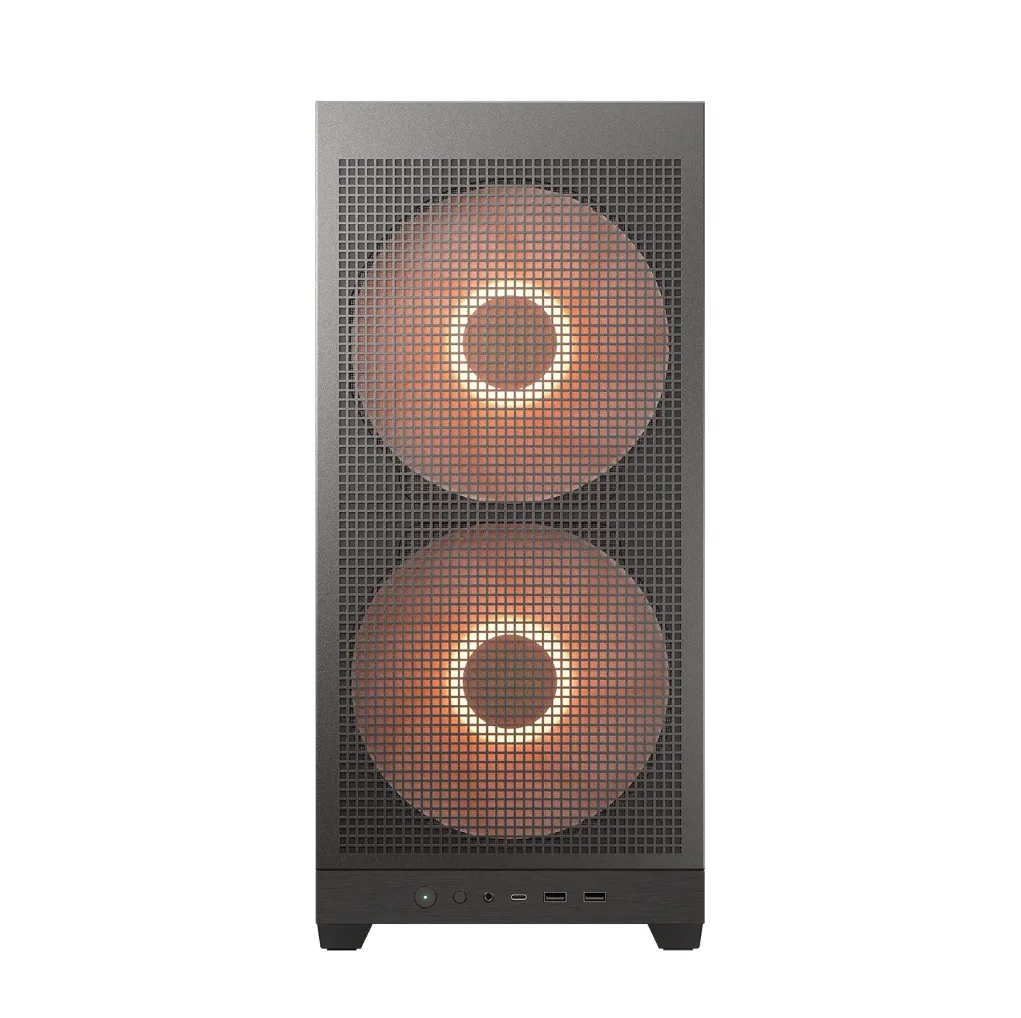

The front panel provides one USB 3.2 Gen 2x2 Type-C port at 20Gbps, two USB 3.0 Type-A ports and a 4-pole headset audio jack. An RGB control button is also included. The I/O module is modular, allowing it to be repositioned to the top or bottom of the chassis to suit desk placement and cable routing preferences.
Steel Chassis With Dust Filters and 400mm GPU
The steel structure measures 235 x 514 x 482mm and weighs 9.62kg. Five dust filters cover intake and exhaust areas. Graphics cards up to 400mm long are supported, CPU coolers up to 170mm tall fit, and power supplies up to 200mm deep can be installed. Top mounts accept radiators up to 360mm.
Highlights
- Pre-installed dual 200 mm ARGB PWM fans deliver 140.4 CFM airflow out of the box
- Dual-curve ramp focuses intake pressure directly onto components for targeted cooling
- Modular front I/O panel mounts on top or bottom for flexible desk placement
- Top panel supports radiators up to 360 mm for high-capacity liquid cooling
- Five dust filters cover every intake to keep internals clean longer
Specifications
| Brand | COUGAR |
|---|---|
| Model | MX600 Max RGB |
| Type | ATX Mid Tower |
| Color | Black |
| Motherboard Compatibility | Mini ITX / Micro ATX / ATX / Reverse Connector |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Expansion Slots | 7 |
| Front Ports | USB 3.2 Gen 2x2 (20Gbps) Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| Fan Options | Front - 2 x 200mm / Rear - 1 x 120mm / Top - 2 x 140mm / Top - 3 x 120mm |
| Pre-installed Fans | Front - 2 x 200mm / Rear - 1 x 120mm |
| Radiator Options | Top - Up to 240mm / Top - Up to 280mm / Top - Up to 360mm |
| Max GPU Length | 400 mm |
| Max CPU Cooler Height | 170 mm |
| Max PSU Length | 200 mm |
| Dimensions | 235 x 514 x 482 (mm) |
| Weight | 9.62kg |
| Shipping weight | 11.48 kg |
| Package size | 597 × 572 × 318 mm |
Questions about this item
Should I pick the ATX, Micro ATX, or Mini ITX version of this case?
The MX600 Max RGB is a single mid-tower that accepts ATX, Micro ATX, Mini ITX, and reverse-connector boards, so you choose the motherboard, not the case version.
What does the 140.4 CFM airflow figure mean once the case is built?
Each pre-installed 200 mm front fan moves up to 140.4 CFM at 1000 RPM, giving strong intake pressure that the dual-curve ramp directs straight to the GPU and CPU.
What does the USB 3.2 Gen 2x2 Type-C port cap at in practice?
The front-panel Type-C runs at 20 Gbps, limited by the motherboard header and cable quality; the two Type-A ports run at 5 Gbps over USB 3.0.
