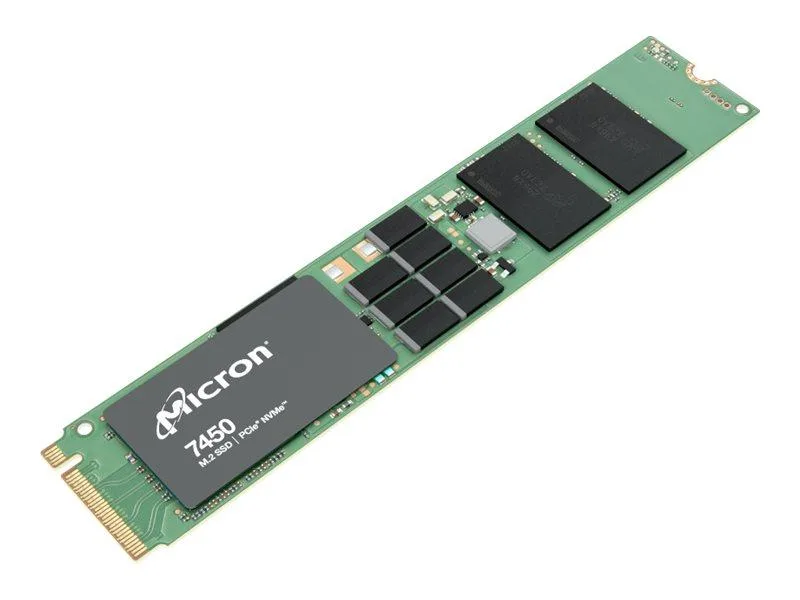

Green circuit board M.2 22110 SSD with black controller and silver label

Crucial

Crucial 3.84 TB 7450 PRO SED M.2 22110 PCIe 4.0 NVMe internal SSD

SKU CH-YT0M-QJ174

3.84 TB PCIe 4.0 NVMe drive with TCG Opal 2.0 encryption, 5000 MBps read, 2500 MBps write, 7300 TB endurance and 2,000,000-hour MTBF

  • 84 TB capacity stores large datasets
  • Hardware-based TCG Opal 2.0 encryption protects data at rest
  • PCIe 4.0 NVMe interface delivers 5000 MBps read and 2500 MBps write speeds
  • 735000 random read IOPS accelerates transaction-heavy workloads
  • 7300 TB endurance and 2000000-hour MTBF support continuous enterprise operation

Capacity and form factor

The Crucial 3.84 TB 7450 PRO SED is an M.2 22110 internal SSD built for enterprise workloads that demand high capacity and hardware encryption. It targets system integrators and IT teams deploying storage arrays or workstations where data security and endurance are primary requirements.

PCIe 4.0 NVMe interface

The single specification that decides fit is the PCIe 4.0 NVMe interface combined with the 22110 length; the host must provide an M.2 slot wired for four lanes of PCIe 4.0 and physical clearance for a 110 mm module. Without that slot the drive cannot operate at its rated 5000 MBps read and 2500 MBps write throughput.

Installation and common issues

Installation is a straight insertion into the M.2 22110 slot and a single screw, but the 8 W sequential read power draw means the motherboard or adapter must deliver adequate current without throttling. The most frequent problem is a slot that only supports shorter 2280 modules or PCIe 3.0 signalling, which prevents the drive from being recognised or cuts performance in half.

Highlights

  • 84 TB capacity stores large datasets
  • Hardware-based TCG Opal 2.0 encryption protects data at rest
  • PCIe 4.0 NVMe interface delivers 5000 MBps read and 2500 MBps write speeds
  • 735000 random read IOPS accelerates transaction-heavy workloads
  • 7300 TB endurance and 2000000-hour MTBF support continuous enterprise operation

Specifications

No published specifications for this item yet.

Questions about this item

What does the 7300 TB endurance rating mean for daily use?

The 7300 TB total bytes written equals the 1 DWPD rating, so you can fill the 3.84 TB drive once every day for the warranty period without exceeding the endurance spec.

How does the PCIe 4.0 interface limit real-world throughput?

PCIe 4.0 x4 caps the drive at its rated 5000 MB/s read and 2500 MB/s write; a PCIe 3.0 slot would reduce those speeds by roughly half.

Will the 22110 form factor fit a standard M.2 slot?

The 22110 length (110 mm) requires a motherboard or carrier with an 110 mm standoff; many consumer boards only support 80 mm (2280) modules.
