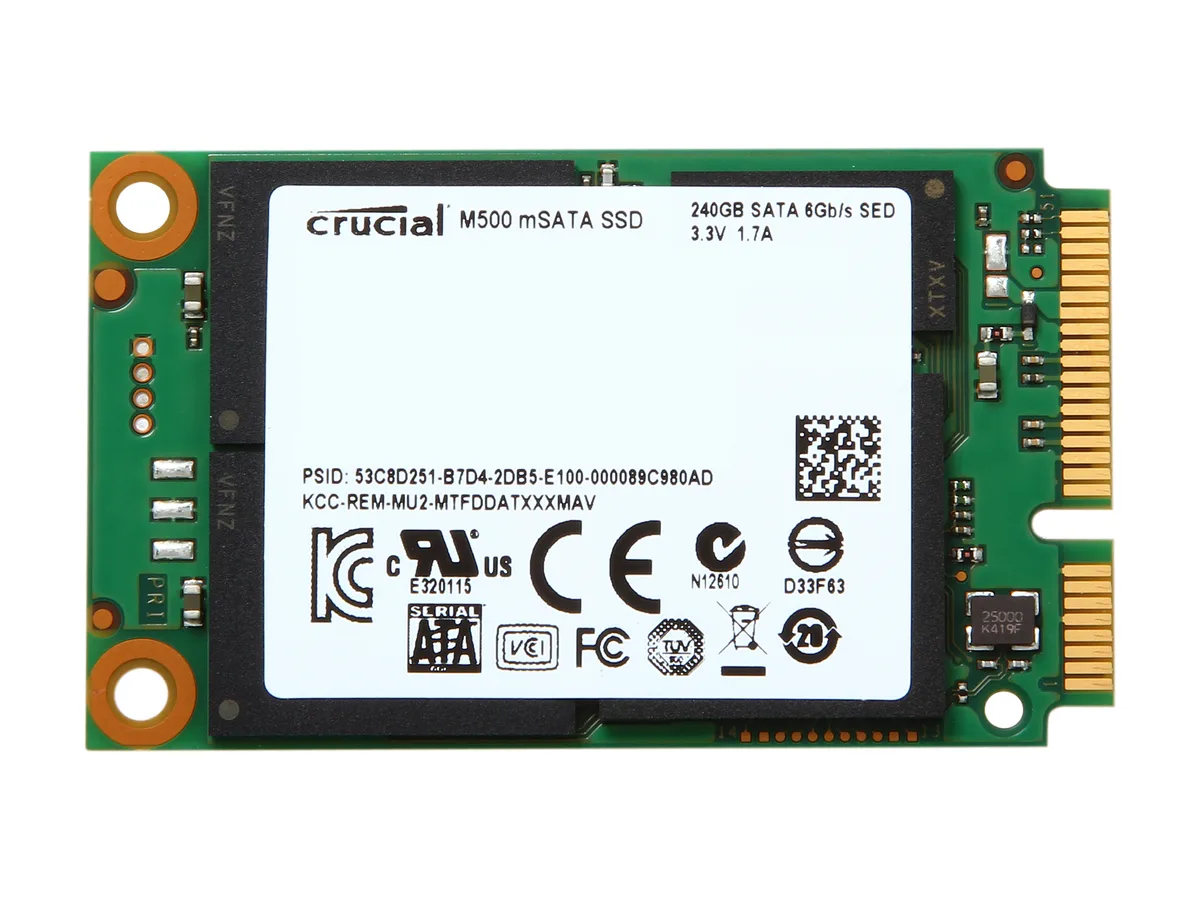

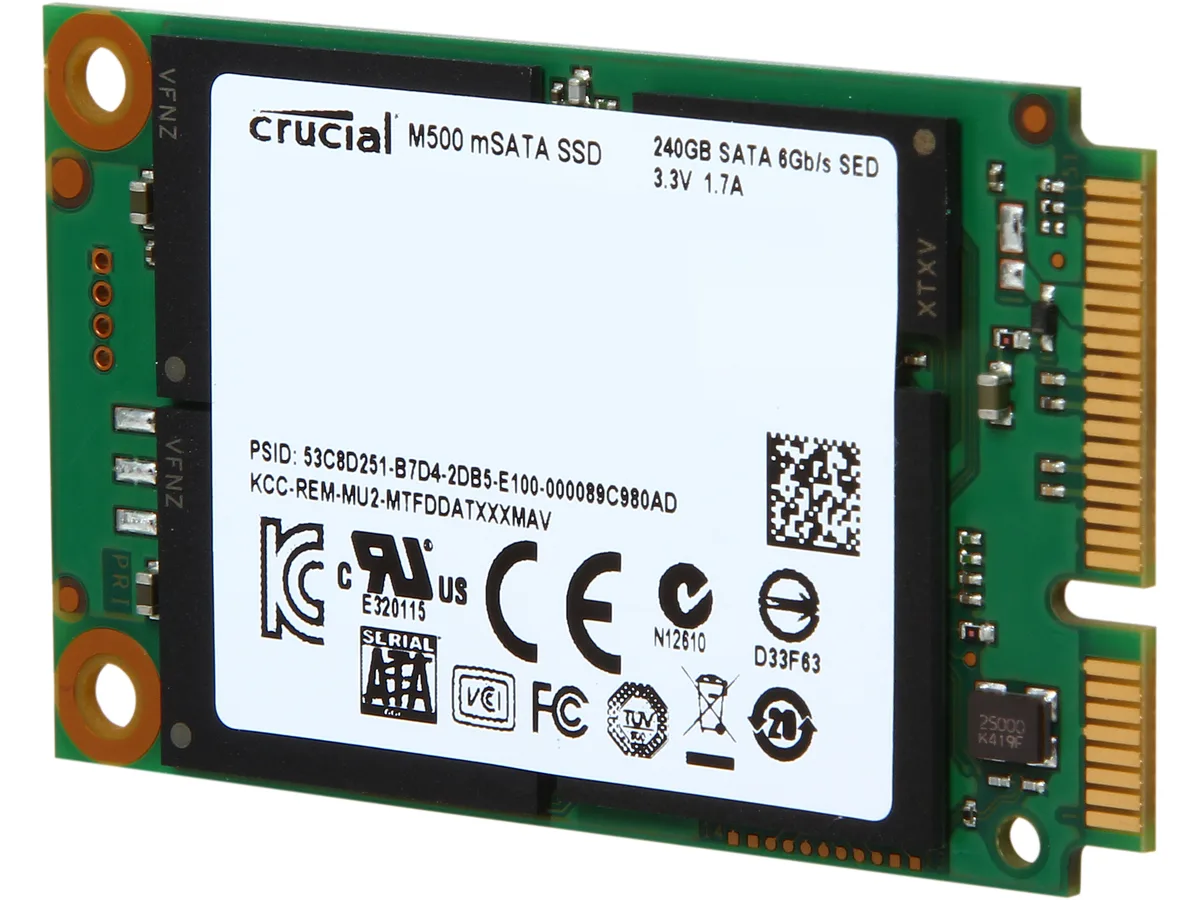

A small green circuit board with gold edge connectors and black memory chips, 3.75mm thick

Crucial

Crucial CT240M500SSD3 240GB mSATA internal SSD

SKU CH-096X-HKZ9C MPN CT240M500SSD3

240GB mSATA internal SSD with MLC memory delivering up to 500MB/s read and 250MB/s write speeds for faster system performance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Capacity240GB
  • Memory ComponentsMLC
  • InterfaceMini-SATA (mSATA)
  • ControllerMarvell
  • Sequential read up to 500MB/s accelerates boot and app loading
  • Sequential write up to 250MB/s speeds file saves and transfers
  • Random read up to 72000 IOPS keeps multitasking responsive
  • Random write up to 60000 IOPS handles simultaneous workloads
  • MTBF 1200000 hours indicates long-term reliability

Purpose-built upgrade

The Crucial M500 is a 240GB internal solid-state drive built for consumer laptops and small-form-factor desktops that accept a Mini-SATA module. It uses MLC memory and a Marvell controller to deliver sequential reads up to 500MB/s and writes up to 250MB/s over the SATA interface.

Sustained workload behaviour

Random read performance reaches 72000 IOPS while random write hits 60000 IOPS, giving consistent responsiveness during multitasking and heavy file operations. The drive is rated for an MTBF of 1200000 hours and operates reliably between 0°C and 70°C.

Compatibility check

Verify that your system provides an mSATA slot and that the 3.75mm module height fits the available space. Confirm the platform supports SATA signalling on that connector before ordering.

Highlights

  • Sequential read up to 500MB/s accelerates boot and app loading
  • Sequential write up to 250MB/s speeds file saves and transfers
  • Random read up to 72000 IOPS keeps multitasking responsive
  • Random write up to 60000 IOPS handles simultaneous workloads
  • MTBF 1200000 hours indicates long-term reliability

Specifications

BrandCrucial
SeriesM500
ModelCT240M500SSD3
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Capacity240GB
Memory ComponentsMLC
InterfaceMini-SATA (mSATA)
ControllerMarvell
Max Sequential ReadUp to 500MB/s
Max Sequential WriteUp to 250MB/s
4KB Random ReadUp to 72,000 IOPS
4KB Random WriteUp to 60,000 IOPS
MTBF1,200,000 hours
FeaturesDramatically faster than a hard drive, the Crucial M500 SSD isn't just a storage upgrade - it's a complete system transformation.
Designed to keep your system up to speed with today's multitasking demands that often require instant and simultaneous connections with friends, apps, websites, downloads, and playlists, the Crucial M500 delivers nearly instantaneous boot times, powerful data transfer speeds, increased multitasking capability, and rock-solid reliability - all at an affordable price.
Available in capacities up to terabyte-class, the Crucial M500 has passed hundreds of SSD q
Operating Temperature0°C ~ +70°C
Height3.75mm
Shipping weight0.02 kg
Package size173 × 51 × 17 mm

Questions about this item

Does the mSATA M500 run hot or draw much power during all-day use?

The drive operates within a 0°C to 70°C range and has no moving parts, so it stays cool and silent under continuous load.

What does my laptop or motherboard need to accept this CT240M500SSD3?

A free mSATA slot with SATA signalling and a 3.75 mm clearance for the module height.

Will this 240GB M500 work alongside an older mechanical hard drive in the same machine?

Yes, it connects over standard SATA so the OS can boot from the SSD while the hard drive handles bulk storage.
