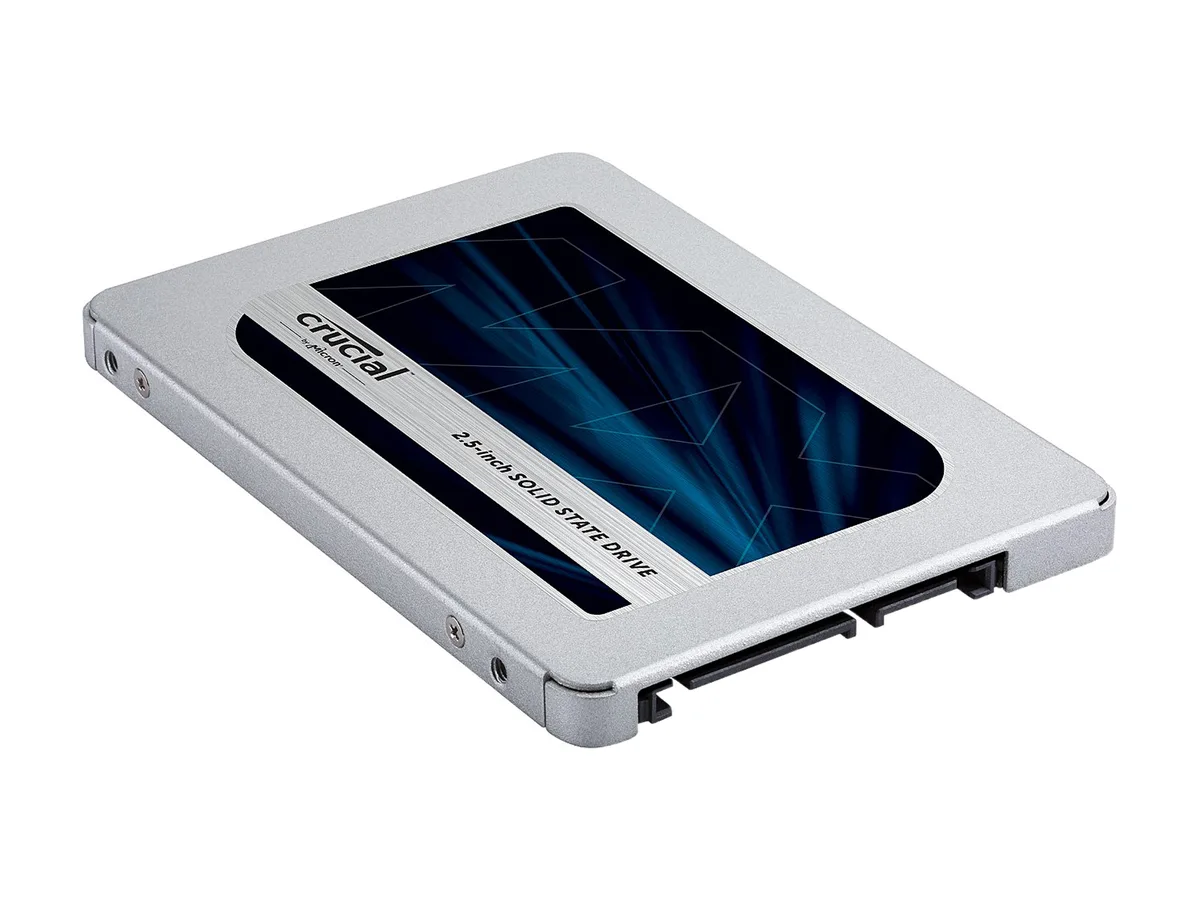

Silver 2.5-inch internal SSD with SATA connectors

Crucial

Crucial MX500 CT500MX500SSD1 500GB internal SSD

SKU CH-SJVS-Z33C6 MPN CT500MX500SSD1

500 GB SATA 2.5" drive delivers 560 MB/s reads, 510 MB/s writes, 95k/90k IOPS, AES 256-bit encryption and 360 TB endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity500GB
  • Memory Components3D NAND
  • InterfaceSATA III

Options 500GB

  • Sequential reads up to 560 MB/s accelerate boot and load times
  • Sequential writes up to 510 MB/s speed up file saves and transfers
  • Random reads up to 95000 IOPS keep multitasking responsive
  • AES 256-bit hardware encryption protects data from unauthorised access
  • Integrated Power Loss Immunity preserves work during unexpected power cuts

500GB SATA SSD for consumer PCs

The Crucial MX500 CT500MX500SSD1 is a 500GB internal solid state drive built for everyday consumer workloads. It uses Micron 3D NAND and a SATA III interface to deliver sequential reads up to 560 MBps and writes up to 510 MBps. Random read performance reaches 95,000 IOPS while random writes hit 90,000 IOPS. The drive carries a 360TB endurance rating and 1.8 million hours MTTF.

2.5 inch form factor with hardware encryption

The 2.5 inch form factor fits standard drive bays and SATA cabling found in most desktops and laptops. AES 256-bit hardware encryption protects data at rest without software overhead. Integrated Power Loss Immunity preserves saved work if power is cut unexpectedly. Adaptive Thermal Protection and Active Garbage Collection maintain consistent operation. TRIM support and a Multistep Data Integrity Algorithm help sustain performance over time.

SATA III interface limits and endurance

The SATA III interface caps maximum throughput at the 560 MBps read and 510 MBps write figures quoted. Random workloads top out at 95,000 read IOPS and 90,000 write IOPS. Total bytes written are warranted to 360TB. The drive includes Dynamic Write Acceleration and Redundant Array of Independent NAND to optimise the available bandwidth within these constraints.

Highlights

  • Sequential reads up to 560 MB/s accelerate boot and load times
  • Sequential writes up to 510 MB/s speed up file saves and transfers
  • Random reads up to 95000 IOPS keep multitasking responsive
  • AES 256-bit hardware encryption protects data from unauthorised access
  • Integrated Power Loss Immunity preserves work during unexpected power cuts

Specifications

BrandCrucial
SeriesMX500
ModelCT500MX500SSD1
Part NumberCT500MX500SSD1
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity500GB
Memory Components3D NAND
InterfaceSATA III
ProtocolSATA
Cache0MB
EncryptionAES 256-bit encryption
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 510 MBps
4KB Random ReadUp to 95,000 IOPS
4KB Random WriteUp to 90,000 IOPS
Terabytes Written (TBW)360TB
MTTF1.8 million hours
FeaturesDynamic Write Acceleration
Redundant Array of Independent NAND (RAIN)
Multistep Data Integrity Algorithm
Adaptive Thermal Protection
Integrated Power Loss Immunity
Active Garbage Collection
TRIM Support
Self-Monitoring and Reporting Technology (SMART)
Error Correction Code (ECC)
Device Sleep Support
Operating Temperature0°C ~ +70°C
Height7.00mm
Package Content2.5-inch 7mm SSD SATA 6Gb/s
7mm to 9.5mm spacer
Acronis True Image for Crucial cloning software and installation instructions
Shipping weight0.11 kg
Package size131 × 131 × 19 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the SATA III interface limit the CT500MX500SSD1 to in practice?

The SATA III link caps real-world throughput at 560 MB/s sequential read and 510 MB/s sequential write, matching the drive's rated maximums.

What physical space and mounting points does the 2.5" form factor require?

The drive fits any standard 2.5-inch bay or caddy using the industry-standard 7 mm mounting holes and SATA data plus power connectors.

How is the MX500 installed, and which step is often missed?

Connect SATA data and power cables, secure the drive in the bay, then enable AHCI mode in the BIOS before installing the operating system.
