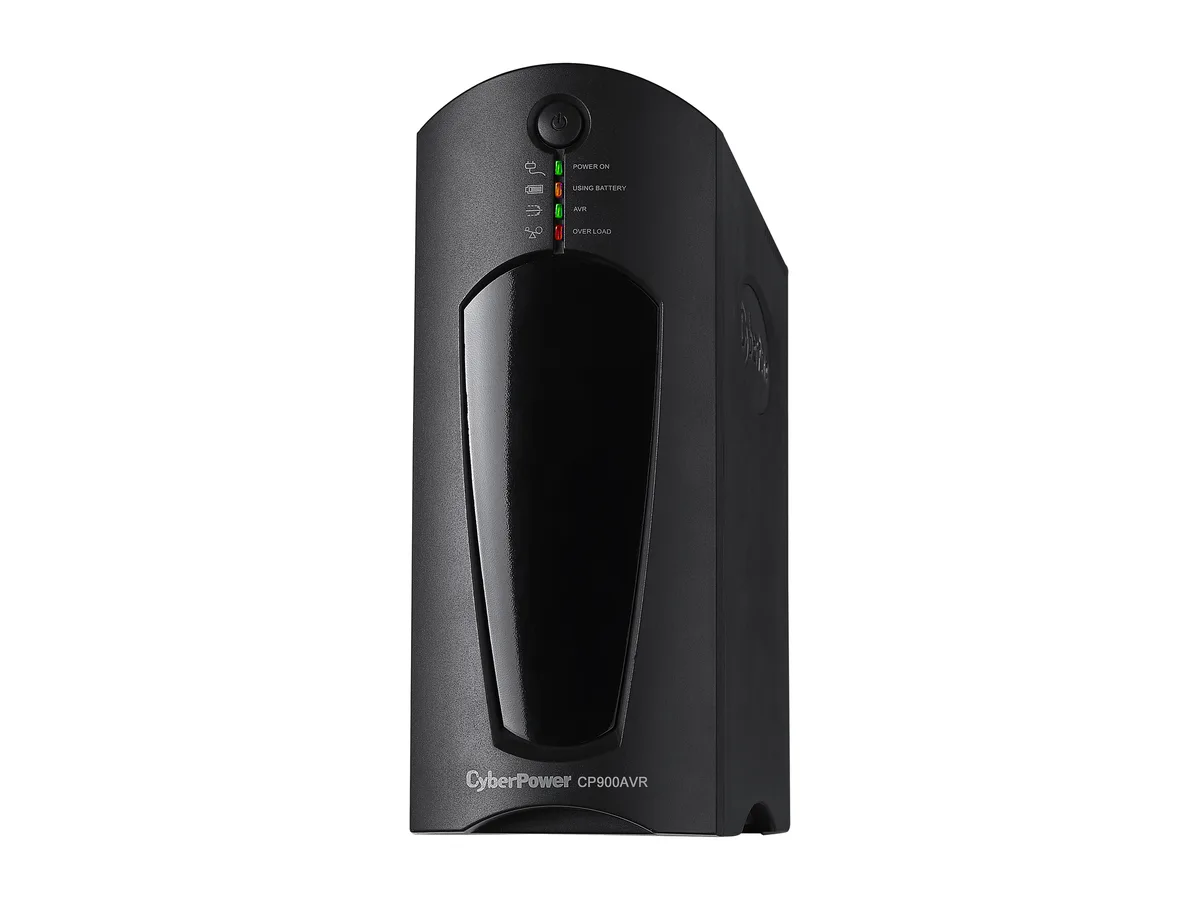

Black mini-tower UPS with ten NEMA 5-15R outlets and USB serial ports

CyberPower

CyberPower CP900AVR UPS 900VA 560W 120V 10 Outlets

SKU CH-M2RB-6G0H4 MPN CP900AVR

Line-interactive battery backup delivering 900 VA and 560 W with ten NEMA 5-15R outlets, five providing battery runtime, plus USB and serial management ports

  • Input Voltage Range120 VAC
  • Input Frequency57 - 63 Hz
  • Input ConnectionNEMA 5-15P
  • VA Rating900 VA
  • Watts560 Watts
  • Output Voltage120Vac +/- 5%

VA 900 VA

Struck-through versions exist but are not stocked here.

  • 900 VA capacity keeps essential equipment running during outages
  • Automatic voltage regulation stabilises power without using battery reserves
  • Ten NEMA 5-15R outlets provide surge protection for all connected devices
  • USB and serial ports enable automated shutdown via PowerPanel software
  • Replaceable sealed lead-acid batteries extend the unit's service life

Purpose and Audience

The CP900AVR is a line-interactive UPS rated at 900 VA and 560 W for 120 VAC environments. It suits home offices, networking gear and workstations that need battery-backed outlets and surge-only ports in a mini-tower form factor. Buyers who need extended runtime for high-wattage loads or pure sine-wave output should look elsewhere.

Capacity and Headroom

Ten NEMA 5-15R outlets split evenly between battery-backed and surge-only groups, plus Ethernet and coaxial data-line protection. At half load the internal sealed lead-acid batteries deliver 12 minutes of runtime, dropping to 3 minutes at the full 560 W rating, with an 8-hour recharge cycle. Builds that regularly exceed 560 W or demand longer hold-up time will outgrow this unit.

Interface and Management Limits

Management connects via USB or serial port using PowerPanel Personal software for monitoring and graceful shutdown. The simulated sine-wave waveform is compatible with most active-PFC power supplies but may not suit sensitive laboratory or medical equipment. Input voltage tolerance spans 120 VAC with a 57–63 Hz frequency window, and output regulation holds 120 VAC ±5% at 60 Hz ±1%.

Highlights

  • 900 VA capacity keeps essential equipment running during outages
  • Automatic voltage regulation stabilises power without using battery reserves
  • Ten NEMA 5-15R outlets provide surge protection for all connected devices
  • USB and serial ports enable automated shutdown via PowerPanel software
  • Replaceable sealed lead-acid batteries extend the unit's service life

Specifications

BrandCyberPower
SeriesAVR
ModelCP900AVR
Input Voltage Range120 VAC
Input Frequency57 - 63 Hz
Input ConnectionNEMA 5-15P
VA Rating900 VA
Watts560 Watts
Output Voltage120Vac +/- 5%
Output Frequency60 Hz +/- 1%
Outlets8
Outlet TypeNEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeRuntime at Half Load: 12 minutes
Runtime at Full Load: 3 minutes
Battery Recharge Time8 Hour(s)
Battery ReplaceableRB1270X2
AlarmsOn Battery, Low Battery, Overload
Interface PortUSB, Serial
Management SoftwarePowerPanel Power Management
ApprovalsUL1778, cUL 107.1, FCC DOC Class B, RoHS Compliant
Data Line ProtectionPhone RJ11 / Ethernet RJ45: 1-In, 1-Out (Combo)
Coax Protection RG6: 1-In, 1-Out
Surge Energy Rating890 Joules
ProtectionInternal Circuitry Limiting / Circuit Breaker
FeaturesGreenPower UPS Bypass Design
Automatic Voltage Regulation
Transformers and Transformer Outlets
Simulated Sine Wave
Connected Equipment Guarantee
Dimensions9.75" x 4.00" x 13.25"
Weight23.00 lbs.

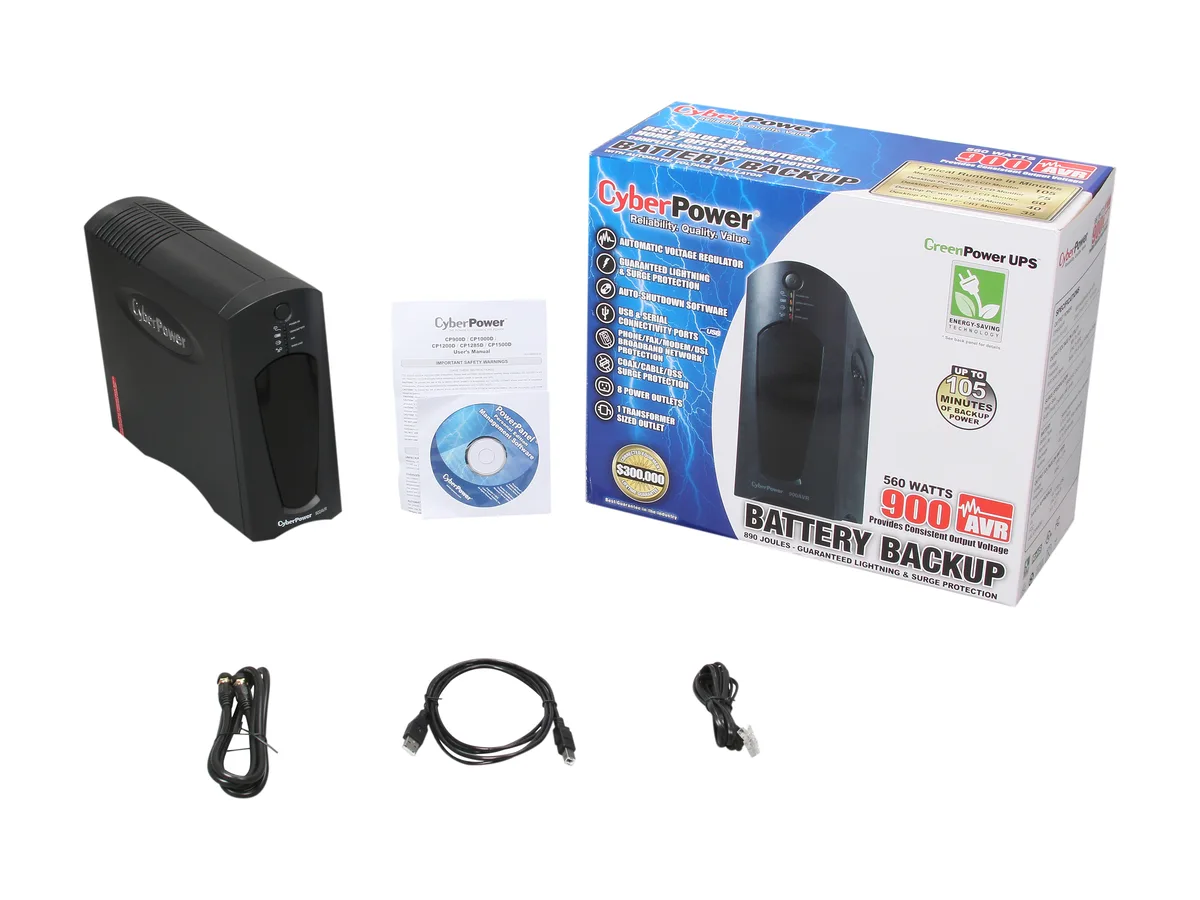

Package ContentsUPS System, User Manual, USB A+B Type Cable, Telephone Cable, Coaxial Cable, Warranty Registration Card, PowerPanel Personal Edition Software CD
Shipping weight10.89 kg
Package size635 × 356 × 203 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the CP900AVR's NEMA 5-15P plug work with my existing 120 VAC wall outlet without an adapter?

Yes, the unit ships with a NEMA 5-15P input plug and a six-foot cord designed for standard 120 VAC receptacles.

How can I confirm the simulated sine wave output is regulating voltage within the stated ±5% range after installation?

Connect the USB or serial cable, install PowerPanel Personal, and observe the real-time output voltage reading on the dashboard.

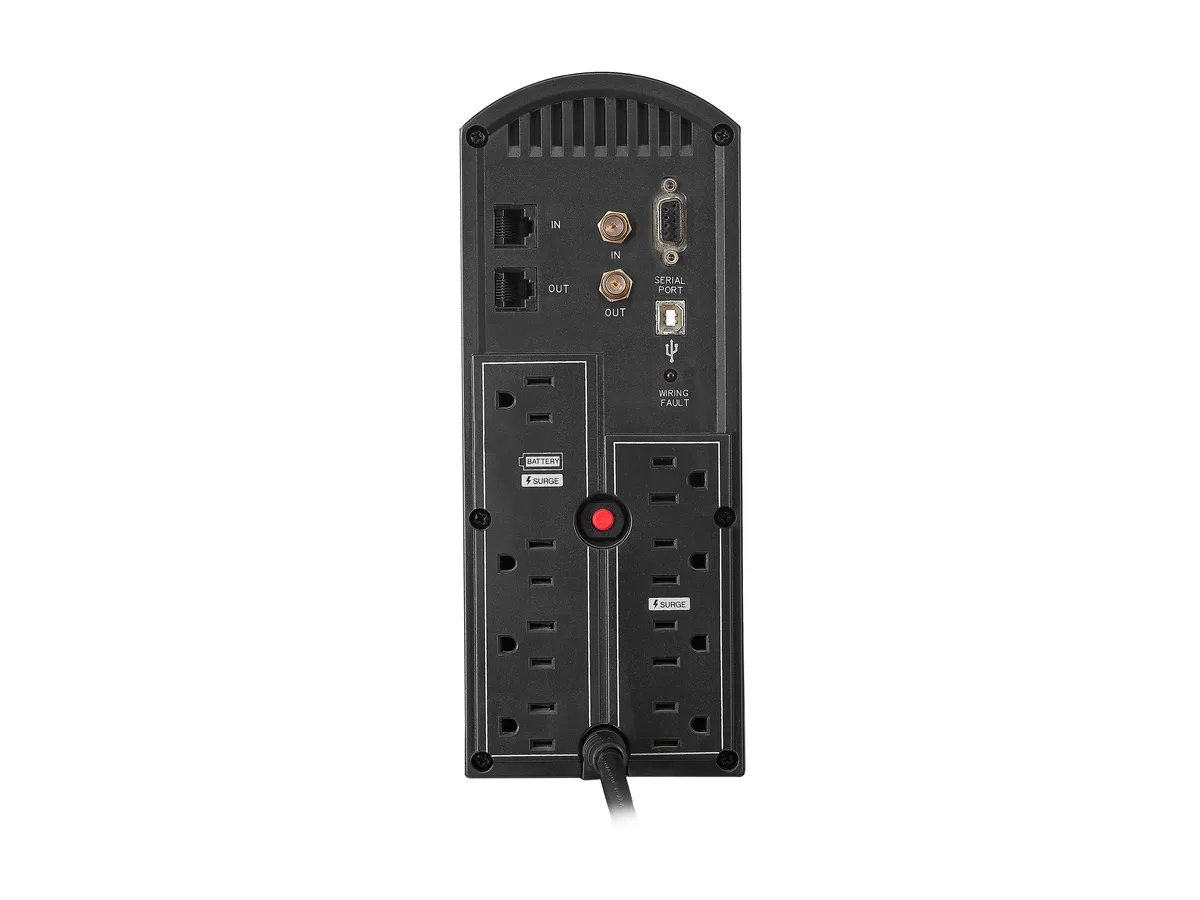

Which of the ten rear outlets provide battery backup versus surge-only protection, and are data-line protectors included?

Five outlets supply surge plus battery backup and five provide surge only; RJ-11 and RJ-45/coaxial jacks protect Ethernet and coaxial lines.
