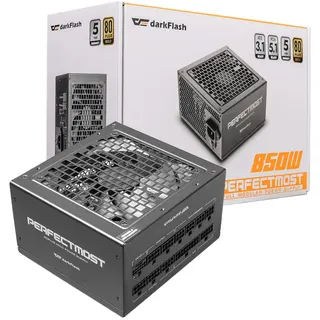

darkFlash PMT850 850W fully modular power supply
Fully modular 850 W ATX supply with 80 PLUS Gold and Cybenetics Platinum efficiency, ATX 3.1 and PCIe 5.1 support, native 12V-2x6 cable for 600 W GPU power, 100 % Japanese 105 °C capacitors.
- ColorBlack
- TypeATX
- Maximum Power850 W
- Fans1 x 135mm FDB Fan
- +12V RailsYes
- SATA Power ConnectorYes
Color Black
- Black
- White
- 850 W output powers demanding RTX graphics cards
- 80 PLUS Gold certification delivers over 90% efficiency at typical loads
- Cybenetics Platinum rating confirms ultra-high performance and efficiency
- 100% Japanese 105°C capacitors ensure long-term stability under heavy load
- Fully modular design with native 12V-2x6 cable reduces clutter and supports PCIe 5.1 GPUs
Built for modern GPU power

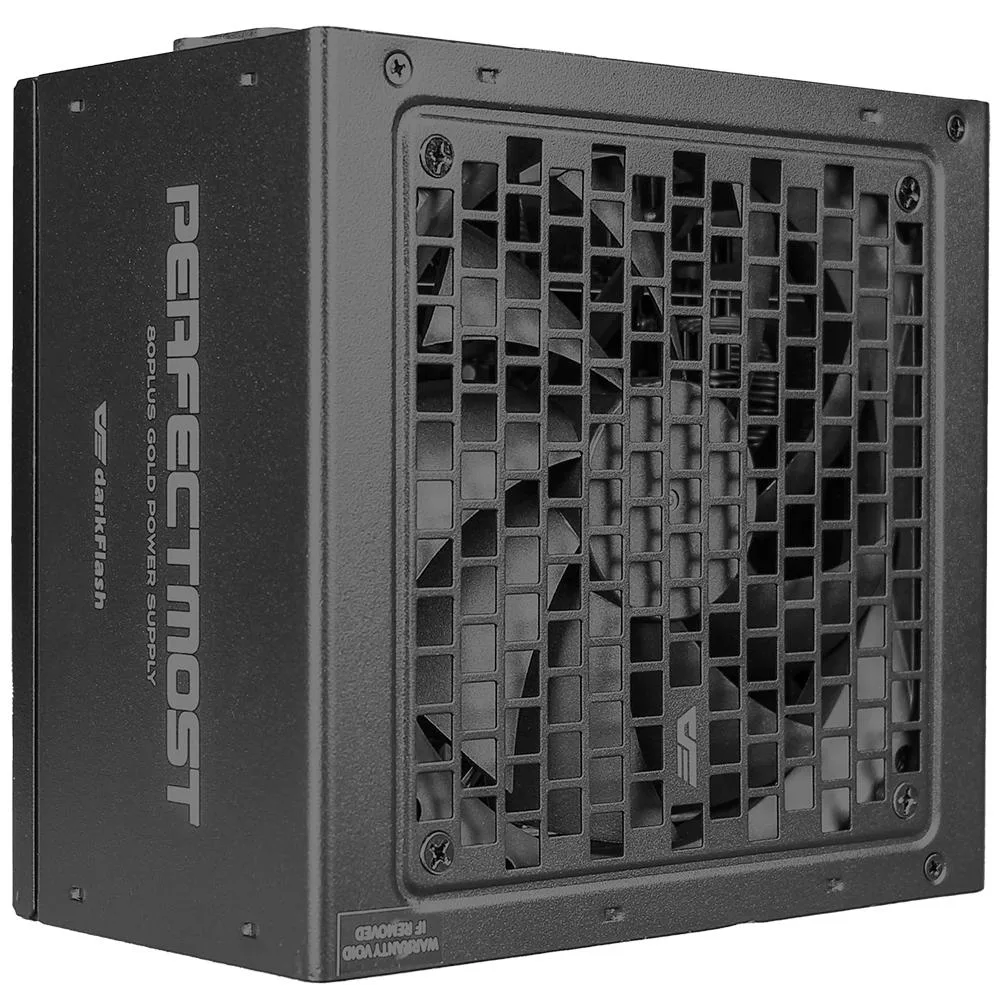

The darkFlash PMT850 is an 850 W fully modular ATX power supply certified to 80 PLUS Gold and Cybenetics Platinum. It ships with a native 12V-2x6 cable that complies with ATX 3.1 and PCIe 5.1 specifications. All capacitors are Japanese units rated for 105 °C, and a 135 mm FDB fan handles cooling in a 150 mm deep chassis.
Suits single high-end graphics builds
This unit targets builders installing one RTX 30, 40 or 50 series card that draws up to 600 W through the 12V-2x6 connector. The fully modular cable set keeps unused leads out of the case, aiding airflow in compact ATX enclosures. Systems planning multi-GPU configurations via SLI or CrossFire should look elsewhere because the PMT850 does not support those technologies.
850 W ceiling with 600 W GPU headroom
The +12 V rail can deliver the full 850 W rating, leaving ample margin for CPU, storage and peripherals after a 600 W graphics card. Efficiency stays above 90 % at typical loads, reducing waste heat. Protection circuits include over-voltage safeguards and a power-good signal. Continuous operation is rated beyond 100 000 hours MTBF.
Highlights
- 850 W output powers demanding RTX graphics cards
- 80 PLUS Gold certification delivers over 90% efficiency at typical loads
- Cybenetics Platinum rating confirms ultra-high performance and efficiency
- 100% Japanese 105°C capacitors ensure long-term stability under heavy load
- Fully modular design with native 12V-2x6 cable reduces clutter and supports PCIe 5.1 GPUs

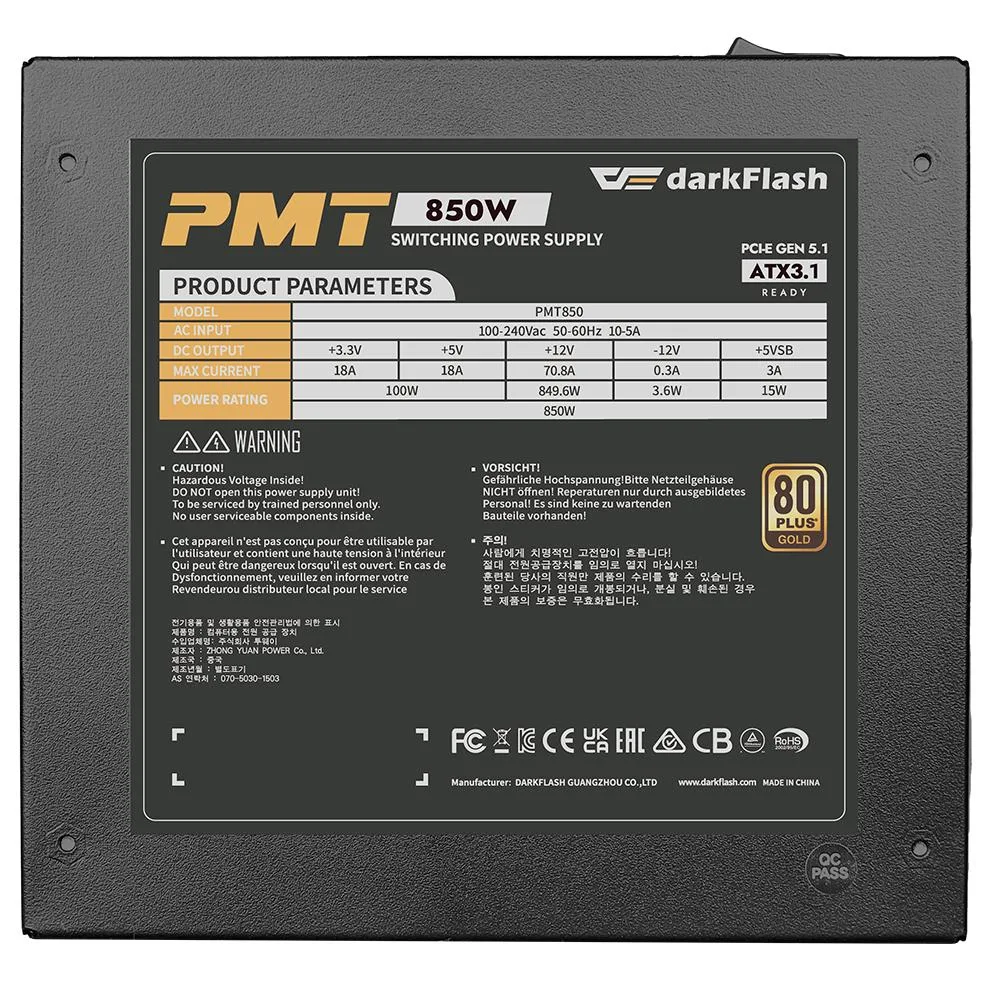

Specifications
| Brand | darkFlash |
|---|---|
| Series | PMT850 |
| Model | PMT850 |
| Part Number | PMT850 |
| Color | Black |
| Type | ATX |
| Maximum Power | 850 W |
| Fans | 1 x 135mm FDB Fan |
| +12V Rails | Yes |
| SATA Power Connector | Yes |
| SLI | No |
| CrossFire | No |
| Modular | Full Modular |
| Power Good Signal | Yes |
| Efficiency | > 90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10 A |
| MTBF | >100,000 Hours |
| Approvals | CE,ROSH,UL |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
What graphics-card connector does the PMT850 include for PCIe 5.1 cards?
The unit ships with a native 12V-2x6 cable that can deliver up to 600W to RTX 30/40/50 series GPUs.
Will the PMT850 fit in an older ATX case that only has room for a 150 mm deep supply?
Yes, the compact 150 mm form factor matches the depth of most standard ATX cases and leaves space for cable routing.
How can I confirm the PMT850 is delivering stable power after installation?
The Power Good signal is active and the 135 mm FDB fan spins quietly under load, indicating normal operation.
