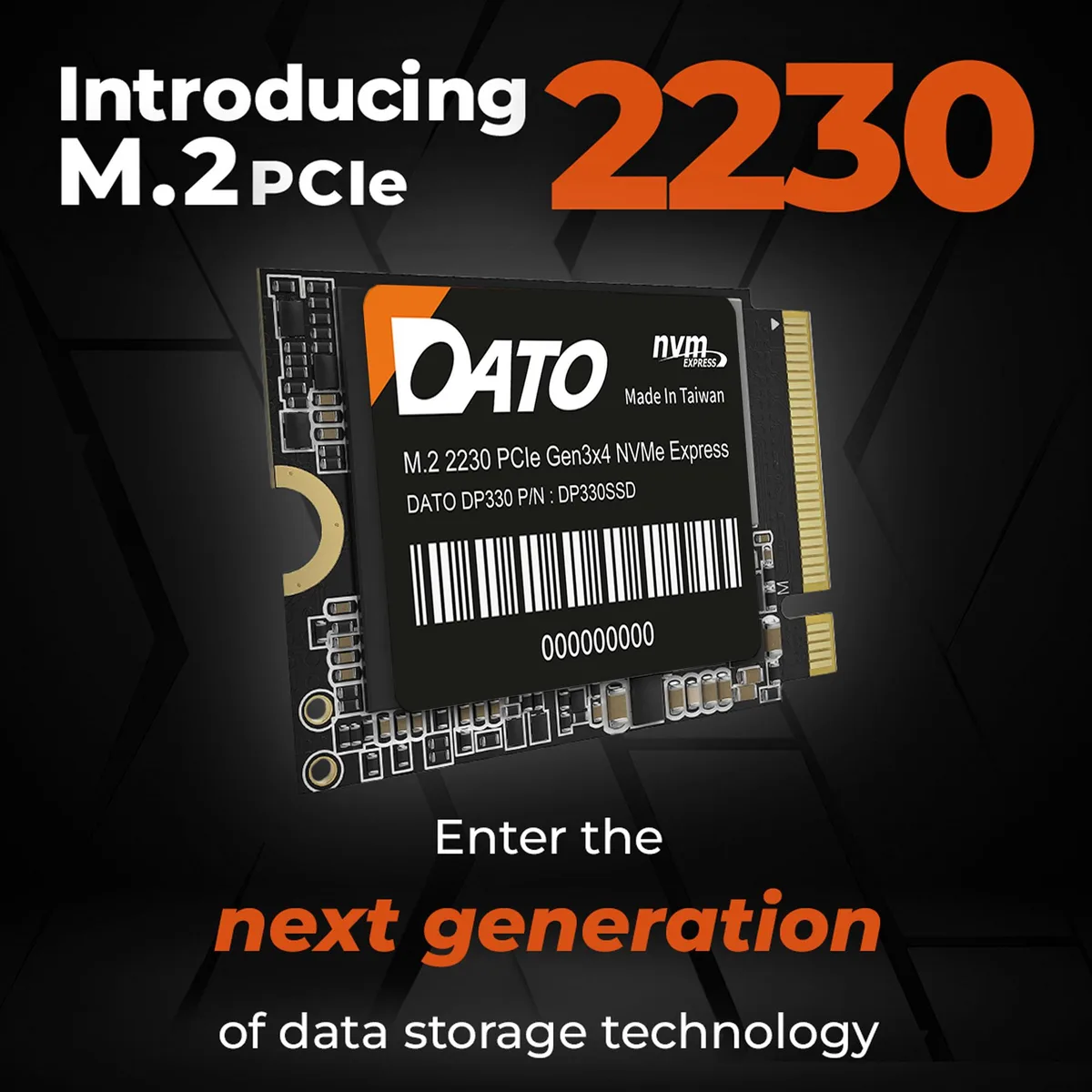

Small green circuit board labelled DATO DP330 512GB M.2 2230 NVMe

DATO

DATO DP330 512GB M.2 2230 NVMe internal SSD

SKU CH-V7YN-B94T1

Compact M.2 2230 NVMe drive delivering up to 2500 MB/s read and 1700 MB/s write for laptops and handhelds

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2230
  • Capacity512GB
  • InterfacePCI-Express 3.0 x4
  • ProtocolNVMe
  • Max Sequential ReadUp to 2500 MBps

Capacity 512GB

  • 512 GB capacity fits large game libraries and media files
  • Sequential read up to 2500 MB/s cuts load times
  • Sequential write up to 1700 MB/s speeds up installs and saves
  • M.2 2230 form factor suits Steam Deck, Surface and thin laptops
  • Low power draw extends battery life on portable devices

Compact 2230 NVMe Drive

The DATO DP330 is a 512GB M.2 2230 NVMe internal SSD built for space-constrained systems. It connects through a PCIe 3.0 x4 interface and delivers sequential reads up to 2500 MB/s and writes up to 1700 MB/s. The 22 mm by 30 mm form factor targets laptops, handheld gaming devices and small-form-factor PCs that cannot accept longer modules. Low power consumption helps preserve battery life in portable hardware.

Build Integration

The drive slots directly into any M.2 key-M socket wired for PCIe 3.0 x4 NVMe operation. No cables, brackets or separate power connections are required. Its 2.2 cm width, 3.0 cm length and 0.22 cm height leave clearance for tight thermal solutions or stacked board layouts. The 10 g weight adds negligible mass to ultra-light chassis designs. Systems that also accept 2242 or 2280 modules will still recognise this shorter drive when the socket supports the 2230 mounting point.

Ideal Users

Choose this drive when upgrading a Steam Deck, ROG Ally, Surface tablet or similar compact notebook that specifies an M.2 2230 NVMe slot. It suits owners who need responsive OS boots and game loads within a strict length limit. Builders working with full-size desktop boards or laptops that only provide 2280 keying should select a longer module instead.

Highlights

  • 512 GB capacity fits large game libraries and media files
  • Sequential read up to 2500 MB/s cuts load times
  • Sequential write up to 1700 MB/s speeds up installs and saves
  • M.2 2230 form factor suits Steam Deck, Surface and thin laptops
  • Low power draw extends battery life on portable devices

Specifications

BrandDATO
SeriesDP330
ModelDP330SSD-512GB
Part NumberDP330SSD-512GB
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2230
Capacity512GB
InterfacePCI-Express 3.0 x4
ProtocolNVMe
Max Sequential ReadUp to 2500 MBps
Max Sequential WriteUp to 1700 MBps
FeaturesNVMe PCIe Gen3 x4 Interface
M.2 2230 Form Factor
Read Speed up to 2500MB/s
Write Speed up to 1700MB/s
Internal Solid State Drive
Low Power Consumption
High Reliability NAND Flash
Compact Size Design
Suitable for Laptop & Mini PC
5-Year Limited Warranty
Height3.0 cm
Width2.2 cm
Depth0.22 cm
Weight10g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

At what speed does the DP330 throttle during heavy sustained workloads?

The DP330 is rated for up to 2500MB/s read and 1700MB/s write over PCIe Gen3 x4; actual sustained speeds depend on the host device cooling and workload.

How much heat and noise does the DP330 produce when running continuously?

The drive has no moving parts and is designed for low power consumption and quiet operation with reduced heat generation.

What slot and keying must my device have for this 2230 drive to work?

Your device needs an M.2 slot that accepts 2230-length NVMe modules with an M-key interface running PCIe 3.0 x4.
