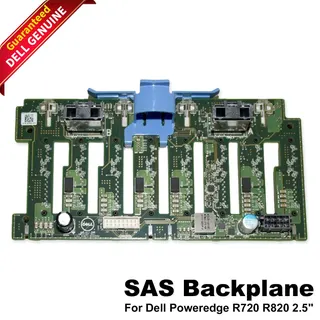

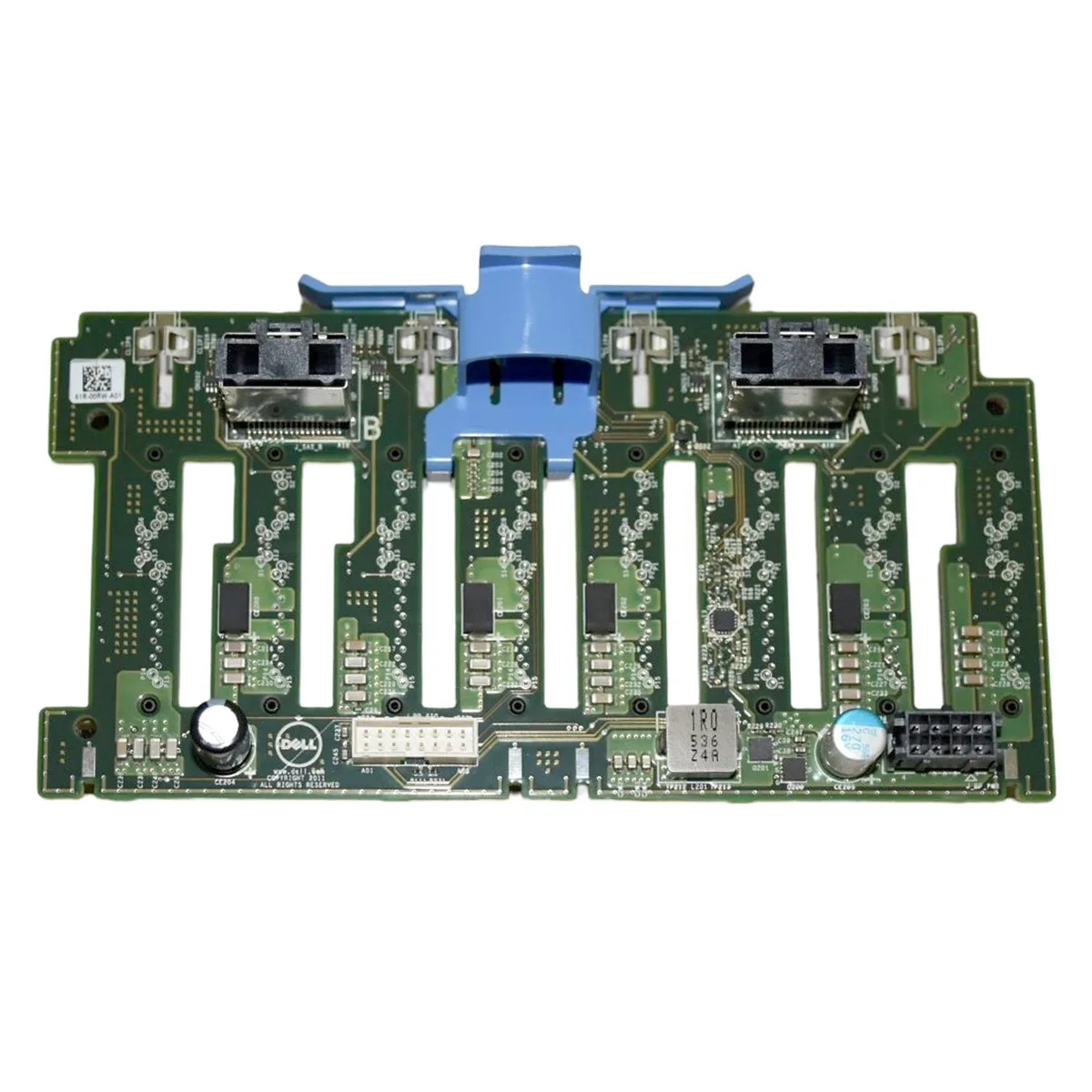

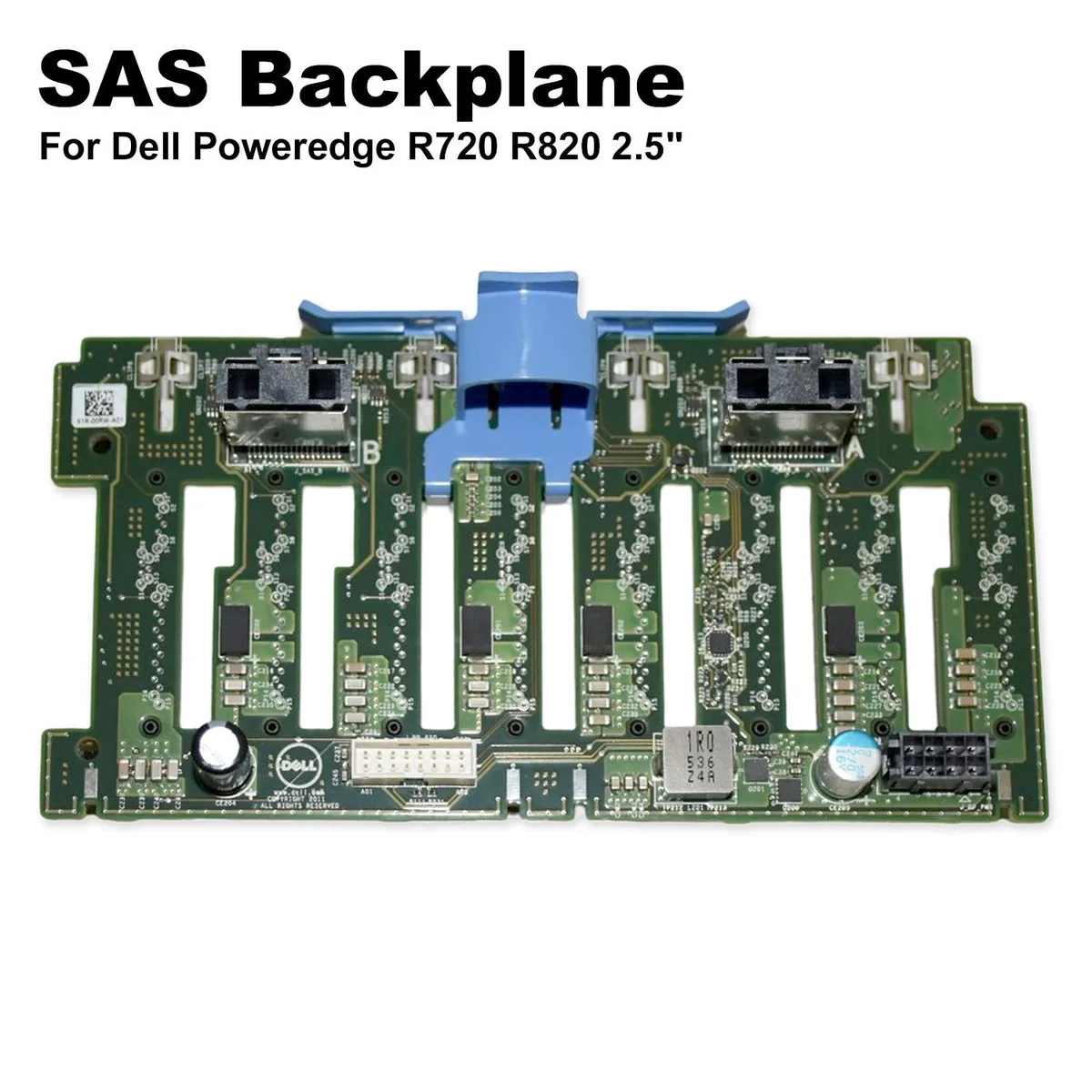

Green rectangular SAS backplane board with 24 connectors for 2.5 inch drives

DELL

DELL 22FYP 2.5" SAS/SATA Backplane 24-Port R720 R820 laptop replacement part

SKU CH-JM7K-H8G73 MPN 22FYP

A 24-port SAS/SATA backplane board connects 2.5" drives in Dell PowerEdge R720 and R820 servers

  • Compatible ManufacturerFor Dell
  • Compatible ModelsFor Dell PowerEdge R720, PowerEdge R820
  • ColorGreen
  • 24-port design enables high-density storage arrays
  • Supports both SAS and SATA 2.5" drives for flexible deployment
  • Direct-fit OEM design ensures straightforward installation in compatible servers
  • Built for Dell PowerEdge R720 and R820 platforms
  • Server-grade construction delivers reliable long-term operation

Dell PowerEdge 2.5" SAS/SATA Backplane

This 24-port backplane board connects 2.5" SAS or SATA drives inside Dell PowerEdge R720 and R820 servers. It provides the direct-fit interface between the drive bays and the system board for enterprise storage arrays. The part is supplied new and ready for installation.

Sustained drive connectivity for heavy workloads

Engineered for server-grade reliability, the board maintains stable data and power paths across all ports during continuous read and write operations. Its OEM design matches the original Dell layout so signal integrity remains consistent under load. No active cooling or firmware is required on the backplane itself.

Verify server model and drive bay count before

Confirm the chassis is a PowerEdge R720 or R820 and that it uses 2.5" drive bays with SAS or SATA interfaces. The backplane occupies the full 24-port bay configuration, so partial-population chassis will not accept it. Check existing cabling and RAID controller compatibility with SAS/SATA backplanes.

Highlights

  • 24-port design enables high-density storage arrays
  • Supports both SAS and SATA 2.5" drives for flexible deployment
  • Direct-fit OEM design ensures straightforward installation in compatible servers
  • Built for Dell PowerEdge R720 and R820 platforms
  • Server-grade construction delivers reliable long-term operation

Specifications

BrandDell
ModelPowerEdge R20 R820
Part Number22FYP
Compatible ManufacturerFor Dell
Compatible ModelsFor Dell PowerEdge R720, PowerEdge R820
ColorGreen

Questions about this item

How much power does the 22FYP backplane draw when all 24 drive bays are active all day?

The backplane itself is passive and draws negligible power; total consumption depends on the 2.5" SAS or SATA drives you install.

Which cables and drive trays must I already have to install this 22FYP board in a PowerEdge R720 or R820?

You need the server's original SAS/SATA data cables, 2.5" drive carriers, and the matching backplane power cable from the chassis.

Will the 22FYP work with older 3 Gbps SATA drives I still use in my R720?

Yes, the SAS/SATA interface is backward-compatible, so legacy 2.5" SATA drives will operate at their rated speed.
