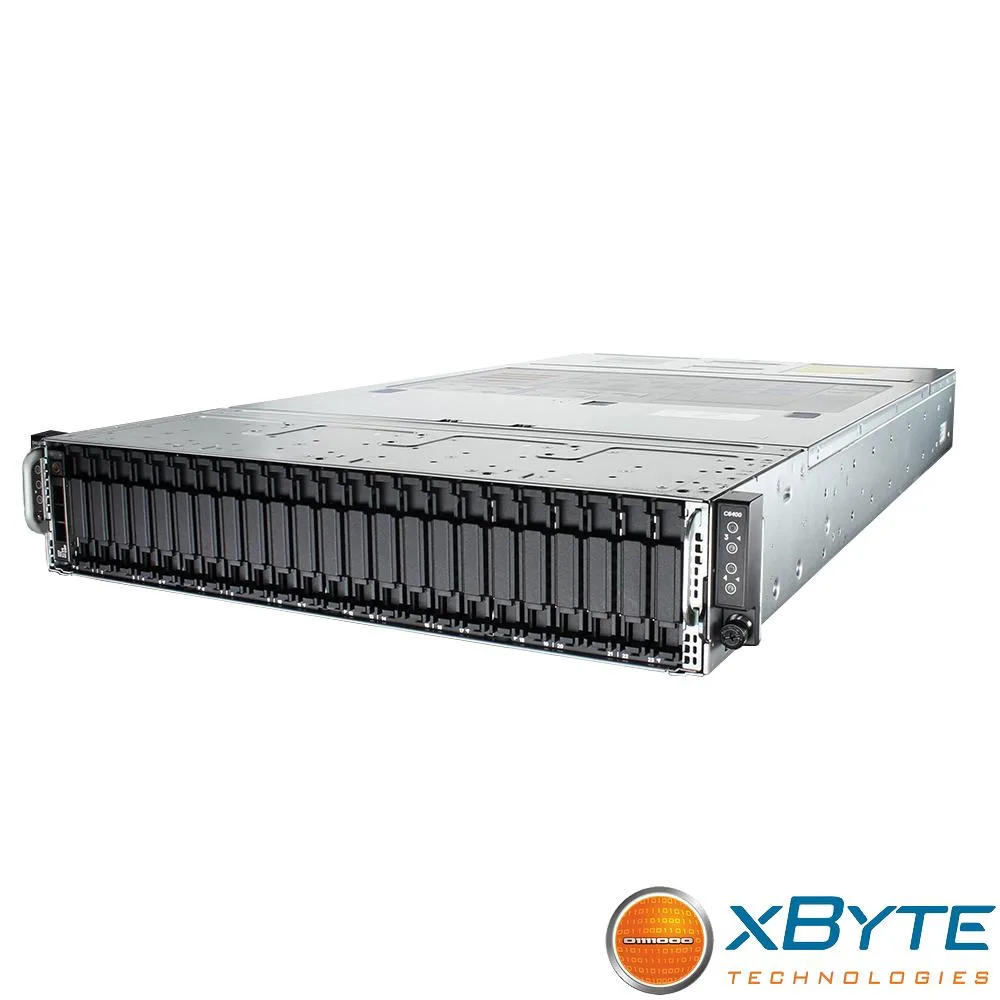

DELL C6400 2U rack server 1×C6420 Gold 6132 2.6GHz 14C 16GB 480GB SATA SSD H330

Dense compute sled for HPC clusters

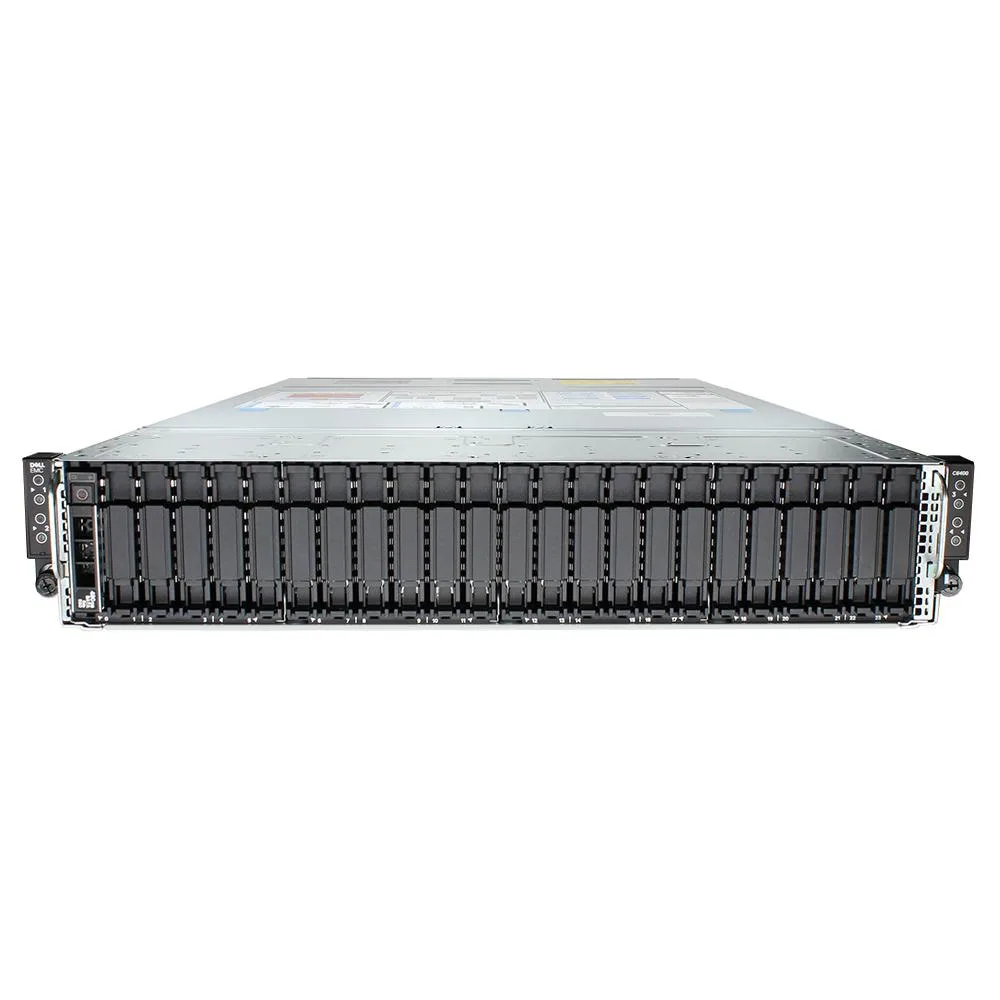

The Dell PowerEdge C6400 sled houses one C6420 node with an Intel Gold 6132 processor at 2.6 GHz, 14 cores and 19.25 MB cache. Sixteen gigabytes of DDR4-3200 memory and a single 480 GB SATA MU SSD provide a compact starting point for scale-out workloads. The H330 controller manages the boot drive and up to 24 front-accessible 2.5-inch bays. iDRAC9 Express enables remote firmware updates and power cycling.

Steady throughput in a shared 2U chassis

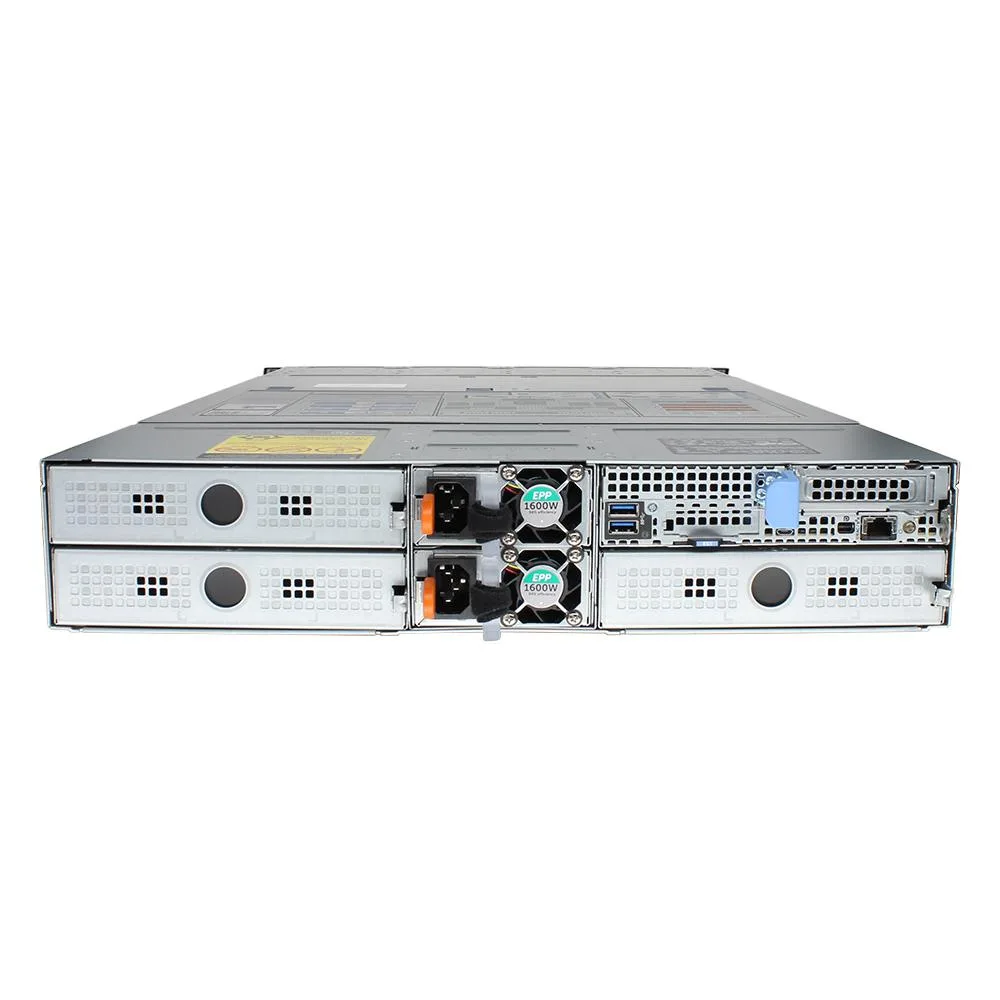

Four sleds share the 2U enclosure and dual 1600 W redundant supplies, so sustained all-core turbo depends on thermal headroom across the whole chassis. The low-profile x16 PCIe Gen3 riser and x8 mezzanine slot add accelerators or extra storage controllers without exceeding the node power budget. Workloads that saturate memory bandwidth will see consistent performance once the shared cooling loop stabilises.

Verify rack depth and node count before ordering

The C6400 requires a deep four-post rack and occupies 2U for up to four C6420 nodes; confirm you have space for the full sled assembly. Only one x16 riser and one OCP mezzanine are wired per node, so multi-GPU or dual 25 GbE plans need additional sleds. Memory currently fills one slot; expansion to higher capacity needs matching DDR4-3200 modules.
