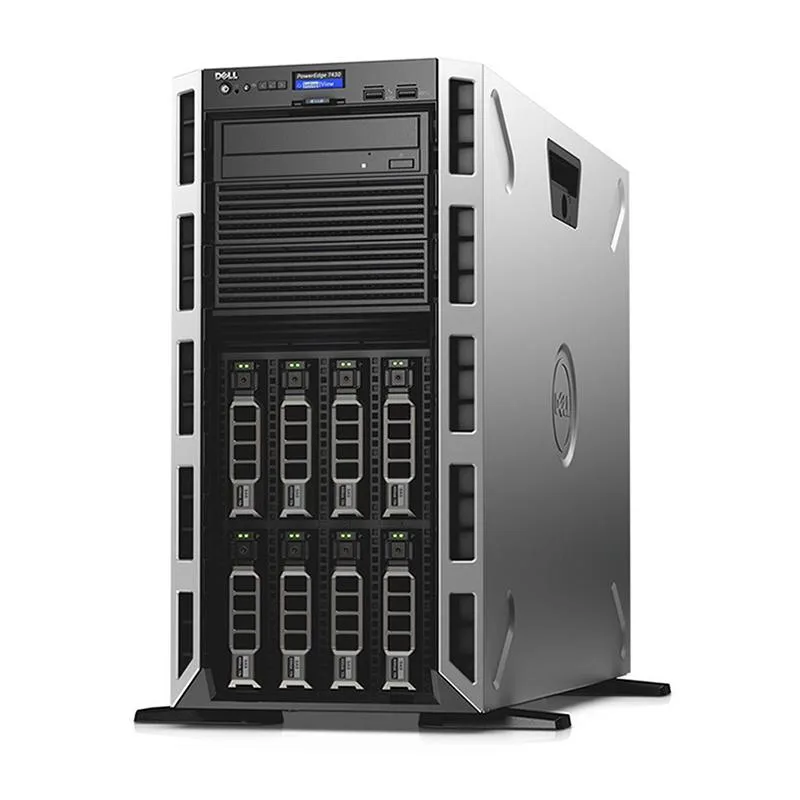

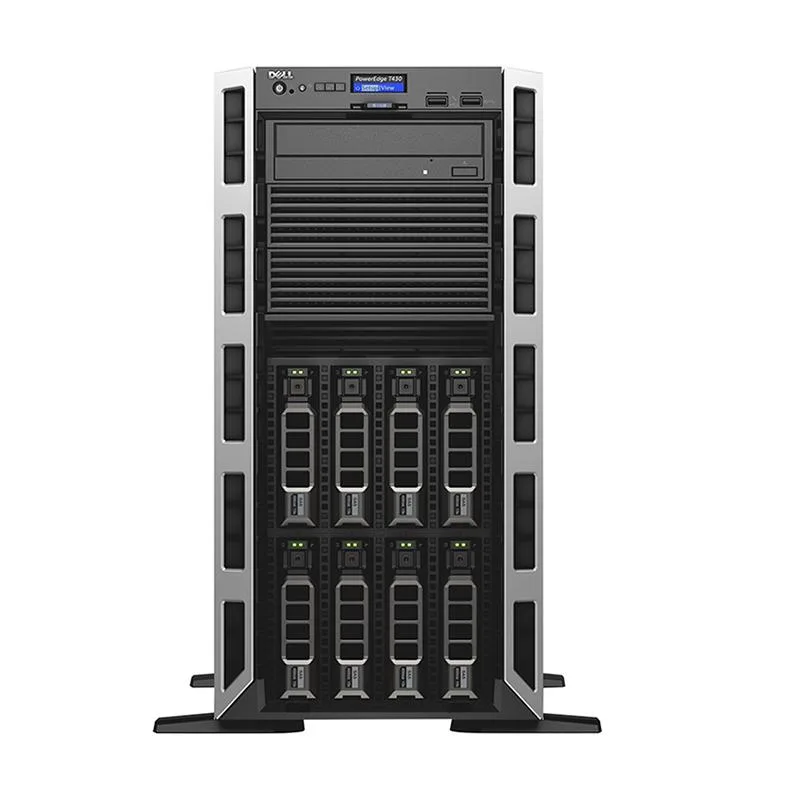

Silver 5U rack server with front bezel, eight 3.5-inch drive bays and redundant power supplies

DELL

DELL E5-2667 PowerEdge T430 5U rack server 2× Xeon 3.2GHz 64GB DDR4 8×8TB SATA H730

SKU CH-RW05-WT2B1 MPN E5-2667

A 5U rack server with dual Xeon processors, 64GB DDR4 memory, and eight 8TB SATA drives managed by a PERC H730 controller

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed3.20 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 64GB

HDD 8 x 8TB 7.2K SATA

CPU Model E5-2667 V4

  • Dual 8-core Xeon at 3.2 GHz handles heavy workloads
  • 64 GB DDR4 ECC memory supports virtualisation density
  • PERC H730 controller enables RAID 0/1/5/6/10/50/60
  • Eight 8 TB 7.2K SATA drives deliver 64 TB raw capacity
  • Dual 750 W platinum PSUs with hot-swap redundancy

PowerEdge T430 5U server

The Dell PowerEdge T430 is a 5U rack-mount server built for small-office and remote-office workloads. It ships with two Intel Xeon E5-2667 v4 processors running at 3.2 GHz with a 3.6 GHz turbo frequency. The system includes 64 GB of DDR4 2400 MHz registered ECC memory across four 16 GB modules. Eight 8 TB 7.2K SATA 3.5-inch drives provide 64 TB of raw storage capacity.

Build integration needs

The chassis occupies 5U of rack space and uses an LGA 2011-3 socket platform with the Intel C610 chipset. Twelve memory slots are available, allowing expansion up to 384 GB of DDR4. Dual 750 W platinum-efficiency power supplies deliver redundant hot-swap power. The PERC H730 controller with 1 GB cache manages the eight drive bays over SAS and SATA interfaces. Integrated dual-port 1 GbE networking and iDRAC 8 Express remote management are onboard.

Bundled controller and drives

The PERC H730 1 GB controller enables RAID levels 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode for flexible data protection. Eight enterprise-class 8 TB SATA drives are pre-installed and ready for array configuration. iDRAC 8 Express provides out-of-band monitoring and control without an additional licence. The front bezel is included for a finished rack appearance. Plastic feet are not supplied.

Highlights

  • Dual 8-core Xeon at 3.2 GHz handles heavy workloads
  • 64 GB DDR4 ECC memory supports virtualisation density
  • PERC H730 controller enables RAID 0/1/5/6/10/50/60
  • Eight 8 TB 7.2K SATA drives deliver 64 TB raw capacity
  • Dual 750 W platinum PSUs with hot-swap redundancy

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed3.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores8-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 8TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many drives can the H730 controller manage before it becomes the bottleneck?

The PERC H730 supports up to 8 drives in this chassis; all eight 8 TB SATA bays are populated, so the controller is already at its connection limit.

What is the thermal output when both 750 W platinum supplies run continuously?

Two 750 W platinum power supplies deliver redundant power; under full load the system draws from one supply while the other stands by, keeping heat proportional to actual component draw.

Which rails or rack hardware must I provide to mount this 5U tower?

The unit is a 5U tower form factor; rack rails, shelf or cabinet mounting kit are not included and must be sourced separately for rack installation.
