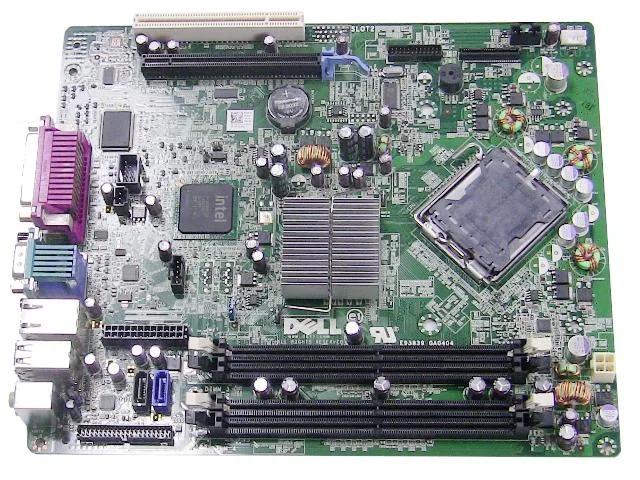

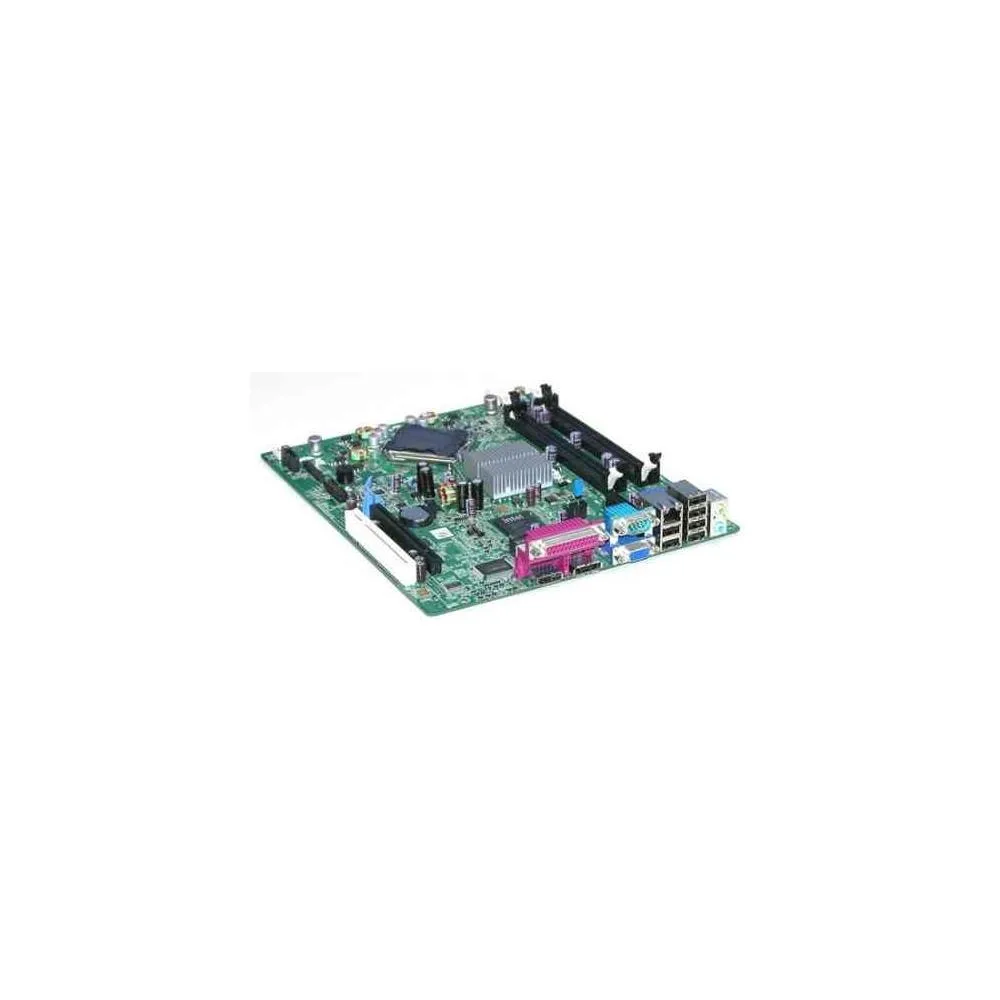

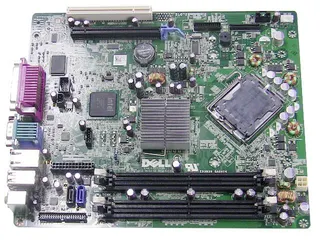

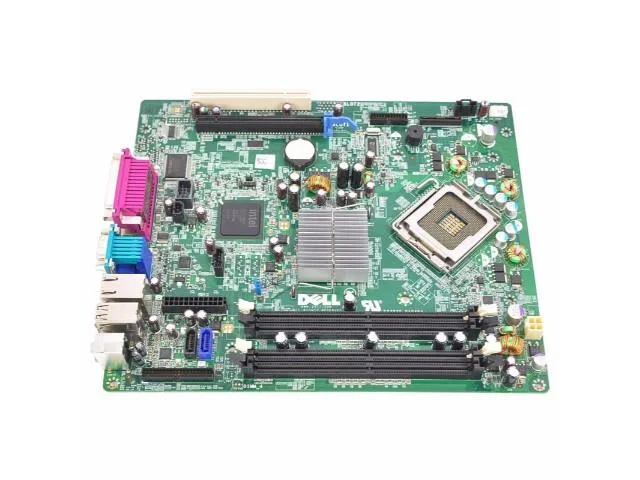

Green rectangular SFF motherboard with LGA-775 socket, two DDR2 slots, PCIe x16 and PCI slots, rear VGA, serial, parallel, RJ-45

DELL

DELL F373DProduct Intel motherboard SFF LGA-775 DDR2

SKU CH-68ND-QFD4S MPN F373DProduct

SFF Intel motherboard for Dell OptiPlex 760 with LGA-775 socket, DDR2 memory, integrated graphics, PCI-E x16 slot and eSATA port

  • CPU TypeCore 2 Extreme (LGA771) / Xeon
  • Supports Core 2 Duo and Pentium Dual-core via LGA-775 socket
  • Dual DDR2 slots accept up to 4 GB at 800 MHz
  • Integrated Intel GMA 4500 graphics drive VGA output
  • Six USB 2.0 ports plus eSATA for external storage
  • SFF form factor built for OptiPlex 760 chassis

Replacement Board for OptiPlex 760 SFF

This motherboard is a direct replacement for the Dell OptiPlex 760 Small Form Factor desktop. It fits the original chassis and mounting points without modification. The board targets repair technicians and owners restoring a legacy system to working order. It accepts Socket T LGA-775 processors and DDR2 memory modules.

SFF Build With Legacy I/O

The SFF form factor keeps the board compact for the slim OptiPlex case. Expansion includes one PCI Express x16 slot, one PCI Express x1 slot and one PCI slot for older add-in cards. External ports provide VGA, serial, parallel, RJ-45, audio I/O, six USB 2.0 ports and one eSATA connector. Two internal SATA ports and one IDE header support period-correct storage drives.

Upgrade Path From Failed Original

This board replaces a failed or damaged F373D unit in an existing OptiPlex 760 SFF. The jump is worth it when the original system board has died but the case, power supply and peripherals remain serviceable. It restores support for Core 2 Duo, Celeron and Pentium Dual-core CPUs with a maximum of 4 GB DDR2 memory at 800 MHz or 667 MHz. Buyers needing more memory slots or modern interfaces should look elsewhere.

Highlights

  • Supports Core 2 Duo and Pentium Dual-core via LGA-775 socket
  • Dual DDR2 slots accept up to 4 GB at 800 MHz
  • Integrated Intel GMA 4500 graphics drive VGA output
  • Six USB 2.0 ports plus eSATA for external storage
  • SFF form factor built for OptiPlex 760 chassis

Specifications

BrandDELL
CPU TypeCore 2 Extreme (LGA771) / Xeon

Questions about this item

What memory standard and speeds does the LGA-775 board support?

The board runs DDR2 memory at 800 MHz or 667 MHz, using the DDR2-800/PC2-6400 and DDR2-667/PC2-5300 standards.

What form factor and chassis does the F373D motherboard fit?

It uses the SFF form factor and is designed for the Dell OptiPlex 760 Small Form Factor desktop chassis.

How is the board installed in the OptiPlex 760 SFF and what step is often missed?

Align the board with the chassis standoffs, secure the mounting screws, then connect the front-panel header, power cables and the CPU fan header before closing the case.
