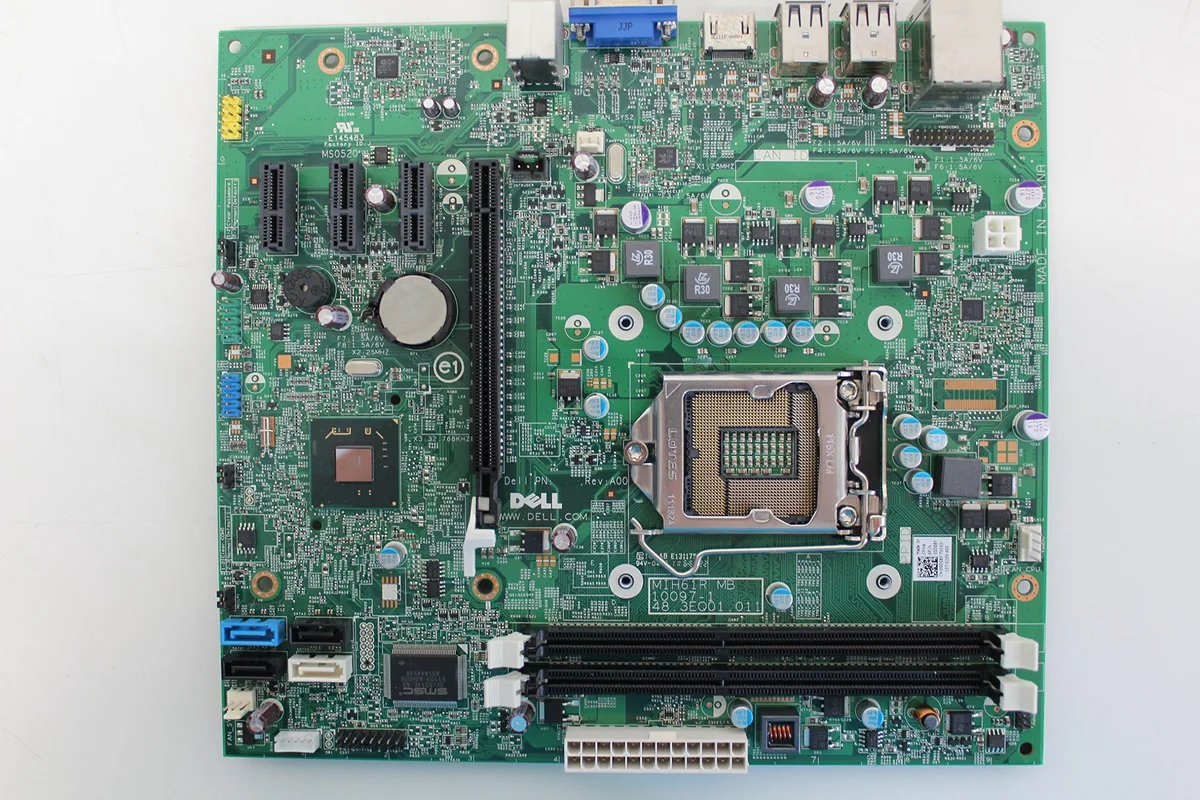

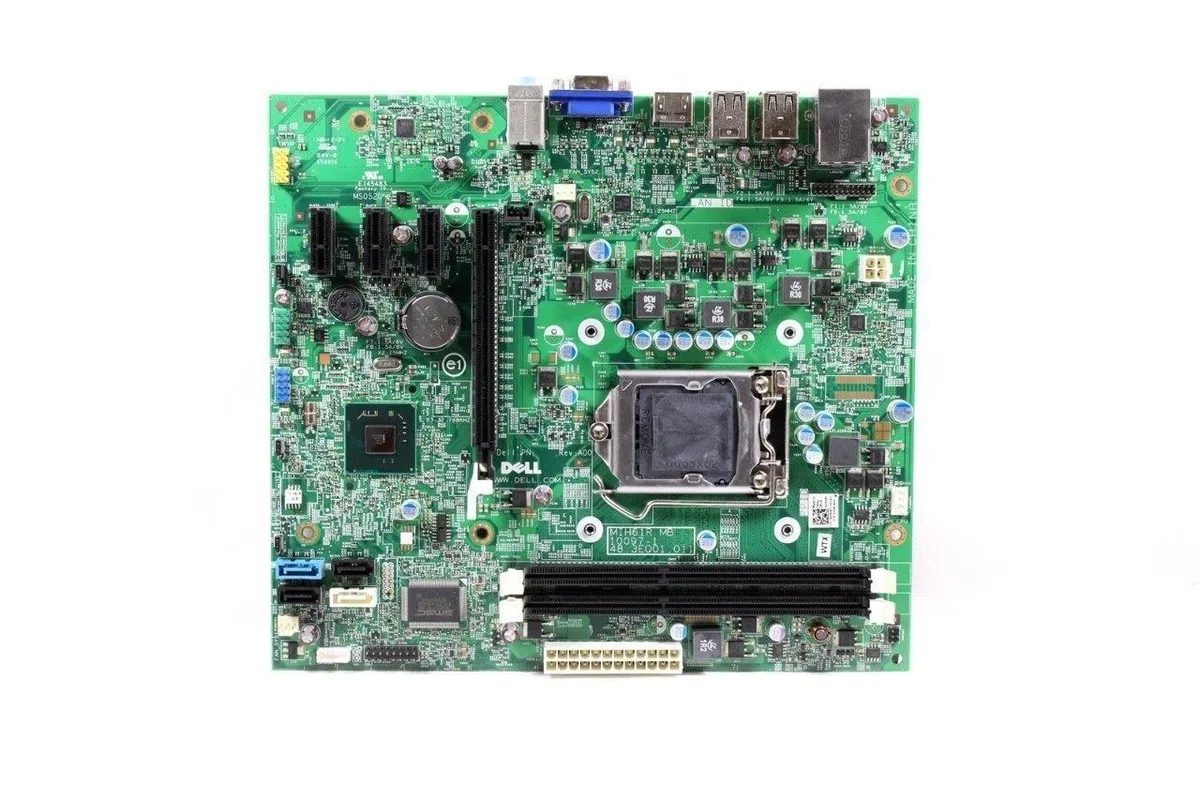

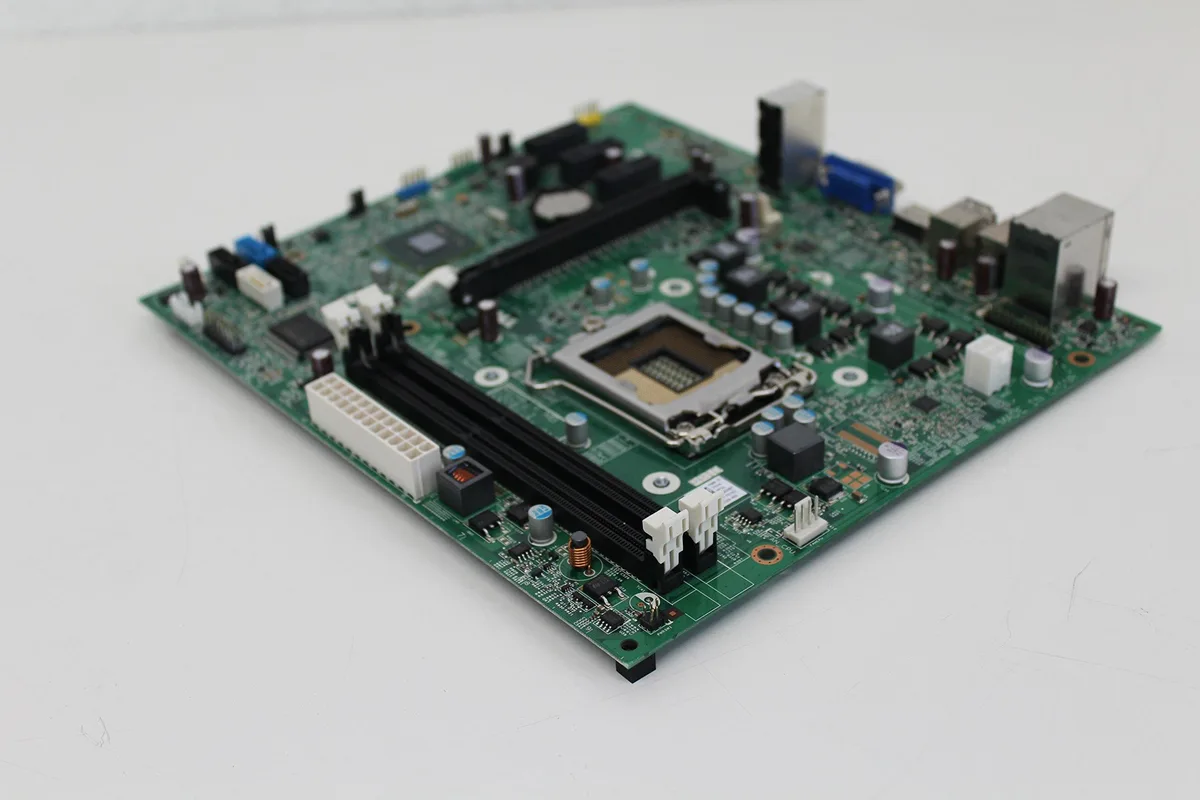

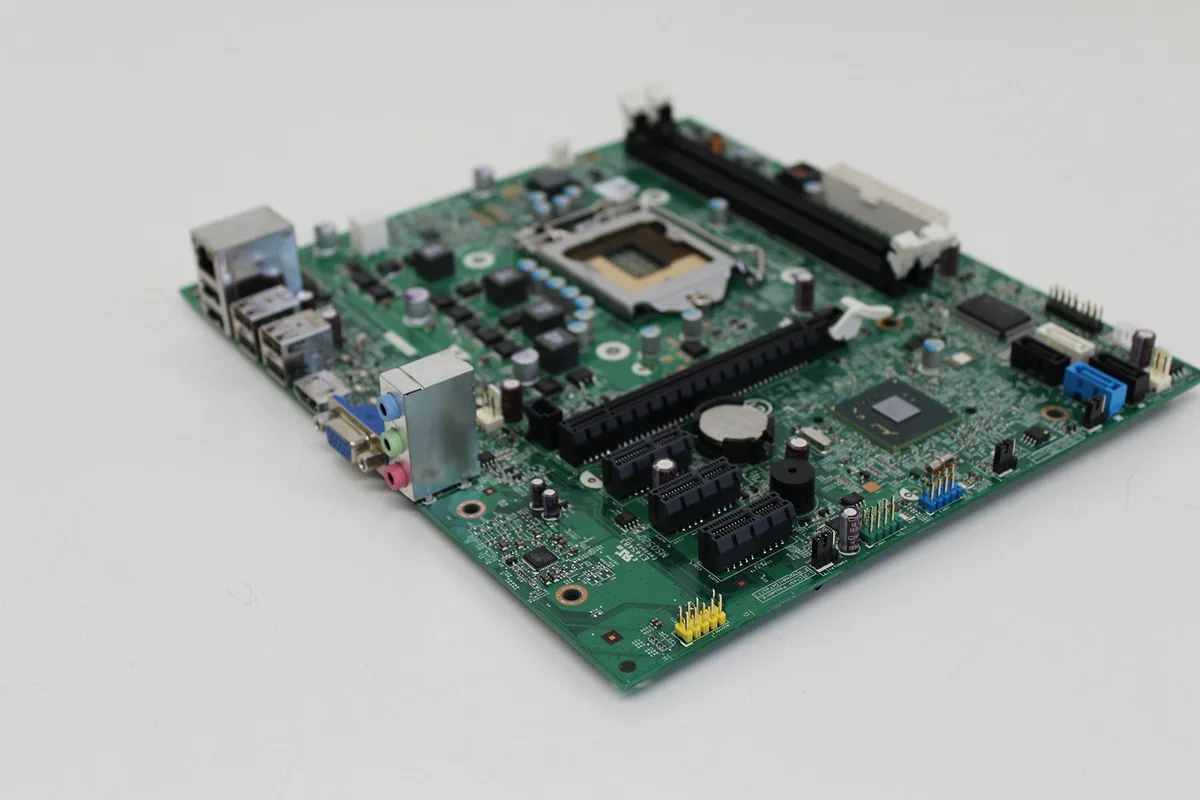

Green Dell micro-ATX motherboard with silver LGA 1155 socket, two DDR3 DIMM slots, HDMI and VGA ports, six USB 2.0 connectors

DELL

DELL GDG8Y Intel Motherboard LGA 1155 H61 DDR3 1333/1066/800 MHz Micro ATX

SKU CH-XWM9-KBCJV MPN GDG8Y

Micro ATX board with LGA 1155 socket, Intel H61 chipset and two DDR3 slots supporting 1333, 1066 and 800 MHz speeds

  • CPU Socket TypeLGA 1155
  • ChipsetIntel H61
  • Onboard Video ChipsetSupported only by CPU with integrated graphic: Intel Graphic
  • Number of Memory Slots2x240pin
  • Memory StandardDDR3 1333/ 1066/ 800 MHz
  • Max LAN Speed1Gbps
  • LGA 1155 socket fits compatible Intel processors
  • Intel H61 chipset provides core platform features
  • Two 240-pin slots support DDR3 1333/1066/800 MHz memory
  • Gigabit Ethernet plus HDMI and VGA video outputs
  • Micro ATX form factor suits compact chassis builds

Dell Inspiron 620 system board

The Dell GDG8Y is a Micro ATX motherboard built for the Inspiron 620 and 620S desktops. It uses the Intel H61 chipset and an LGA 1155 socket. Two 240-pin slots accept DDR3 memory at 1333, 1066 or 800 MHz. Integrated graphics support depends on the installed processor.

Who this suits and who should look elsewhere

This board suits owners repairing a Dell Inspiron 620 or 620S who need a direct replacement. It provides Gigabit Ethernet, HDMI, VGA, six USB 2.0 ports and three audio jacks. Builders wanting a retail board with an I/O shield, overclocking features or more than two memory slots should look elsewhere.

LGA 1155 socket and H61 chipset

The LGA 1155 socket and H61 chipset define which processors and memory this board accepts. Only CPUs with integrated graphics enable the onboard video outputs. DDR3 modules at the listed speeds are the only memory type supported.

Highlights

  • LGA 1155 socket fits compatible Intel processors
  • Intel H61 chipset provides core platform features
  • Two 240-pin slots support DDR3 1333/1066/800 MHz memory
  • Gigabit Ethernet plus HDMI and VGA video outputs
  • Micro ATX form factor suits compact chassis builds

Specifications

BrandDELL
SeriesGdg8Y
CPU Socket TypeLGA 1155
ChipsetIntel H61
Onboard Video ChipsetSupported only by CPU with integrated graphic:
Intel Graphics Media Accelerator 4500
Number of Memory Slots2x240pin
Memory StandardDDR3 1333/ 1066/ 800 MHz
Max LAN Speed1Gbps

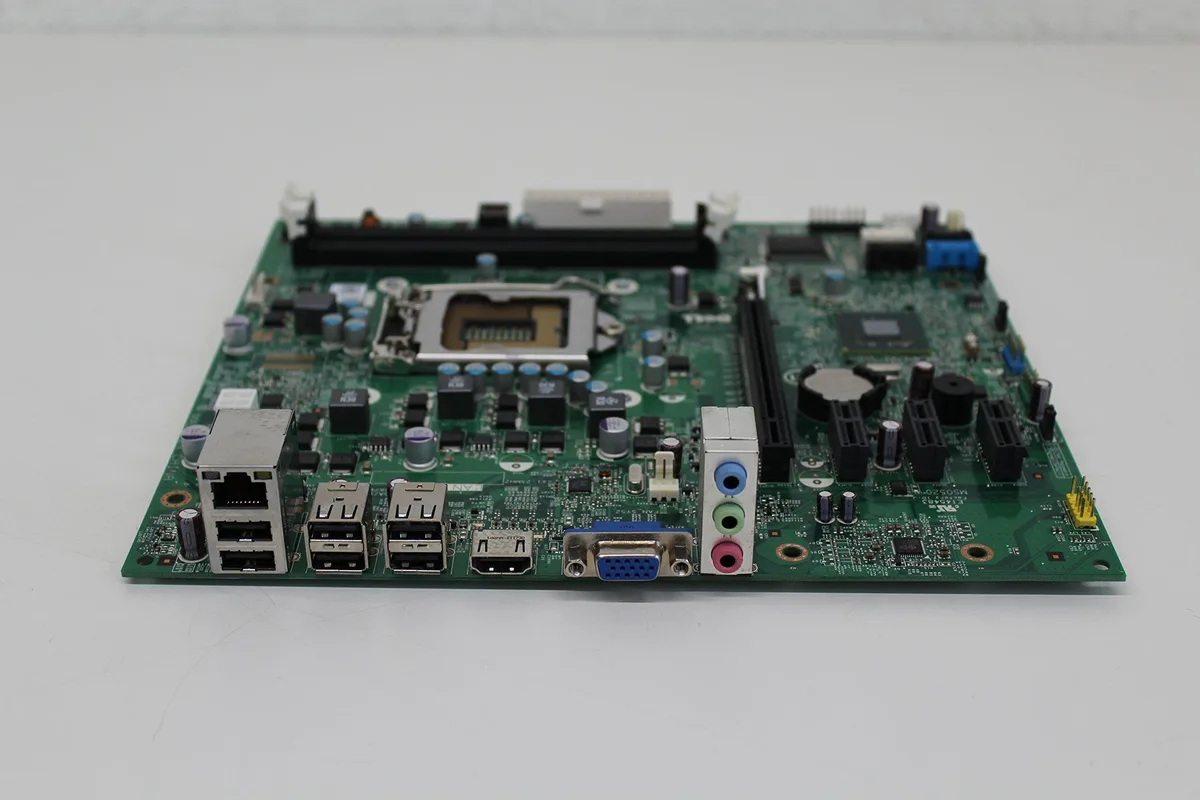

Back I/O Ports1 x RJ-45 Gigabit Ethernet Connector
1 x HDMI Connector
1 x VGA Connector
3 x Audio Ports
6 x USB 2.0 Connectors
Form FactorMicro ATX
Shipping weight0.91 kg
Package size279 × 279 × 76 mm

Questions about this item

Will the two 240-pin DDR3 slots need a memory upgrade to reach the 1333 MHz speed?

The board accepts DDR3 modules at 1333, 1066 or 800 MHz; install matching pairs in both slots to run at the rated frequency.

What component caps sustained throughput on the single Gigabit Ethernet port?

The 1 Gbps RJ-45 link is the hard ceiling — no faster wired interface is present on the back panel.

How much heat and noise should I expect from the H61 chipset and onboard video during all-day use?

The H61 chipset and CPU-integrated Graphics Media Accelerator 4500 run passively; system noise and temperature depend on the cooler and case airflow you provide.
