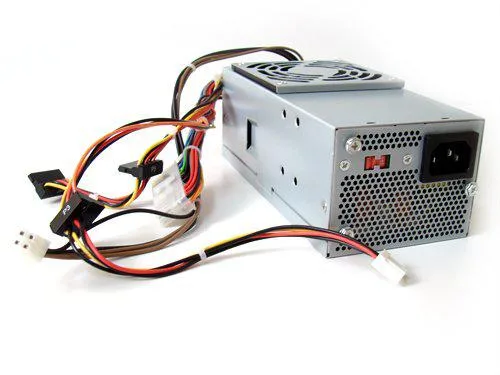

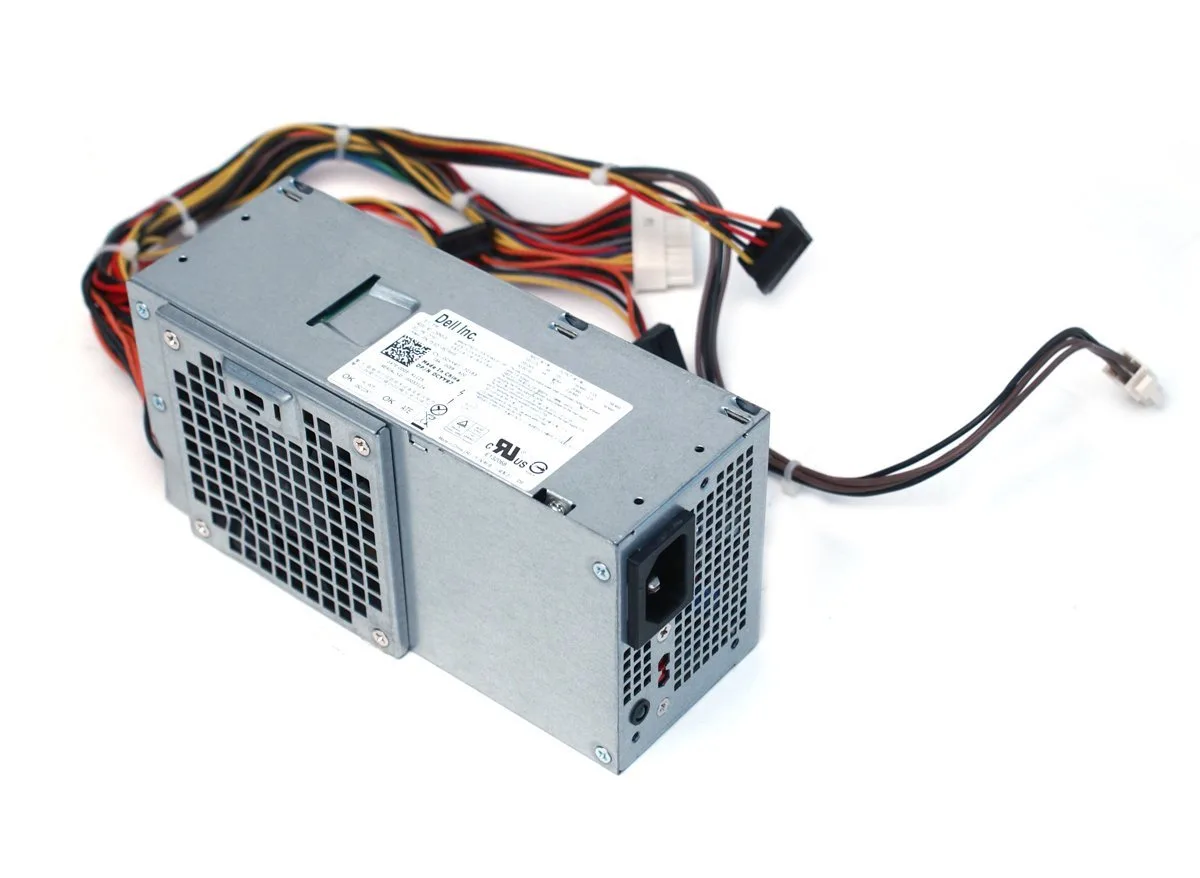

Grey TFX12V power supply unit with single fan

DELL

DELL HP-D2506A0 250W TFX12V power supply

SKU CH-BBW0-YQ4VF

A genuine Dell 250W TFX12V unit with 1 fan, 1 24-pin ATX, 1 4-pin ATX, 3 SATA and 1 floppy connector for select Inspiron, Vostro and Studio slimline systems

  • ColorGrey
  • TypeTFX12V
  • Fans1
  • Weight1
  • 250W output powers compatible Dell SFF systems
  • TFX12V form factor fits slimline chassis dimensions
  • Single fan provides active cooling for the unit

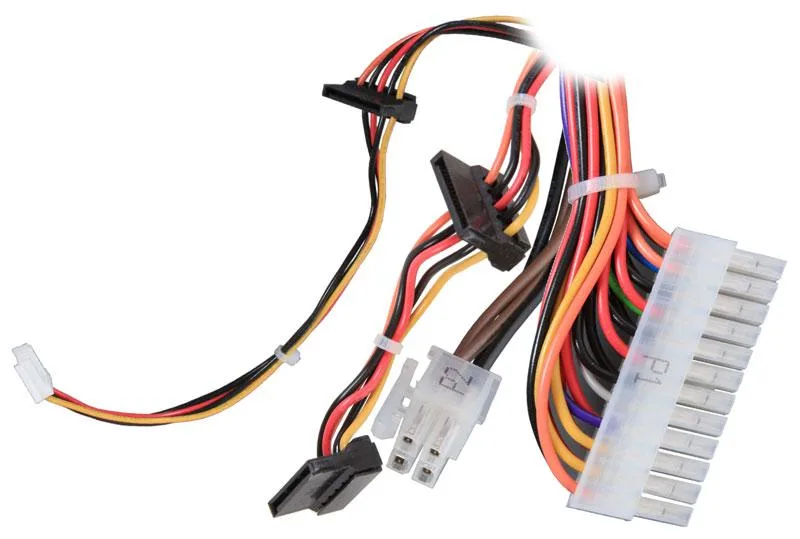

  • 24-pin ATX plus 4-pin ATX connectors feed motherboard power
  • Three SATA power connectors supply drives and peripherals

Genuine Dell 250W TFX12V power supply

This genuine Dell 250W TFX12V unit replaces the original supply in select Inspiron, Vostro and Studio slimline desktops. It delivers 250 watts through a single 24-pin ATX connector, a 4-pin ATX connector, three SATA power connectors and one floppy connector. The grey chassis houses one fan for cooling.

TFX12V form factor with standard ATX and SATA

The TFX12V layout fits the narrow bays used by the listed Dell SFF systems without modification. One 24-pin and one 4-pin ATX connector power the motherboard, while three SATA connectors serve drives and the floppy connector supports legacy devices. A single fan manages airflow in the compact enclosure.

250-watt limit defines upgrade scope

The 250W rating restricts the total power available for CPU, graphics and drives, so high-draw components cannot be supported. Builders needing more headroom for discrete GPUs or additional drives must look beyond this form factor. The fixed cable set also limits the number of SATA devices to three.

Highlights

  • 250W output powers compatible Dell SFF systems
  • TFX12V form factor fits slimline chassis dimensions
  • Single fan provides active cooling for the unit
  • 24-pin ATX plus 4-pin ATX connectors feed motherboard power
  • Three SATA power connectors supply drives and peripherals

Specifications

BrandDell Computers
ModelHP-D2506A0
ColorGrey
TypeTFX12V
Fans1
Weight1

Questions about this item

Does the HP-D2506A0 use the TFX12V form factor and what wattage does that limit it to?

Yes, it is a TFX12V unit rated at 250W, which is the maximum continuous output the form factor supports in these slimline Dell systems.

What physical space and mounting points does this supply need inside the case?

It fits the TFX12V slimline chassis used in Inspiron 530s, 546s, 560s and Vostro 220s, securing with the standard four rear screws and a single 80 mm fan vent.

How is the HP-D2506A0 installed and which connector step do people often miss?

Slide the unit in, fasten the four rear screws, then plug the 24-pin ATX, the 4-pin ATX12V, three SATA power leads and the floppy connector; the 4-pin CPU lead is the one most often forgotten.
