Green rectangular ATX motherboard with silver CPU socket, two black DDR4 slots, one long PCIe x16 slot, M.2 slot

DELL

DELL Inspiron 3670 H4VK7 LGA 1151 DDR4 Intel Motherboard

SKU CH-DMWD-GJ78D

An ATX motherboard with an LGA 1151 socket supports Intel Core i7, i5 or i3 processors, two DDR4 2400 slots up to 16 GB, one PCIe 3.0 x16 slot, one M.2 slot, 2.1-channel audio, Gigabit LAN.

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 (LGA1151)
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 2400
  • Maximum Memory Supported16GB
  • PCI Express 3.0 x161 x PCI Express 3.0 x16
  • LGA 1151 socket accepts Intel Core i7 i5 i3 processors
  • Two 288 pin DDR4 slots support up to 16 GB memory
  • PCI Express 3.0 x16 plus M.2 slot for graphics and storage expansion
  • 1 channel audio with HDMI and four USB 3.0 ports on rear I/O
  • ATX form factor fits standard desktop cases

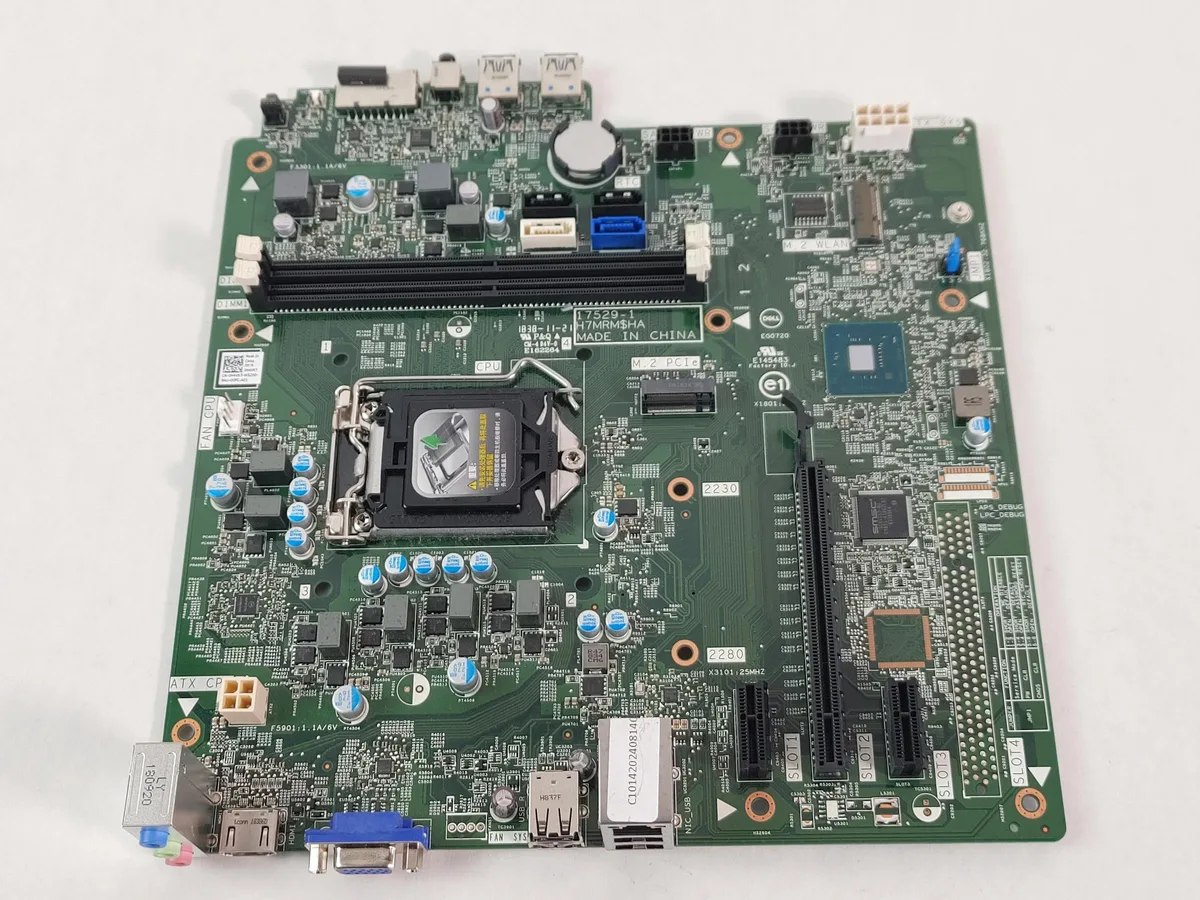

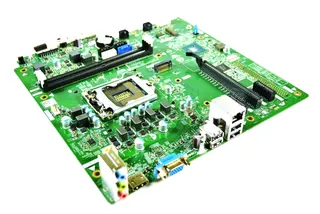

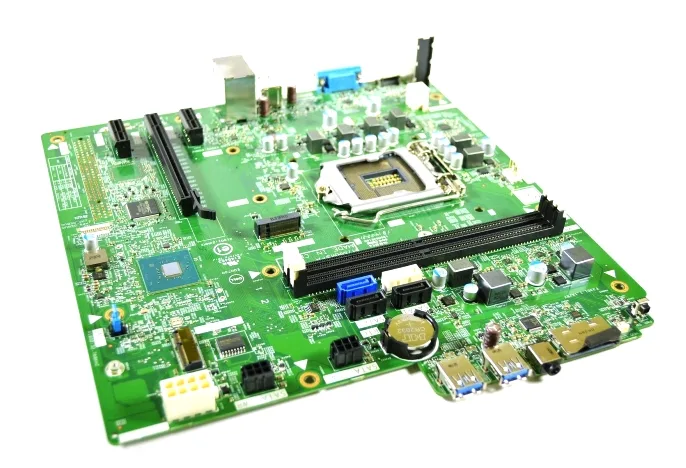

Dell Inspiron 3670 motherboard

This Dell Inspiron 3670 board is a replacement part for LGA 1151 desktop systems. It accepts Core i7, i5 or i3 processors and two DDR4 2400 modules up to 16 GB total. The ATX layout fits standard chassis mounts.

Build integration

One PCI Express 3.0 x16 slot takes a graphics card while a second x16 slot and a Mini PCI slot provide additional expansion. An M.2 socket is present for storage. Rear I/O supplies one HDMI output, four USB 3.0 ports and a 1 Gbps RJ45 connection. Audio runs at 2.1 channels.

Capacity and headroom

The two 288-pin slots support up to 16 GB of DDR4 memory. The single full-length PCIe 3.0 x16 slot handles one discrete GPU. Network throughput tops out at 1 Gbps. Storage options rely on the M.2 socket and any drives connected via the board’s internal headers.

Highlights

  • LGA 1151 socket accepts Intel Core i7 i5 i3 processors
  • Two 288 pin DDR4 slots support up to 16 GB memory
  • PCI Express 3.0 x16 plus M.2 slot for graphics and storage expansion
  • 1 channel audio with HDMI and four USB 3.0 ports on rear I/O
  • ATX form factor fits standard desktop cases

Specifications

BrandDELL
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 (LGA1151)
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2400
Maximum Memory Supported16GB
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x161 x PCI Express x16
Mini Card Slots1 x Mini PCI
M.21 x M.2
Audio Channels2.1 Channels
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 4 x USB 3.0
Video Ports1
HDMI1 x HDMI
RJ451 x RJ45
USB 3.04 x USB 3.0
Form FactorATX

Questions about this item

Will this motherboard fit a standard ATX case and align with the I/O cut-out?

The board uses the ATX form factor so it mounts in any ATX case, but the listing notes that no I/O shield is included so you will need to reuse the original shield or source a compatible one separately

Which processors can I install and what memory speed will they run at?

The LGA 1151 socket accepts 8th and 9th generation Core i7, i5 and i3 CPUs; the two 288-pin slots support DDR4 2400 up to a total of 16 GB

What expansion slots and rear ports are available for a graphics card and peripherals?

One PCI Express 3.0 x16 slot takes a graphics card, one PCI Express x16 and one Mini PCI slot provide additional expansion, while the rear panel offers one HDMI, one RJ45 and four USB 3.0 ports
