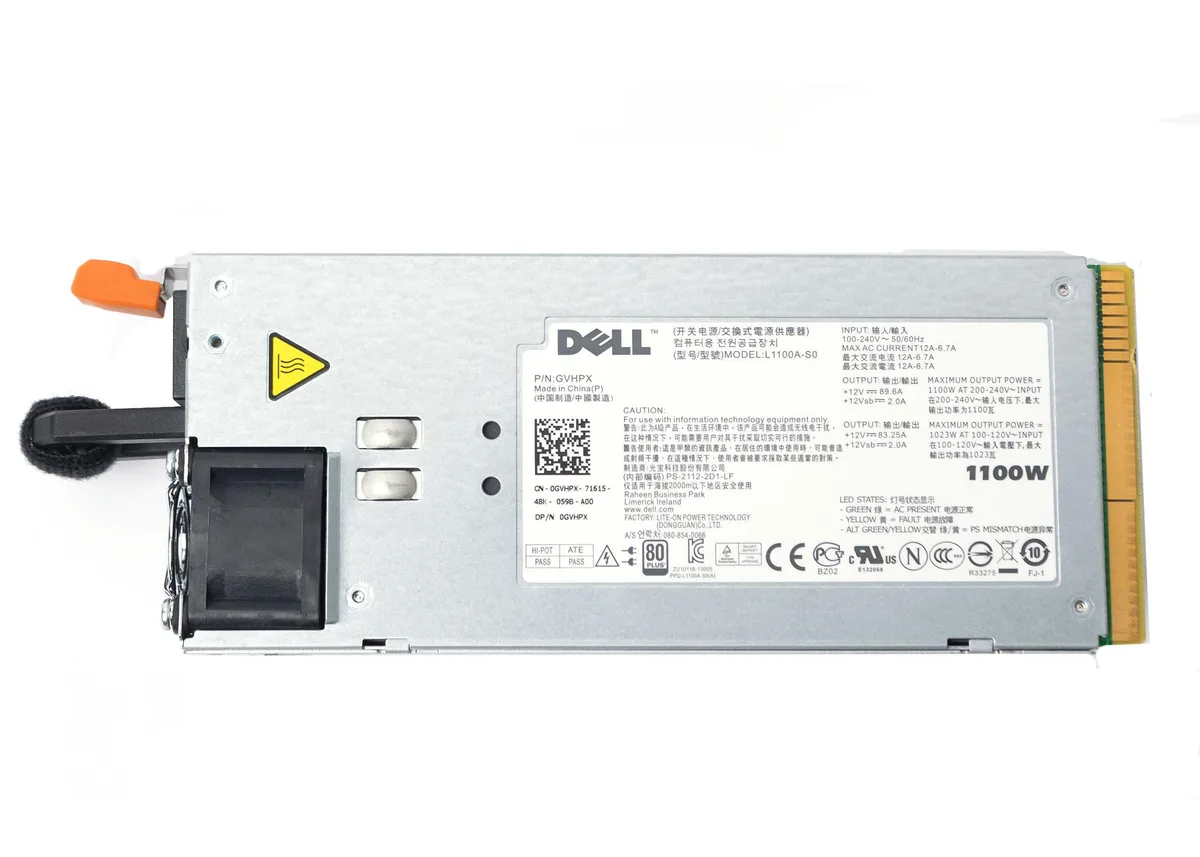

Silver rectangular redundant power supply unit with single cooling fan and handle

DELL

DELL L1100A-S0 1100 W Redundant Power Supply

SKU CH-NAX1-KYGA4 MPN L1100A-S0

A redundant 1100 W power supply with single-fan cooling, 100-240 V input and +12 V 89.6 A output for PowerEdge R510, R715, R810, R815, R910 and T710 servers

  • TypeType
  • Maximum Power1100 W
  • Fans1
  • Delivers 1100 W maximum power for demanding server workloads
  • Redundant design keeps systems running if one unit fails
  • Wide 100-240 V input range suits global deployments
  • Single fan cooling maintains airflow with minimal noise
  • Compatible with PowerEdge R510, R715, R810, R815, R910, T710

1100 W Redundant Power Supply

This unit is a 1100 watt redundant power supply built for Dell PowerEdge servers. It delivers up to 89.6 A on the +12 V rail and 2.0 A on the +12 V standby rail. The supply accepts 100-240 V input at 50/60 Hz with a maximum AC current of 12-6.7 A. A single fan provides internal cooling.

Suitable for PowerEdge R510 R715 R810 R815 R910 T710

This supply fits the listed Dell PowerEdge models and supports hot-swap redundancy in those chassis. It is not for systems outside this compatibility list or for builds that require a different form factor or output configuration. Buyers needing non-redundant desktop units or different voltage rails should look elsewhere.

1100 W capacity with 89.6 A on +12 V

The 1100 W rating comfortably handles dual-processor configurations with multiple drives and expansion cards in supported servers. Headroom decreases when both CPU sockets are heavily loaded alongside full drive bays and PCIe cards. The single fan may limit sustained output in high ambient temperatures.

Highlights

  • Delivers 1100 W maximum power for demanding server workloads
  • Redundant design keeps systems running if one unit fails
  • Wide 100-240 V input range suits global deployments
  • Single fan cooling maintains airflow with minimal noise
  • Compatible with PowerEdge R510, R715, R810, R815, R910, T710

Specifications

BrandDELL
TypeType
Maximum Power1100 W
Fans1

Questions about this item

Which Dell PowerEdge servers accept the L1100A-S0 1100 W redundant supply?

The unit is listed for PowerEdge R510, R715, R810, R815, R910 and T710 systems.

Can I mix this 1100 W unit with the original lower-wattage supply already in my PowerEdge?

Redundant operation requires matching wattage; install a second L1100A-S0 for full redundancy.

What front-panel indication confirms the L1100A-S0 is delivering power after installation?

A steady green LED on the supply face shows normal +12 V and +12 Vsb output.
