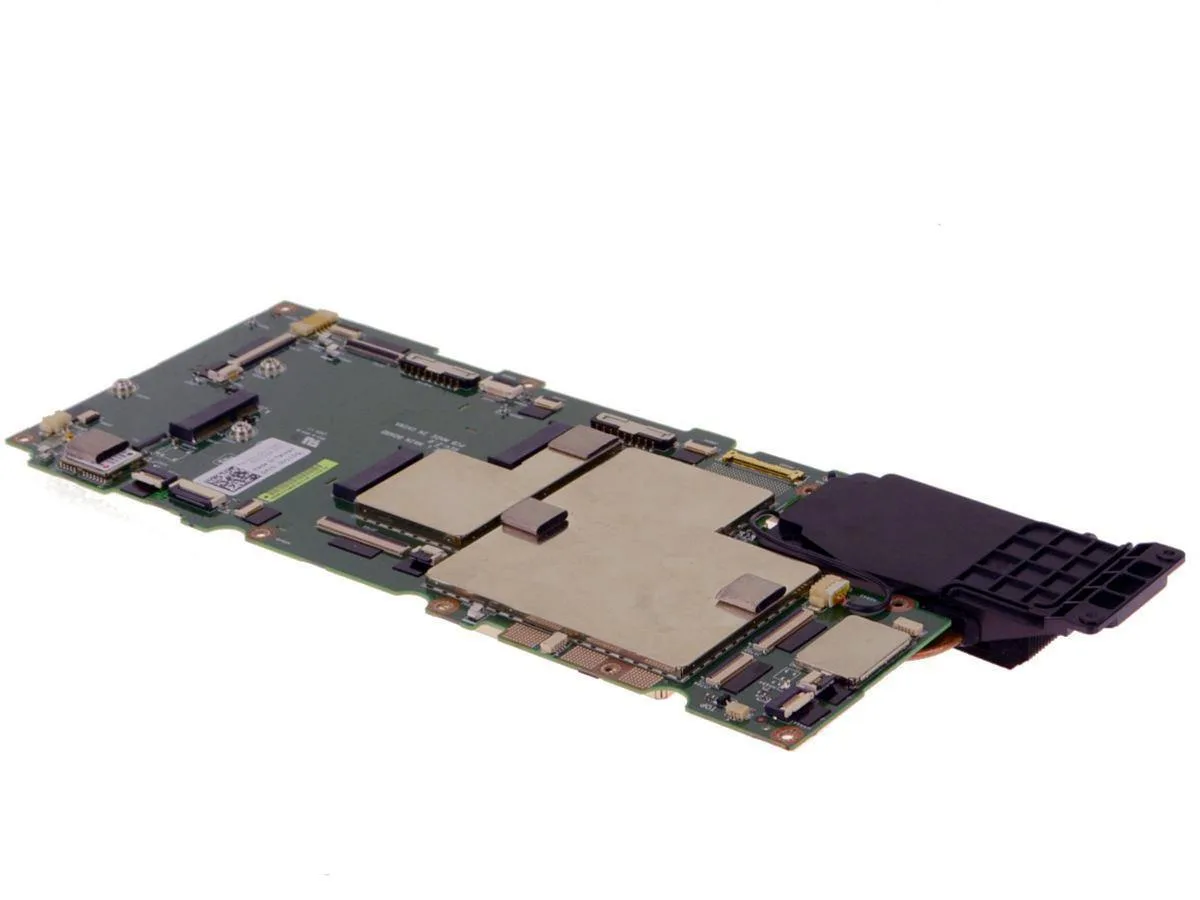

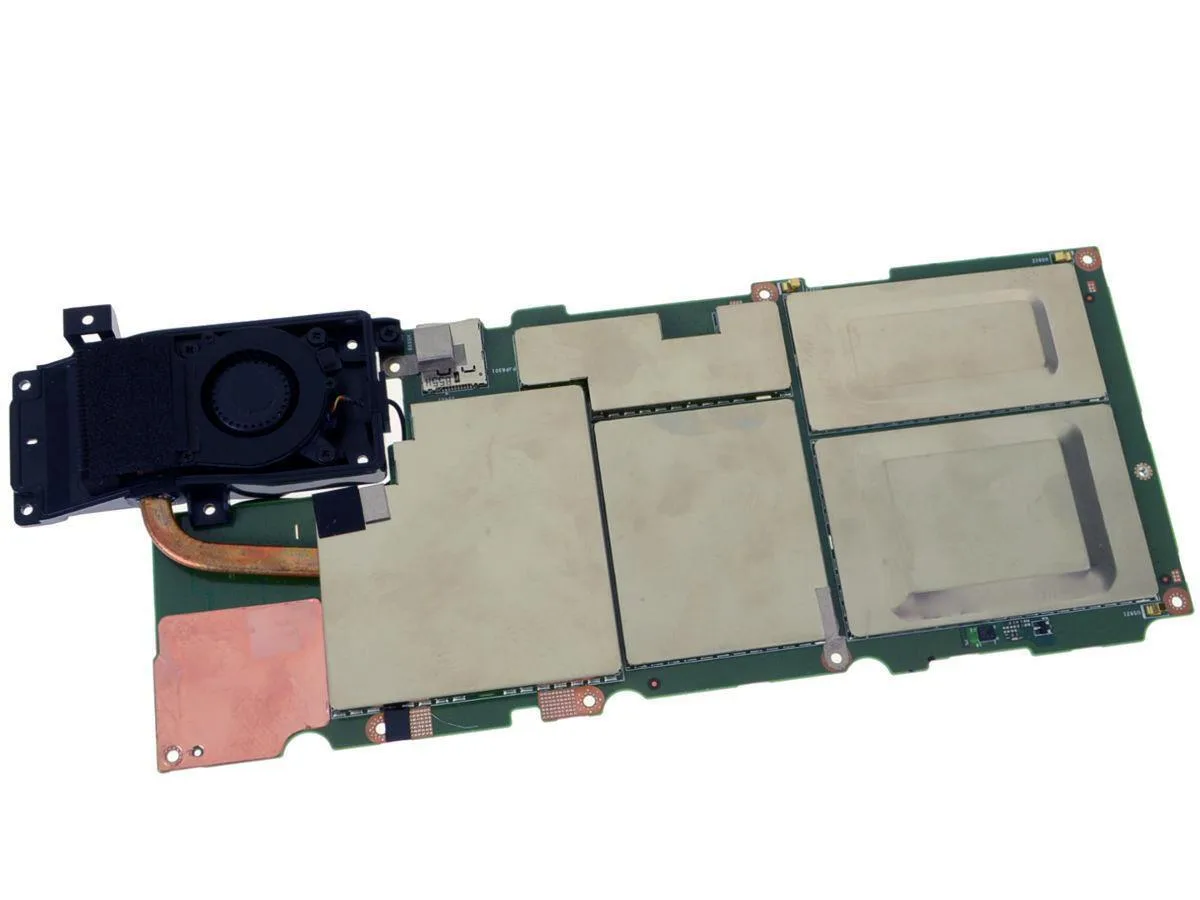

Green laptop motherboard with silver processor and black connectors

DELL

DELL Latitude 12 Rugged 7202 Motherboard Core M-5Y71 1.2GHz V11DG

SKU CH-Y14S-CZ8PP

Replacement motherboard for the Dell Latitude 12 Rugged 7202 tablet with an Intel Core M-5Y71 processor at 1.2 GHz supporting DDR3L memory and SATA storage

  • Maximum Memory Supported8GB
  • Form FactorLaptop motherboard – designed specifically for Dell Latitude
  • Intel Core M-5Y71 at 1.2GHz for efficient performance
  • Designed specifically for Dell Latitude 12 Rugged 7202 tablet
  • Supports DDR3L memory up to 8GB capacity
  • Includes SATA storage interfaces for SSD expansion
  • Integrated Intel HD Graphics for everyday visual tasks

Embedded motherboard for Latitude 12 Rugged 7202

This Dell motherboard is built for the Latitude 12 Rugged 7202 tablet and includes an Intel Core M-5Y71 processor running at 1.2GHz. It targets technicians repairing a failed board or integrators deploying the same rugged platform in field-service roles. The part number is V11DG.

Verify chassis match and memory type before ordering

Confirm the unit is a Latitude 12 Rugged 7202 because the board is not interchangeable with other Latitude models. The board accepts DDR3L modules up to 8GB total capacity. Check that your existing cooling assembly, display cable and battery connector align with this revision.

Rugged-grade construction

The board uses laptop-form-factor mounting points designed for the magnesium-alloy chassis of the Rugged 7202. Integrated Intel HD Graphics drives the internal display without a discrete GPU. Storage devices connect through SATA or mSATA connectors, so plan drive selection around those interfaces.

Highlights

  • Intel Core M-5Y71 at 1.2GHz for efficient performance
  • Designed specifically for Dell Latitude 12 Rugged 7202 tablet
  • Supports DDR3L memory up to 8GB capacity
  • Includes SATA storage interfaces for SSD expansion
  • Integrated Intel HD Graphics for everyday visual tasks

Specifications

BrandDELL
ModelLatitude 12 Rugged 7202
Part NumberV11DG
Maximum Memory Supported8GB
Form FactorLaptop motherboard – designed specifically for Dell Latitude 12 Rugged 7202

Questions about this item

Does the motherboard come with the Intel Core M-5Y71 processor already installed, or must I buy it separately?

The Intel Core M-5Y71 processor at 1.2GHz is integrated on the board, so no separate CPU purchase is required.

The listing shows part numbers V11DG and 00M0J — which one should I select for my Latitude 12 Rugged 7202?

Both numbers refer to the same motherboard revision for the Latitude 12 Rugged 7202; either will fit the tablet.

How much DDR3L memory can I actually use once this board is fitted in the tablet?

The motherboard supports a maximum of 8GB of DDR3L memory for system expansion.
