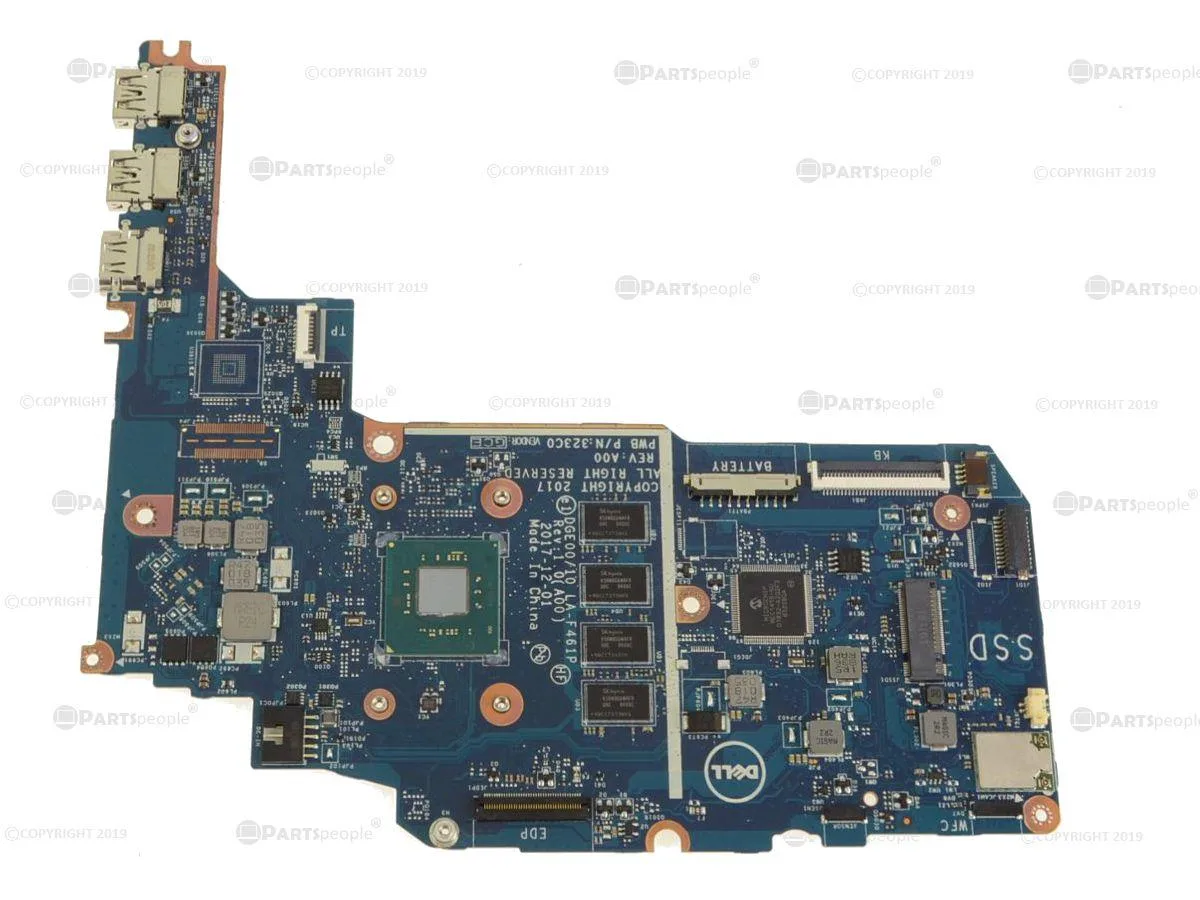

Green Dell Latitude 3190 2-in-1 motherboard with Pentium N5000 CPU and 4GB memory

DELL

DELL Latitude 3190 2-in-1 Motherboard 0F565 Pentium N5000 1.1 GHz 4GB

SKU CH-HZ5V-K5EQT

Replacement system board for the Latitude 3190 2-in-1 with on-board Pentium N5000 at 1.1 GHz, 4 GB memory and SATA M.2 B-key support

  • Genuine Dell OEM replacement for Latitude 3190 2-in-1
  • On-board Pentium N5000 quad-core CPU at 1.1 GHz
  • 4 GB memory soldered directly on the board
  • Supports SATA M.2 drives with B-key connector only
  • Not compatible with standard Latitude 3190 laptop models

Dell Latitude 3190 2-in-1 Replacement Board

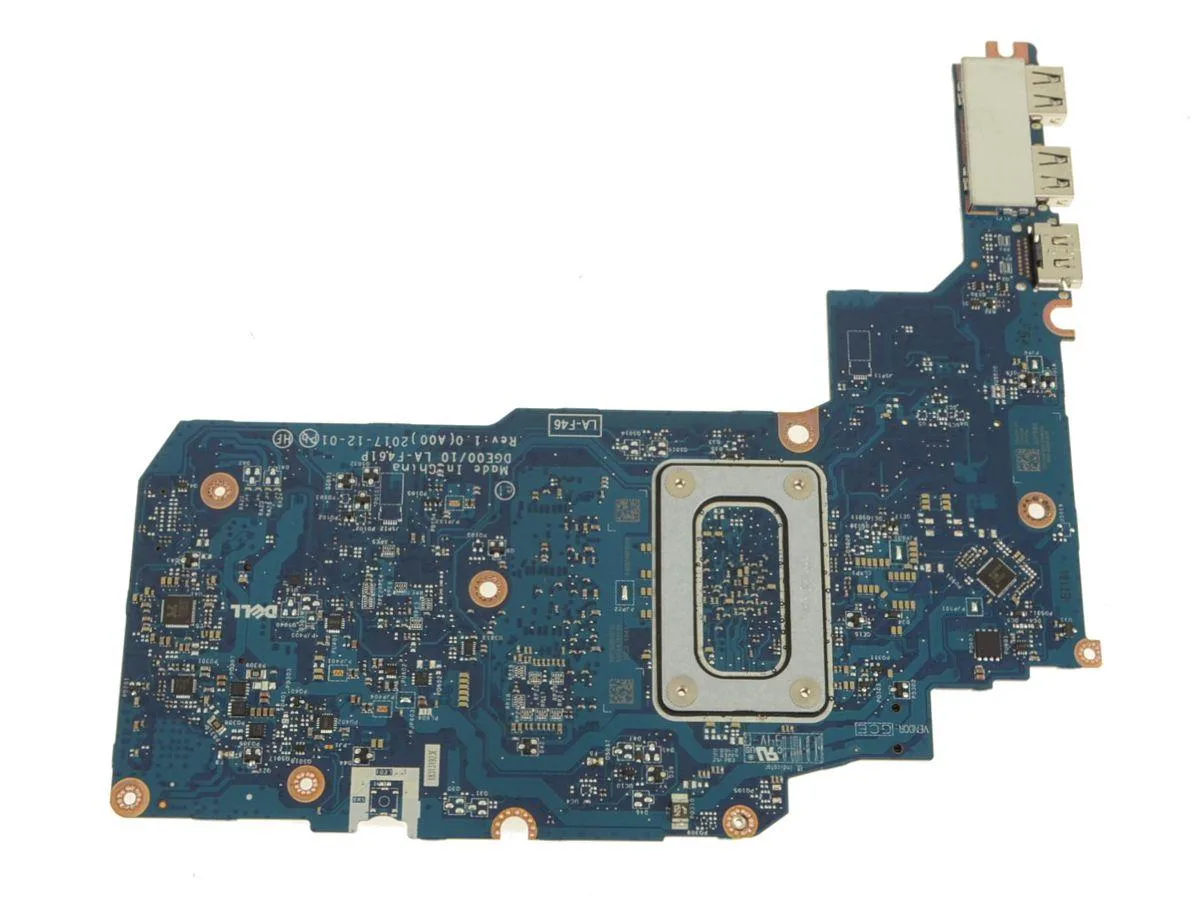

Genuine Dell OEM system board for the Latitude 3190 2-in-1 convertible laptop. It integrates an Intel Pentium N5000 quad-core processor running at 1.1 GHz with a 2.70 GHz burst frequency. On-board memory is fixed at 4 GB. This part suits repair technicians or owners replacing a failed motherboard in that specific chassis.

SATA M.2 B-Key Storage Compatibility

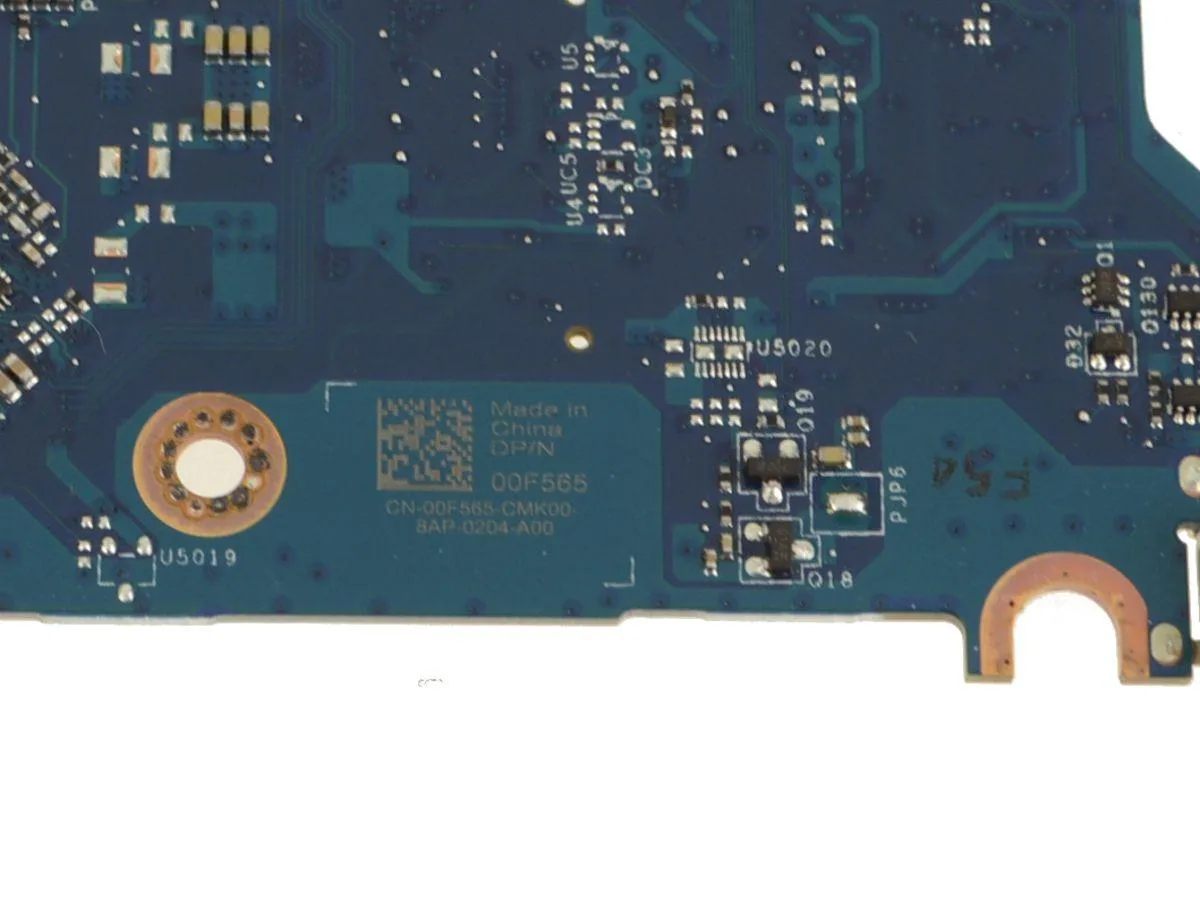

The board accepts SATA M.2 drives with a B-key connector only. The Latitude 3190 shipped with multiple storage configurations, each requiring a matching motherboard variant. Selecting the wrong variant prevents the drive from being detected or seated correctly. Verify the original board part number 0F565 before ordering.

Direct Swap Install With Model Constraint

Installation follows a standard laptop teardown: remove the bottom case, disconnect cables, swap the board, and reassemble. The critical step is confirming the 2-in-1 form factor; the laptop (non-convertible) version uses a different board that will not fit. No firmware flashing is mentioned, but mismatched storage-key or chassis type are the common failure points.

Highlights

  • Genuine Dell OEM replacement for Latitude 3190 2-in-1
  • On-board Pentium N5000 quad-core CPU at 1.1 GHz
  • 4 GB memory soldered directly on the board
  • Supports SATA M.2 drives with B-key connector only
  • Not compatible with standard Latitude 3190 laptop models

Specifications

BrandDELL

Questions about this item

What does the 1.1 GHz Pentium N5000 deliver in a real Latitude 3190 2-in-1?

The on-board quad-core Pentium N5000 runs at a 1.1 GHz base with a 2.70 GHz burst, giving enough headroom for web apps, document editing and light multitasking in the 3190 2-in-1 chassis.

Which storage interface does the 0F565 board support and what does it limit?

The board accepts only SATA M.2 drives with a B-key connector; other drive types are not electrically compatible with this motherboard.

What physical fit checks must pass before installing this board in a Latitude 3190 2-in-1?

The 0F565 is built for the 2-in-1 hinge and port layout, not the clamshell Latitude 3190, so the chassis, keyboard cable routing and display connector must all match the 2-in-1 version.
