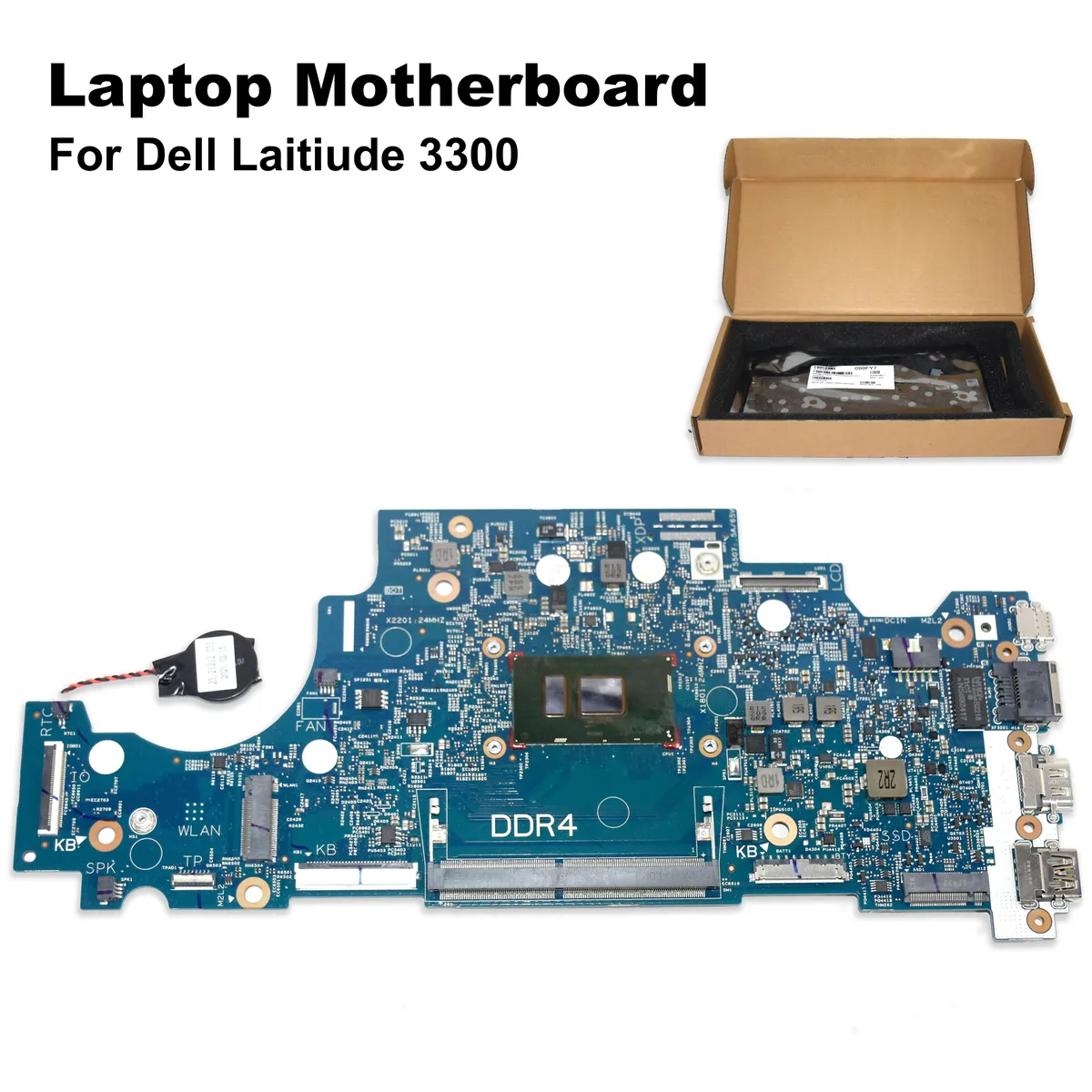

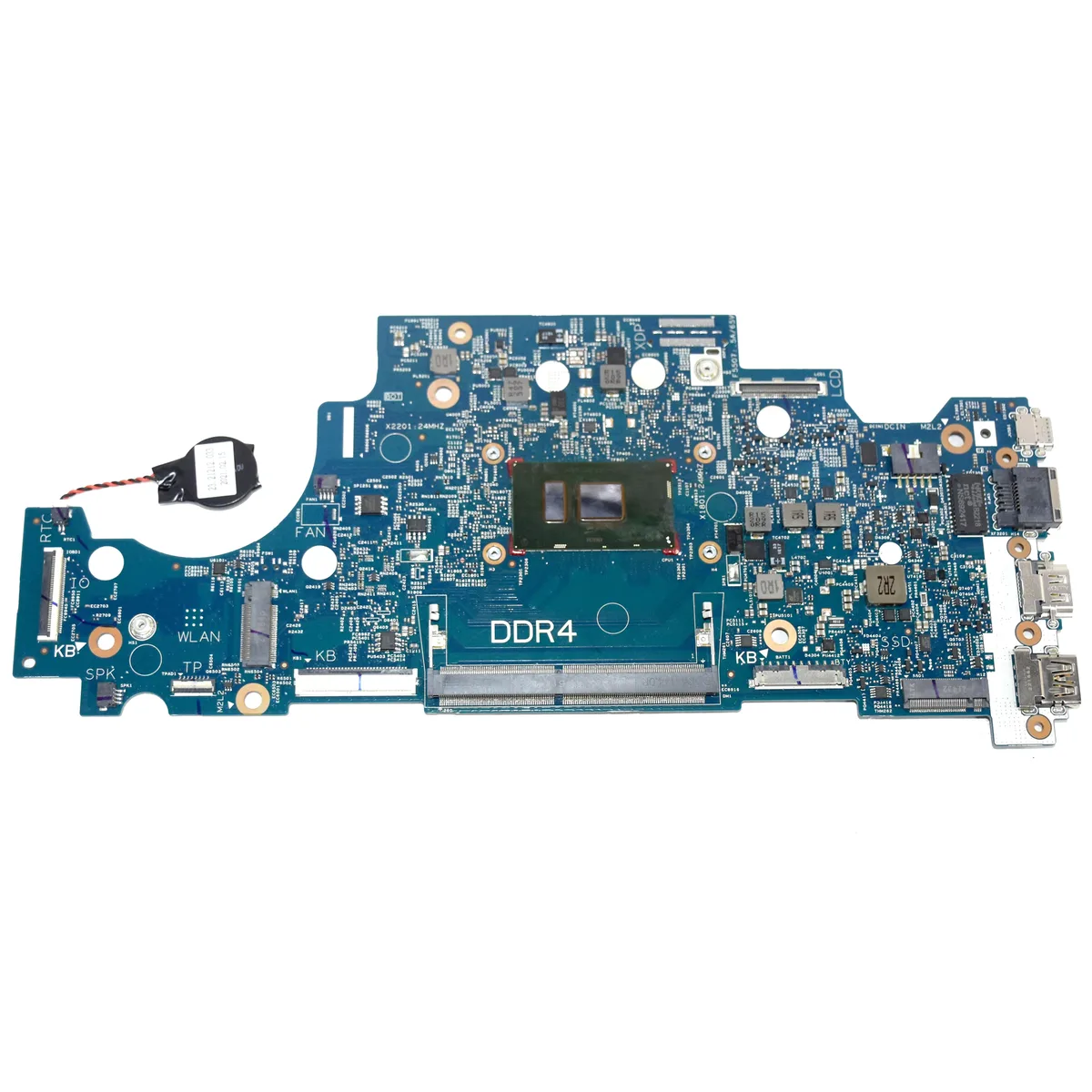

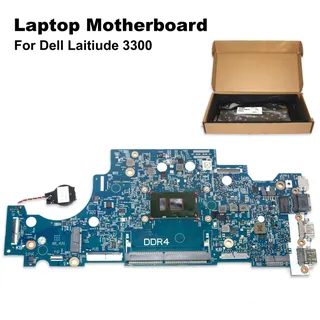

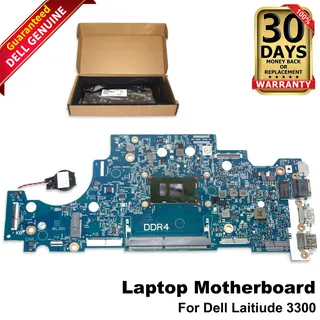

Green Dell Latitude 3300 motherboard with soldered i3-7020U chip, 11.8 by 8.5 inches

DELL

DELL Latitude 3300 Motherboard i3-7020U 2.3 GHz Part 99FY7

SKU CH-H5SB-ES4PD

Replacement motherboard for Latitude 3300 with soldered i3-7020U at 2.3 GHz, supporting up to 16GB DDR4 and dual M.2 plus 2.5 SATA storage

  • Compatible ManufacturerFor Dell
  • Compatible ModelsFor Dell Latitude 3300
  • Dimensions11.8" x 8.5" x 0.6" (L x W x H)
  • Weight1.4 lbs
  • Genuine Dell replacement restores Latitude 3300 function
  • Integrated Intel Core i3-7020U at 2.3 GHz powers efficient multitasking
  • Supports up to 16 GB DDR4 memory for expanded capacity
  • M.2 slot accepts NVMe or SATA SSDs plus 2.5" SATA drive
  • Built-in USB 3.1, HDMI, audio jacks and RJ-45 Ethernet

Genuine Dell Latitude 3300 Replacement Board

This motherboard is a direct-fit replacement for Dell Latitude 3300 and 3301 laptops. It arrives new with the Intel Core i3-7020U processor already soldered in place. The board restores full OEM functionality for technicians and DIY repairers. It is not suited for users who want a newer CPU generation or a socketed processor upgrade.

Dual Storage With 16 GB DDR4 Ceiling

The board provides one M.2 slot accepting NVMe or SATA SSDs plus a 2.5 inch SATA III connector for a second drive. System memory tops out at 16 GB of DDR4 across the available slots. Buyers needing more than 16 GB of RAM or additional M.2 slots cannot use this part.

Efficient Thermal Design For Business Workloads

Integrated Intel HD 620 graphics and the 2.3 GHz dual-core CPU share a compact thermal solution tuned for typical office tasks. Power management circuitry optimises energy use during normal operation. The design is not intended for sustained heavy compute or gaming loads that would exceed its cooling capacity.

Highlights

  • Genuine Dell replacement restores Latitude 3300 function
  • Integrated Intel Core i3-7020U at 2.3 GHz powers efficient multitasking
  • Supports up to 16 GB DDR4 memory for expanded capacity
  • M.2 slot accepts NVMe or SATA SSDs plus 2.5" SATA drive
  • Built-in USB 3.1, HDMI, audio jacks and RJ-45 Ethernet

Specifications

BrandDell
Part Number99FY7
Compatible ManufacturerFor Dell
Compatible ModelsFor Dell Latitude 3300
Dimensions11.8" x 8.5" x 0.6" (L x W x H)
Weight1.4 lbs

Questions about this item

Will this motherboard fit the existing chassis and cooling assembly of my Dell Latitude 3300?

Yes, the board dimensions are 11.8" x 8.5" x .6" and it weighs 1.4 lbs, matching the original Latitude 3300 form factor for direct chassis fit.

How can I verify the integrated Intel Core i3-7020U and Intel HD 620 graphics are functioning after installation?

Enter the system BIOS to confirm the processor shows as i3-7020U at 2.3 GHz with 3MB cache, then boot into the OS and check Device Manager for Intel HD 620 graphics.

Does the board come with RAM or an M.2 NVMe SSD, or must I supply them separately?

The motherboard is sold alone; you must provide up to 16GB of DDR4 memory and your choice of M.2 NVMe or SATA SSD, plus any 2.5" SATA drive you wish to use.
