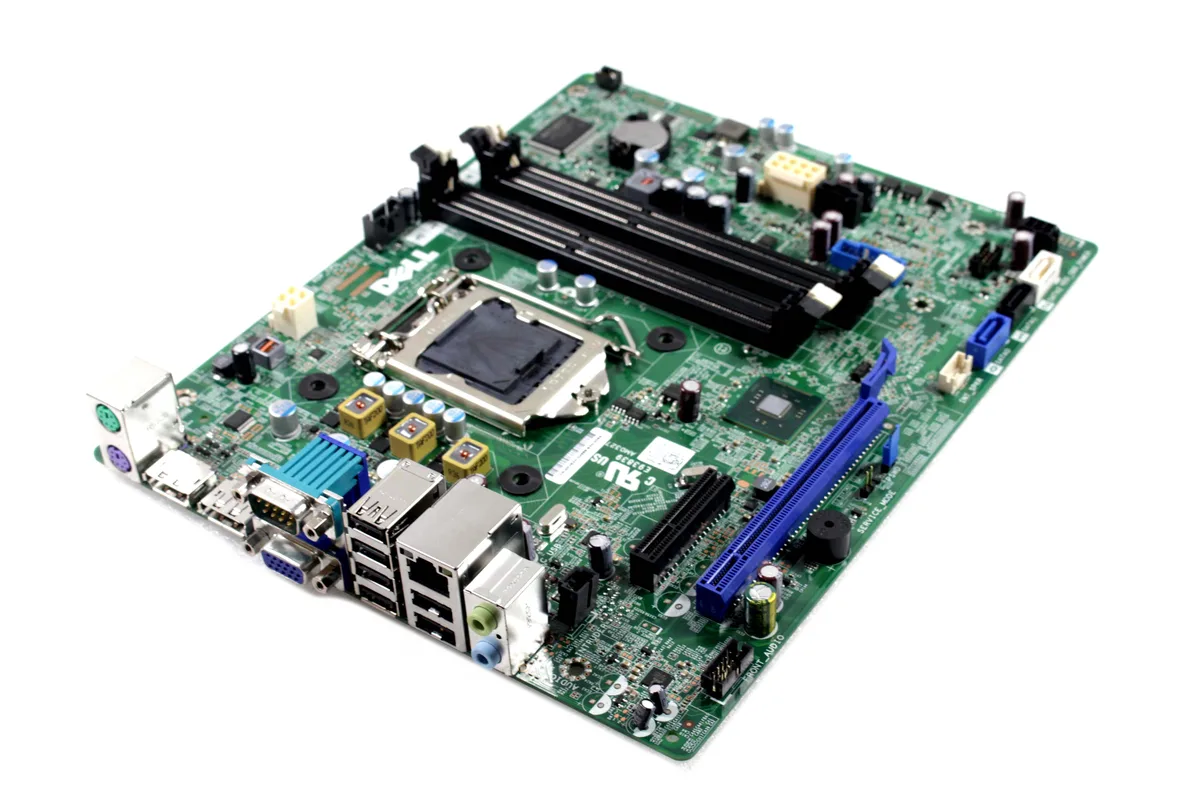

Green Dell OptiPlex SFF motherboard with LGA 1150 socket and four DDR3 slots

DELL

DELL OptiPlex 9020 7020 SFF Intel Q87 Motherboard 0V62H

SKU CH-QM0R-KSCMS

SFF Intel Q87 motherboard for OptiPlex 9020 and 7020 with LGA 1150 socket, four DDR3 slots up to 32 GB, six USB, dual DisplayPort, VGA, Gigabit Ethernet and SATA storage

  • CPU TypeDesktop Motherboard
  • ChipsetIntel Q87 Express Chipset
  • Number of Memory Slots4
  • Memory StandardDDR3 SDRAM
  • Fits OptiPlex 9020 and 7020 SFF chassis
  • Intel Q87 Express chipset supports LGA 1150 processors
  • Four DDR3 slots accept up to 32 GB memory
  • Six USB ports plus dual DisplayPort video outputs
  • SATA interface connects drives and storage devices

Dell OptiPlex SFF Q87 Motherboard

This genuine Dell motherboard uses the Intel Q87 Express chipset and an LGA 1150 socket inside a small-form-factor chassis. It fits OptiPlex 9020 and 7020 desktops and accepts 4th generation Core i7, i5, i3 and Pentium processors. Four DDR3 memory slots support up to 32 GB of system RAM.

Intel Q87 Chipset Limits

The Q87 platform provides native SATA connectivity for storage drives and six USB ports for peripherals. Video output is handled through one VGA and two DisplayPort connectors, while a single RJ-45 port supplies wired networking. Legacy serial and dual PS/2 ports remain available for older equipment.

32 GB DDR3 Capacity

Four slots allow a maximum of 32 GB DDR3, giving ample headroom for typical business workloads and multi-tasking. The board runs out of memory bandwidth when all slots are populated at the highest supported frequency. Storage expansion is confined to the available SATA interfaces on the chipset.

Highlights

  • Fits OptiPlex 9020 and 7020 SFF chassis
  • Intel Q87 Express chipset supports LGA 1150 processors
  • Four DDR3 slots accept up to 32 GB memory
  • Six USB ports plus dual DisplayPort video outputs
  • SATA interface connects drives and storage devices

Specifications

BrandDELL
CPU TypeDesktop Motherboard
ChipsetIntel Q87 Express Chipset
Number of Memory Slots4
Memory StandardDDR3 SDRAM

Questions about this item

Which OptiPlex SFF motherboard version matches the 0V62H part number?

The 0V62H board fits Dell OptiPlex 9020 and 7020 small-form-factor chassis and carries the Intel Q87 Express chipset with an LGA 1150 socket.

What does the 32 GB DDR3 limit mean for a working system?

Four DDR3 slots support up to 32 GB total, so a typical build uses four 8 GB modules for the maximum capacity the Q87 chipset allows.

What storage speeds does the SATA interface on this board deliver?

The board provides SATA ports for hard drives or SATA SSDs; transfer rates are limited to the SATA standard the chipset implements.
