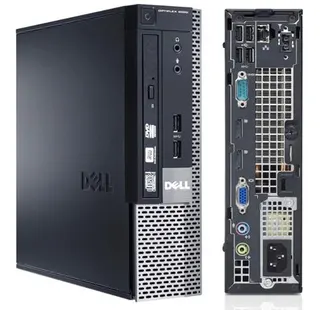

Ultra-small black and silver desktop tower with DVD slot

DELL

Dell OptiPlex 9020 USFF desktop PC i5-4570 3.2GHz 8GB DDR3 256GB SSD

SKU CH-PWDA-9M6W0

Ultra-small desktop with a 3.2 GHz quad-core processor, 8 GB DDR3 memory and a 256 GB SSD, plus DVD-RW, Gigabit Ethernet and Windows 10 Pro

  • TypeHome / Business
  • Form FactorUltra Small
  • UsageConsumer
  • ColorBlack/Silver
  • Processor4th Gen Intel Quad-Core i5-4570 3.20GHz
  • Processor Main Features64 bit Processor
  • Compact Ultra Small Form Factor fits tight workspaces
  • Quad-core i5-4570 at 3.2 GHz handles everyday multitasking
  • 8 GB DDR3 memory keeps multiple apps responsive
  • 256 GB SSD boots Windows 10 Pro quickly
  • DVD±RW drive reads and writes legacy media

Ultra Small Form Factor desktop

The Dell OptiPlex 9020 USFF is a compact business desktop powered by a 4th Gen Intel Quad-Core i5-4570 processor running at 3.20 GHz with a 3.60 GHz turbo boost. It comes configured with 8 GB of DDR3 RAM and a 2.5-inch 256 GB SSD for the operating system and applications. Windows 10 Pro 64-bit is pre-installed, and a USB keyboard and mouse are included in the box.

Sustained load behaviour

The Intel HD Graphics 4600 integrated GPU operates at a 350 MHz base frequency and can reach a 1.20 GHz maximum dynamic frequency under load. The processor's four cores and four threads handle multi-tasking workloads within the thermal limits of the ultra-small chassis. Gigabit Ethernet provides a stable wired network connection for continuous data transfers or remote management sessions.

Installation and common issues

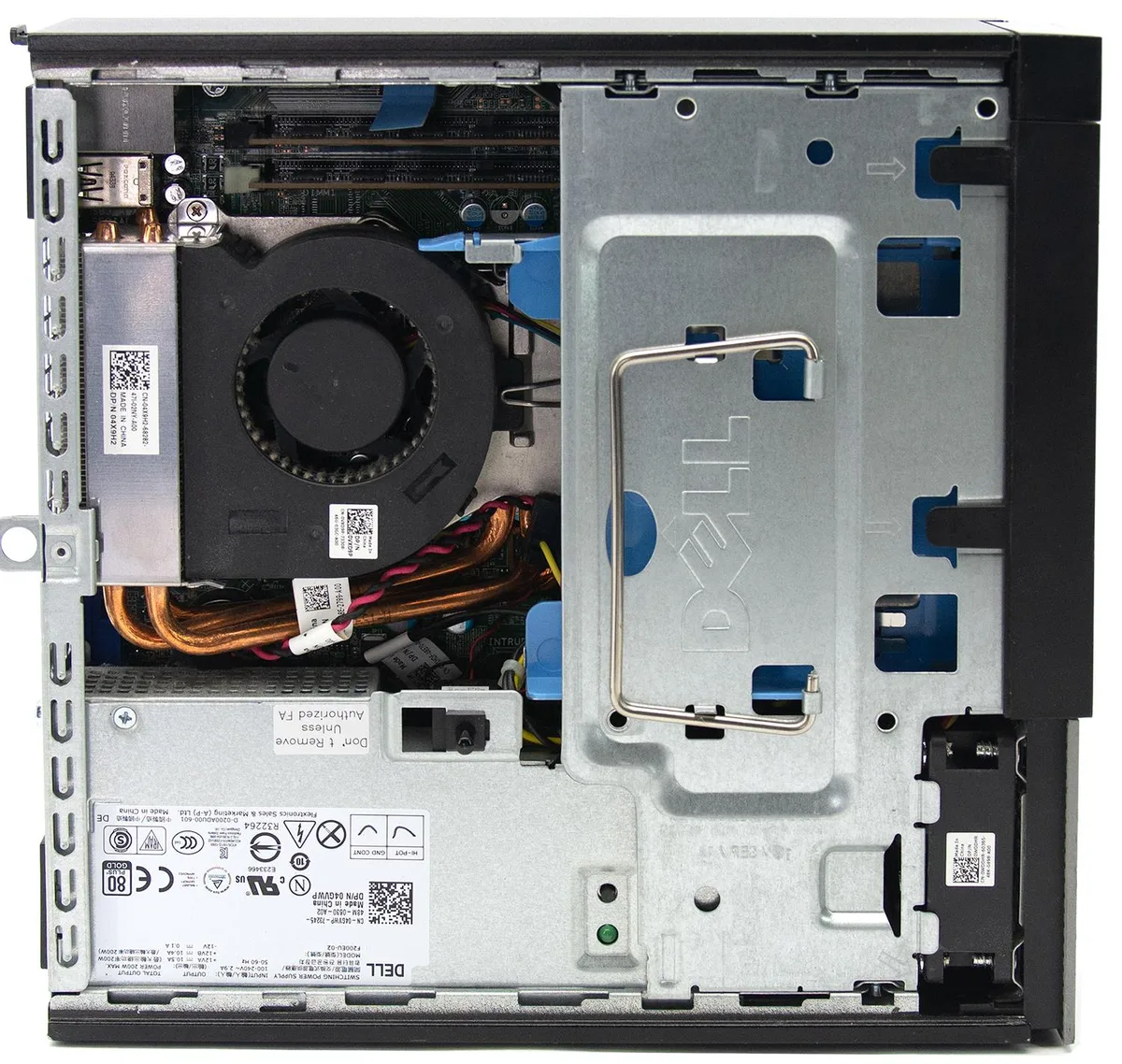

The USFF case saves desk space but offers very limited internal expansion room for additional drives or full-height cards. Memory upgrades use DDR3 desktop modules; the platform supports a maximum of 16 GB across its available slots. Video output includes DisplayPort and VGA, supporting up to three independent displays at resolutions up to 3840x2160@60Hz via DisplayPort.

Highlights

  • Compact Ultra Small Form Factor fits tight workspaces
  • Quad-core i5-4570 at 3.2 GHz handles everyday multitasking
  • 8 GB DDR3 memory keeps multiple apps responsive
  • 256 GB SSD boots Windows 10 Pro quickly
  • DVD±RW drive reads and writes legacy media

Specifications

BrandDELL
SeriesOptiPlex
Model9020
Part Number9020
TypeHome / Business
Form FactorUltra Small
UsageConsumer
ColorBlack/Silver
Processor4th Gen Intel Quad-Core i5-4570 3.20GHz
Processor Main Features64 bit Processor
Memory8 GB DDR3 Desktop RAM
Storage2.5" 256 GB Solid State Drive (SSD)
Optical DriveDVD±RW Drive
GraphicsIntel Graphics 4600
AudioSound card - Integrated
EthernetGigabit Ethernet
MonitorMonitor not included
CaseUltra Small Form Factor (USFF)
KeyboardUSB
MouseUSB
Operating SystemWindows 10 Pro
Software IncludedWindows 10 Pro Installed
ChipsetIntel Q87
CPU TypeIntel Core i5 4th Gen
Installed Qty1
Max Supported Qty1
CPU Name3.2GHz
CPU Socket TypeFCLGA1150
CPU Main Features64 bit Processor
GPU/VGA TypeIntel HD Graphics 4600
Graphics InterfaceIntegrated video
Memory Capacity8GB DDR3
Memory SpeedDDR3
Memory Spec2 GB x 4
Memory Slot (Total)4
Memory Slot (Available)0
Memory Slots (Available/Total)0/4
SSD256GB
HDDNo
HDD InterfaceSATA
Optical Drive TypeDVD+R/RW
Optical Drive 2 TypeDVD±RW
Screen SizeNo Screen
Audio ChipsetIntegrated
LAN ChipsetIntegrated
LAN Speed10/100/1000Mbps
WLANIEEE 802.11n
BluetoothYes
Front USB4
PS/22
Video Ports1 VGA, 2 Display Ports
Rear USB6
RJ451 port
Rear Audio Ports1x Headphone, 1x Microphone, 1x Line In
Keyboard TypeUSB Keyboard
Mouse TypeUSB Mouse
Dimensions (H x W x D)9.3 x 2.6 x 9.4
Weight8

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud does the Ultra Small Form Factor chassis get when the i5-4570 runs at 3.60 GHz Turbo Boost all day?

The compact USFF design uses a small internal fan that ramps up under sustained load; the 3.20 GHz quad-core processor and integrated Intel HD Graphics 4600 share the same thermal envelope, so fan noise rises noticeably during long multi-tasking sessions.

Which display cable do I need to connect a monitor to the Intel HD Graphics 4600 on this OptiPlex 9020?

The integrated graphics provide DisplayPort and VGA outputs; choose a DisplayPort cable for 3840x2160@60 Hz or a VGA cable for 1920x1200@60 Hz.

Will my existing DDR3 memory modules work alongside the installed 8 GB if I want to reach the 16 GB maximum?

The system uses DDR3 desktop RAM; matching speed and voltage lets you add modules up to the 16 GB limit.
