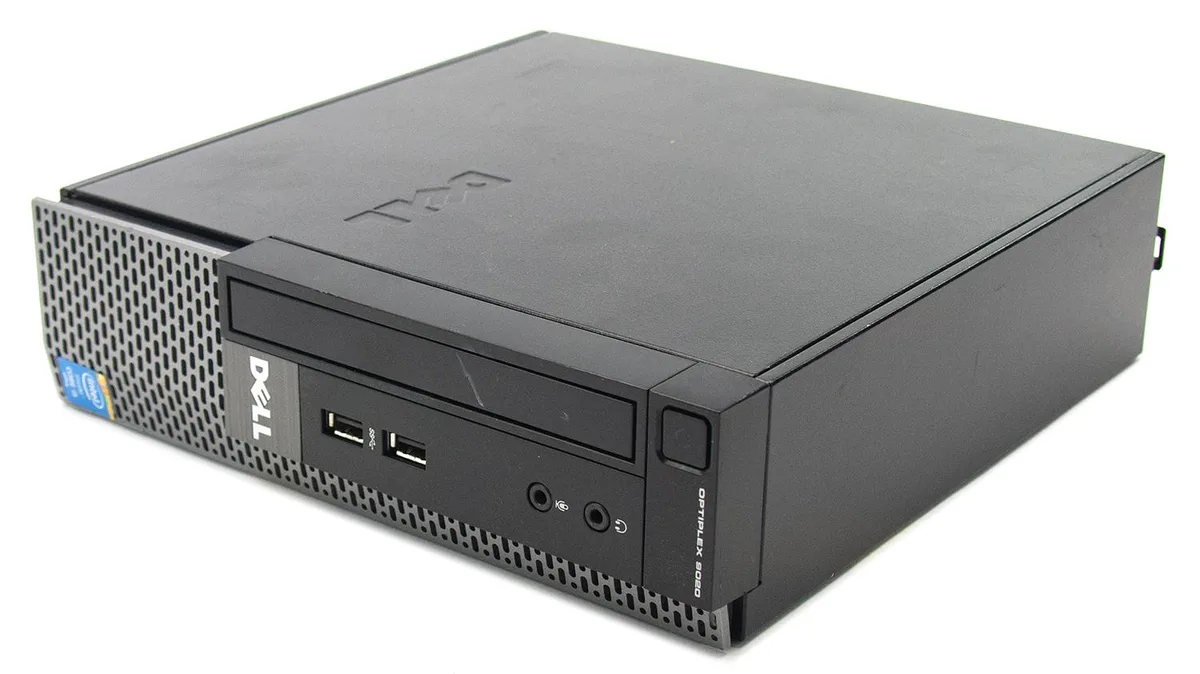

Ultra-small black and silver desktop tower with DVD slot

DELL

Dell OptiPlex 9020 USFF desktop PC i7-4770 3.4GHz 16GB DDR3 256GB SSD

SKU CH-7D6C-A50X5

Ultra-small desktop with a quad-core i7-4770, 16 GB DDR3, 256 GB SSD, DVD-RW and Windows 10 Pro

  • TypeHome / Business
  • Form FactorUltra Small
  • UsageConsumer
  • ColorBlack/Silver
  • Processor4th Gen Intel Quad-Core i7-4770 3.40GHz
  • Processor Main Features64 bit Processor
  • Quad-core i7-4770 at 3.40 GHz handles multitasking smoothly
  • 16 GB DDR3 memory keeps multiple apps responsive
  • 256 GB SSD boots Windows 10 Pro quickly
  • Ultra-small form factor fits tight desk spaces
  • DVD±RW drive reads and writes optical media

Ultra-small business desktop

The Dell OptiPlex 9020 USFF is a compact desktop computer built around a 4th Gen Intel Core i7-4770 processor running at 3.40 GHz. It ships with 16 GB of DDR3 memory and a 256 GB solid-state drive, plus a DVD±RW optical drive. Windows 10 Pro is pre-installed, and a USB keyboard and mouse are included in the box.

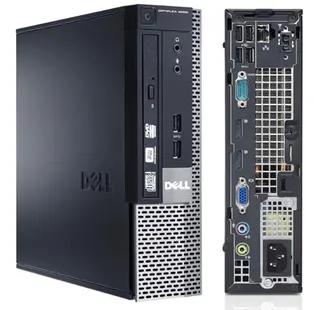

USFF chassis with legacy and modern ports

The ultra-small form factor case saves desk space while still housing a full-size optical drive and integrated Intel HD Graphics 4600. Video outputs support up to three simultaneous displays, with maximum resolutions of 4096x2304 at 24 Hz over HDMI 1.4 and 3840x2160 at 60 Hz over DisplayPort. Gigabit Ethernet provides wired network connectivity, and integrated audio handles sound without an add-in card.

DDR3 memory limits upgrade potential

The system uses 16 GB of DDR3 desktop RAM, which is the maximum capacity mentioned for this configuration. Buyers who need more memory or a newer memory standard will not be able to expand beyond what is installed. The 256 GB 2.5-inch SSD offers solid-state speed, but storage expansion depends on available drive bays not detailed here.

Highlights

  • Quad-core i7-4770 at 3.40 GHz handles multitasking smoothly
  • 16 GB DDR3 memory keeps multiple apps responsive
  • 256 GB SSD boots Windows 10 Pro quickly
  • Ultra-small form factor fits tight desk spaces
  • DVD±RW drive reads and writes optical media

Specifications

BrandDELL
SeriesOptiPlex
Model9020
Part Number9020
TypeHome / Business
Form FactorUltra Small
UsageConsumer
ColorBlack/Silver
Processor4th Gen Intel Quad-Core i7-4770 3.40GHz
Processor Main Features64 bit Processor
Memory16 GB DDR3 Desktop RAM
Storage2.5" 256 GB Solid State Drive (SSD)
Optical DriveDVD±RW Drive
GraphicsIntel Graphics 4600
AudioSound card - Integrated
EthernetGigabit Ethernet
CaseUltra Small Form Factor (USFF)
KeyboardUSB
MouseUSB
Operating SystemWindows 10 Pro
Software IncludedWindows 10 Pro Installed
ChipsetIntel Q87
CPU TypeIntel Core i7 4th Gen
Installed Qty1
Max Supported Qty1
CPU Name3.40GHz
CPU Socket TypeFCLGA1150
CPU Main Features64 bit Processor
GPU/VGA TypeIntel HD Graphics 4600
Graphics InterfaceIntegrated video
Memory Capacity16GB DDR3
Memory SpeedDDR3
Memory Spec4 GB x 4
Memory Slot (Total)4
Memory Slot (Available)0
Memory Slots (Available/Total)0/4
SSD256GB
HDDNo
HDD InterfaceSATA
Optical Drive TypeDVD+R/RW
Optical Drive 2 TypeDVD±RW
Screen SizeNo Screen
Audio ChipsetIntegrated
LAN ChipsetIntegrated
LAN Speed10/100/1000Mbps
WLANIEEE 802.11n
BluetoothYes
Front USB4
PS/22
Video Ports1 VGA, 2 Display Ports
Rear USB6
RJ451 port
Rear Audio Ports1x Headphone, 1x Microphone, 1x Line In
Keyboard TypeUSB Keyboard
Mouse TypeUSB Mouse
Dimensions (H x W x D)9.3 x 2.6 x 9.4
Weight8

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DisplayPort version does the Intel HD Graphics 4600 use, and what 4K refresh rate does it support?

The integrated graphics drive DisplayPort at 3840x2160@60Hz for 4K output.

What chassis clearance and drive bay size does the Ultra Small Form Factor require for the 256 GB SSD?

The USFF case fits a 2.5" drive in its internal bay; no 3.5" bracket is needed.

How is the 16 GB DDR3 memory installed, and which slot-count mistake do builders make?

Two 8 GB DDR3 DIMMs populate the two SO-DIMM slots; buying a single 16 GB stick leaves one slot empty and limits dual-channel bandwidth.
