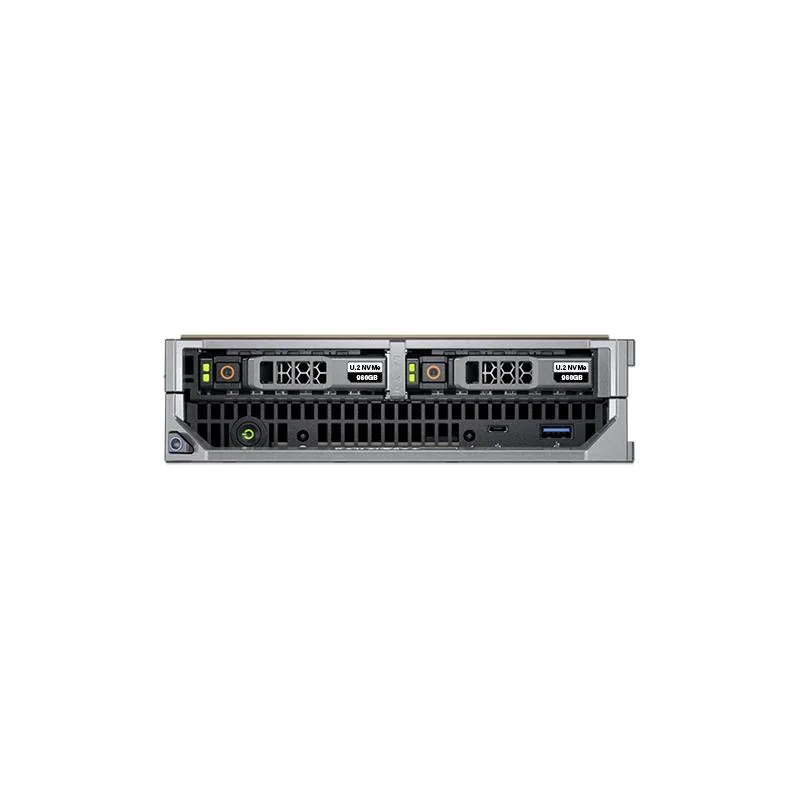

Half-height blade server, silver metal chassis, two drive bays visible

DELL

DELL PowerEdge M640 Blade 2x Xeon Gold 6154 18C 512GB DDR4 2x 1.92TB SAS 57810S-K iDRAC9 Ent

SKU CH-CEN8-539JS

Half-height blade server with dual 18-core Xeon Gold 6154 CPUs, 512 GB DDR4, dual 1.92 TB SAS SSDs, H330 RAID, 10 Gb dual-port networking and iDRAC9 Enterprise management

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed3.00 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores18-Core Processor
  • Dual 18-core Xeon Gold 6154 CPUs deliver 36 threads at 3.0 GHz base clock
  • 512 GB DDR4 2666 MHz ECC memory across 16 slots for large workloads
  • Dual 1.92 TB SAS SSDs on PERC H330 controller with RAID 0/1/5/10/50
  • Broadcom 57810S-K dual-port 10 Gb blade network daughter card for high-speed I/O
  • iDRAC9 Enterprise remote management enables full out-of-band server control

Blade server for virtualisation and HPC

The Dell EMC PowerEdge M640 is a half-height blade server built for dense compute in PowerEdge MX or M1000e chassis. Two Intel Xeon Gold 6154 processors provide 36 cores at 3.0 GHz with 3.7 GHz turbo, and 512 GB of DDR4 2666 MHz registered ECC memory fills all 16 slots. A PERC H330 controller manages two 1.92 TB SAS SSDs in RAID 0, 1, 5, 10 or 50, while a Broadcom 57810S-K daughter card supplies dual 10 Gb network ports and iDRAC9 Enterprise handles remote management.

Suits dense compute clusters.

This blade fits organisations that need high core counts and large memory in a shared chassis for virtualisation, private cloud or high-performance computing workloads. Buyers who require GPU acceleration, front-accessible NVMe bays, or a standalone rack-mount form factor should consider other platforms. The installed Matrox G200 graphics provides only basic console output, and the H330 controller does not support NVMe drive arrays.

Dual 10 Gb network daughter card decides fabric fit

The Broadcom 57810S-K 10Gb dual-port blade network daughter card is the single specification that determines whether this server matches the existing chassis fabric. If the infrastructure runs 10 Gb Ethernet uplinks, the card integrates directly; if the fabric uses a different speed or protocol, a compatible daughter card must be sourced separately.

Highlights

  • Dual 18-core Xeon Gold 6154 CPUs deliver 36 threads at 3.0 GHz base clock
  • 512 GB DDR4 2666 MHz ECC memory across 16 slots for large workloads
  • Dual 1.92 TB SAS SSDs on PERC H330 controller with RAID 0/1/5/10/50
  • Broadcom 57810S-K dual-port 10 Gb blade network daughter card for high-speed I/O
  • iDRAC9 Enterprise remote management enables full out-of-band server control

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed3.00 GHz
CPU SocketLGA 3647
Number of CPU Cores18-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size512GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 1.92TB SAS SSD
Raid LevelRAID 0/1/5/10/50
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Questions about this item

Which chassis does the M640 blade fit into?

The half-height blade installs in a PowerEdge MX or M1000e enclosure that provides power, cooling and fabric interconnects.

How do I install the two Xeon Gold 6154 processors into the LGA 3647 sockets?

Align each CPU with the socket keying, lower the load plate gently, and torque the retention screws in the labelled cross pattern to avoid uneven pressure.

When should the 1.92TB SAS SSDs or the H330 controller battery be replaced?

Monitor SSD wear via iDRAC9 Enterprise and swap drives before the rated endurance is exhausted; replace the controller cache battery when the health status reports degradation.
