DELL
DELL PowerEdge MX760C rack server 2x Gold 6526Y 2.8GHz 16C 64GB 4x 960GB SSD H755
Half-width blade server with dual 16-core 2.8 GHz CPUs, 64 GB DDR4, four 960 GB SATA SSDs and H755 MX RAID
- TypeRack
- Rack HeightHalf Width Blade
- CPU TypeIntel
- Hard Drive (Installed)4x 960GB SATA SSD
- Storage ControllerH755 MX
- Max HDD Capacity6x 2.5" Drive Bays
- Dual 16-core Intel Gold 6526Y processors deliver high multi-thread throughput
- 64GB DDR4 memory at 5600 MT/s supports demanding virtualisation workloads
- Four 960GB SATA SSDs on H755 MX RAID controller provide fast redundant storage
- Half-width blade fits 6x 2.5" drive bays in MX760C chassis for dense compute
- iDRAC9 Express and 2x 25Gb CNA mezzanine enable remote management and high-speed networking

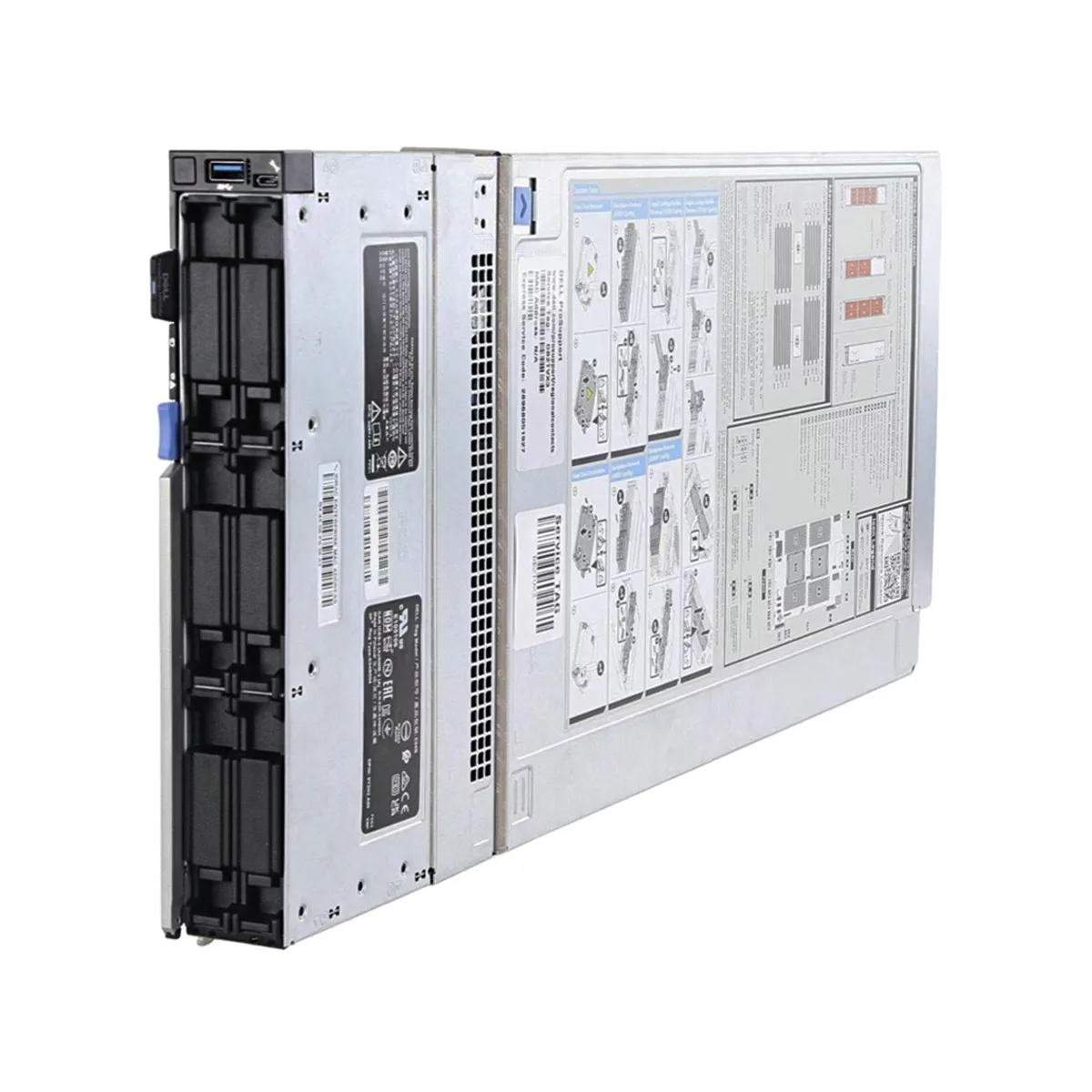

Half-Width Blade Server
The Dell PowerEdge MX760C is a half-width blade server designed for dense compute deployments. It ships with two Intel Gold 6526Y processors running at 2.8GHz, each providing 16 cores. The system includes 64GB of DDR4 memory across four 16GB modules. Four 960GB SATA SSDs and an H755 MX storage controller complete the storage subsystem.
Target Deployment Scenarios
This configuration suits organisations needing high core counts in a compact blade form factor with integrated 25Gb networking. The half-width design allows two nodes per slot in a compatible Dell PowerEdge MX chassis. Buyers who require more than six 2.5-inch drive bays or who lack the necessary MX-series chassis infrastructure should consider alternative platforms. The pre-installed iDRAC9 Express provides essential remote management capabilities.
Deciding Specification
The six 2.5-inch drive bays with four populated by 960GB SATA SSDs define the immediate storage capacity and expansion headroom. Two bays remain available for additional drives. The H755 MX controller manages the array. This drive bay count is the primary constraint for storage scaling within this specific blade.
Highlights
- Dual 16-core Intel Gold 6526Y processors deliver high multi-thread throughput
- 64GB DDR4 memory at 5600 MT/s supports demanding virtualisation workloads
- Four 960GB SATA SSDs on H755 MX RAID controller provide fast redundant storage
- Half-width blade fits 6x 2.5" drive bays in MX760C chassis for dense compute
- iDRAC9 Express and 2x 25Gb CNA mezzanine enable remote management and high-speed networking
Specifications
| Brand | DELL |
|---|---|
| Model | 000000031398 |
| Type | Rack |
| Rack Height | Half Width Blade |
| CPU Type | Intel |
| Hard Drive (Installed) | 4x 960GB SATA SSD |
| Storage Controller | H755 MX |
| Max HDD Capacity | 6x 2.5" Drive Bays |
| Remote Management | iDRAC9 Express |
Questions about this item
How do I verify the iDRAC9 Express remote management is active after powering on the MX760C?
Connect to the iDRAC9 Express web interface using the assigned IP address; the dashboard will show both Gold 6526Y processors, 64GB DDR4 memory, and the four 960GB SATA SSDs behind the H755 MX controller.
What ships inside the half-width blade and which items must be sourced separately?
The blade includes two Gold 6526Y CPUs, four 16GB DDR4 modules, four 960GB SATA SSDs, the H755 MX RAID controller, and one MX Marvell FastLinQ 41262 2x 25Gb CNA mezzanine card; Fabric A, B, and C switch or pass-through modules are not included.
Which drive capacity matches the installed 960GB SATA SSDs if I need to expand within the six 2.5-inch bays?
Add additional 960GB SATA SSDs to fill the two empty 2.5-inch bays, keeping capacity consistent with the four factory-installed drives managed by the H755 MX controller.
