Silver 1U rack server with front drive bays and DVD slot

DELL

DELL PowerEdge R230 1U rack server E3-1220v5 4GB 2x 300GB SAS H330

SKU CH-0JNS-0GHXQ

1U rack server with Xeon E3-1220v5, 4GB DDR4, two 300GB 15K SAS drives and H330 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236

Installed Memory Size 4GB

HDD 2 x 300GB 15K

Struck-through versions exist but are not stocked here.

  • Quad-core Xeon E3-1220v5 at 3.0 GHz for responsive compute
  • 4 GB DDR4 installed with four slots supporting up to 64 GB
  • Two 300 GB 15K SAS drives on H330 controller with RAID 0/1/5/10/50/60
  • 1U rack form factor fits dense deployments
  • Dual 1 GbE ports plus iDRAC8 remote management

1U rack server for small workloads

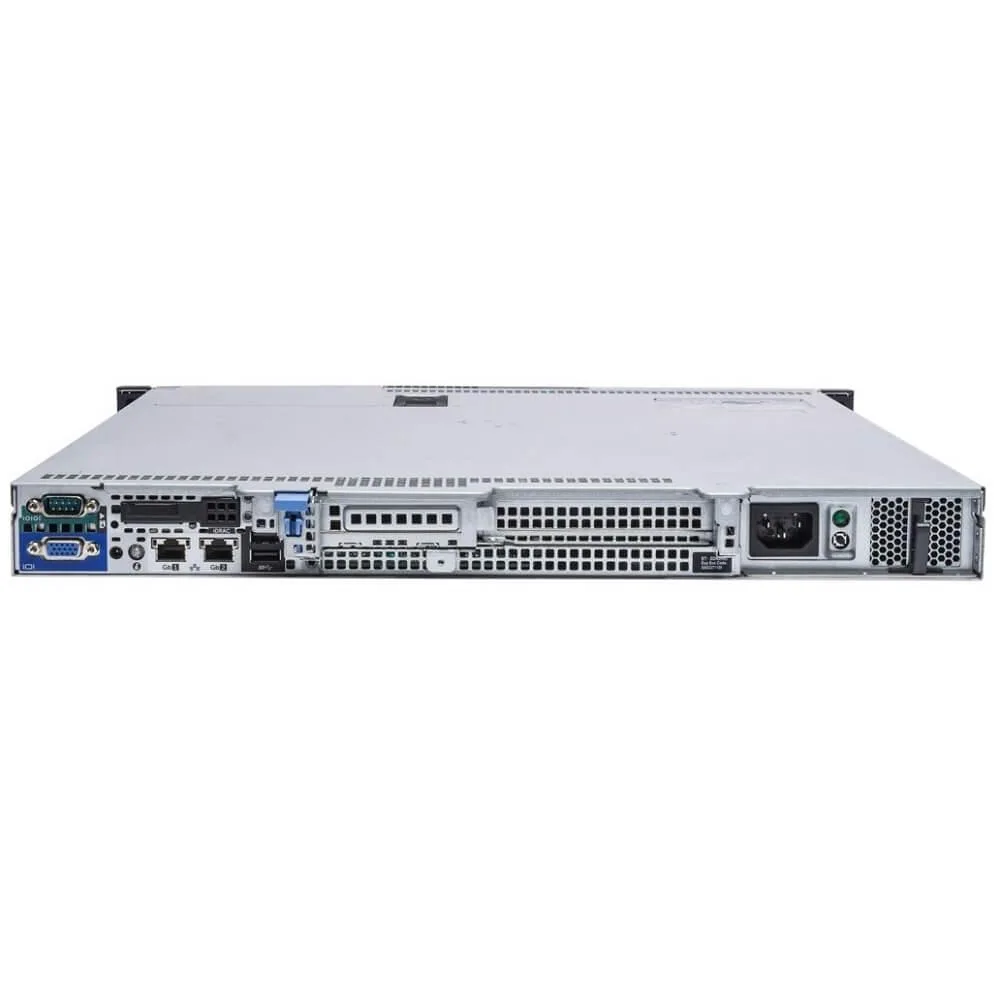

The Dell PowerEdge R230 is a 1U rack server built around a single Intel Xeon E3-1220v5 quad-core processor running at 3GHz. It ships with 4GB of DDR4 memory and two 300GB 15K SAS drives managed by a PERC H330 RAID controller supporting RAID 0, 1, 5, 10, 50 and 60. The chassis includes a DVD-ROM drive, a 250W cabled power supply and dual 1GbE network ports. It is suited for basic file, print or web serving in space-constrained racks.

Check power, memory ceiling and bay count

Verify that your rack can supply standard AC power for the fixed 250W cabled unit, as no redundant hot-swap option is present. The system supports a maximum of 4GB installed memory despite four DIMM slots accepting larger modules, so plan for the 4GB limit unless a processor upgrade changes the ceiling. Only two 3.5-inch cabled drive bays are available, restricting internal storage to the supplied SAS drives or SATA replacements. Two PCIe 3.0 slots provide one full-height x16 and one low-profile x8 for add-in cards.

Replaces older 1U single-socket towers

This server upgrades from older single-socket 1U systems that lack DDR4 memory and 12Gbps SAS connectivity. The jump is worth it when you need 15K SAS performance and hardware RAID 5 or 6 in a 1U form factor without moving to a dual-socket platform. It does not suit buyers who need more than two internal drives, redundant power supplies or memory beyond 4GB. Remote management uses iDRAC8 Express with optional Enterprise upgrades.

Highlights

  • Quad-core Xeon E3-1220v5 at 3.0 GHz for responsive compute
  • 4 GB DDR4 installed with four slots supporting up to 64 GB
  • Two 300 GB 15K SAS drives on H330 controller with RAID 0/1/5/10/50/60
  • 1U rack form factor fits dense deployments
  • Dual 1 GbE ports plus iDRAC8 remote management

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R230
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size4GB
Memory TypeDDR4
Max Memory Capacity4GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots: x16 slot, full-height (1x8 3.0)+ x8 slot, low-profile (1x4 3.0).
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight35.0000LBS

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the server ship with rails, bezel or cables, or must I buy them separately?

A power cable is included; rail kit, bezel, mouse, keyboard and video cable are not included.

The spec lists 4 GB installed but mentions 64 GB maximum — which modules should I select?

Four DIMM slots accept DDR4 4 GB, 8 GB or 16 GB modules up to 2400 MT/s; populate in matched pairs for best performance.

What usable capacity do the two 300 GB 15 K SAS drives give with the H330 controller?

In RAID 1 you get 300 GB of mirrored space; RAID 0 provides the full combined capacity of both drives.
