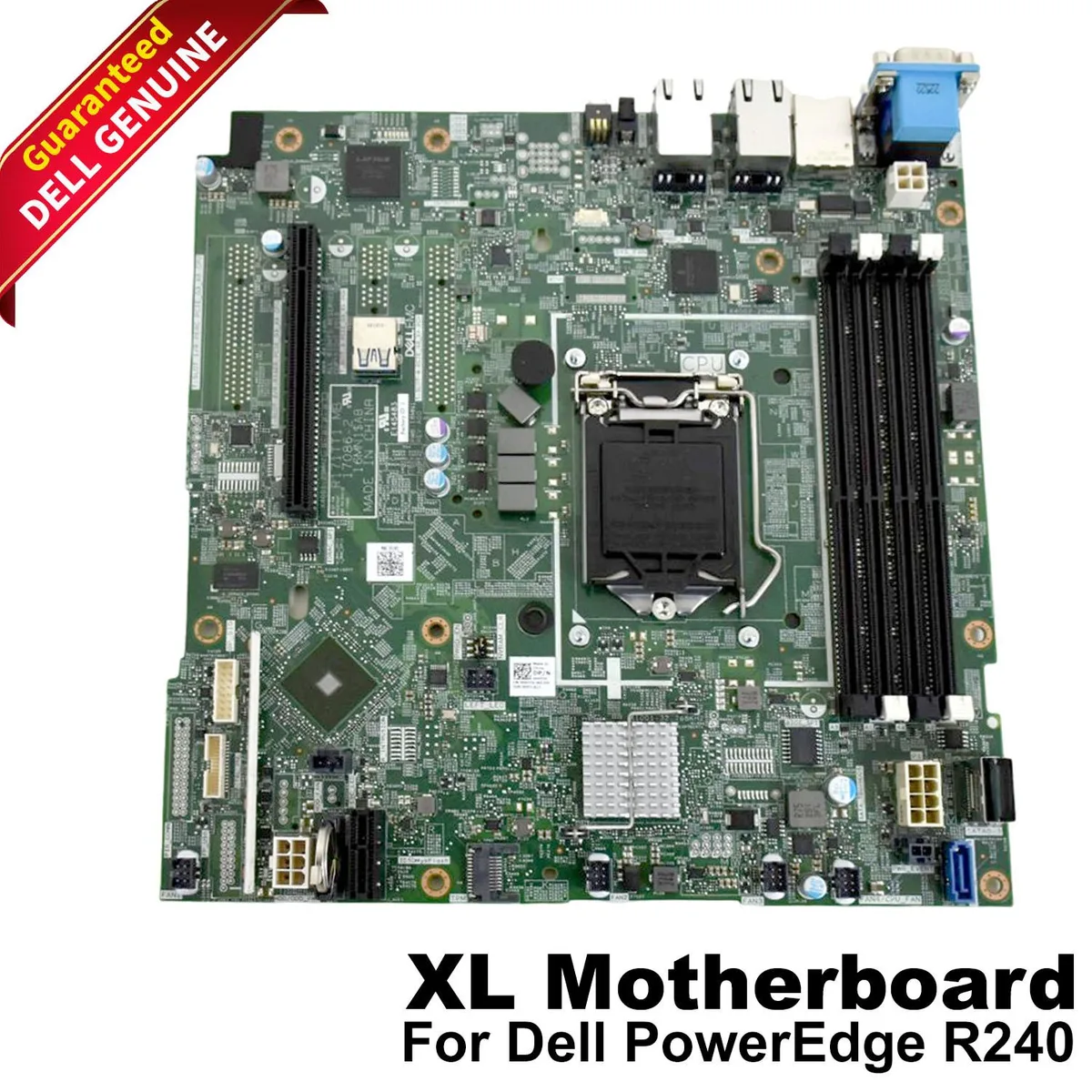

Green server motherboard with silver heatsinks, multiple expansion slots and rear I/O panel

DELL

DELL PowerEdge R240 XL Motherboard Intel C242 0KFFK

SKU CH-PM45-ZBFST

Server motherboard for Dell PowerEdge R240 XL with Intel C242 chipset, four DDR4 slots up to 64 GB, PCIe 3.0 x16, integrated dual 1GbE and SATA RAID options

  • CPU TypeMotherboard
  • Supports up to 64GB DDR4 ECC memory for demanding workloads
  • Intel C242 chipset enables Xeon E-2100 and E-2200 processor compatibility
  • Four DDR4 DIMM slots provide flexible memory configuration options
  • Integrated dual 1GbE Broadcom BCM5720 NICs deliver reliable network connectivity
  • PCIe 3.0 x16 expansion slot accommodates high-performance add-in cards

Server Motherboard for PowerEdge R240 XL

This motherboard is the Intel C242-based system board for the Dell PowerEdge R240 XL server. It provides the foundation for a 1U rack platform aimed at small to medium business workloads such as virtualization and data management. The board integrates dual 1GbE Broadcom BCM5720 controllers and an integrated SATA controller supporting up to four drives. Rear I/O includes two USB 3.0 ports, two RJ-45 ports, VGA, a serial port and an iDRAC Direct micro-USB connection.

Processor and Expansion Fit

It suits IT teams building or repairing a PowerEdge R240 XL that need support for Intel Xeon E-2100 and E-2200 series processors as well as Intel Pentium, Core i3 and Celeron CPUs. The board offers four DDR4 DIMM slots and a single PCIe 3.0 x16 slot for add-in cards such as RAID controllers. Organisations requiring more than one full-length expansion slot or memory beyond 64 GB should consider a different platform.

64 GB DDR4 ECC UDIMM Limit

The decisive specification is the 64 GB maximum DDR4 ECC UDIMM capacity across four slots running at up to 2666 MT/s. If the target workload needs more memory than this ceiling, the board will not meet the requirement.

Highlights

  • Supports up to 64GB DDR4 ECC memory for demanding workloads
  • Intel C242 chipset enables Xeon E-2100 and E-2200 processor compatibility
  • Four DDR4 DIMM slots provide flexible memory configuration options
  • Integrated dual 1GbE Broadcom BCM5720 NICs deliver reliable network connectivity
  • PCIe 3.0 x16 expansion slot accommodates high-performance add-in cards

Specifications

CPU TypeMotherboard

Questions about this item

Should I pick the E-2100 or E-2200 series Xeon for this board?

Both Intel Xeon E-2100 and E-2200 series processors are supported; choose E-2200 for newer architecture or E-2100 if you already own compatible CPUs.

What does the 64 GB DDR4 limit mean for my virtualization hosts?

Four DDR4 ECC UDIMM slots run up to 2666 MT/s, giving a 64 GB ceiling that suits light to moderate virtualization workloads.

Does the integrated SATA controller cap my drive speed or RAID choice?

The onboard SATA controller handles up to four 3.5" or 2.5" drives and works with H330, H730P or software RAID S140 for redundancy.
