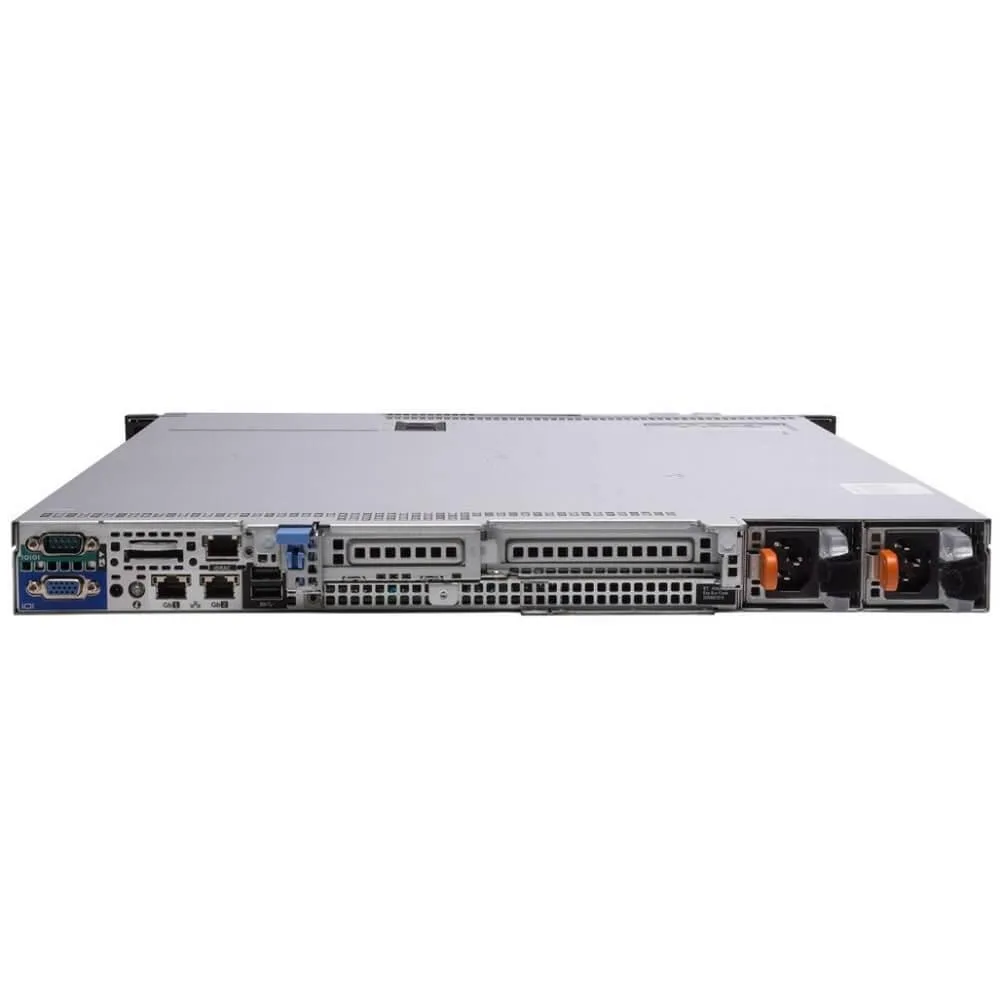

Silver 1U rack server with four front drive bays and dual power supplies

DELL

DELL PowerEdge R330 1U Rack Server E3-1220 v5 16GB 4x 2TB SAS H730 2x 350W

SKU CH-B18D-HJP00

1U rack server with Xeon E3-1220 v5, 16GB DDR4, four 2TB SAS drives on H730 RAID controller and dual 350W power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236
  • Quad-core Xeon E3-1220 v5 at 3.0 GHz handles core workloads
  • 16 GB DDR4 memory supports up to 64 GB total capacity
  • Four 2 TB 7.2K SAS drives deliver 8 TB raw storage
  • H730 1 GB 12 Gbps RAID controller enables RAID 0/1/5/6/10/50/60
  • Dual 350 W redundant hot-swap power supplies maintain uptime

1U Rack Server for Small Business

The Dell PowerEdge R330 is a 1U rack server built for small businesses and remote offices needing a compact, single-socket platform. It ships with an Intel Xeon E3-1220 v5 quad-core processor at 3 GHz, 16 GB of DDR4 memory, and four 2 TB 7.2K SAS drives managed by a Perc H730 RAID controller. Dual 350 W hot-swap power supplies provide redundancy.

Upgrade From Tower or Older 1U Systems

This server replaces tower workstations acting as file or application servers and older 1U units limited to SATA or 3 Gbps SAS backplanes. The jump is worth it when you need hardware RAID 0, 1, 5, 6, 10, 50 or 60 with 1 GB cache, 12 Gbps SAS throughput, and hot-plug drive bays in a single rack unit. It is not for workloads requiring dual processors, more than 64 GB RAM, or GPU compute.

Limits of 12 Gbps SAS and PCIe 3.0

The H730 controller and 12 Gbps SAS backplane cap sequential throughput at the drive level; spinning 7.2K disks will saturate well below the interface ceiling. Two PCIe 3.0 slots and one internal storage slot limit add-in cards to x8 electrical width and generation 3 speeds. The integrated Matrox G200 video and dual 1 GbE ports restrict modern display and 10 GbE networking needs.

Highlights

  • Quad-core Xeon E3-1220 v5 at 3.0 GHz handles core workloads
  • 16 GB DDR4 memory supports up to 64 GB total capacity
  • Four 2 TB 7.2K SAS drives deliver 8 TB raw storage
  • H730 1 GB 12 Gbps RAID controller enables RAID 0/1/5/6/10/50/60
  • Dual 350 W redundant hot-swap power supplies maintain uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R330
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots + 1 slot for internal storage.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Questions about this item

What rack depth does the 1U PowerEdge R330 chassis require?

The chassis measures 18.99 inches long, so the rack must provide at least that much clear depth behind the front mounting flanges.

Which step is often missed when seating the four 3.5-inch SAS drives and the H730 controller?

The drives must be inserted into the hot-plug bays until the carrier latch clicks, then the H730 must be configured in the controller BIOS before the operating system sees any RAID volume.

When will the redundant 350W power supplies need replacement?

Replace a unit when the iDRAC8 reports a power-supply fault or the front-panel amber LED stays lit, indicating one supply has failed and redundancy is lost.
